MORGAN RC
A division of www.morganmill.com

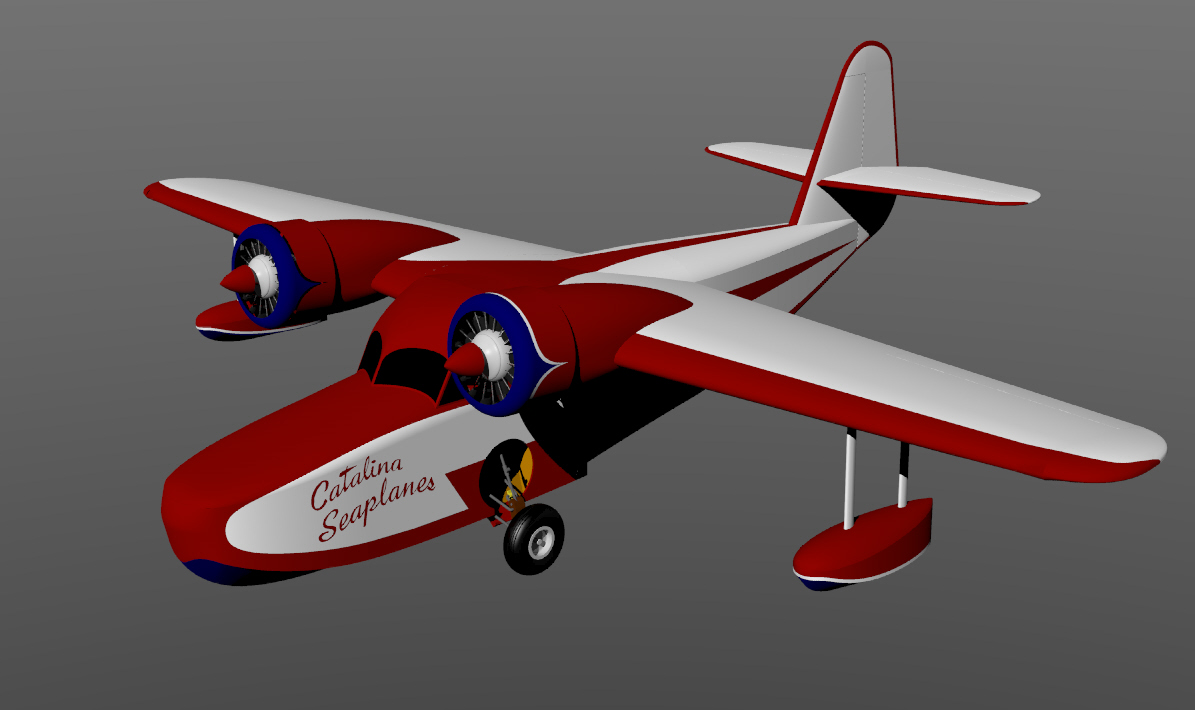

Grumman Goose
Status:
Prototype is Airbourne!!!
Prototype is Airbourne!!!
What you will need:
Hardware :

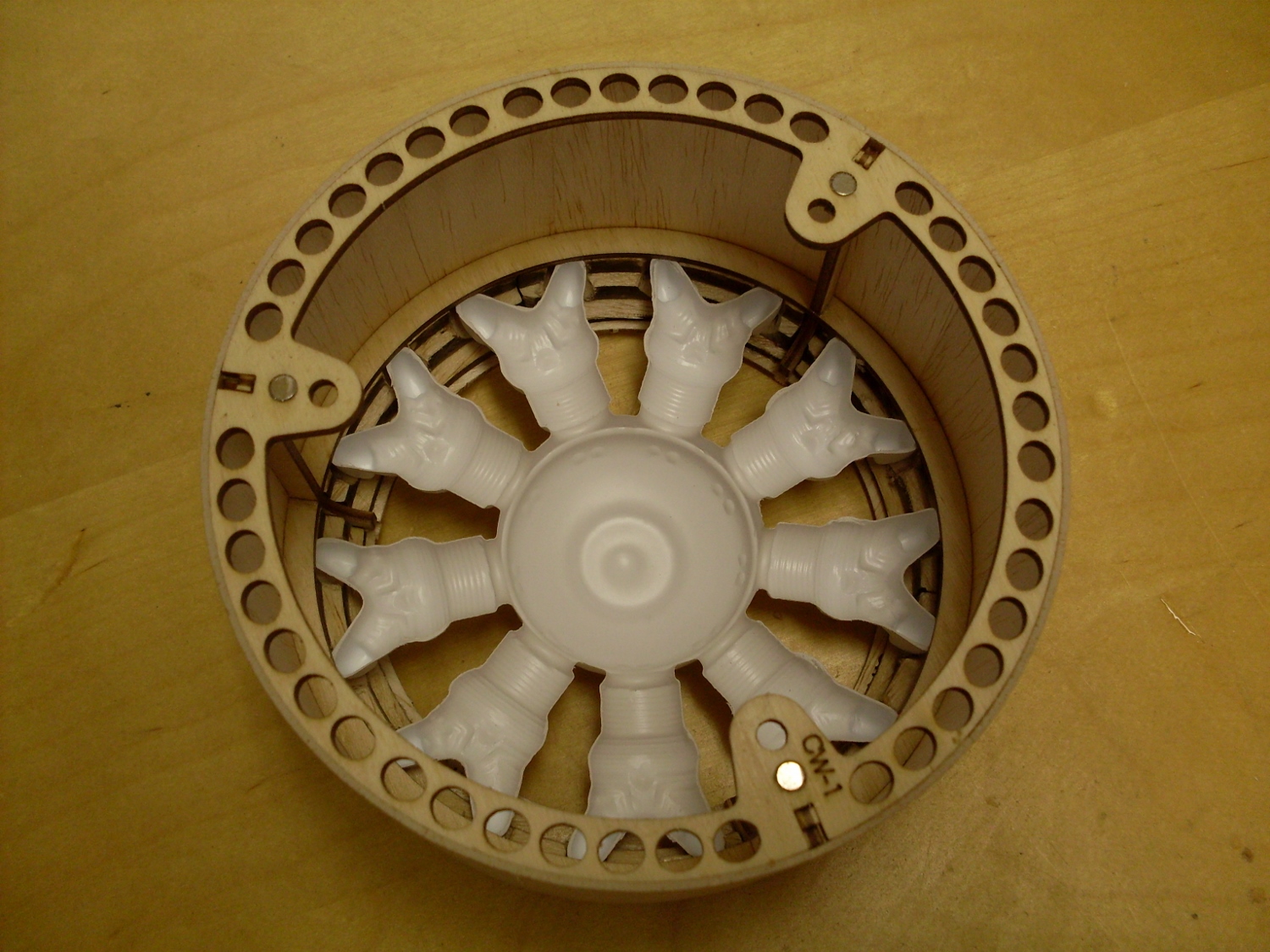

2x parkflyerplastics 5 7/8'' 9cyl radial front
10mm brass wing joiner tubes and matching inner cf tube
5mm cf tube for tip floats
10 pairs 5x3mm round magnets

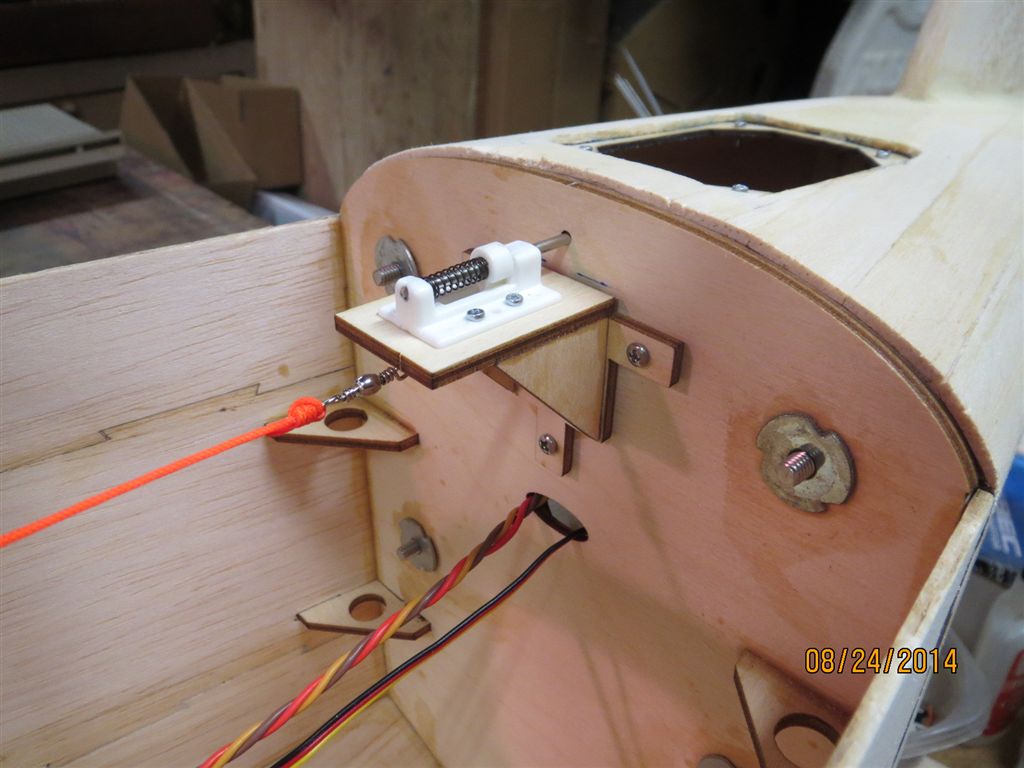

HK Retractable tailwheel unit
Robart 4'' scale wheels
Dubro gear staps , 8x3/16 and 4x 5/32
8x M6 nylon screw/bolt and nut or us equivalent.
3mm steel wire
4mm steel wire
2x 4mm lever (nose steering lever)
2x small spring ( for gear doors )
Stainless steel screws and small hardware
3x 6pin MPX servo connector
2x pair EC3 power cable connector
servo cable , power cable
Control rods
flex control rod for tailwheel
Glass cloth / resin / PU
Coveringfilm
thin clear plastic sheet for windows
Spinners
Canopy lock
Hardsolder to make gear parts.
Hardware :
2x parkflyerplastics 5 7/8'' 9cyl radial front
10mm brass wing joiner tubes and matching inner cf tube
5mm cf tube for tip floats
10 pairs 5x3mm round magnets
HK Retractable tailwheel unit
Robart 4'' scale wheels
Dubro gear staps , 8x3/16 and 4x 5/32
8x M6 nylon screw/bolt and nut or us equivalent.
3mm steel wire
4mm steel wire
2x 4mm lever (nose steering lever)
2x small spring ( for gear doors )
Stainless steel screws and small hardware
3x 6pin MPX servo connector
2x pair EC3 power cable connector
servo cable , power cable
Control rods
flex control rod for tailwheel
Glass cloth / resin / PU
Coveringfilm
thin clear plastic sheet for windows
Spinners
Canopy lock
Hardsolder to make gear parts.

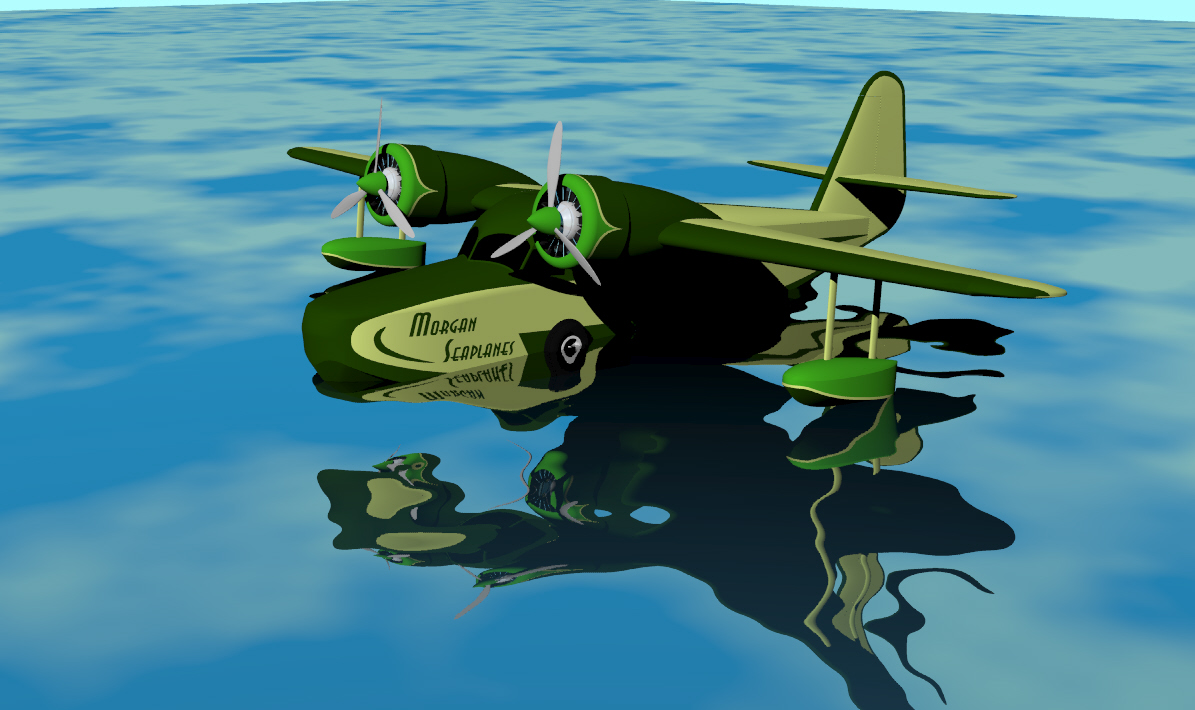

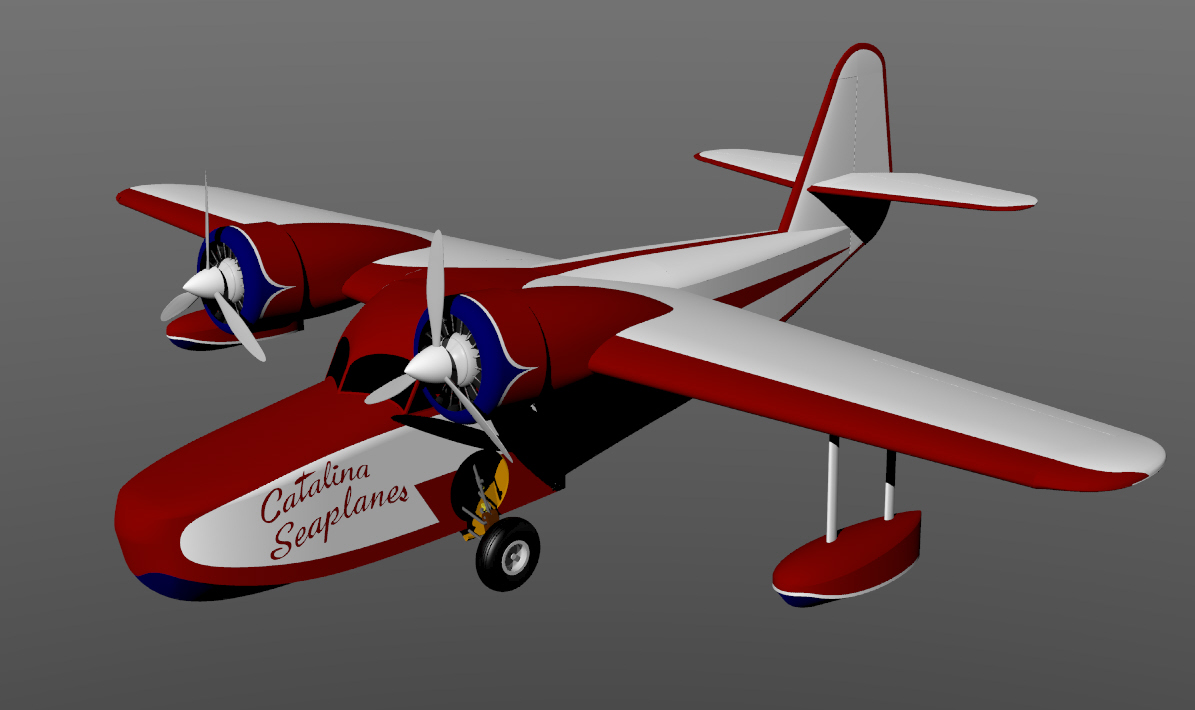

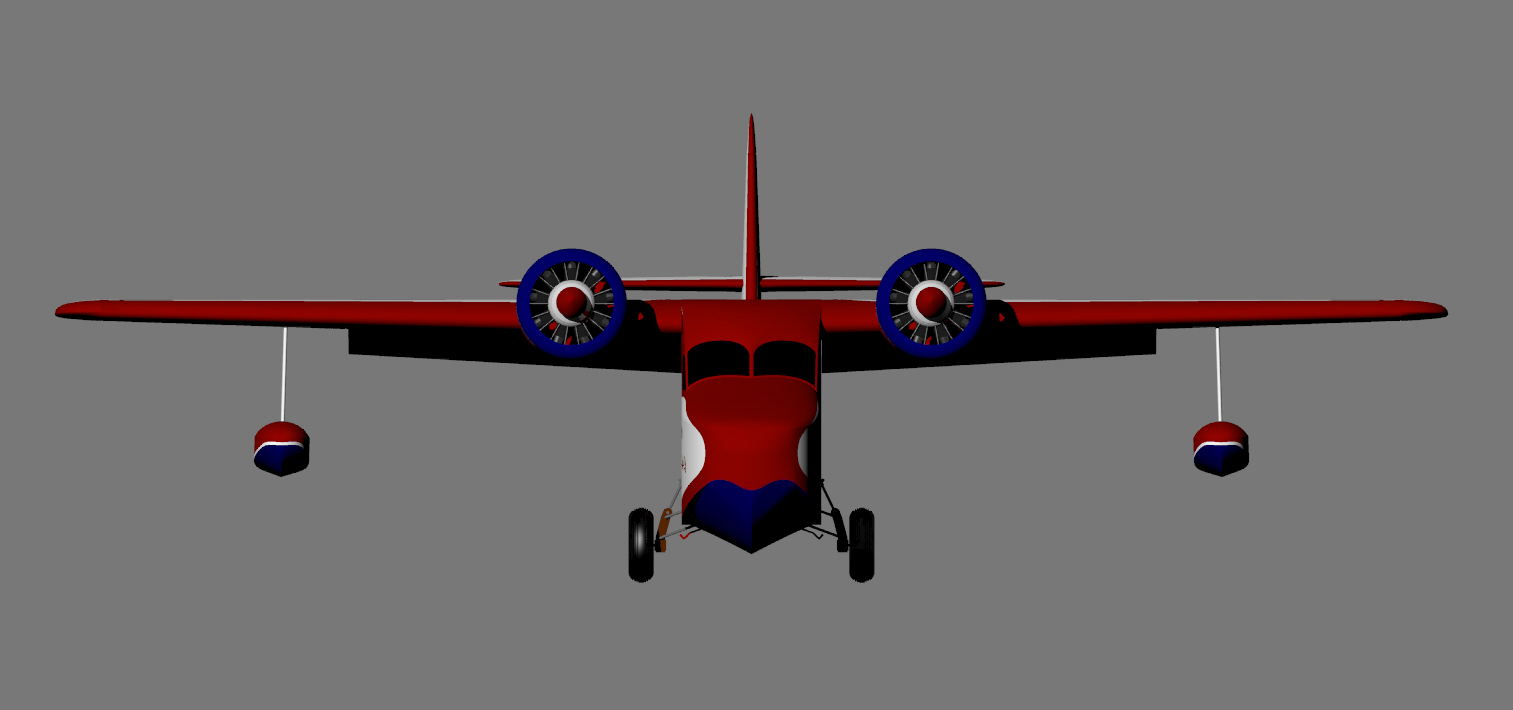

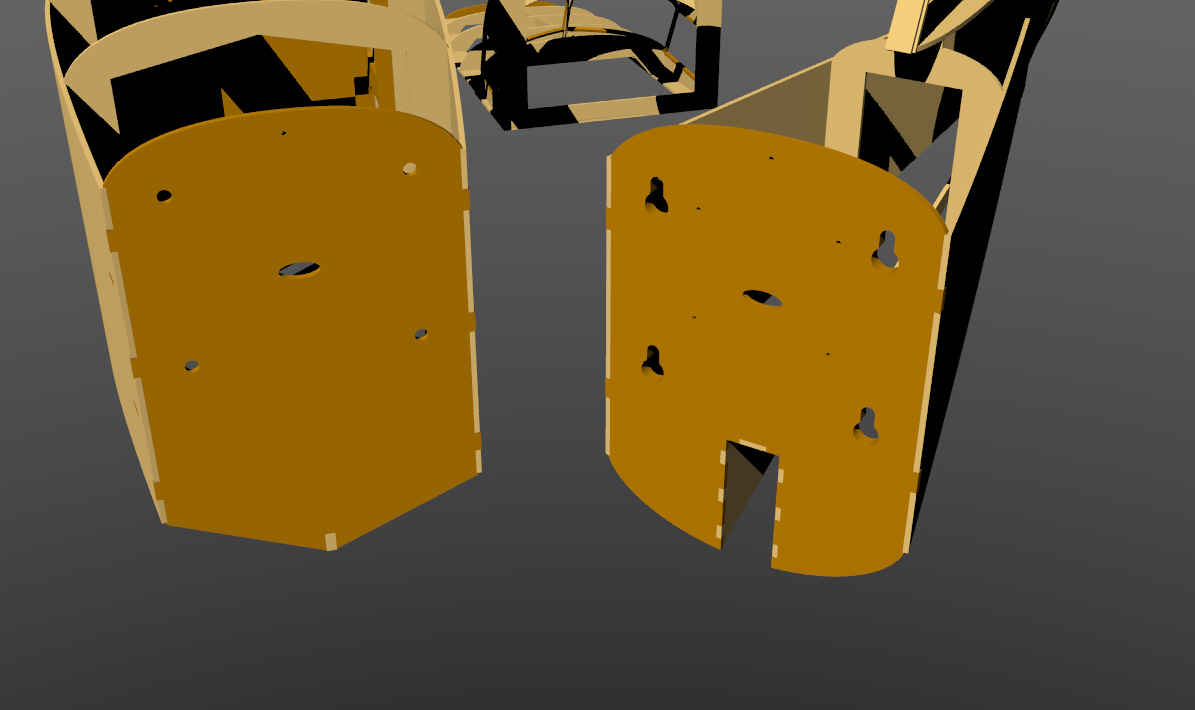

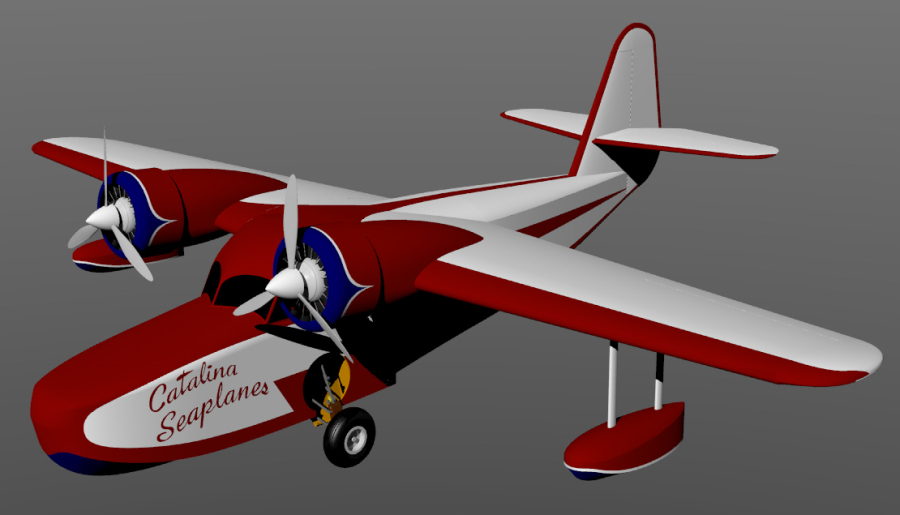

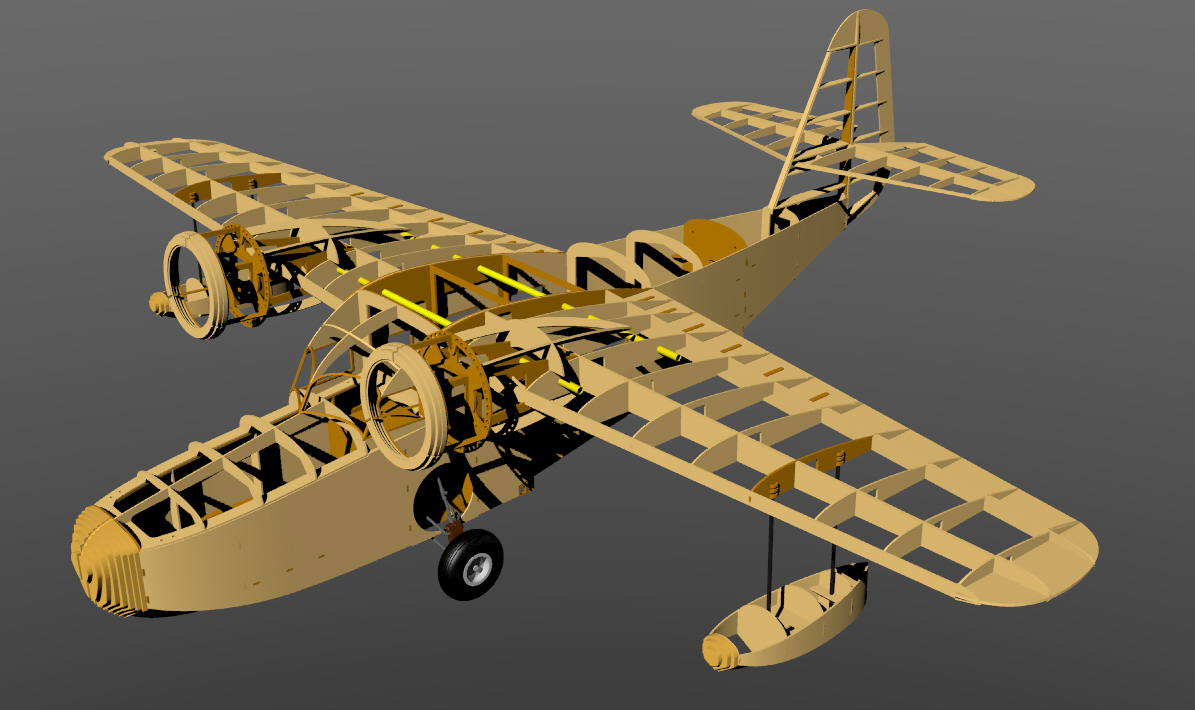

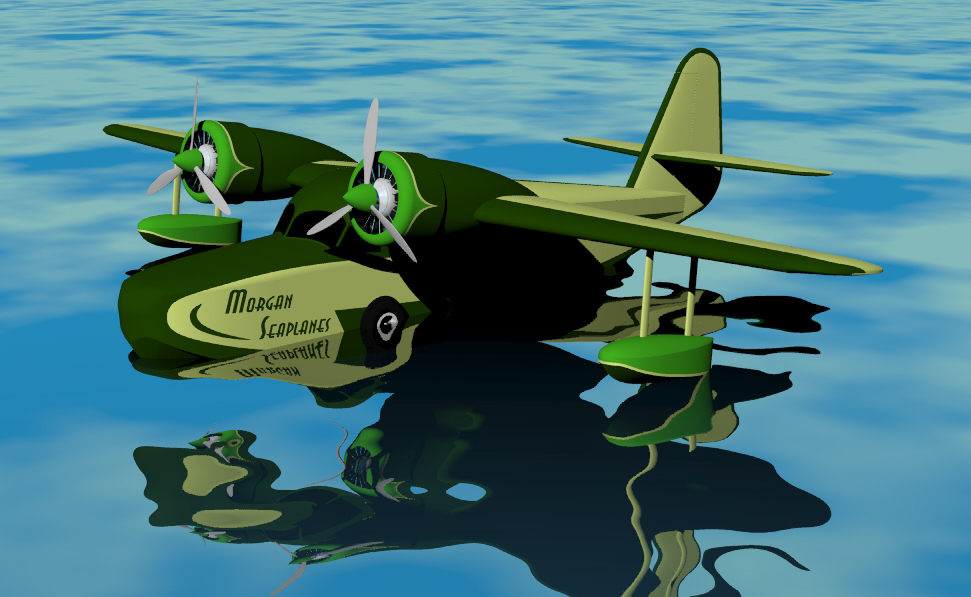

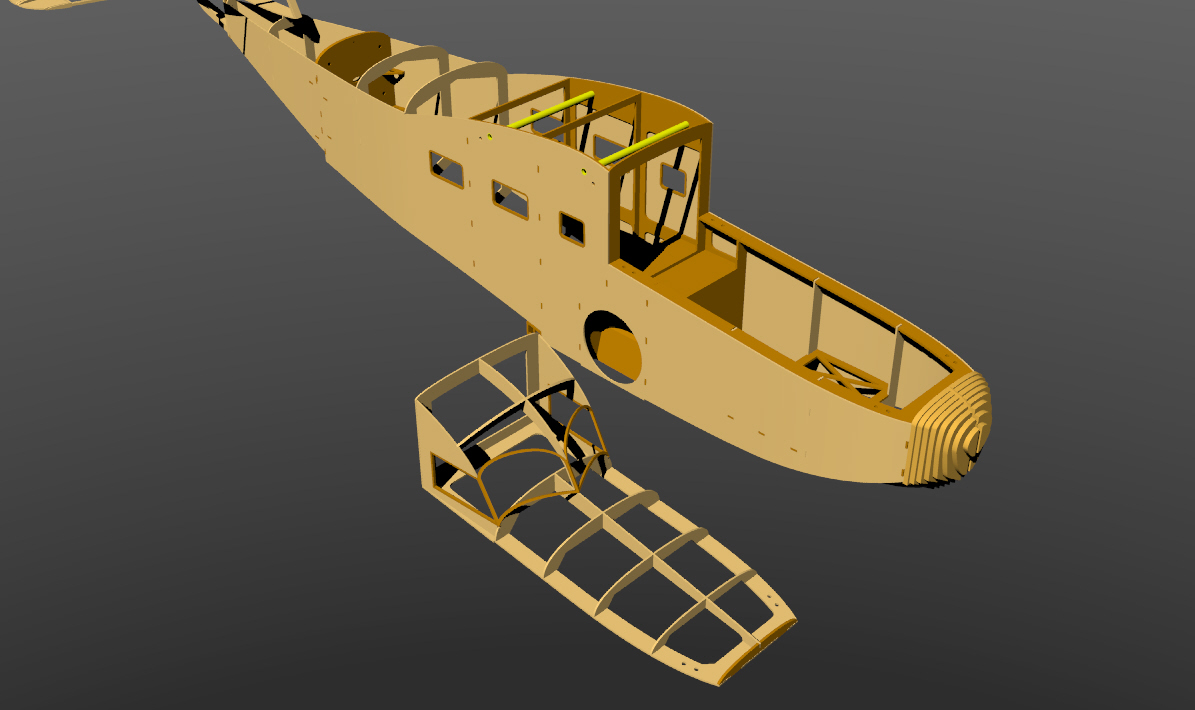

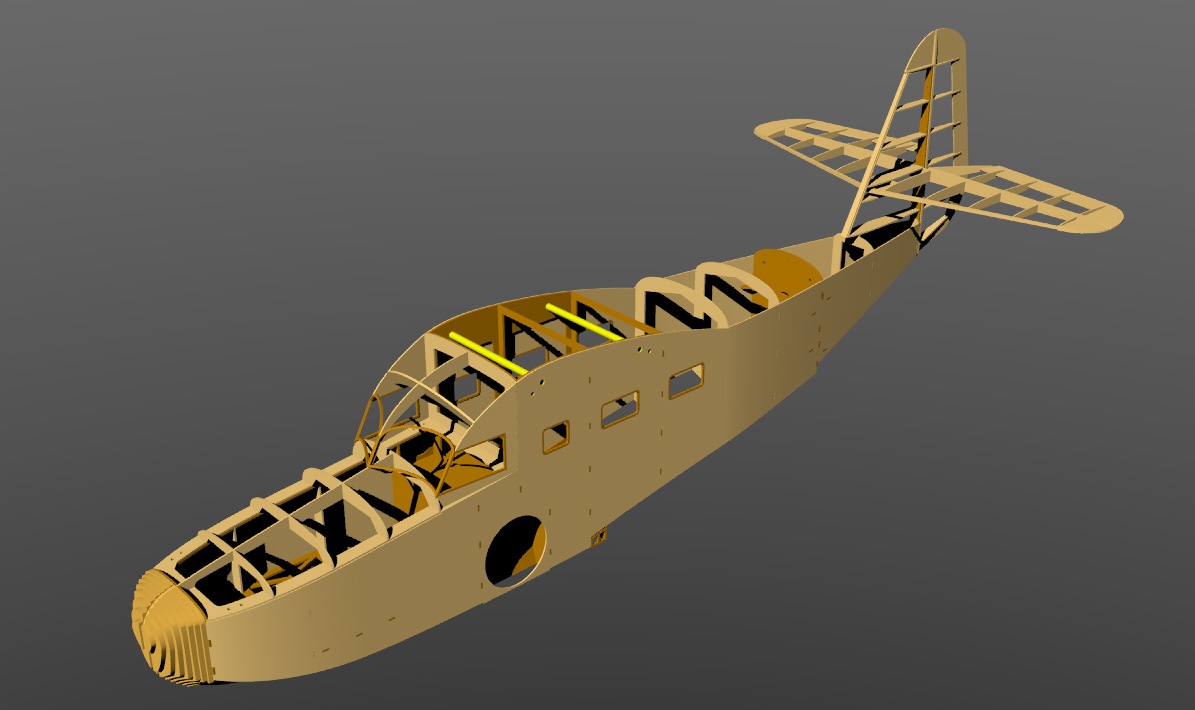

CAD Design and Inspiration by Bart Lammerse
|
|
|
|
|
Electrics

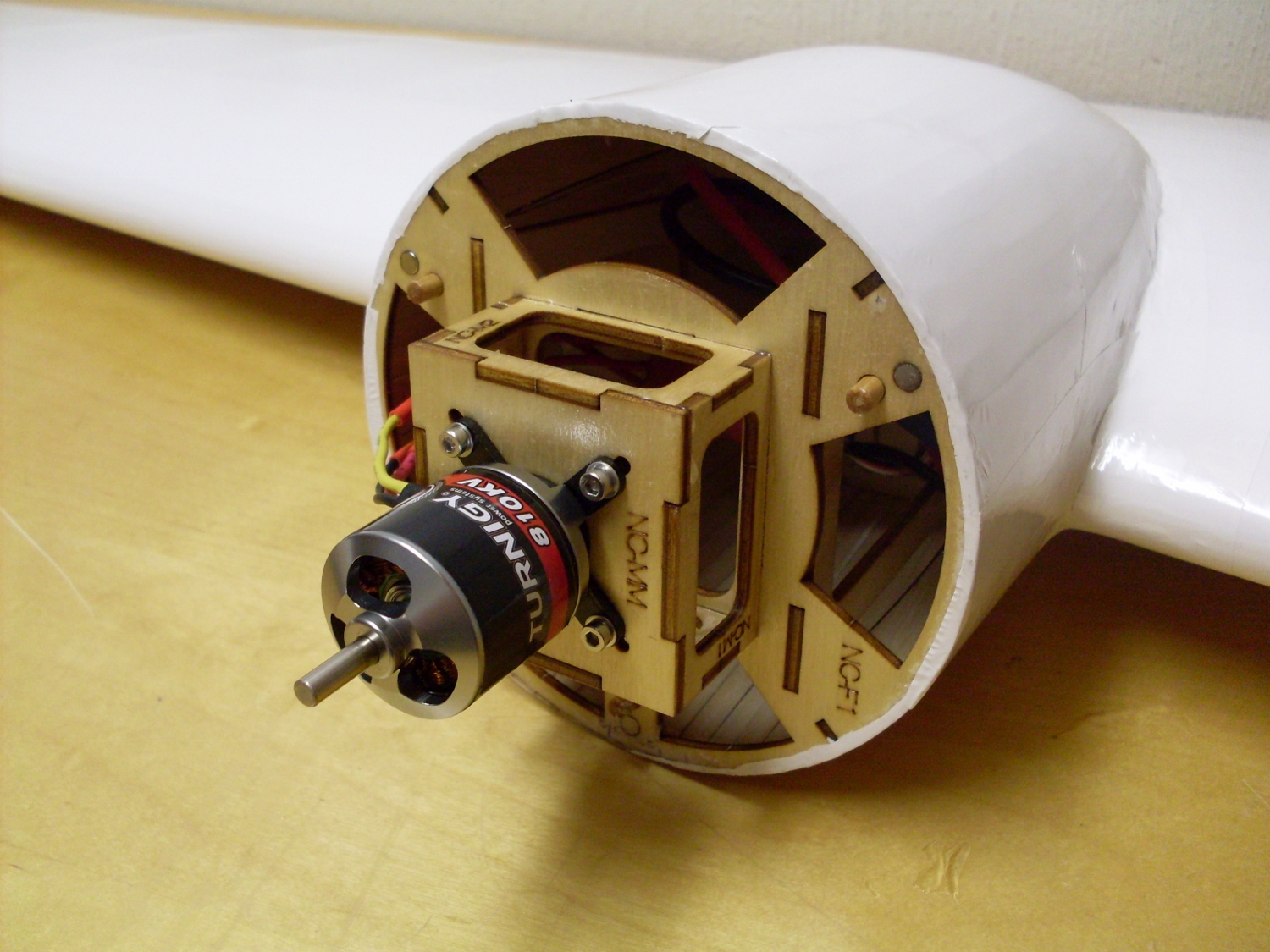

2X Turnigy G10 810kv outrunners
2x 40A ESC
at least one 6000mAh 3 cell lipo
6x Servo , Hitec HS225 mighty mini or similar micro servo's
1x Hitec HS75 retract servo
7 channel radio system Aileron, Elevator , Left throttle, right throttle, Flaps retract
5A UBEC
12x6 3-blade props ( MAS counter rotating recommended.
2X Turnigy G10 810kv outrunners
2x 40A ESC
at least one 6000mAh 3 cell lipo
6x Servo , Hitec HS225 mighty mini or similar micro servo's
1x Hitec HS75 retract servo
7 channel radio system Aileron, Elevator , Left throttle, right throttle, Flaps retract
5A UBEC
12x6 3-blade props ( MAS counter rotating recommended.
Scroll down for illustration and Photo Gallery

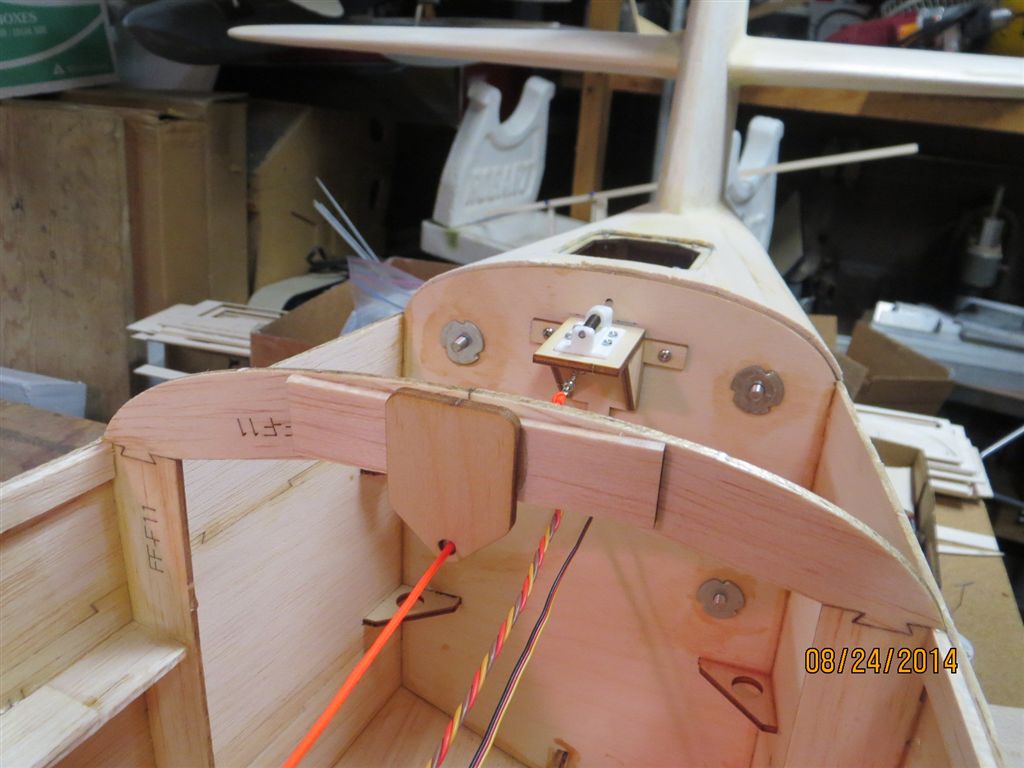

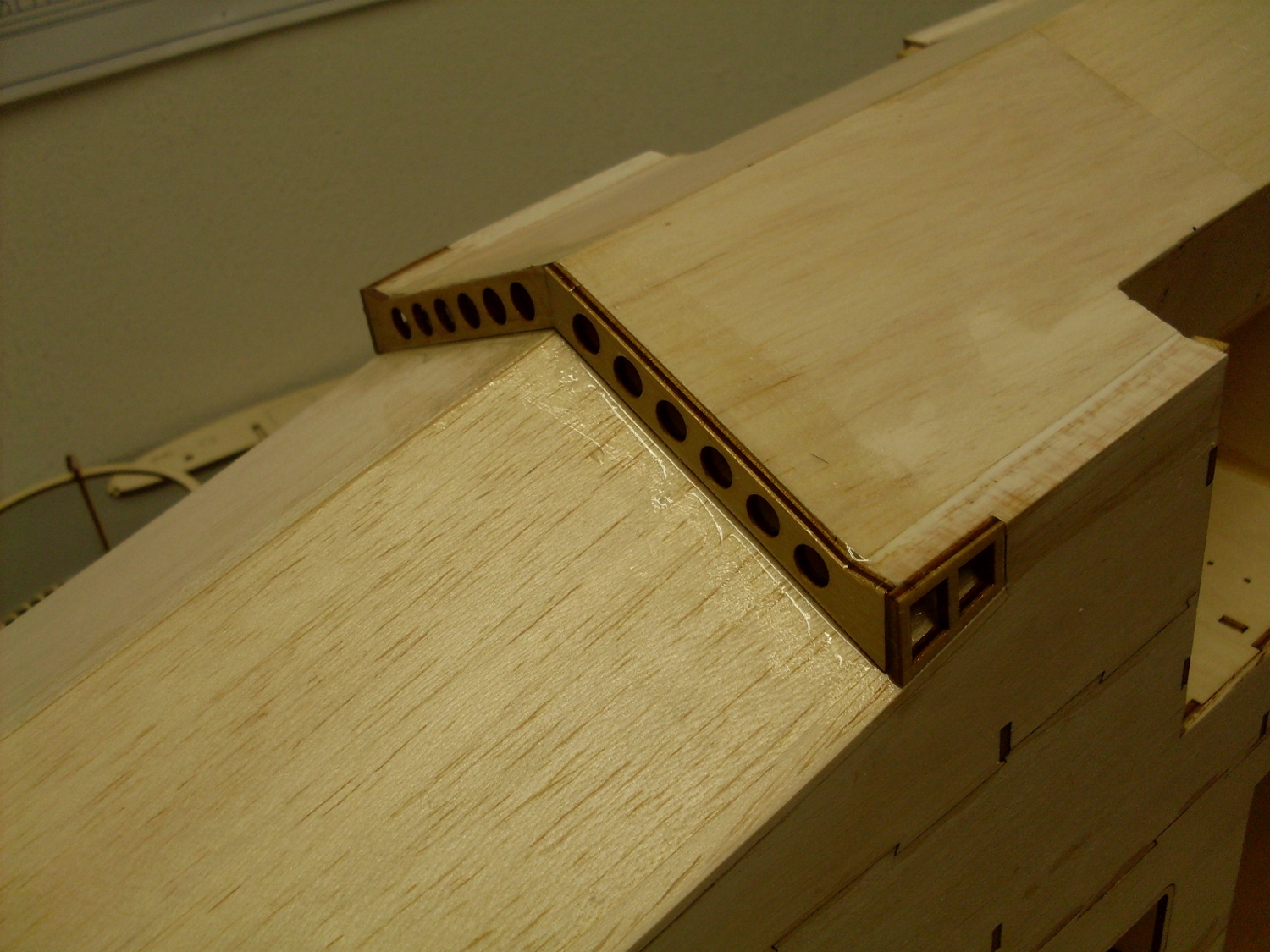

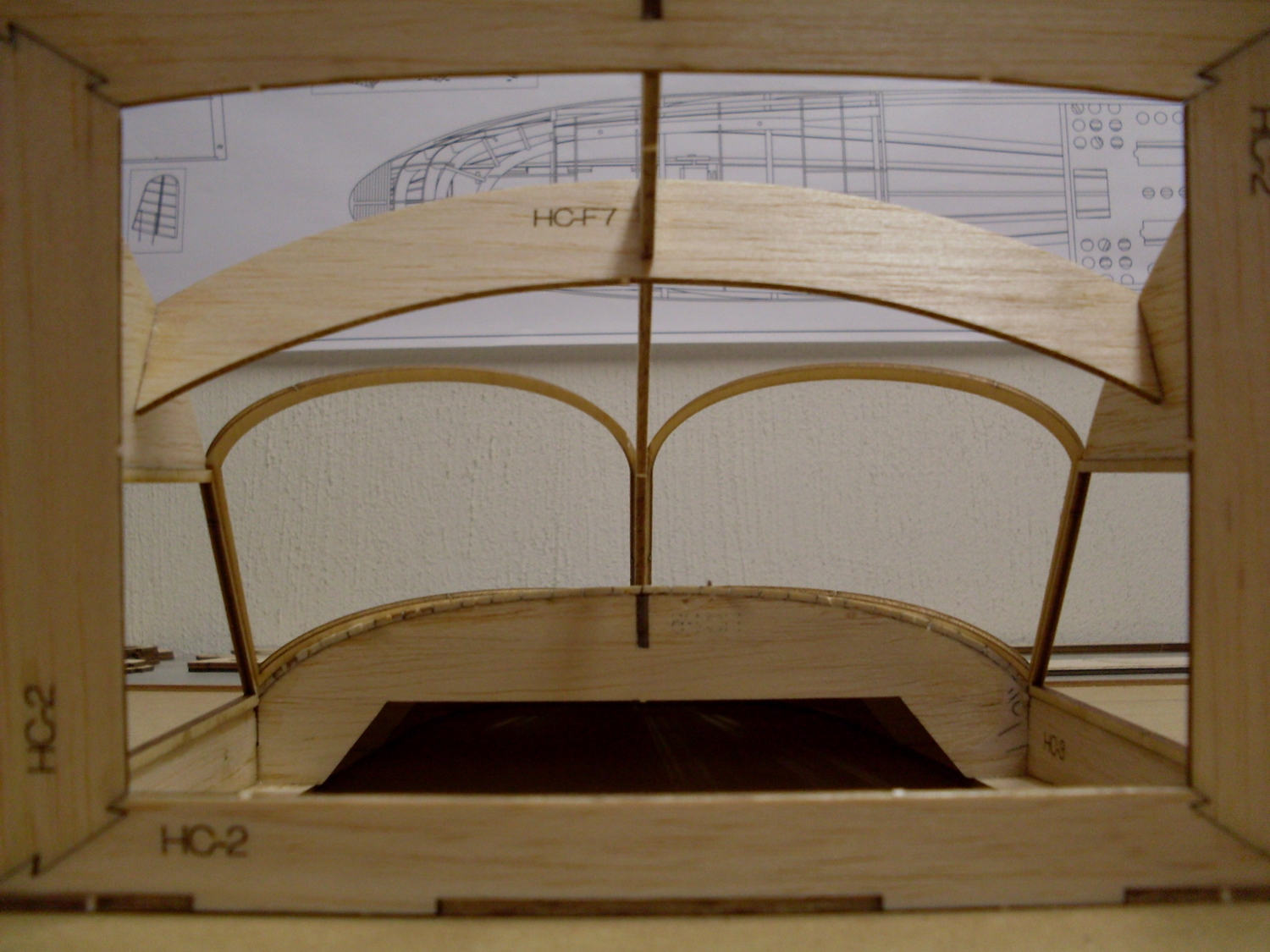

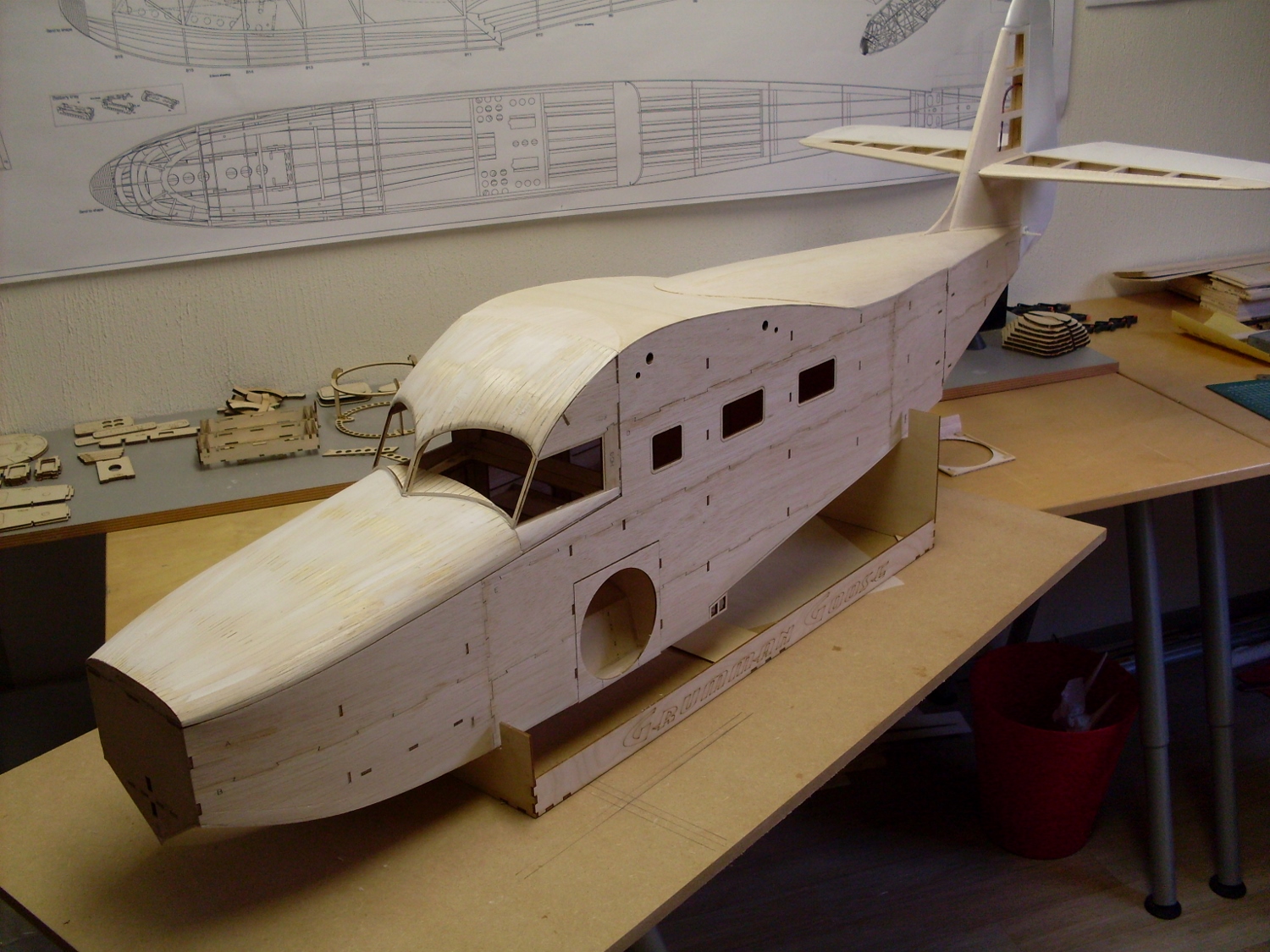

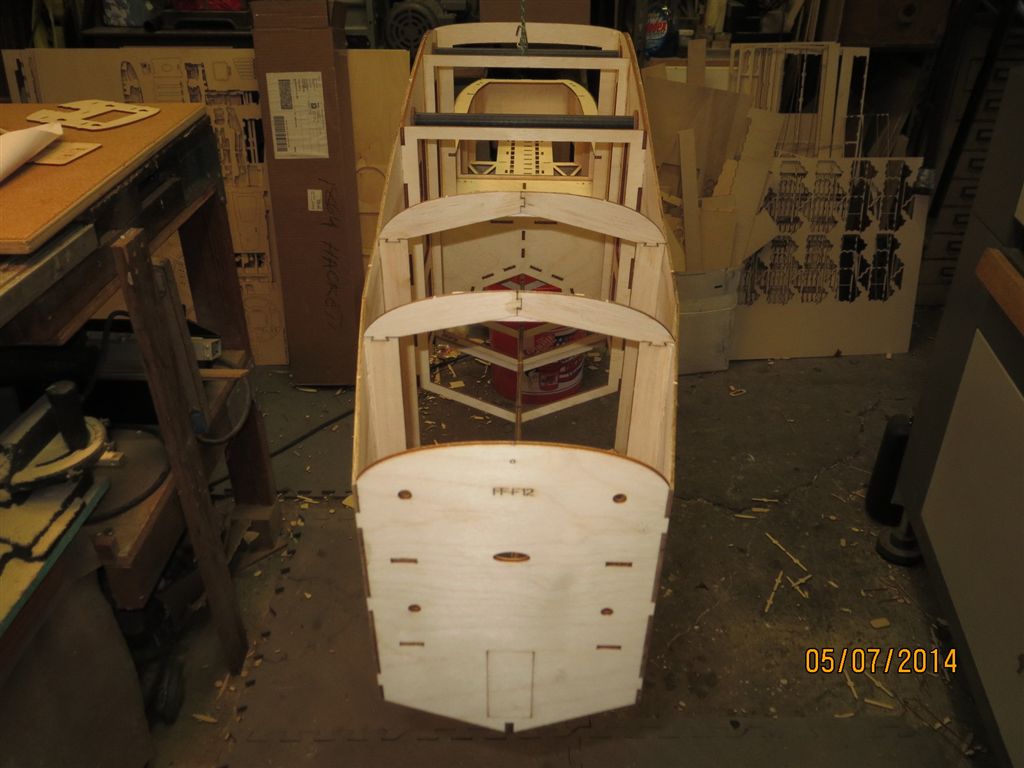

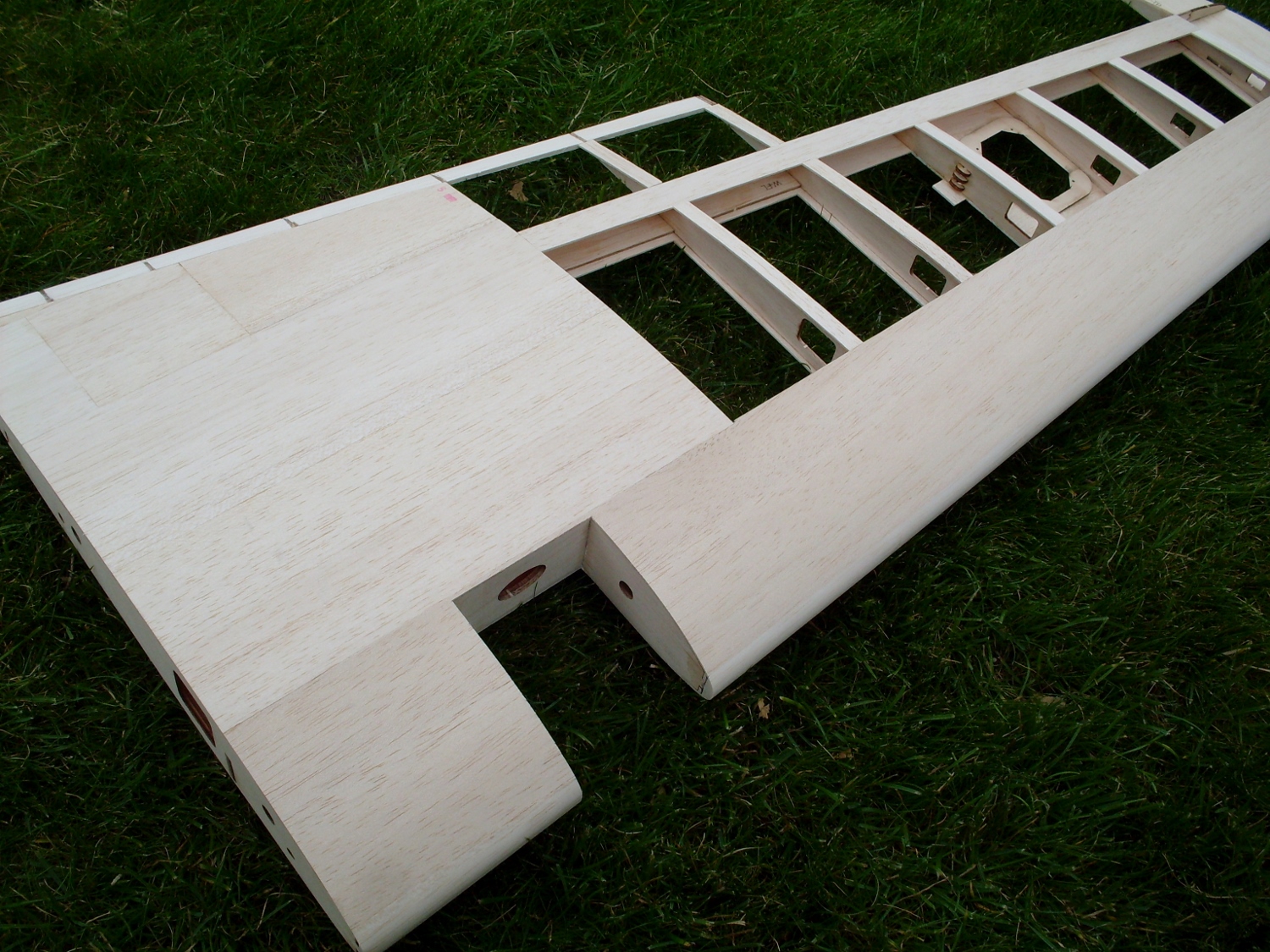

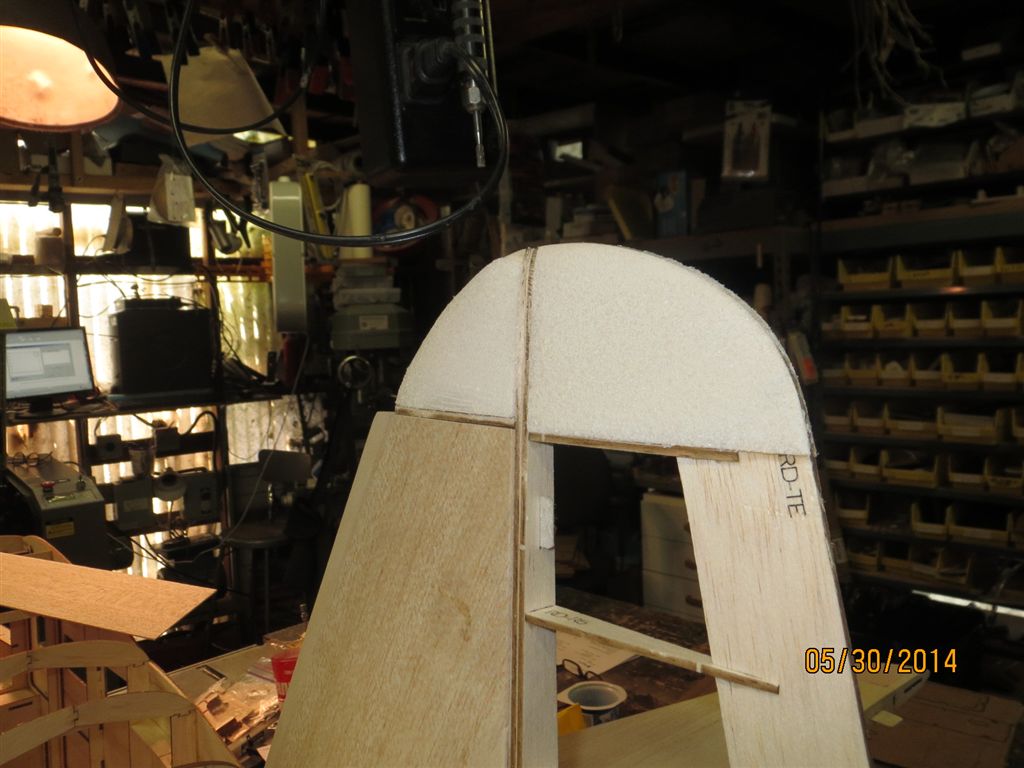

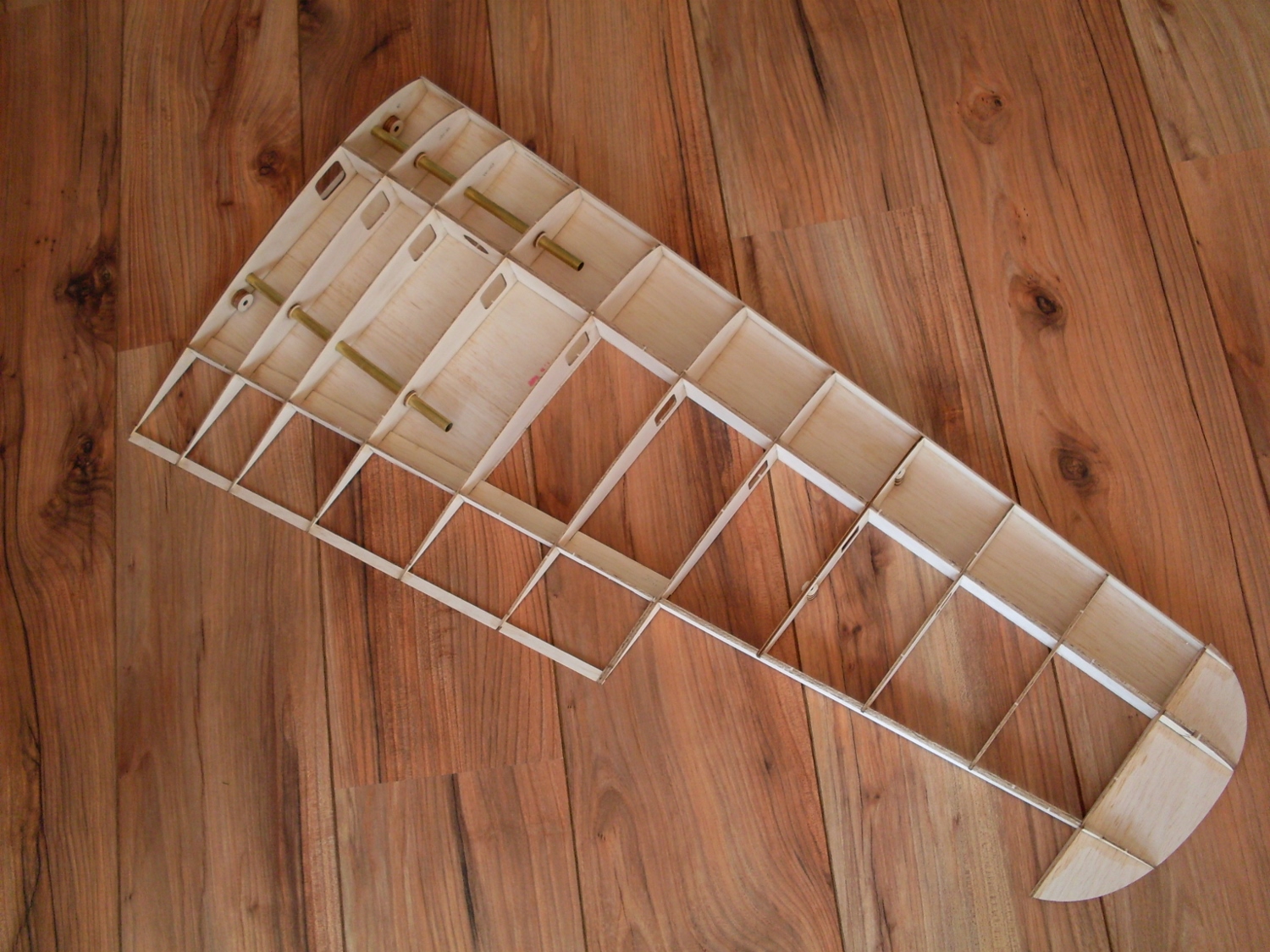

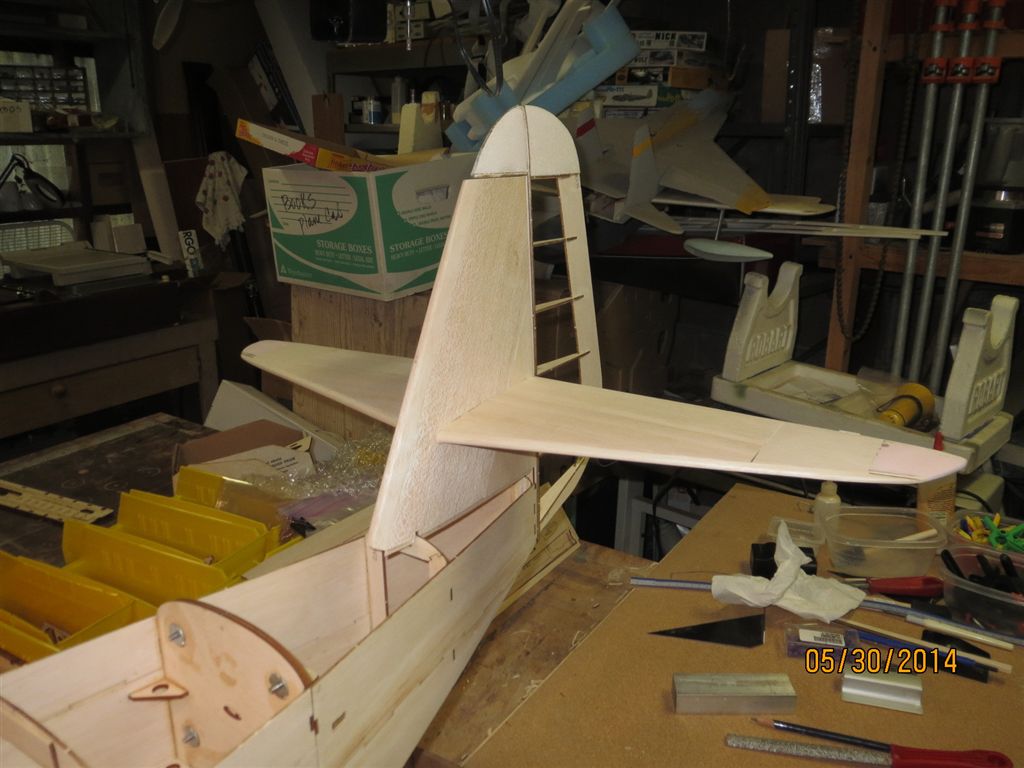

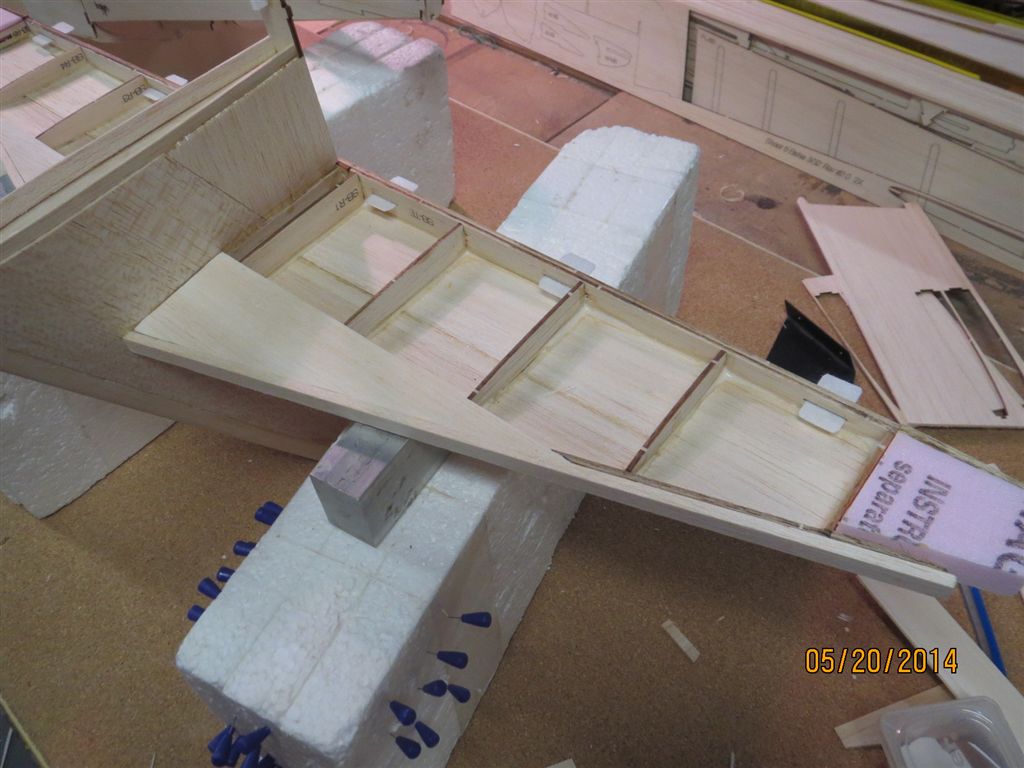

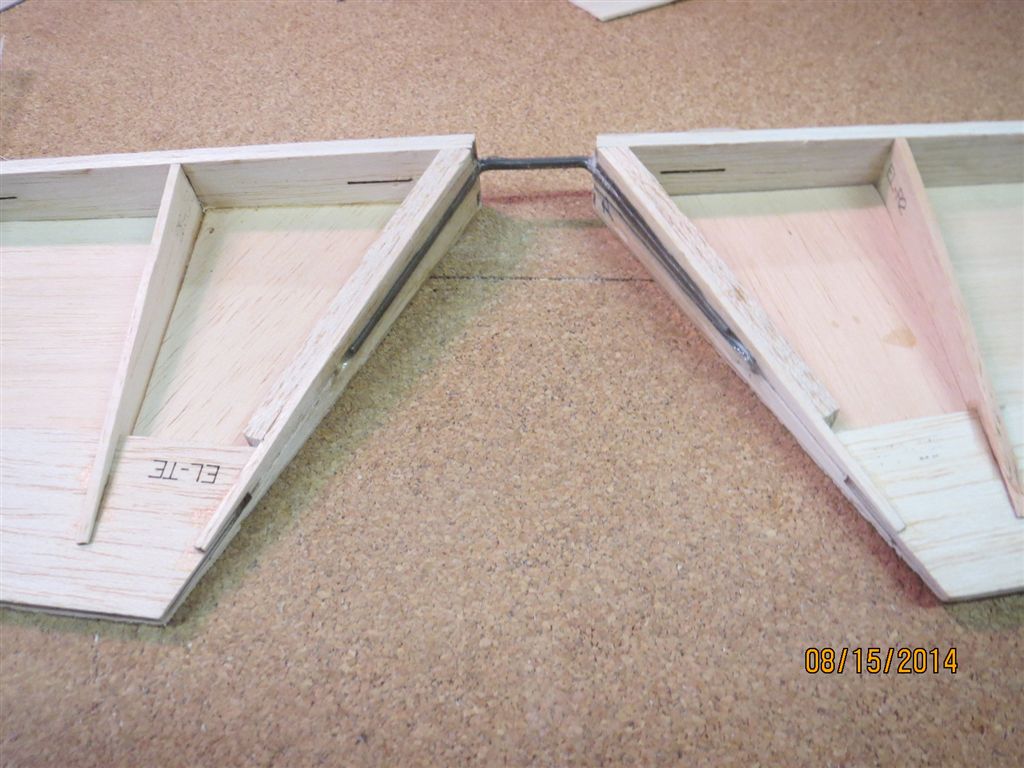

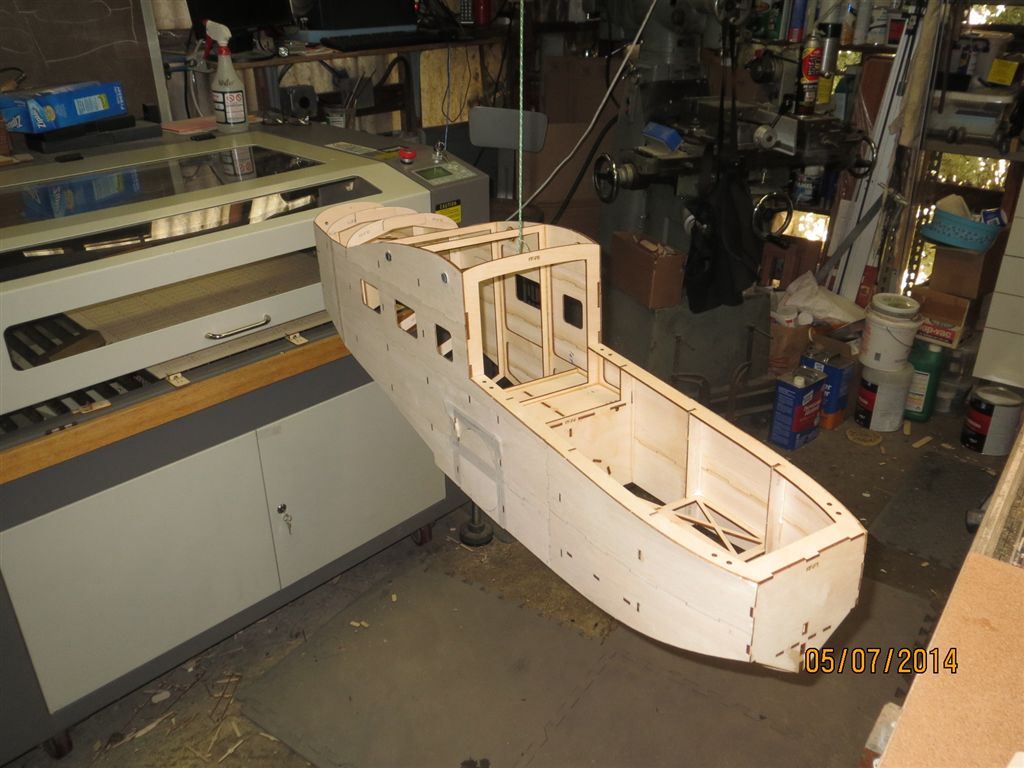

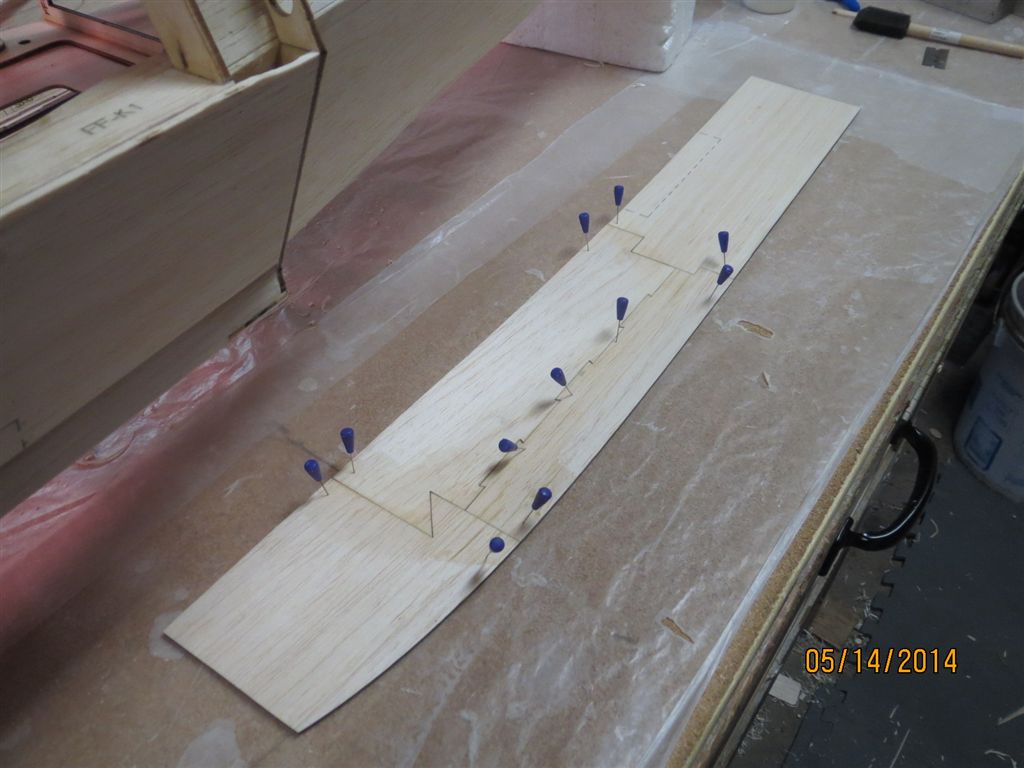

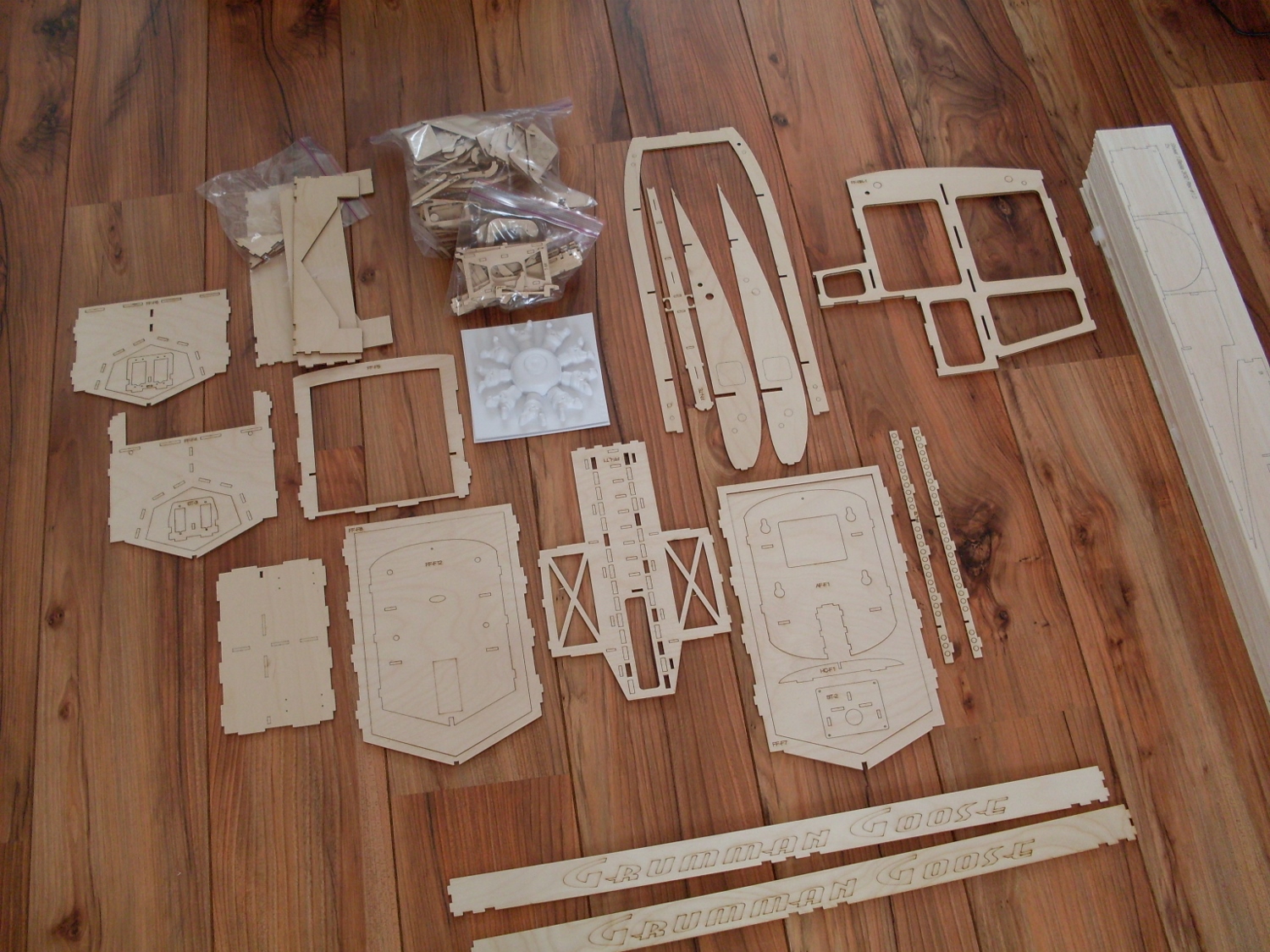

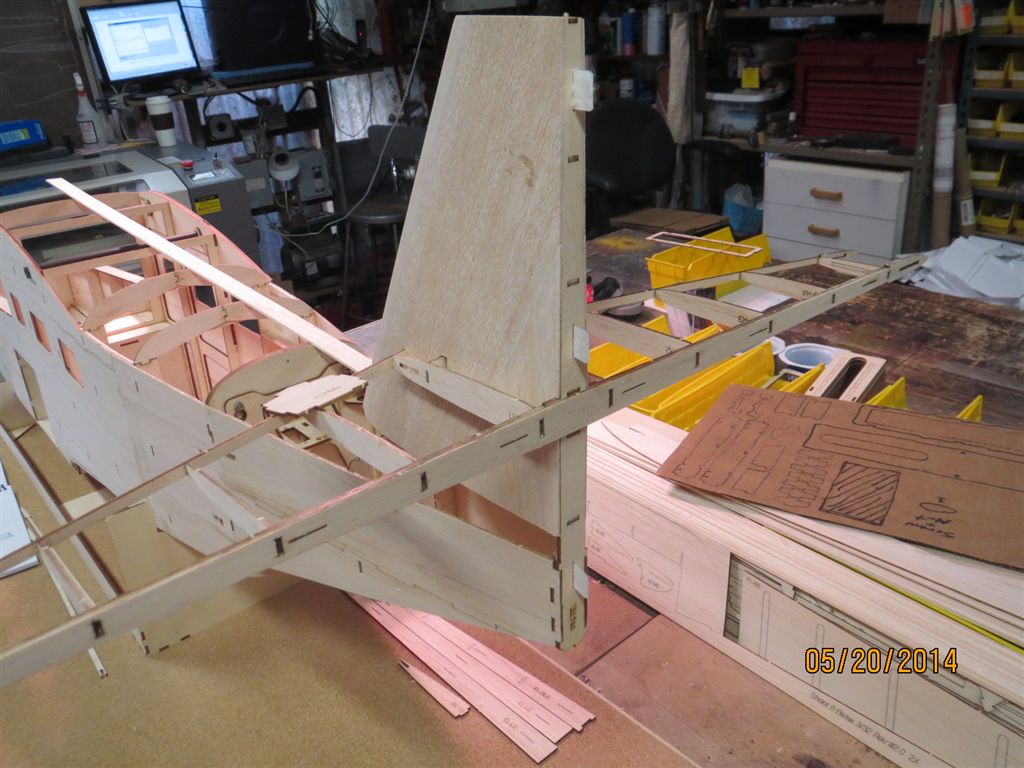

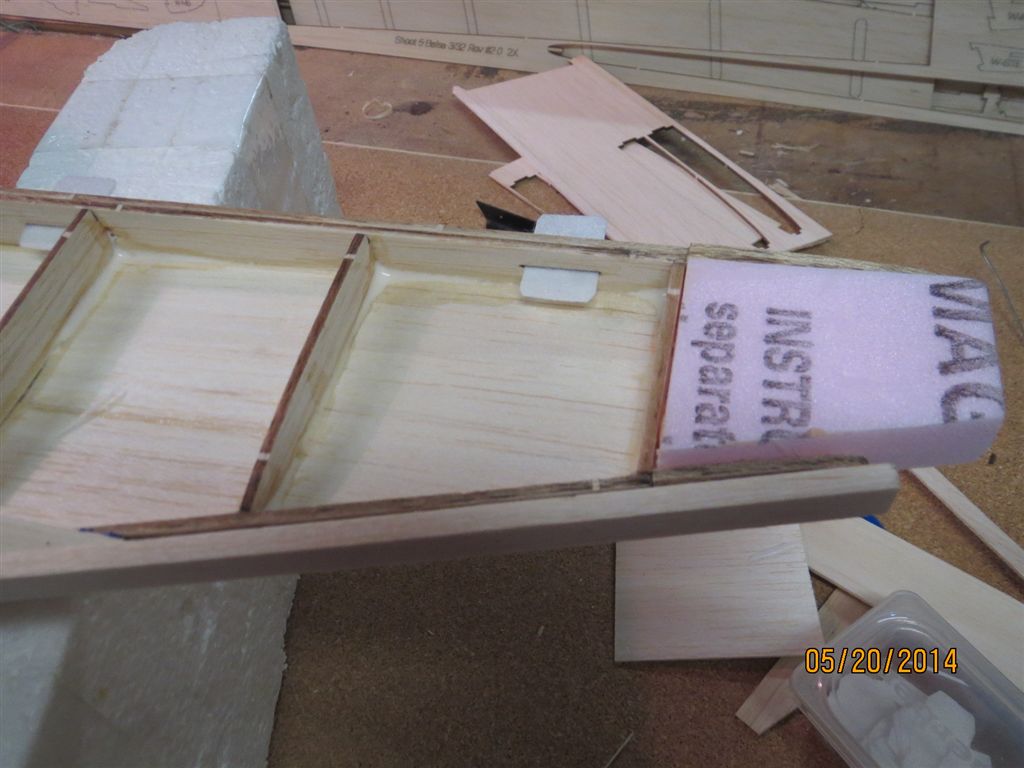

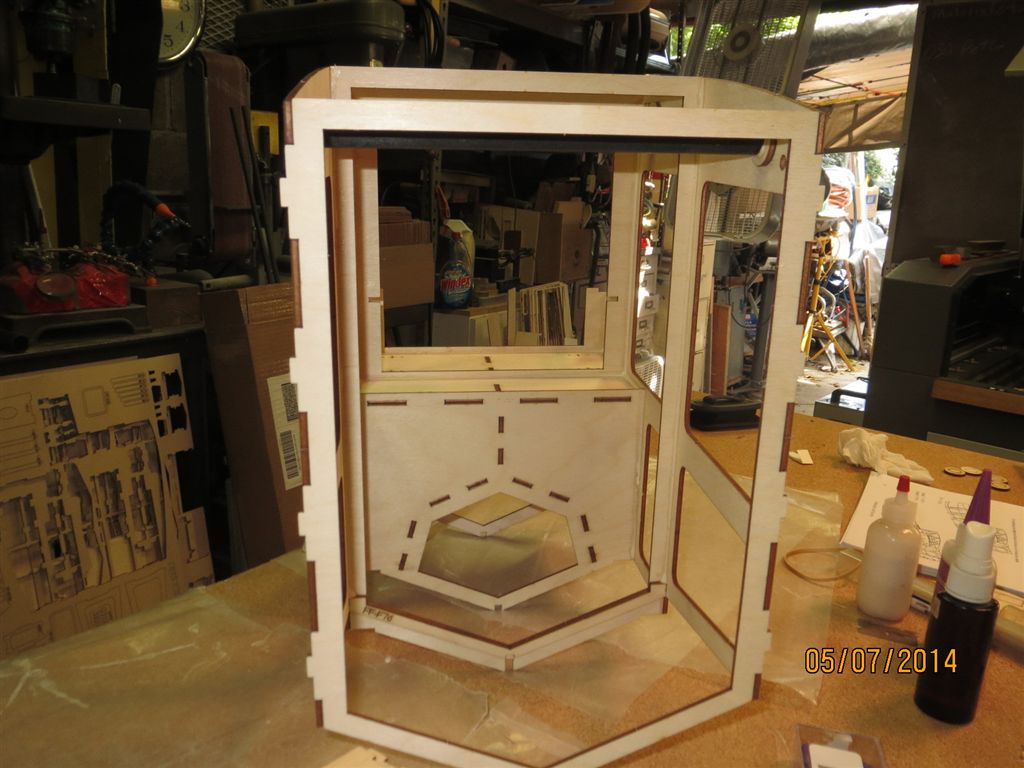

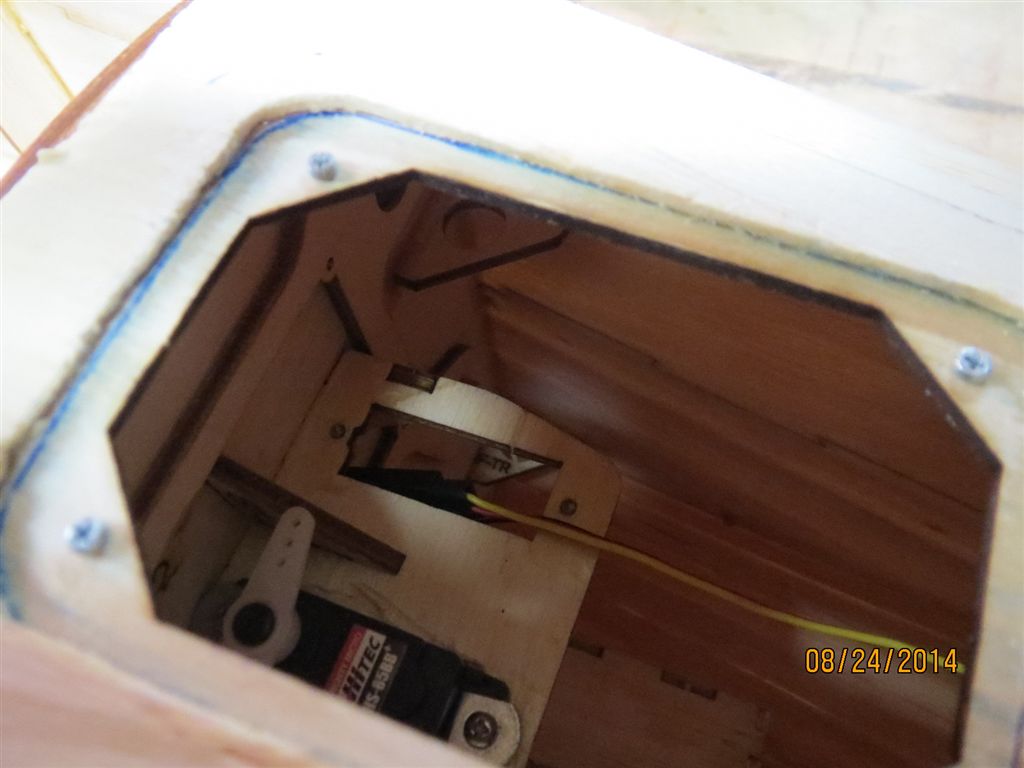

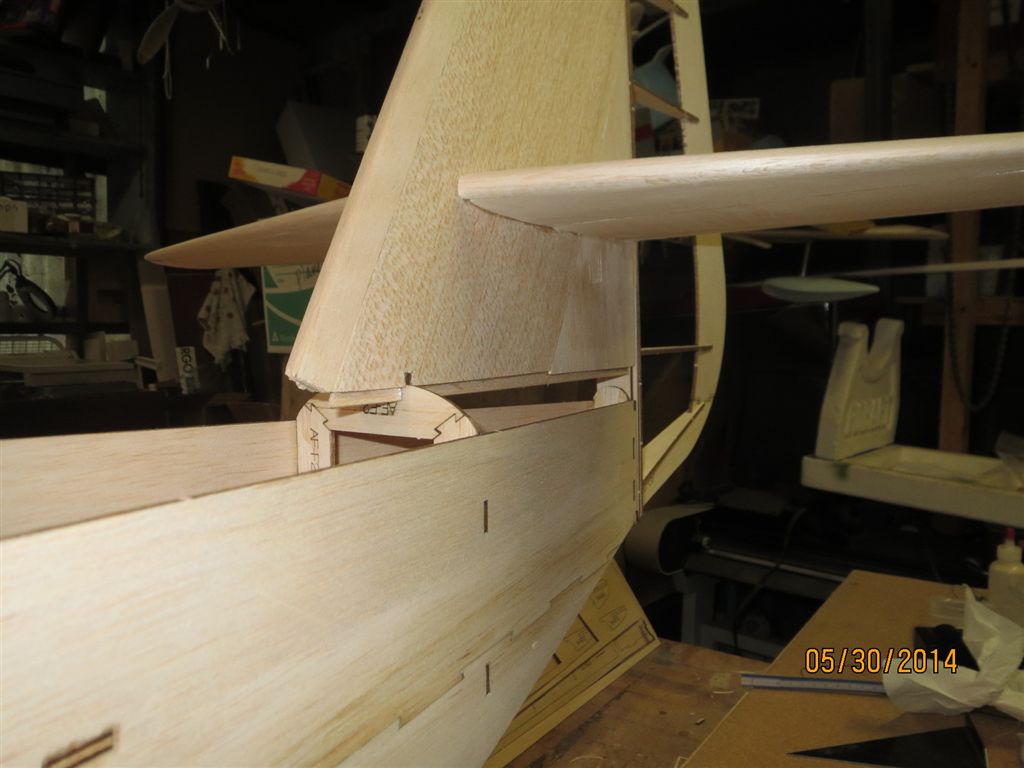

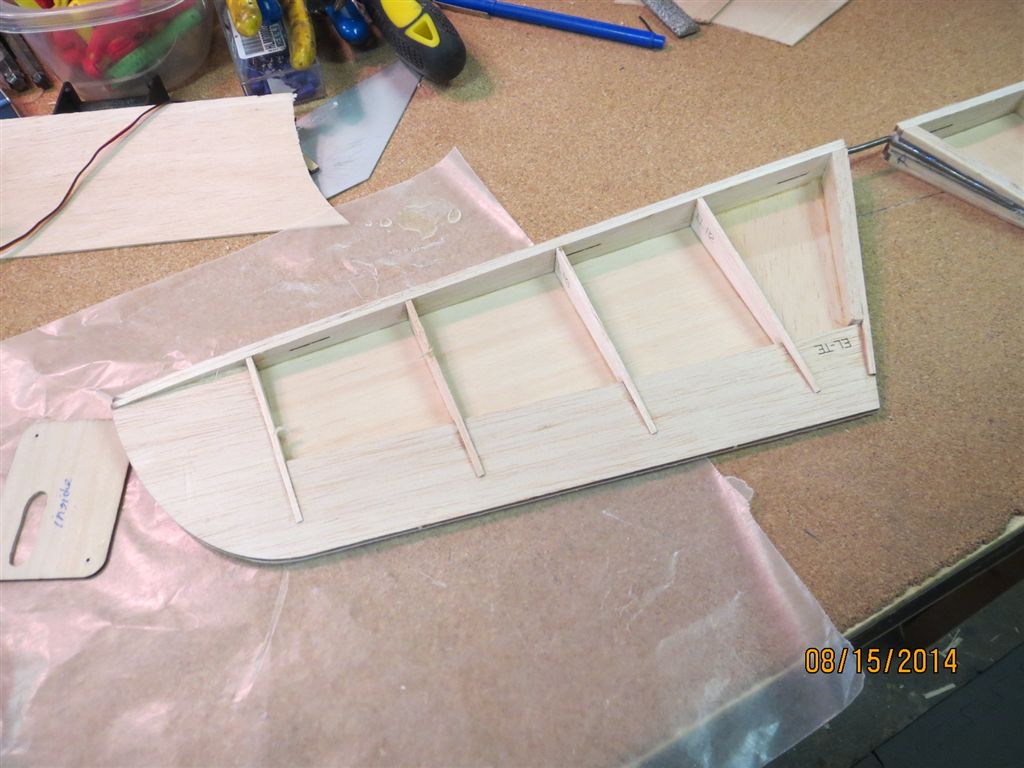

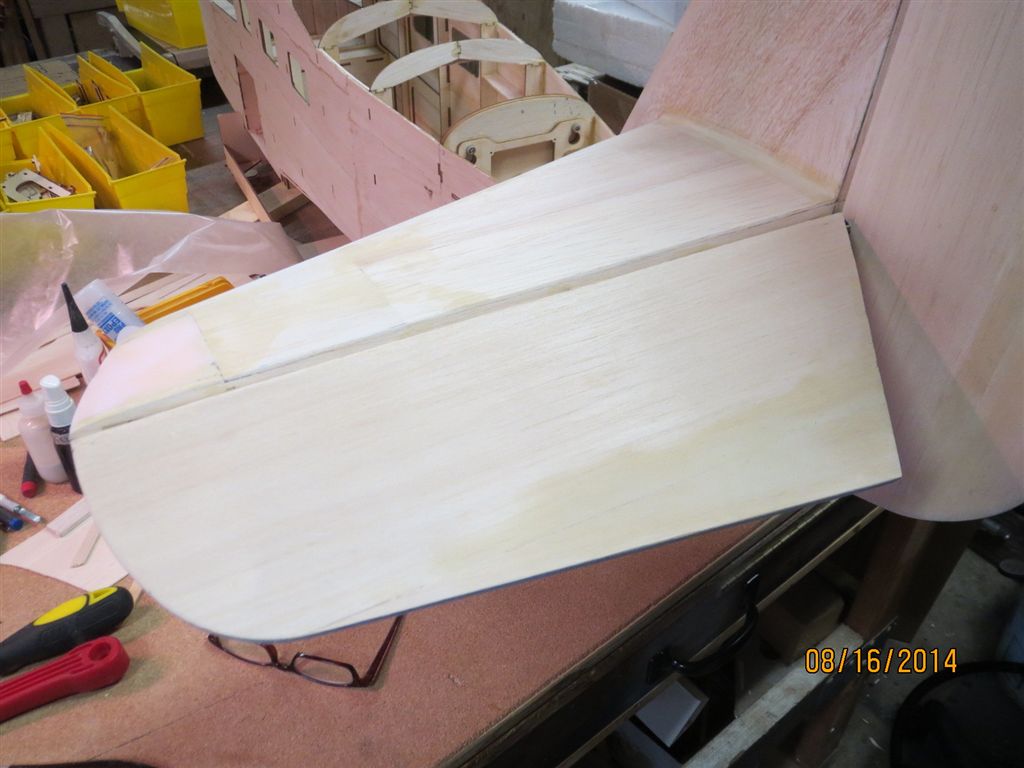

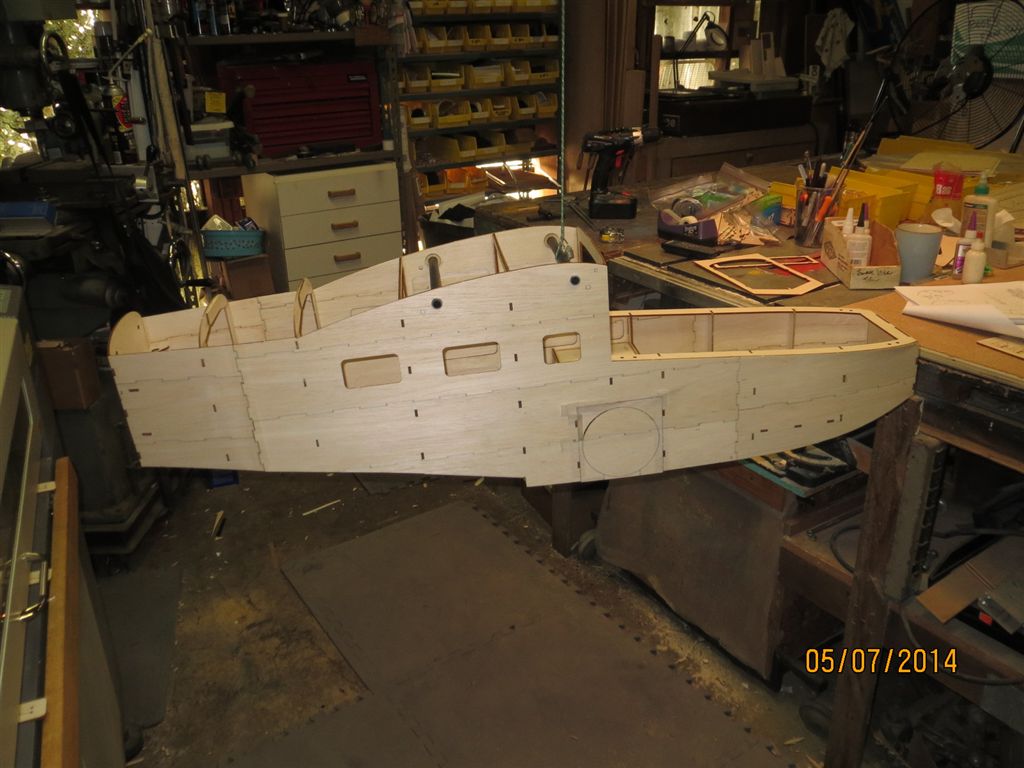

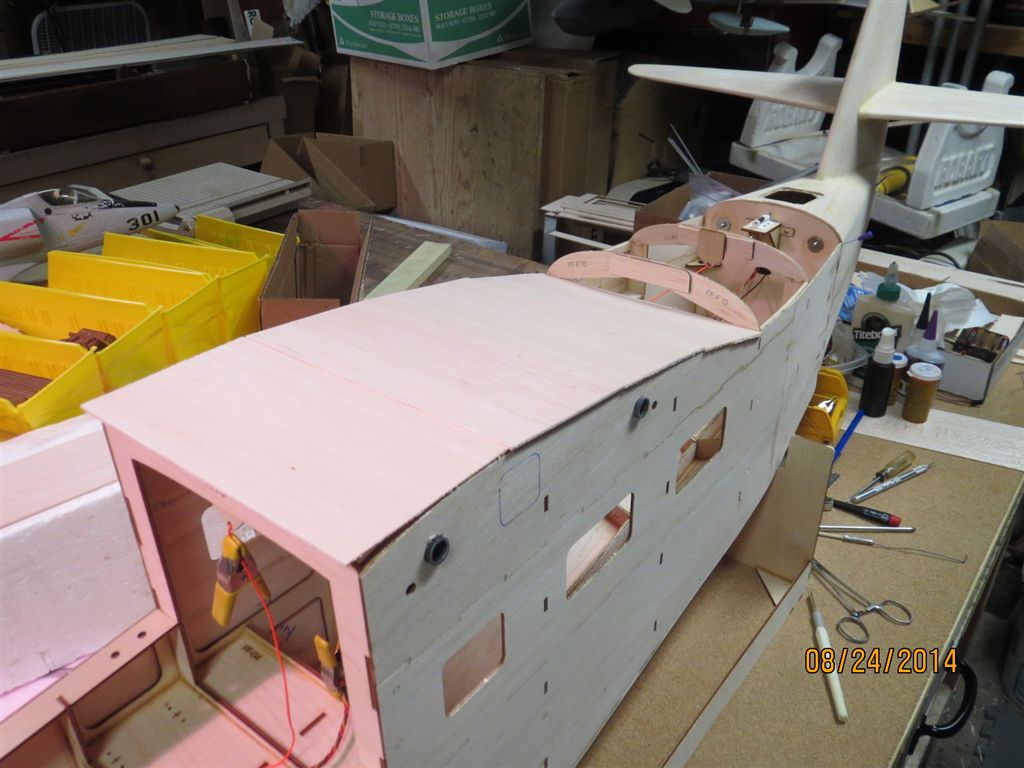

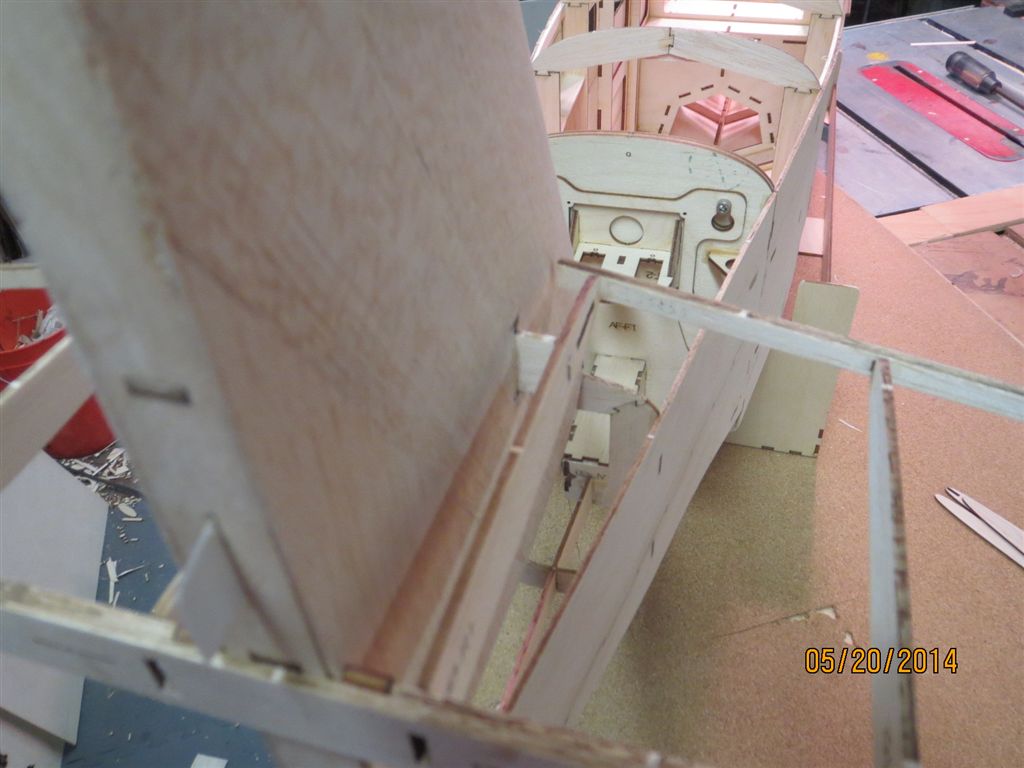

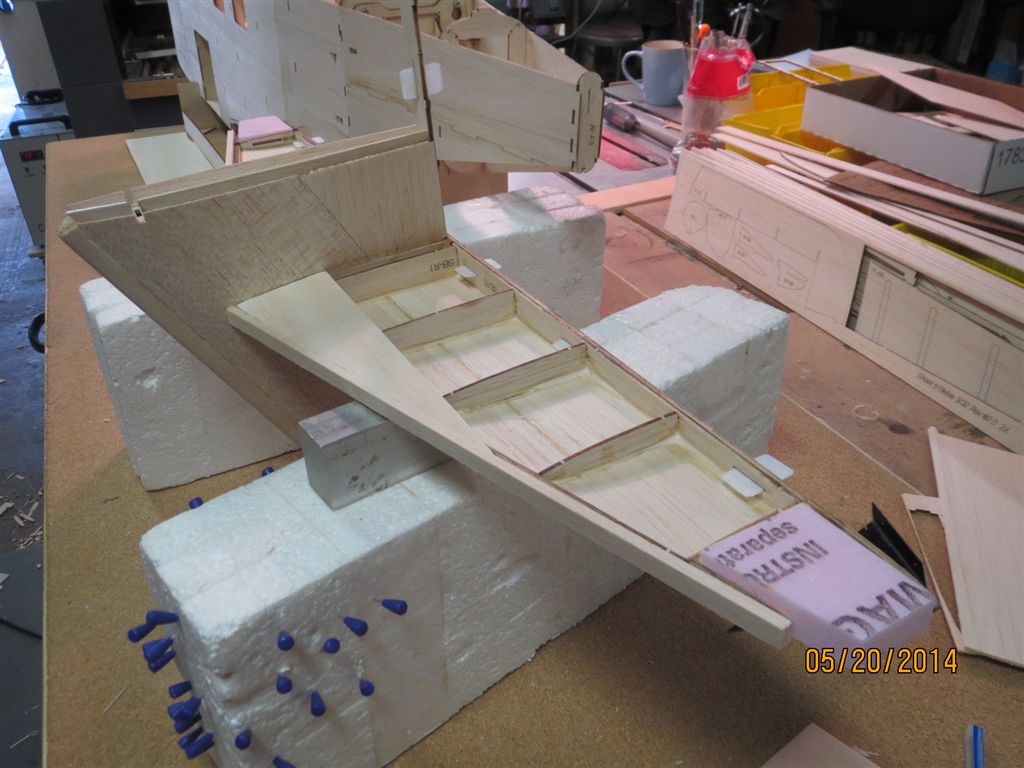

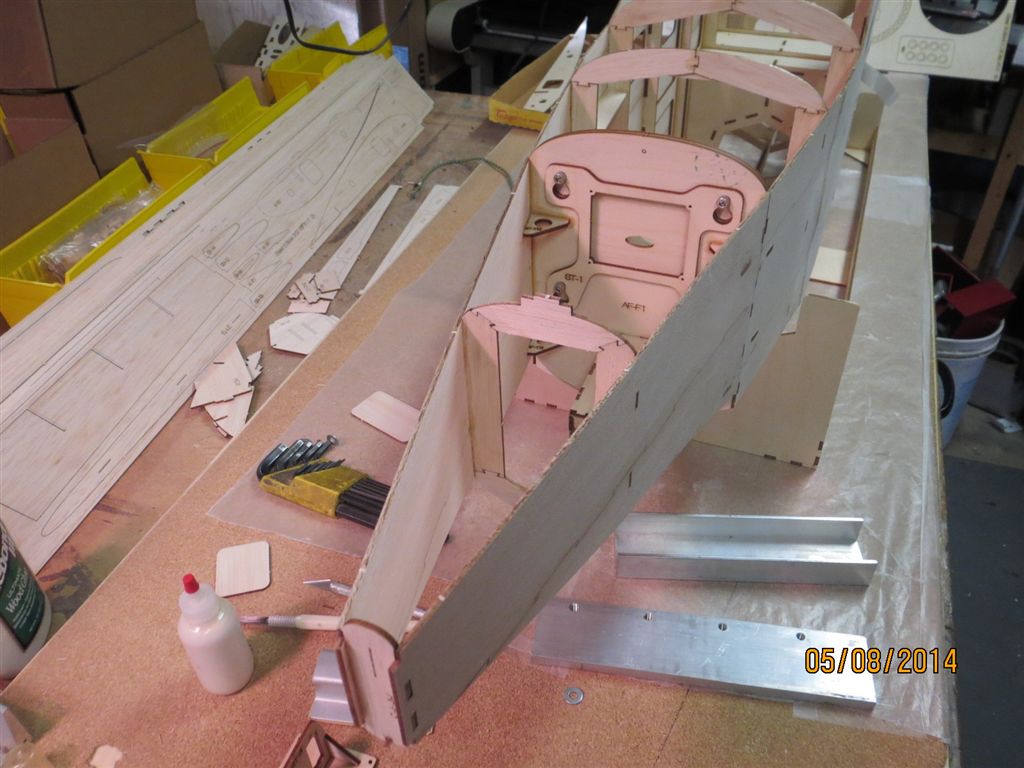

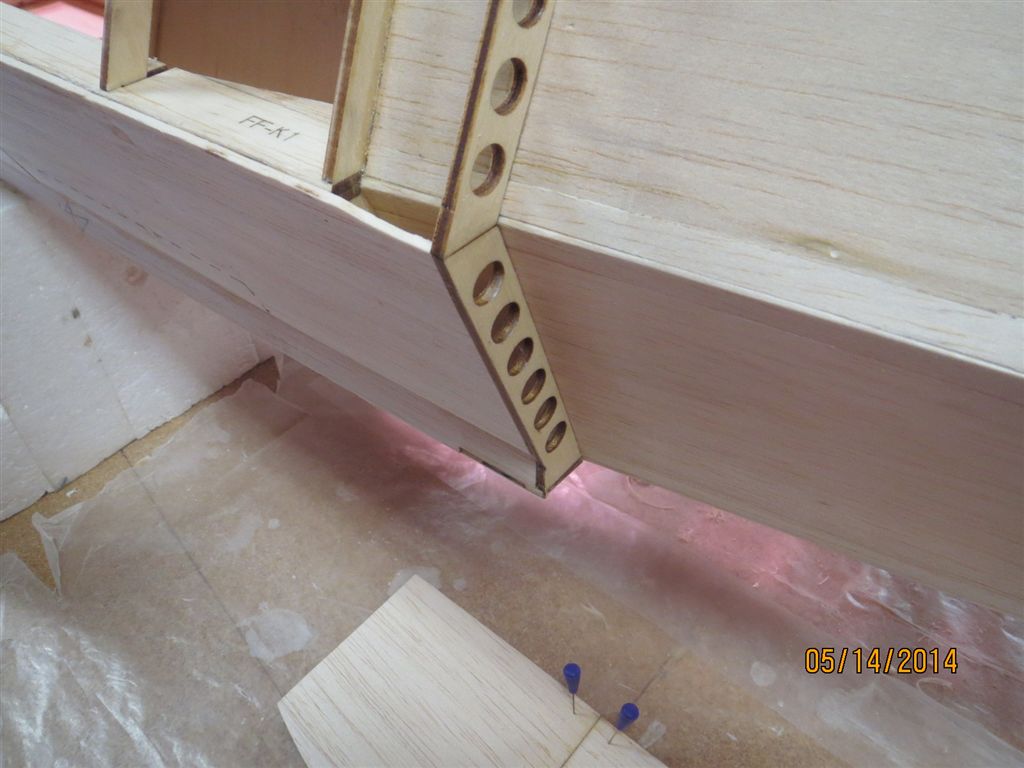

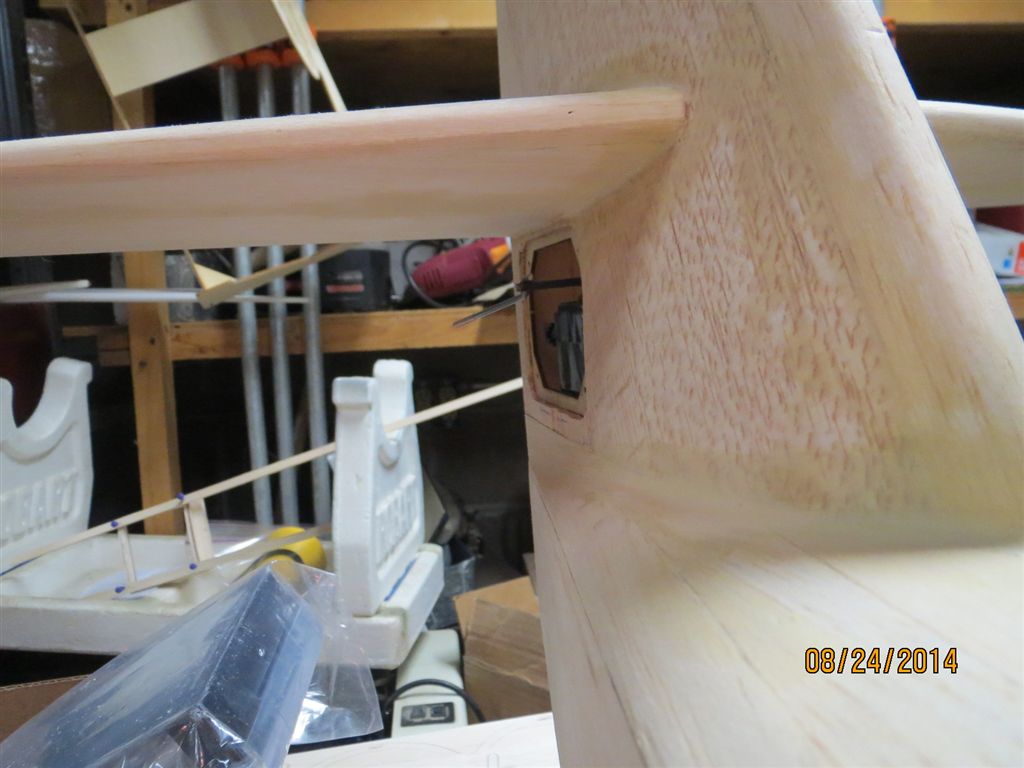

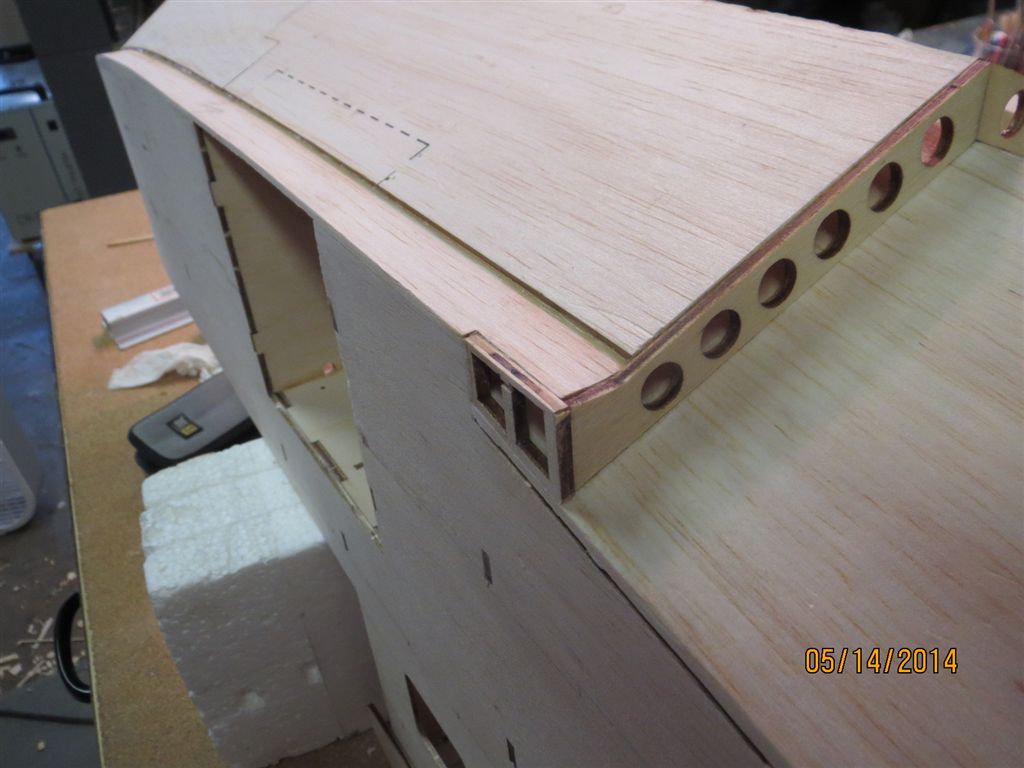

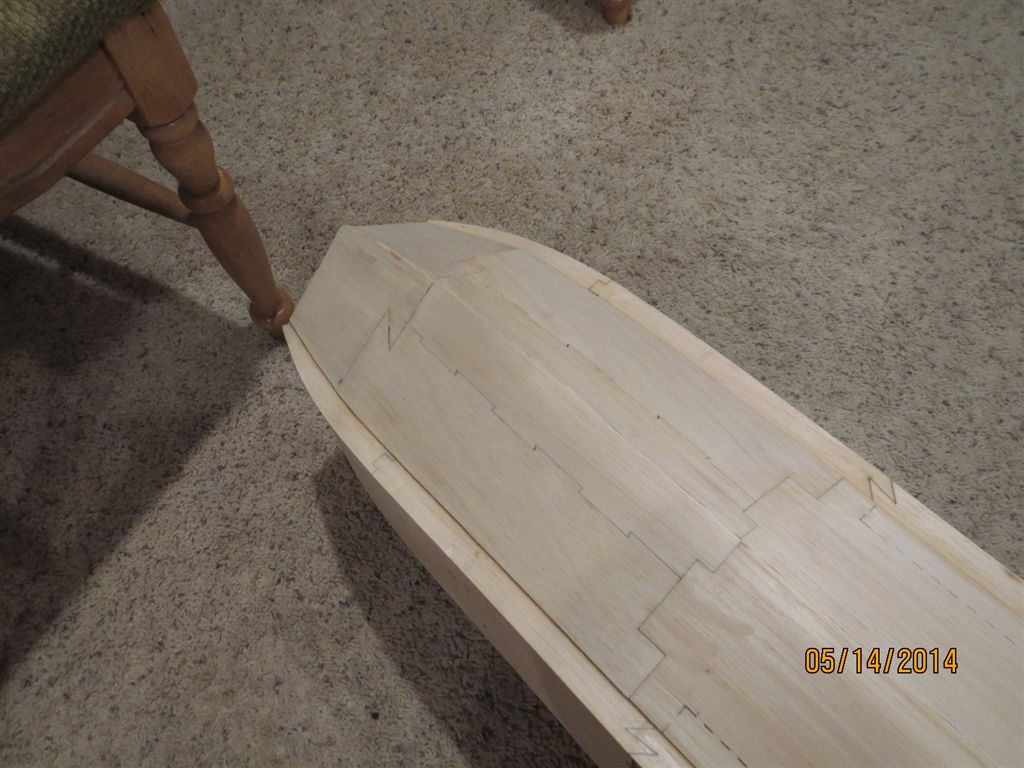

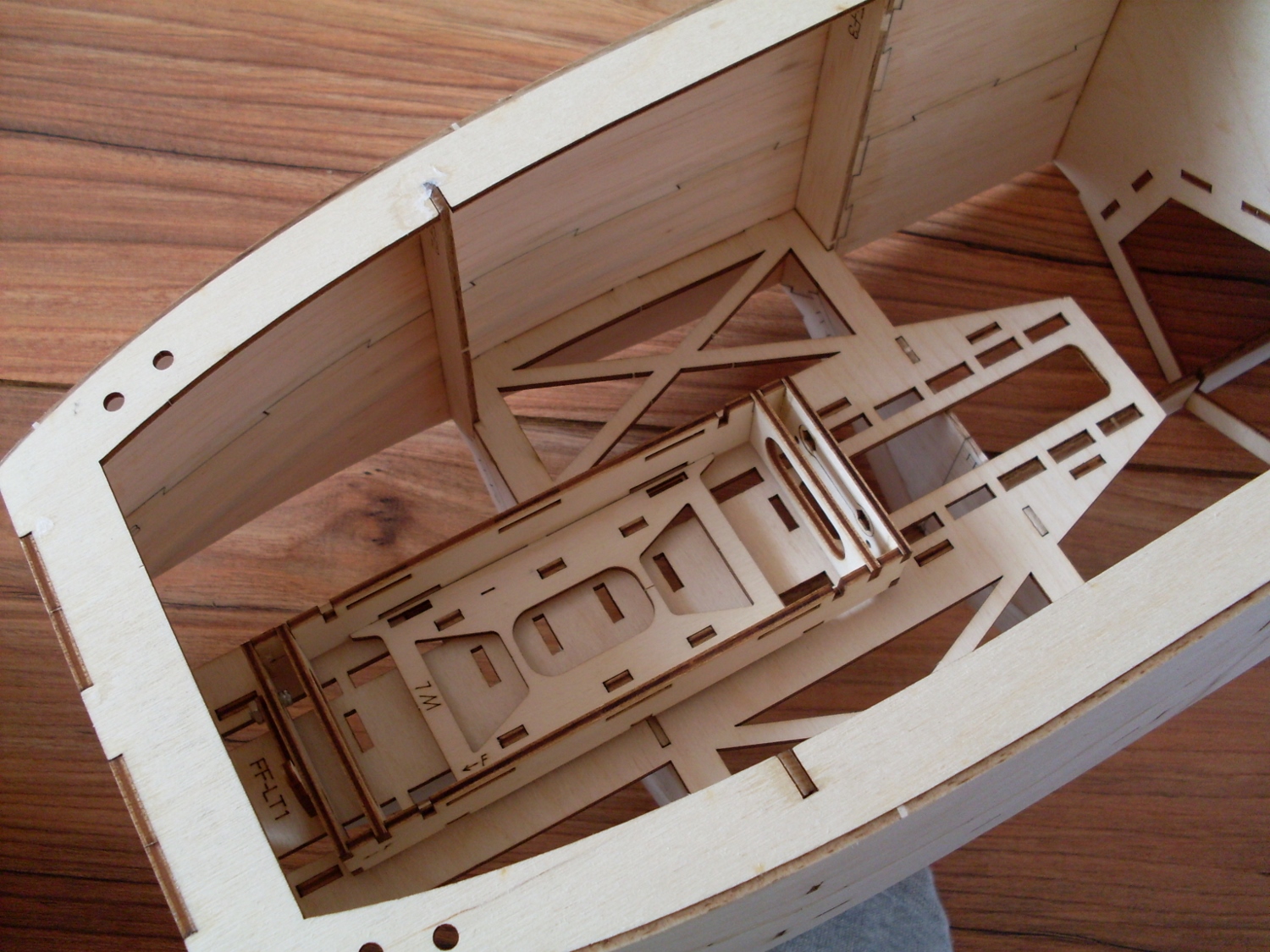

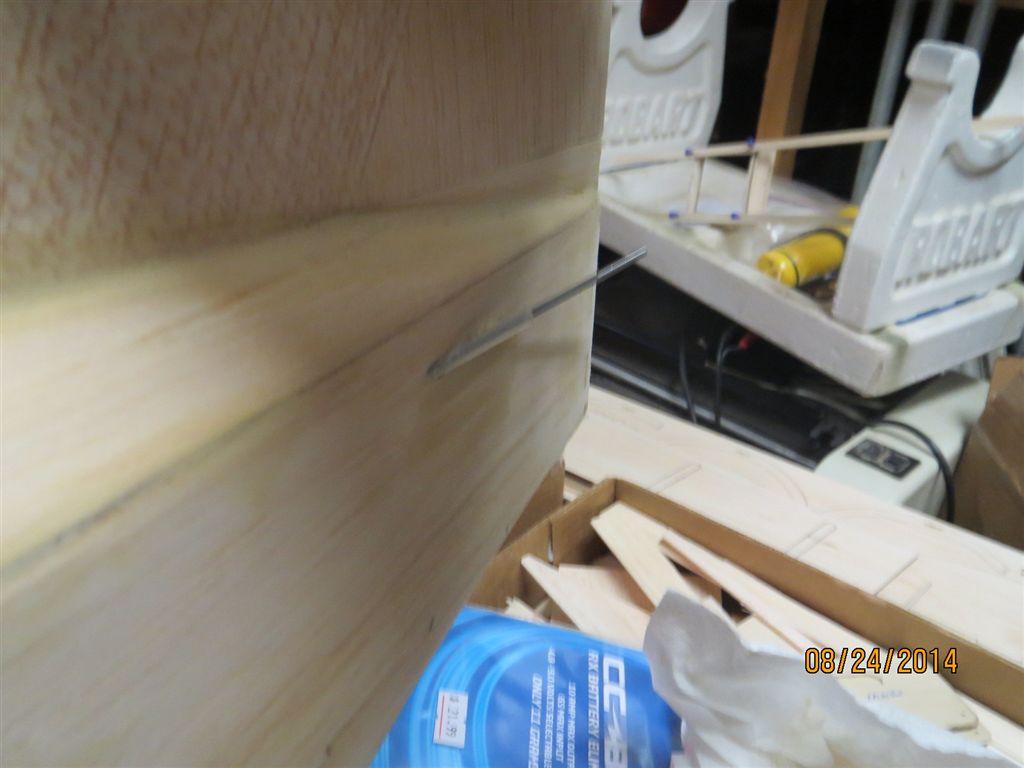

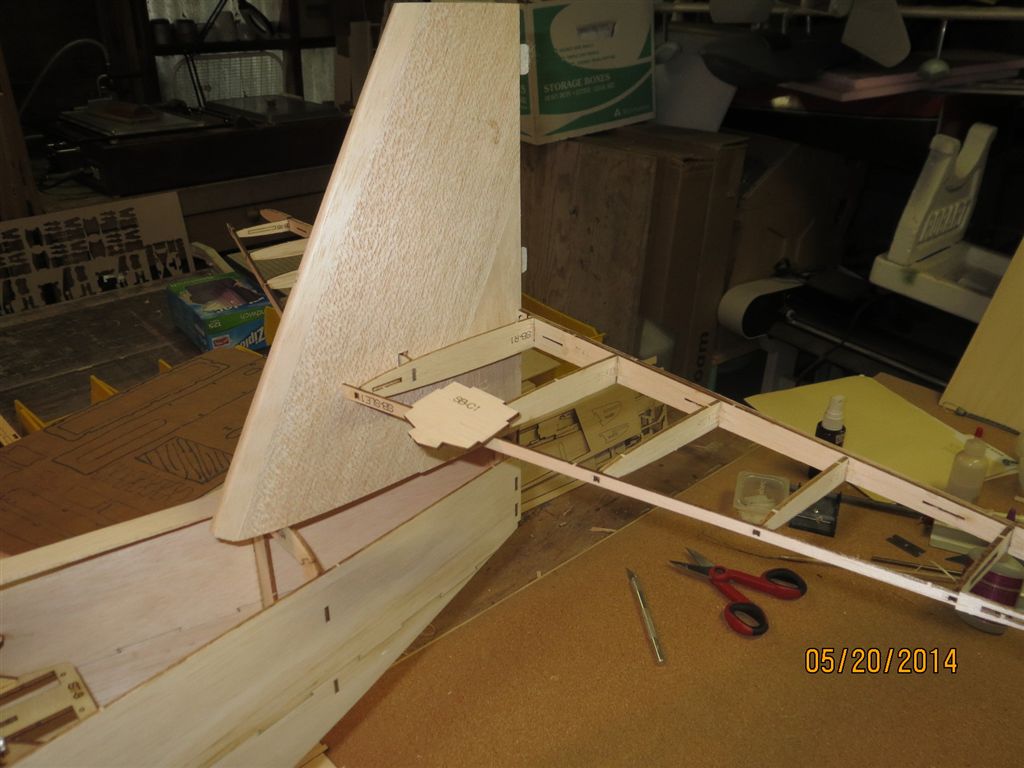

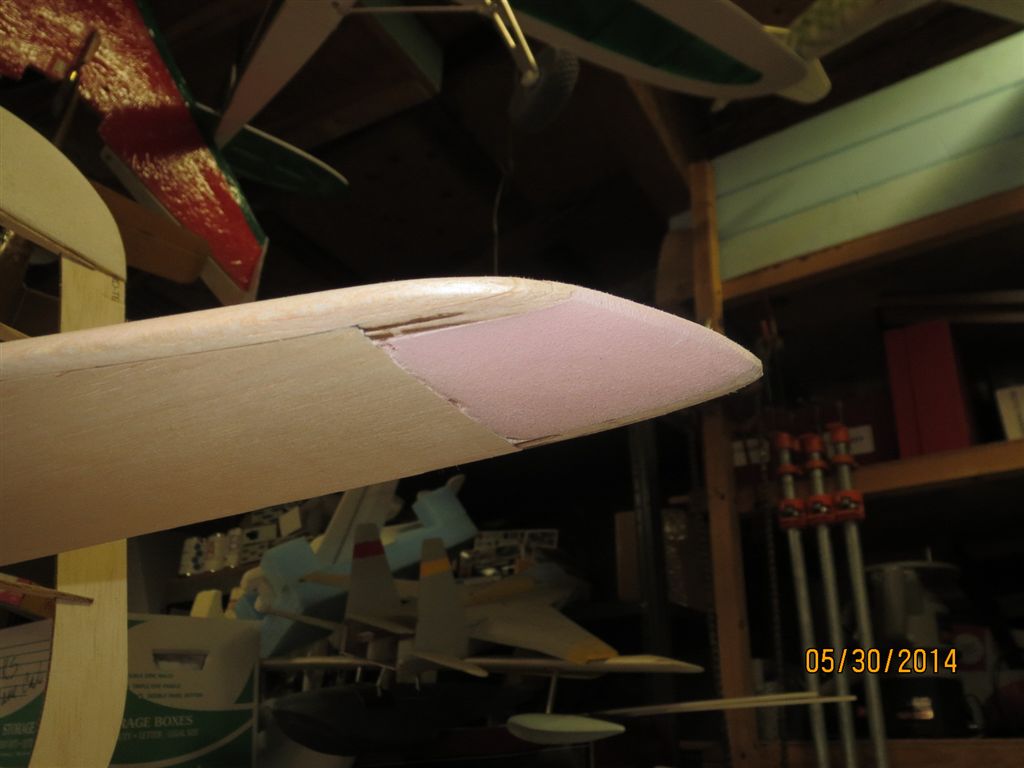

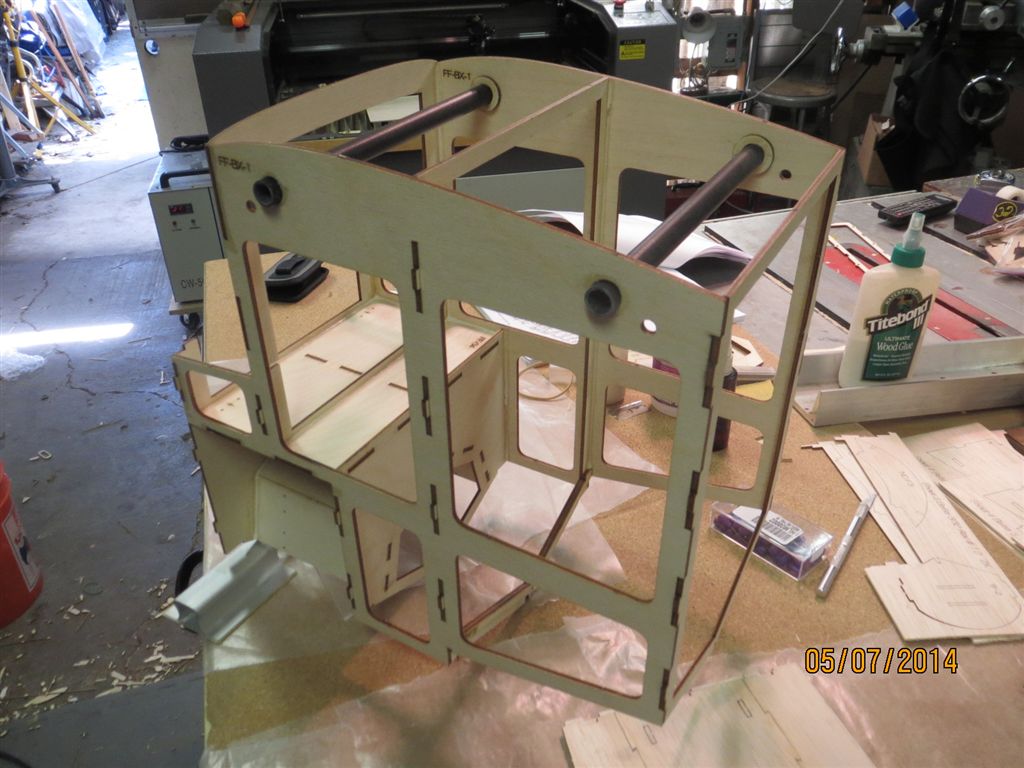

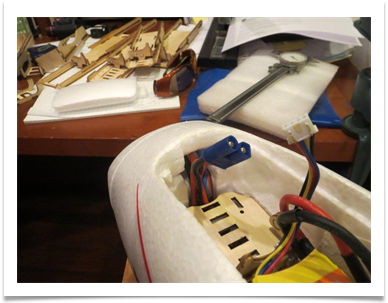

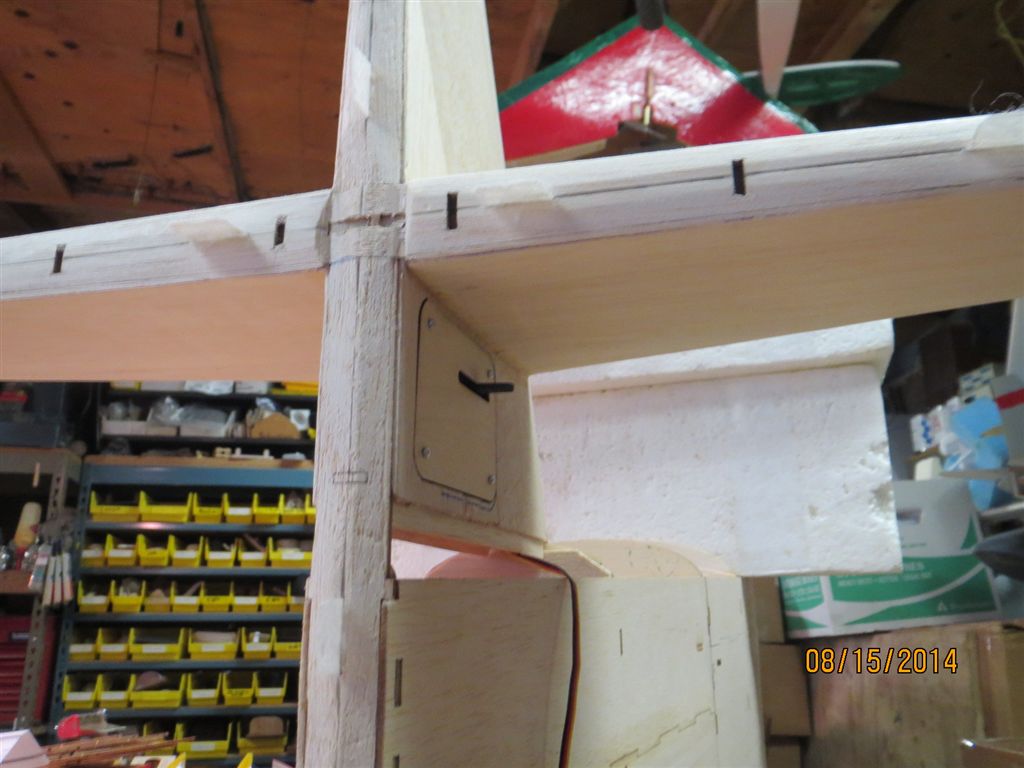

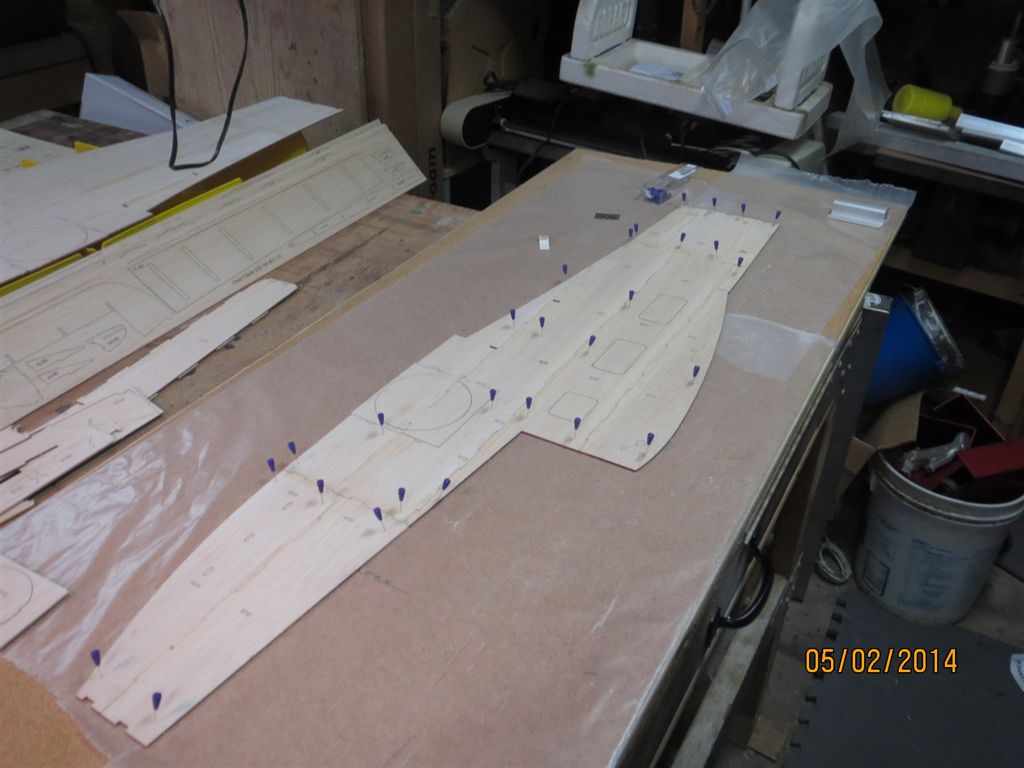

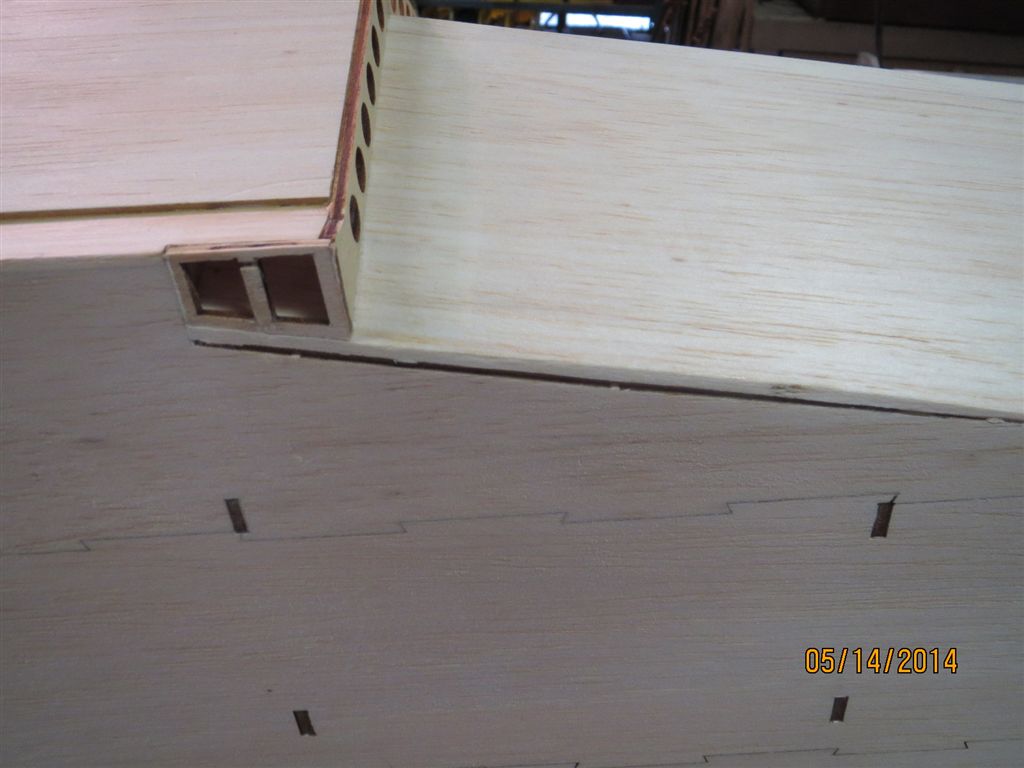

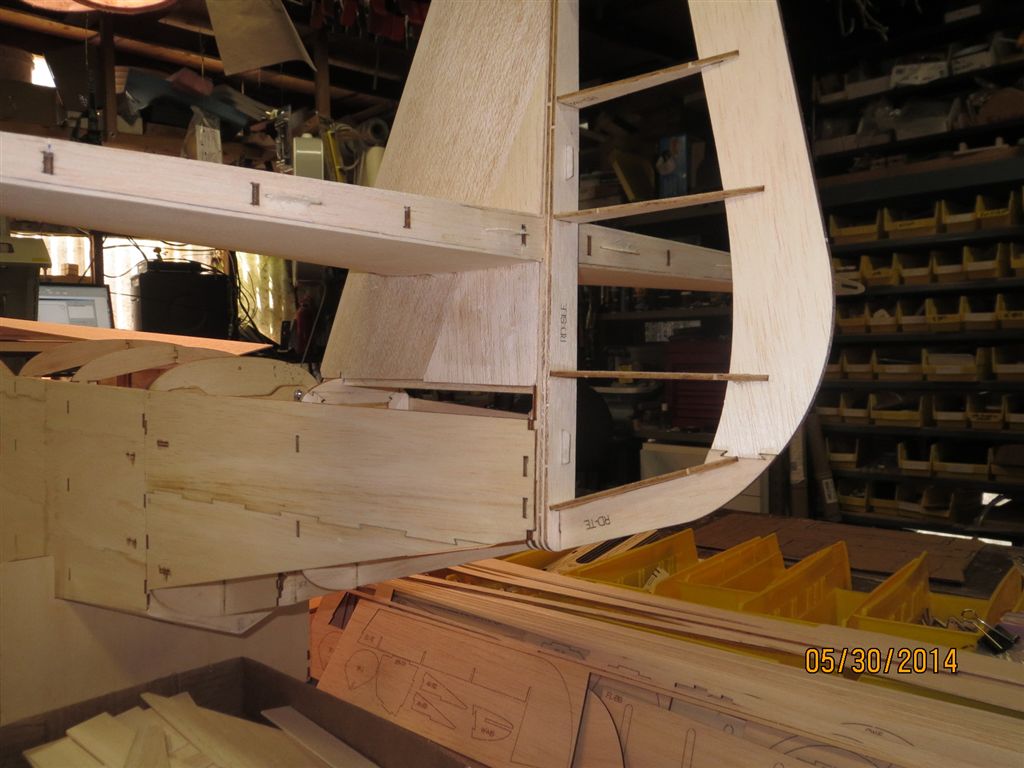

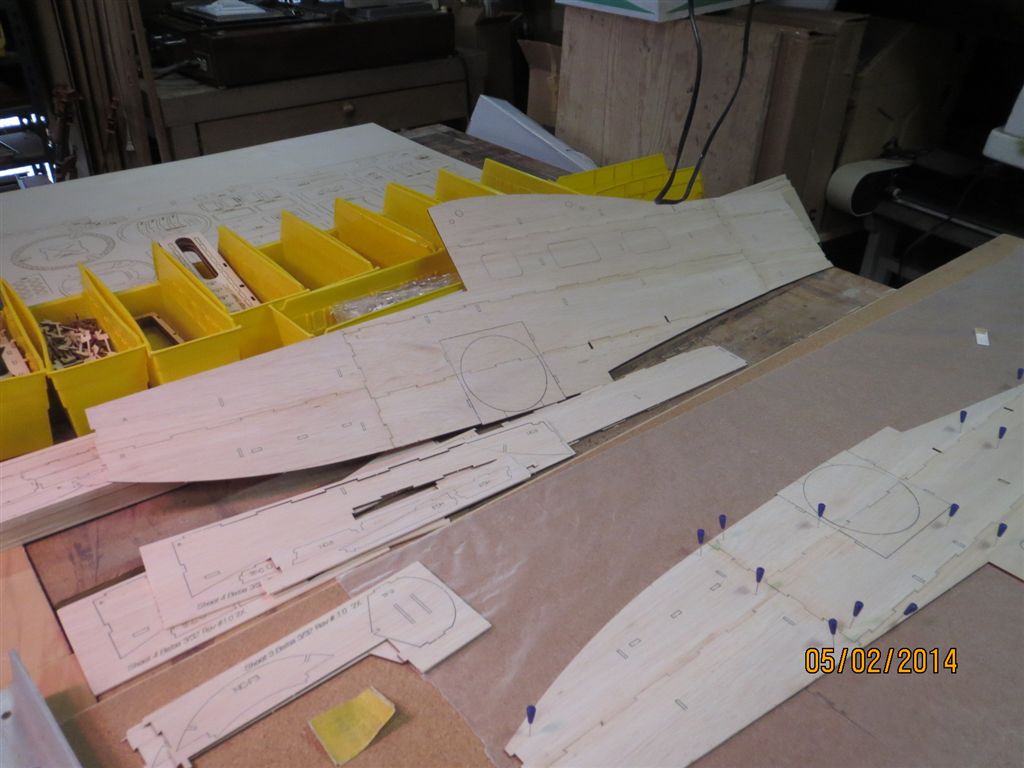

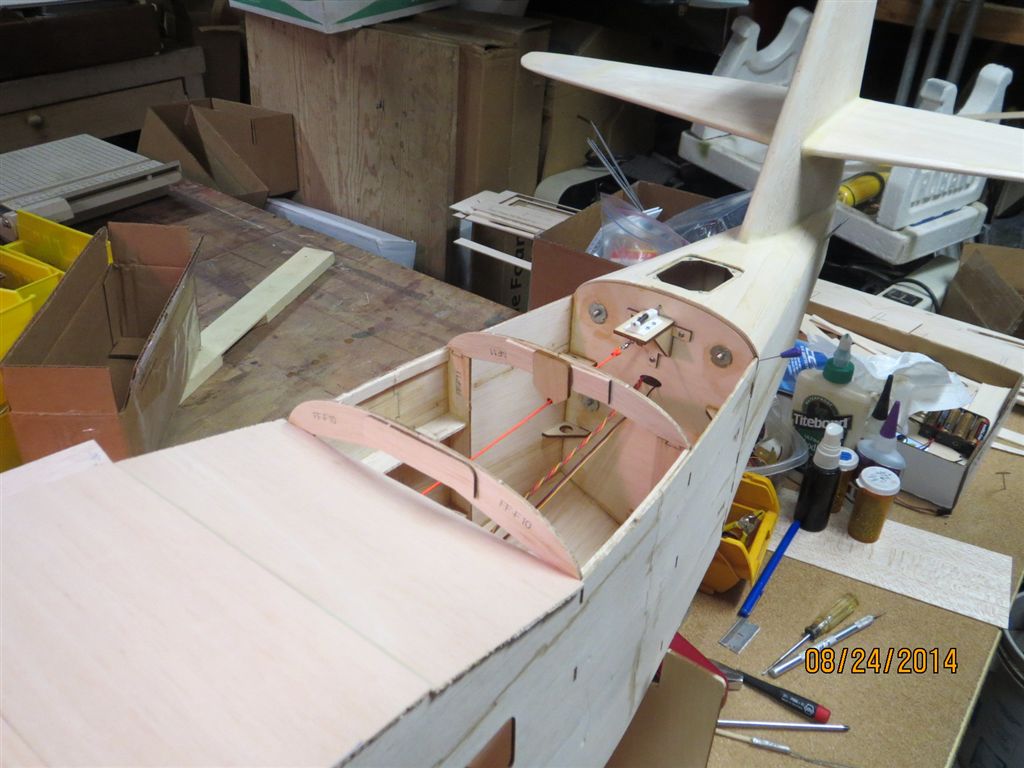

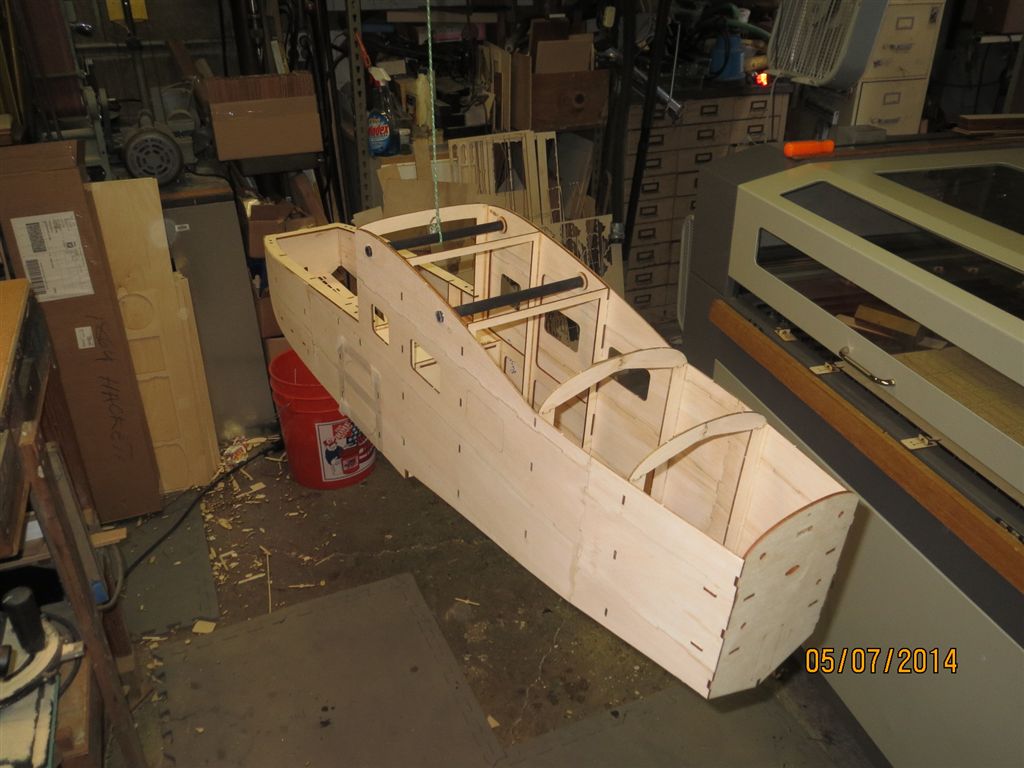

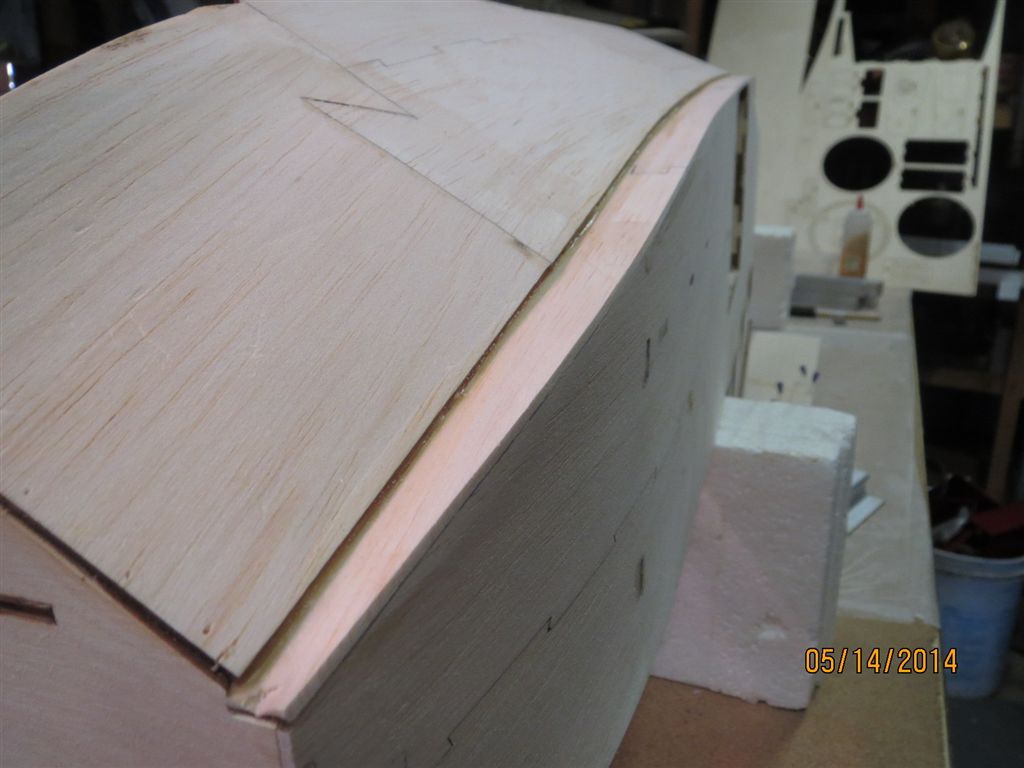

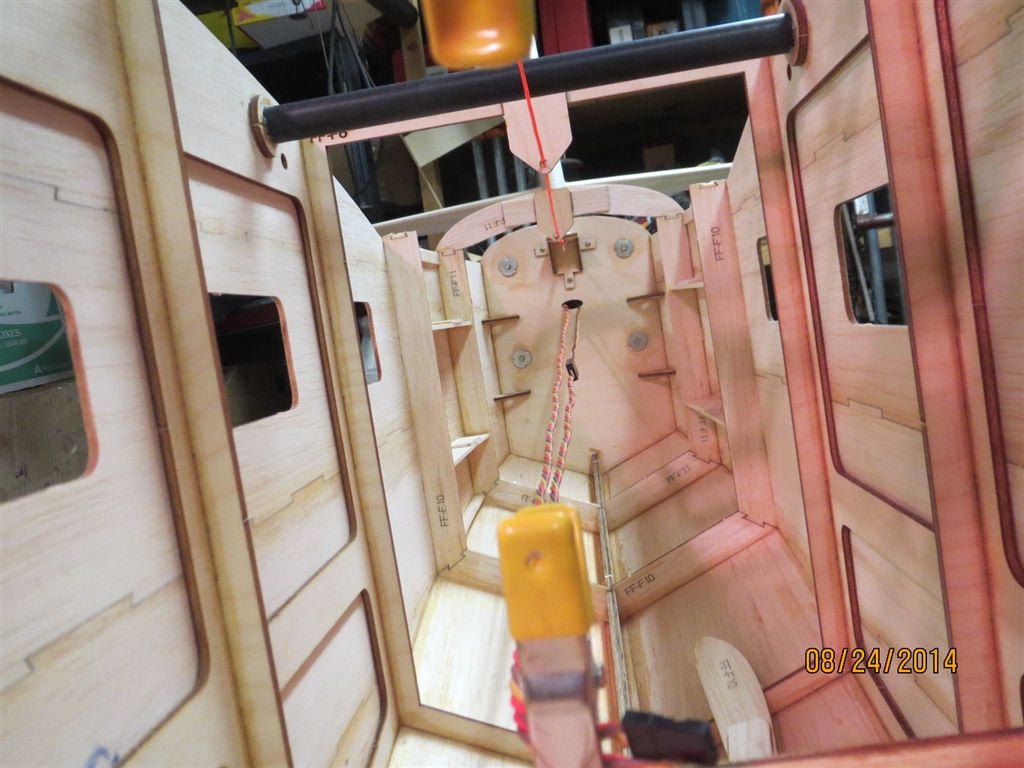

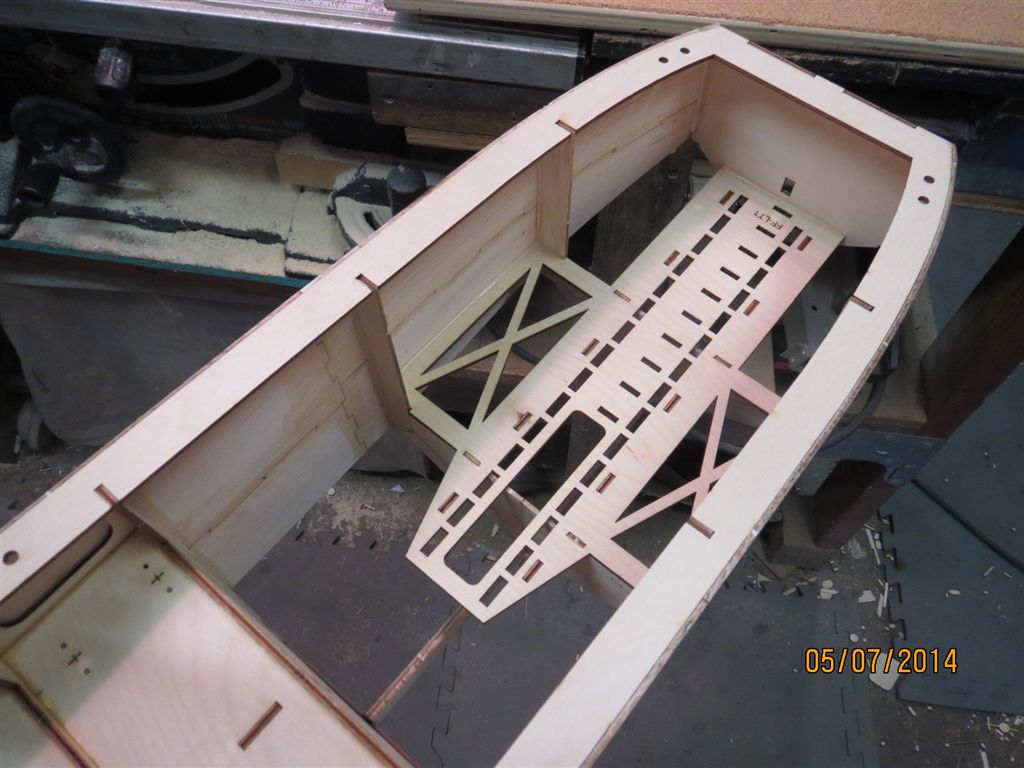

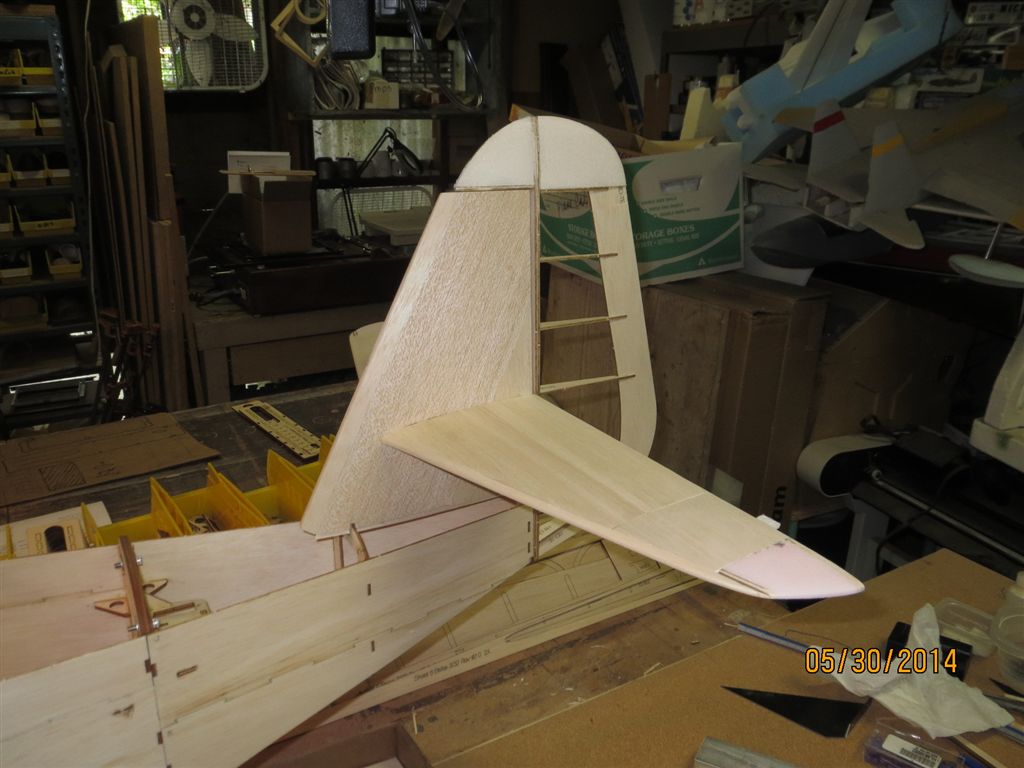

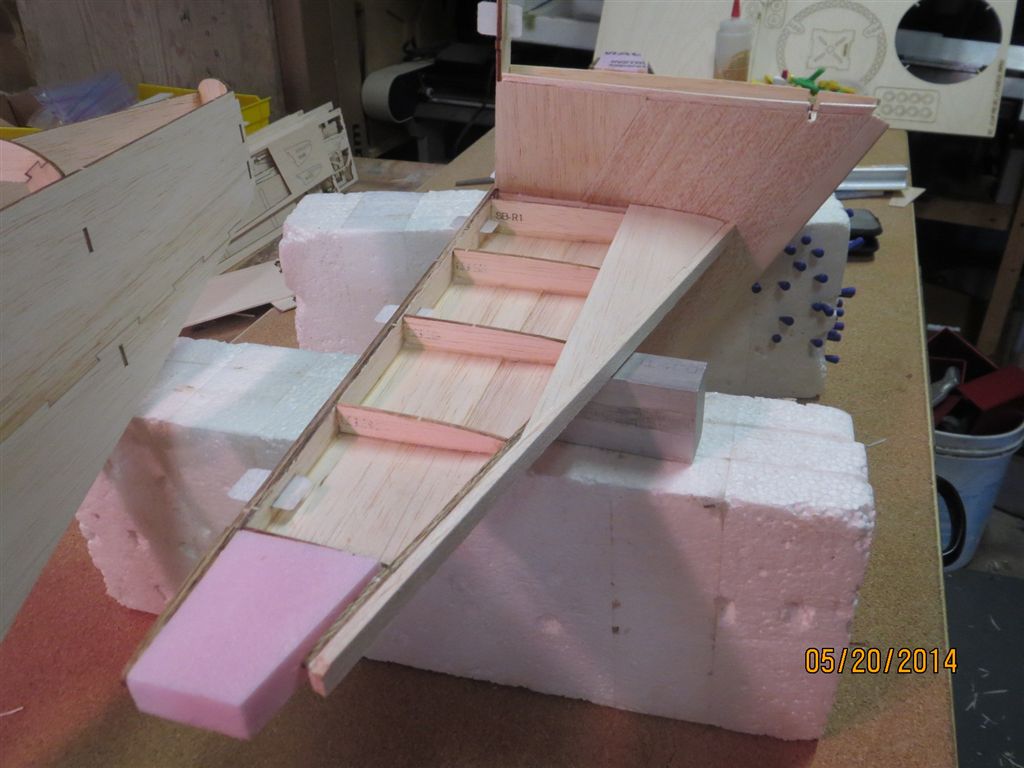

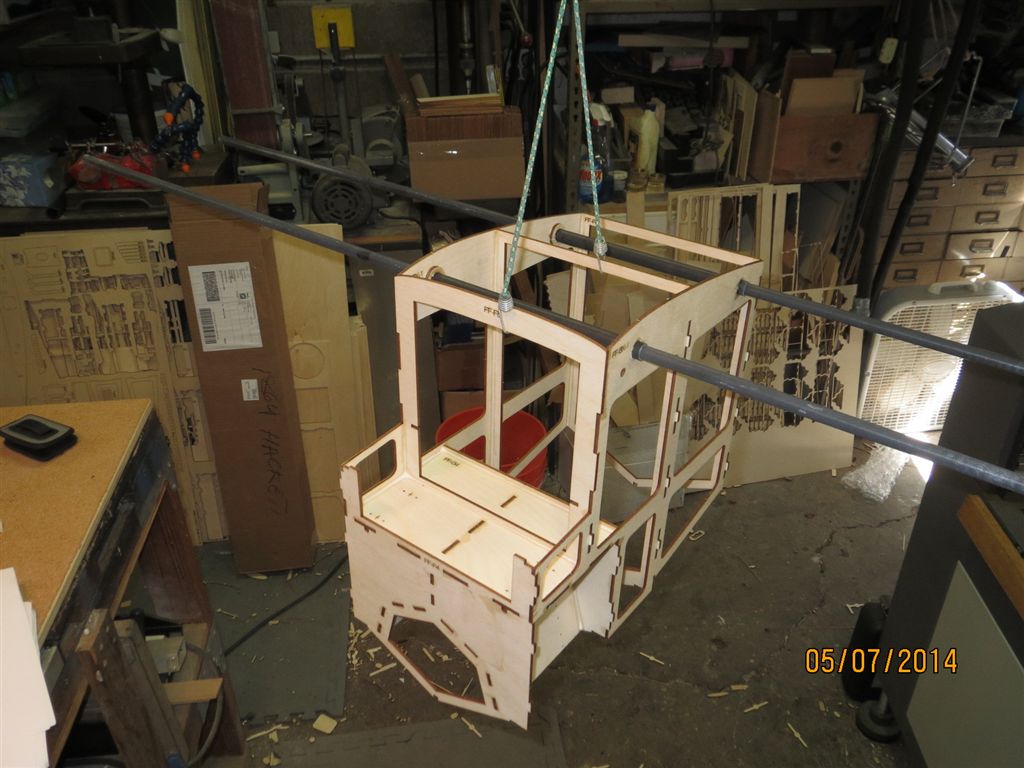

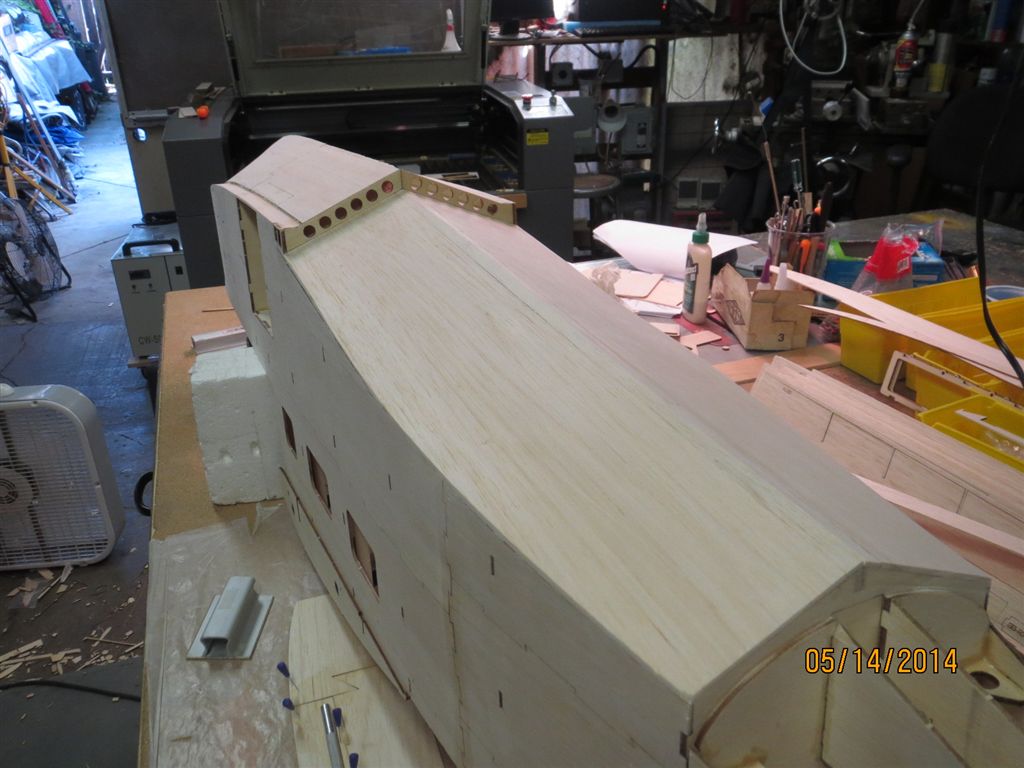

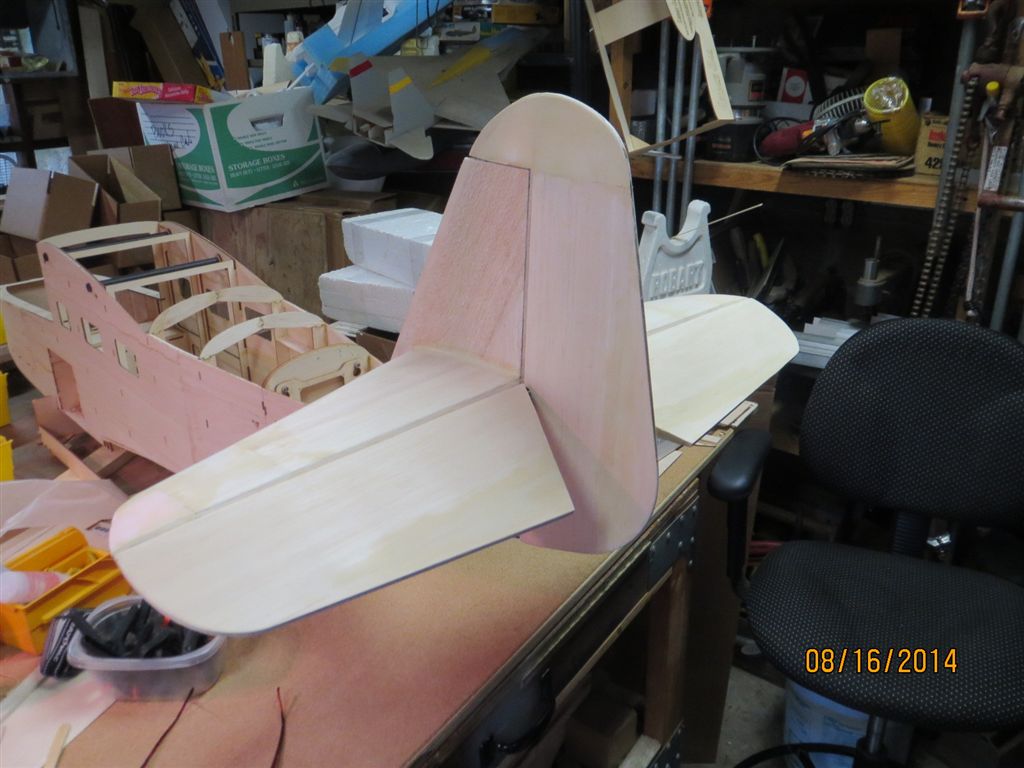

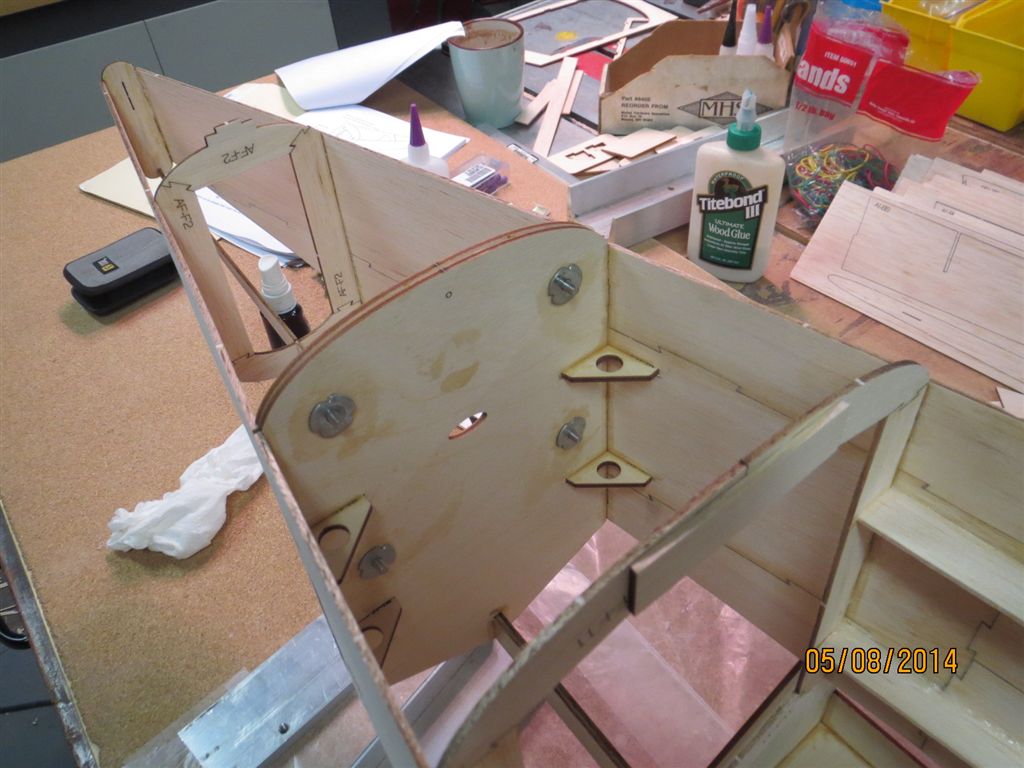

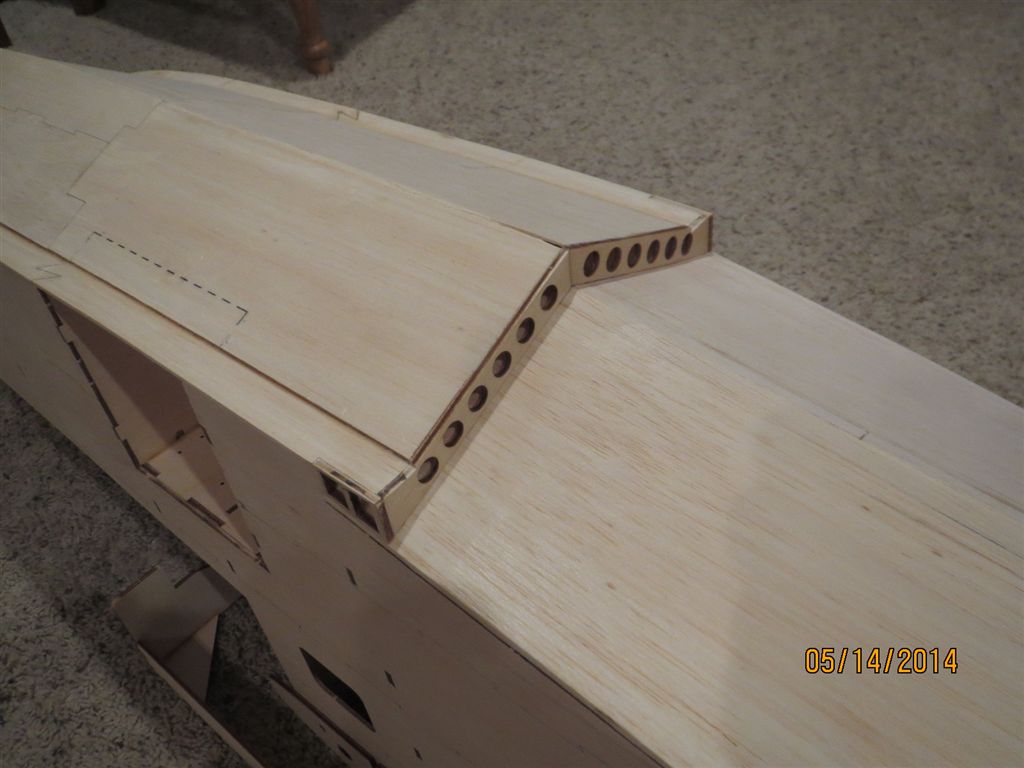

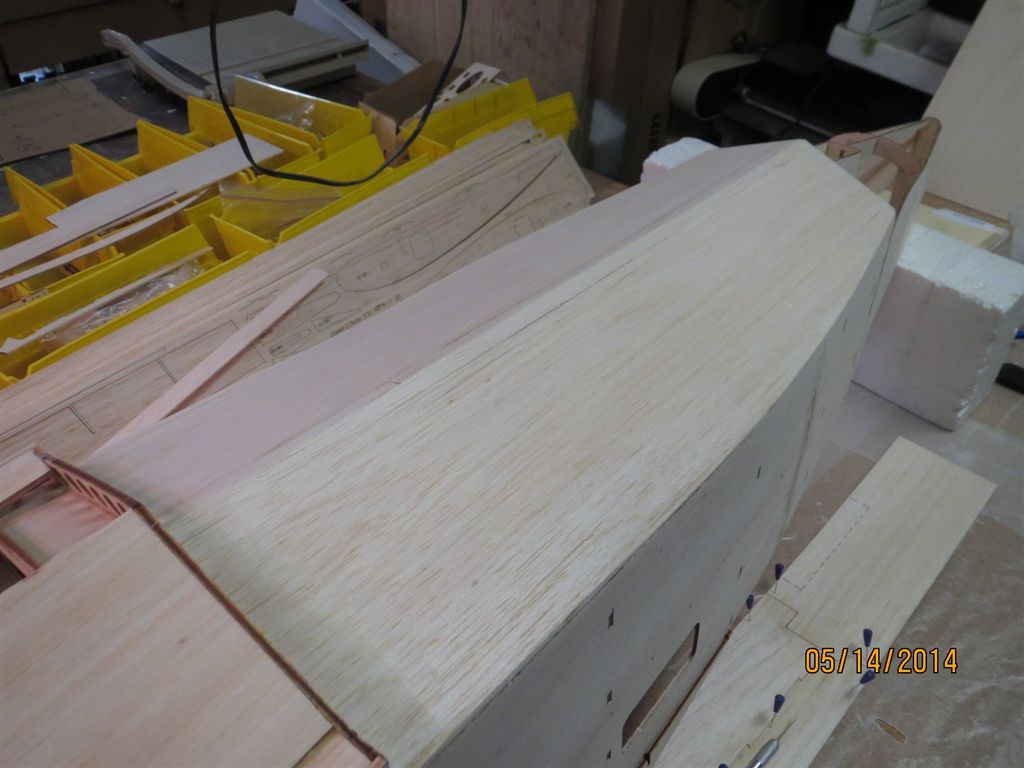

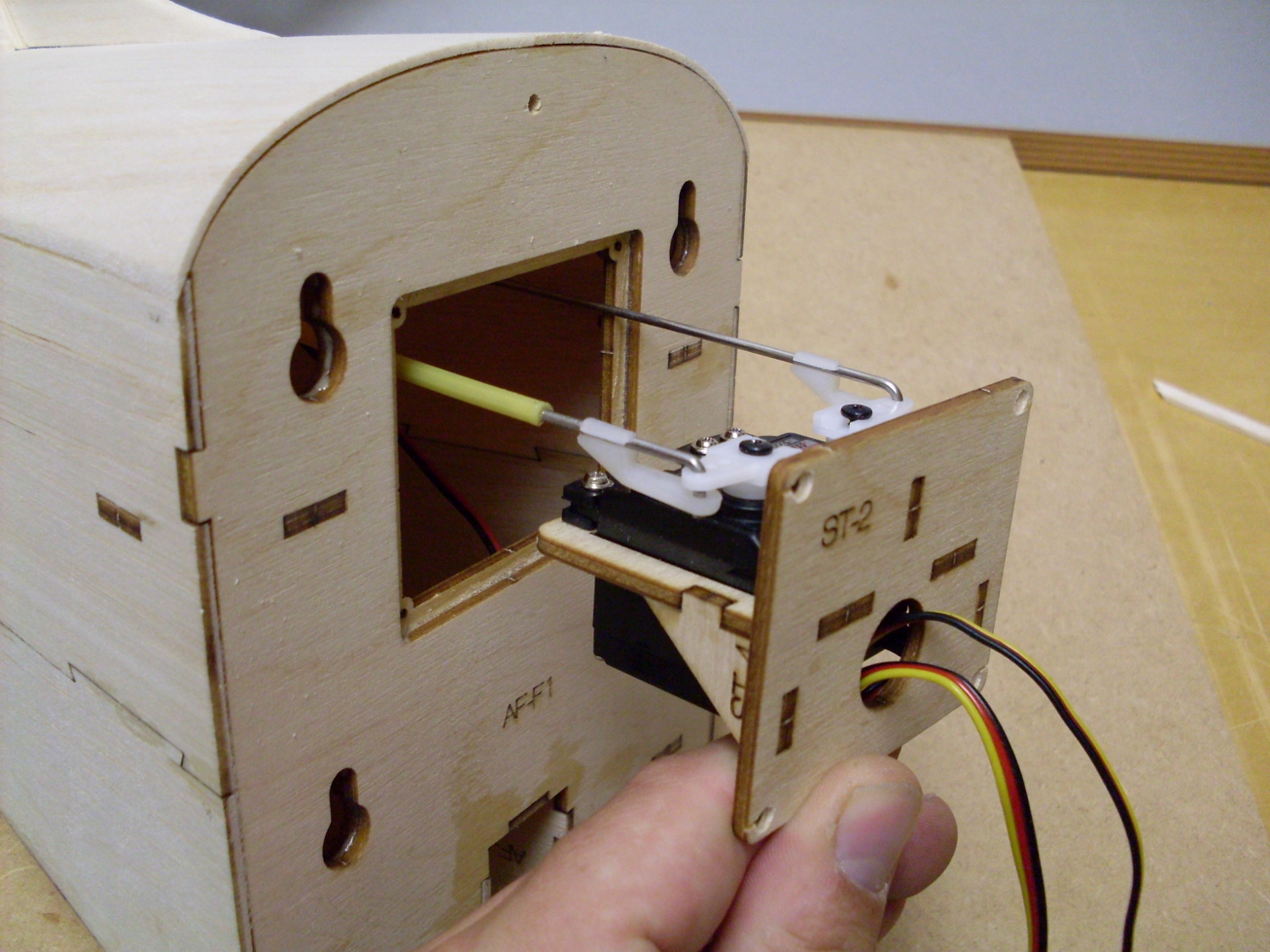

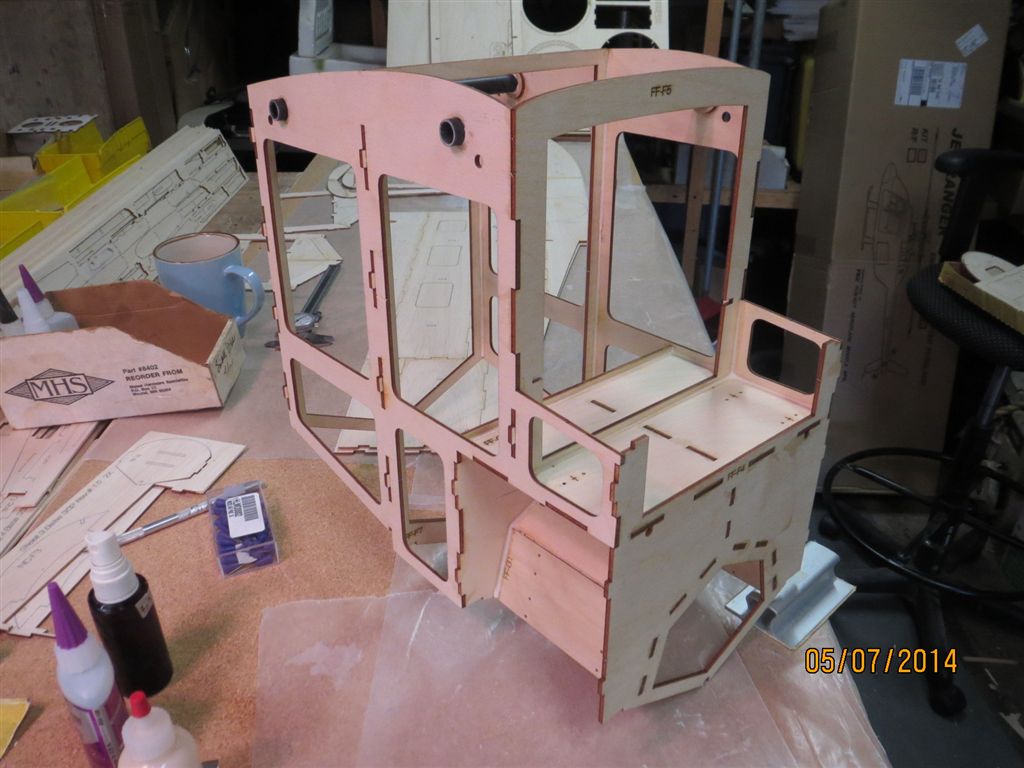

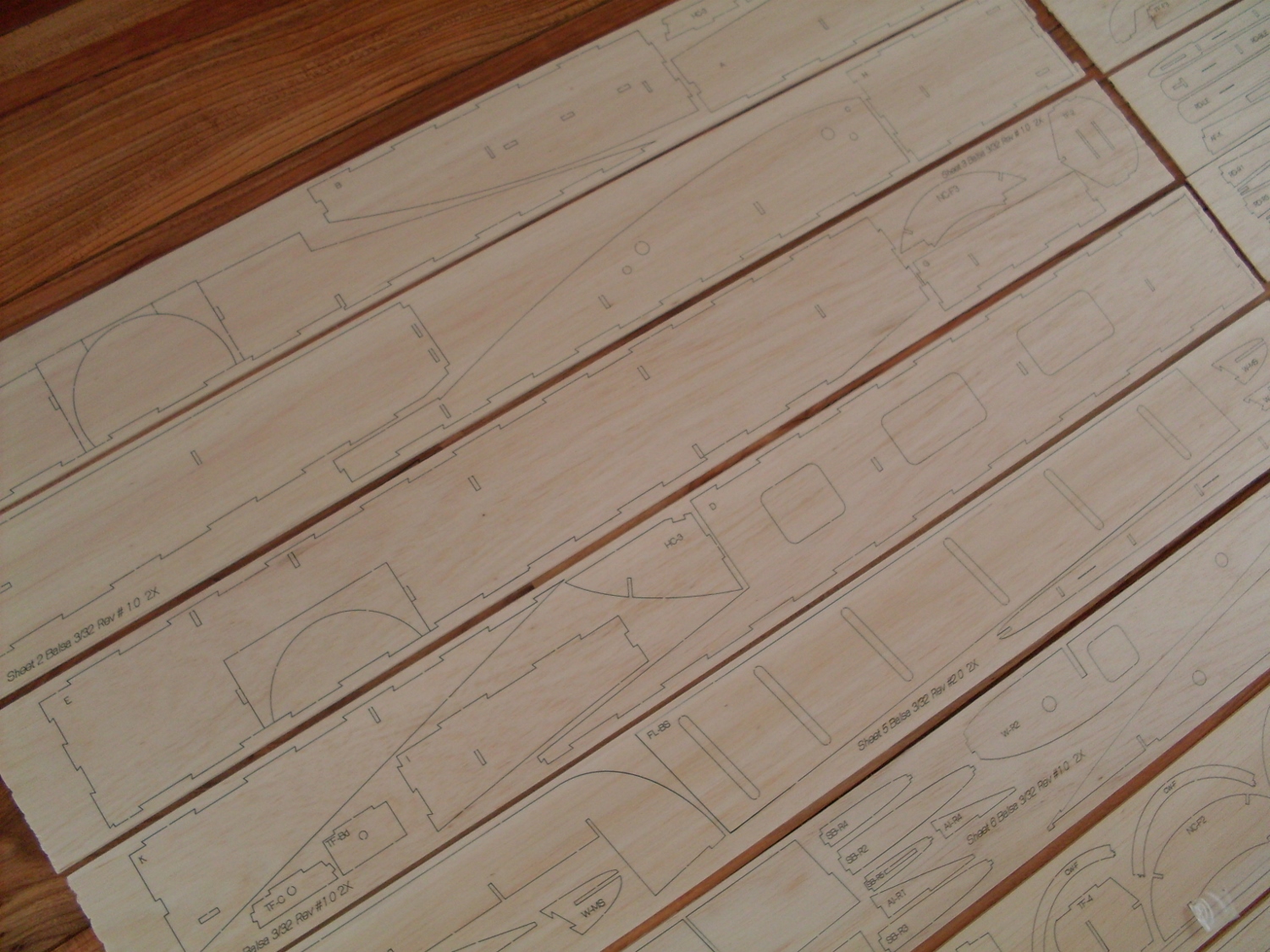

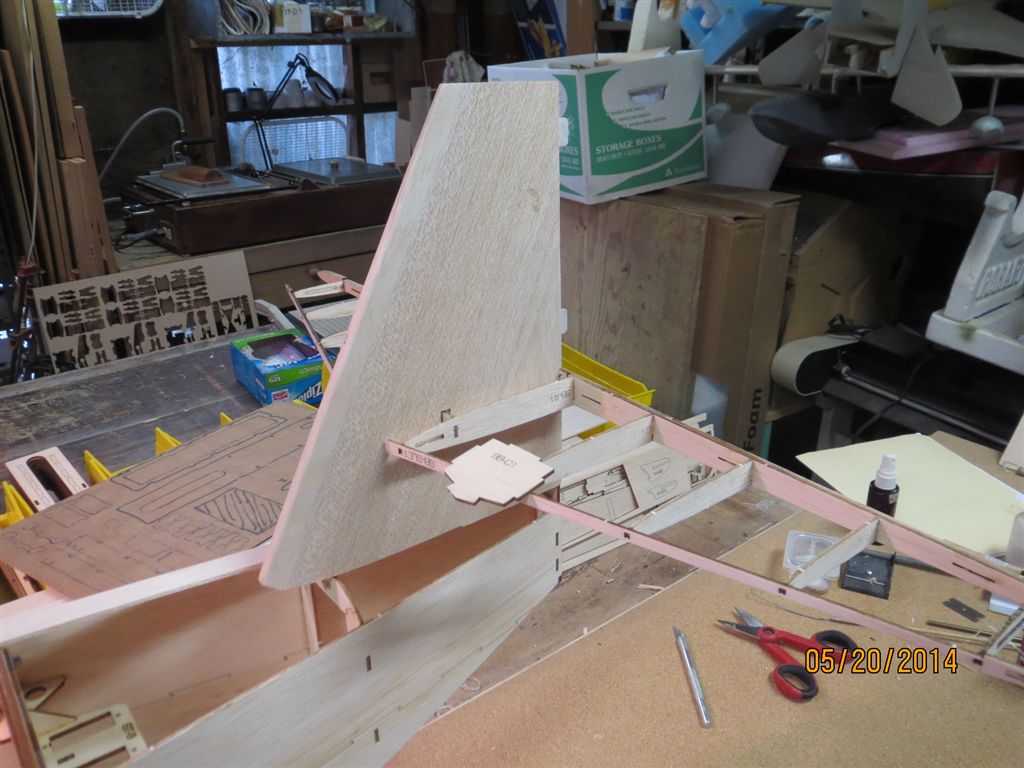

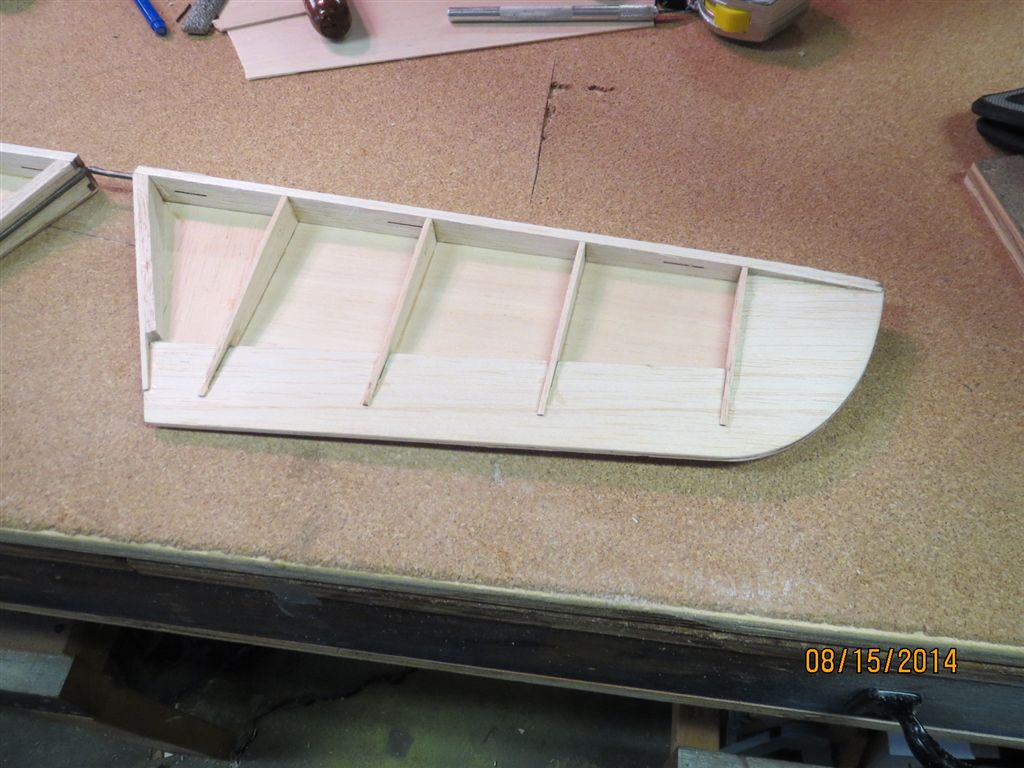

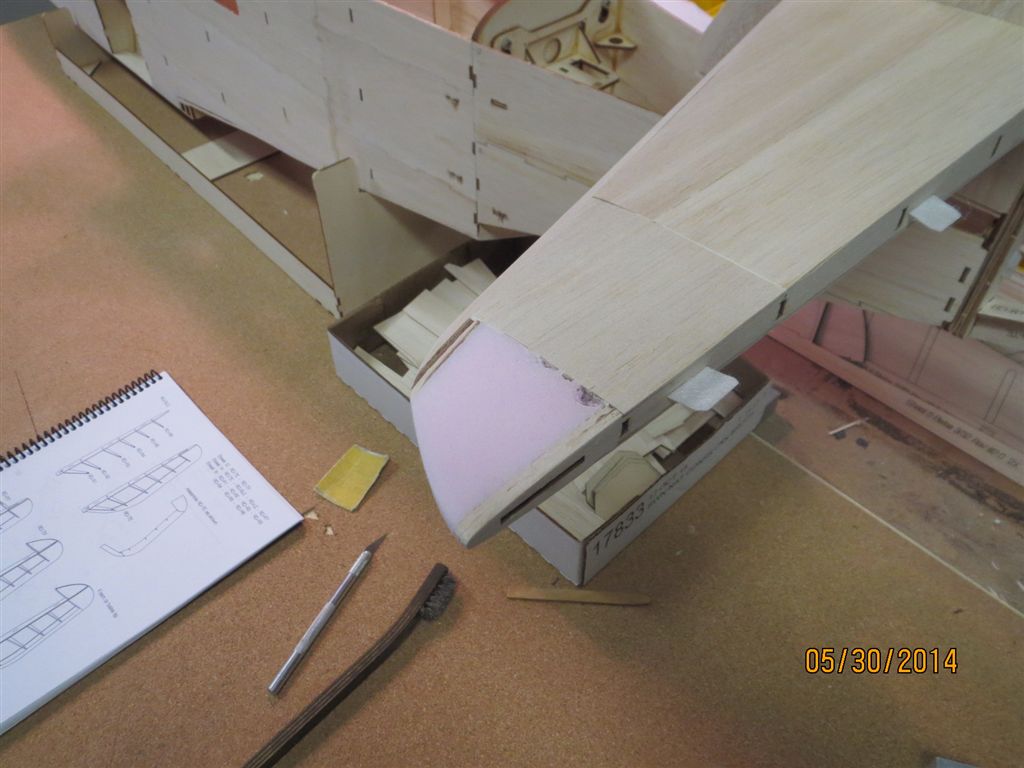

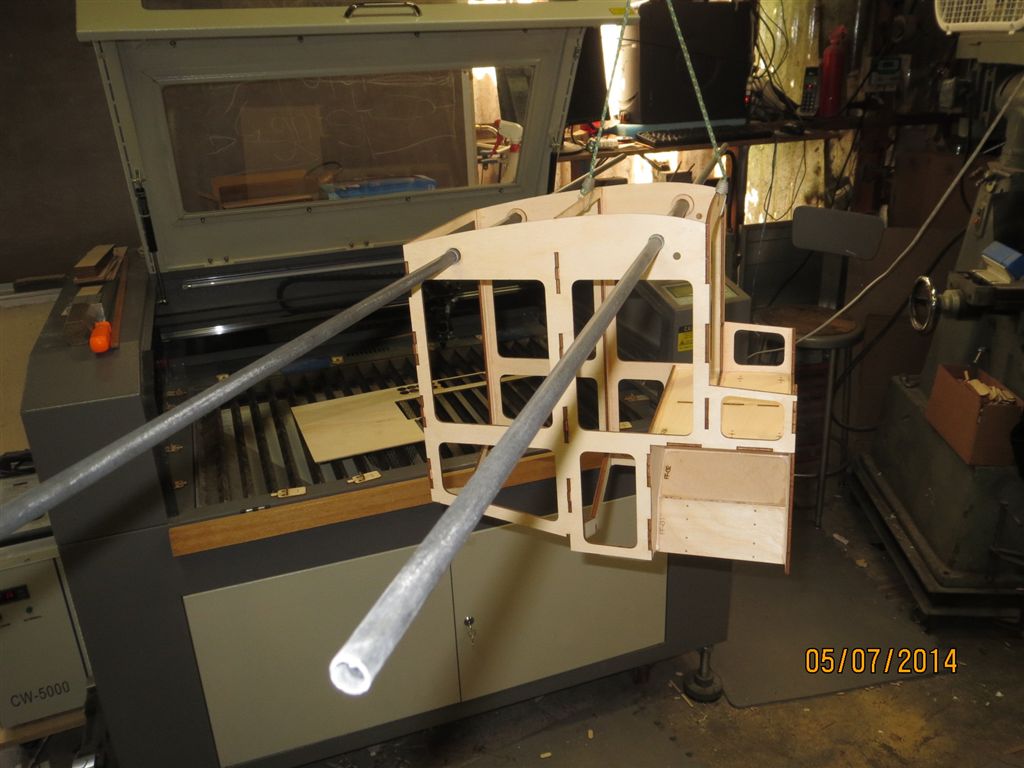

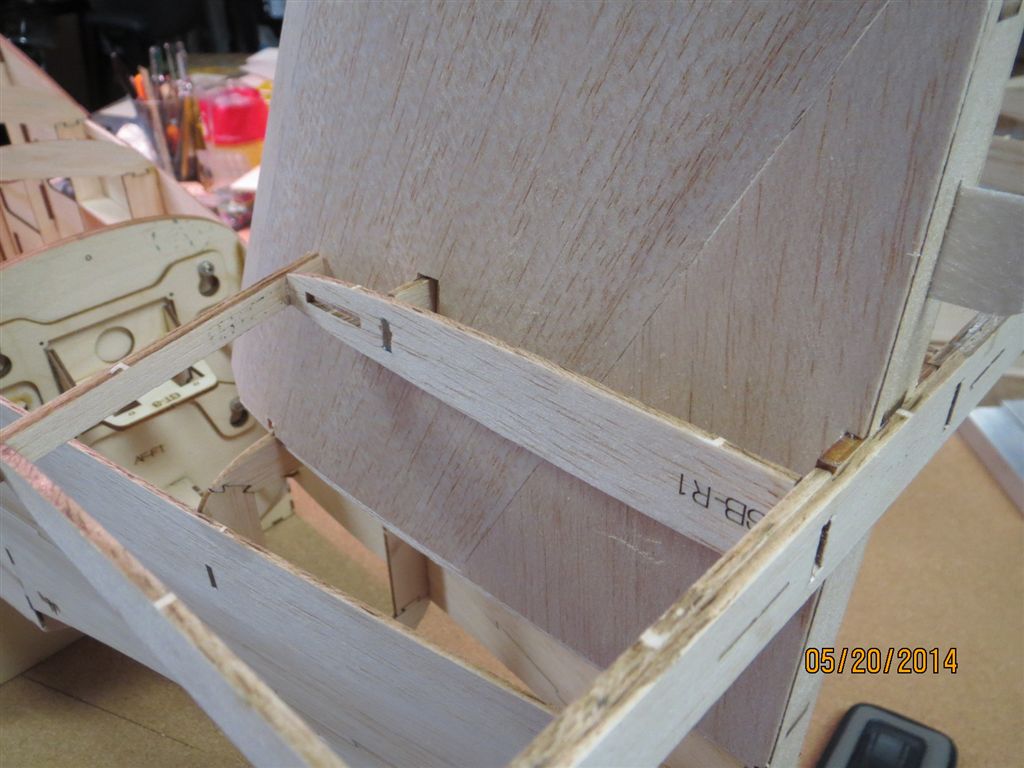

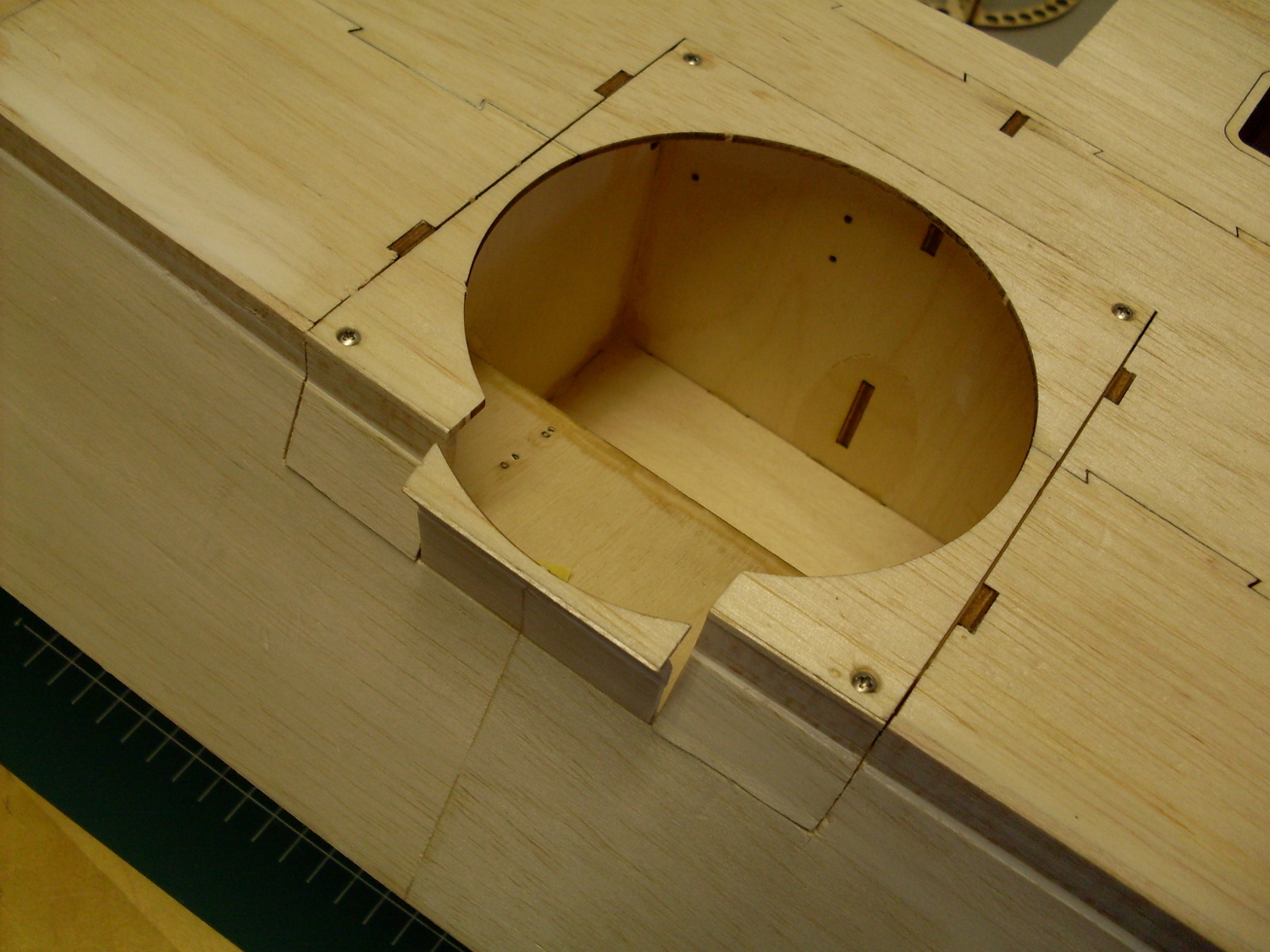

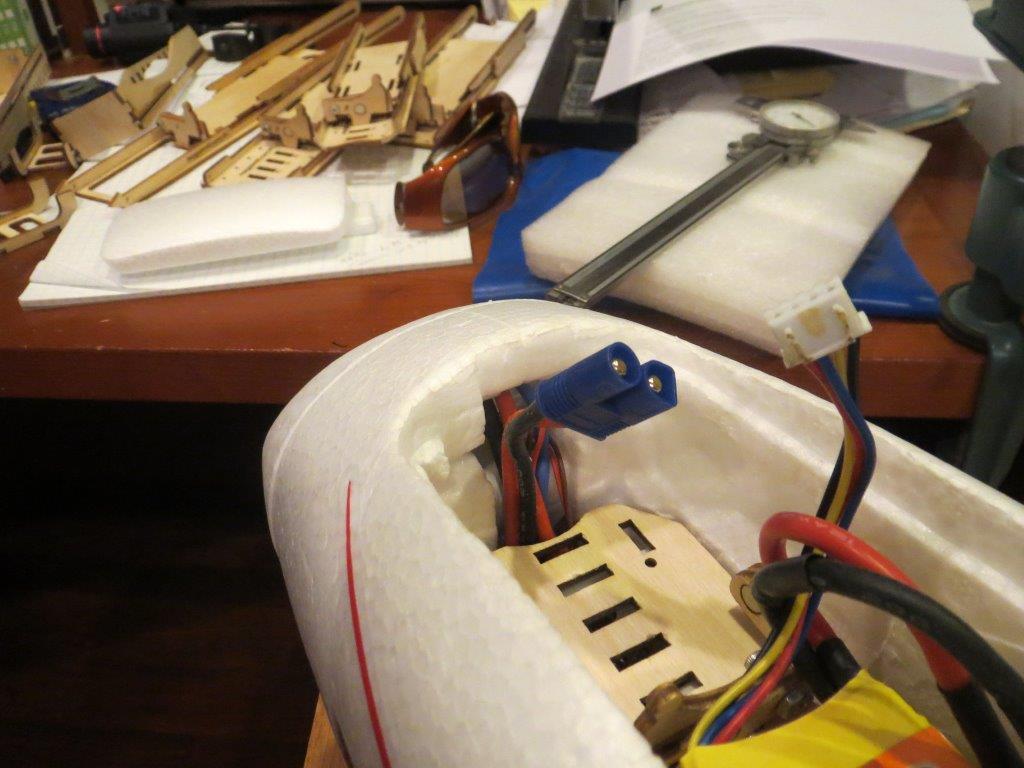

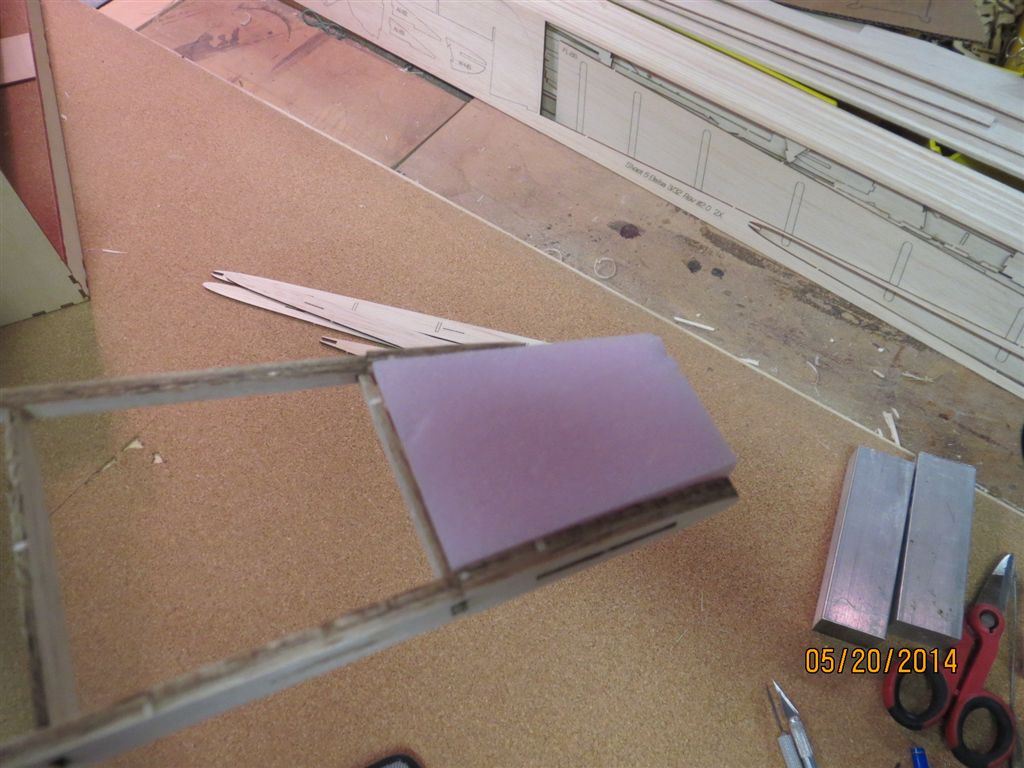

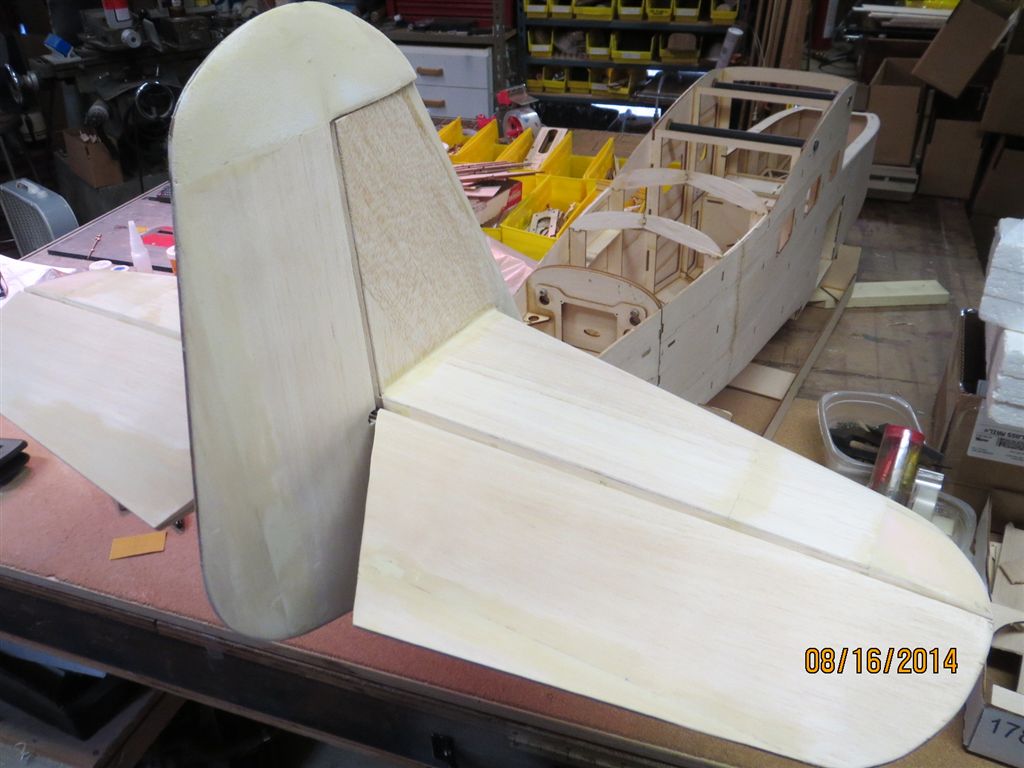

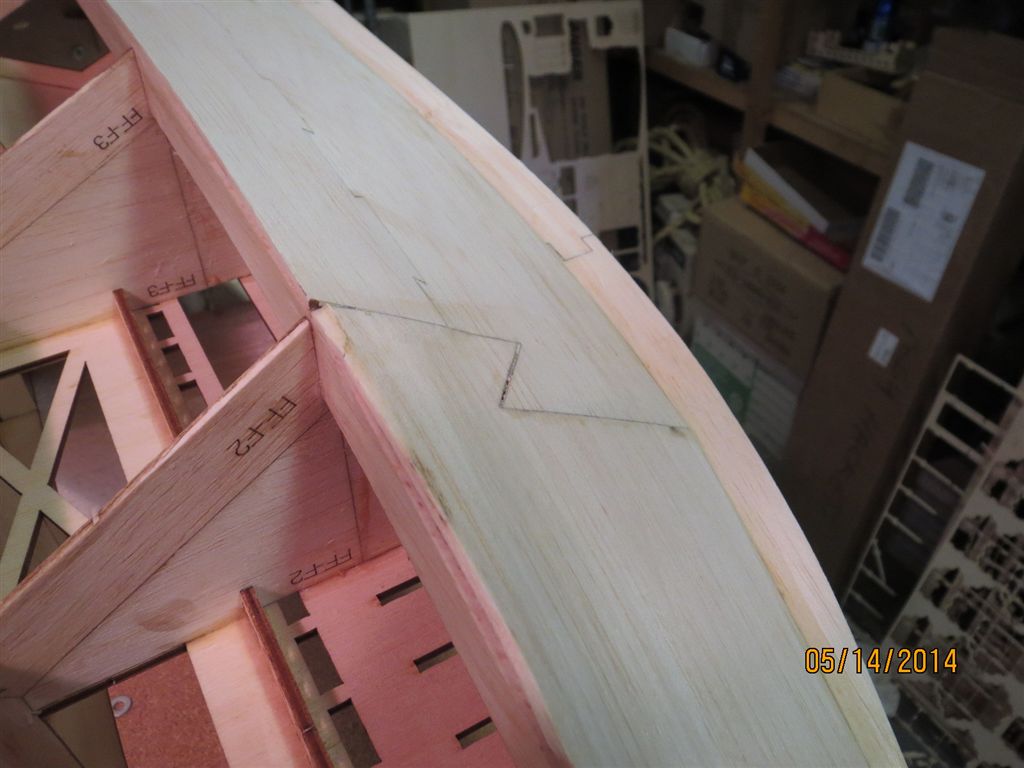

Gary's Build Photos Click on image

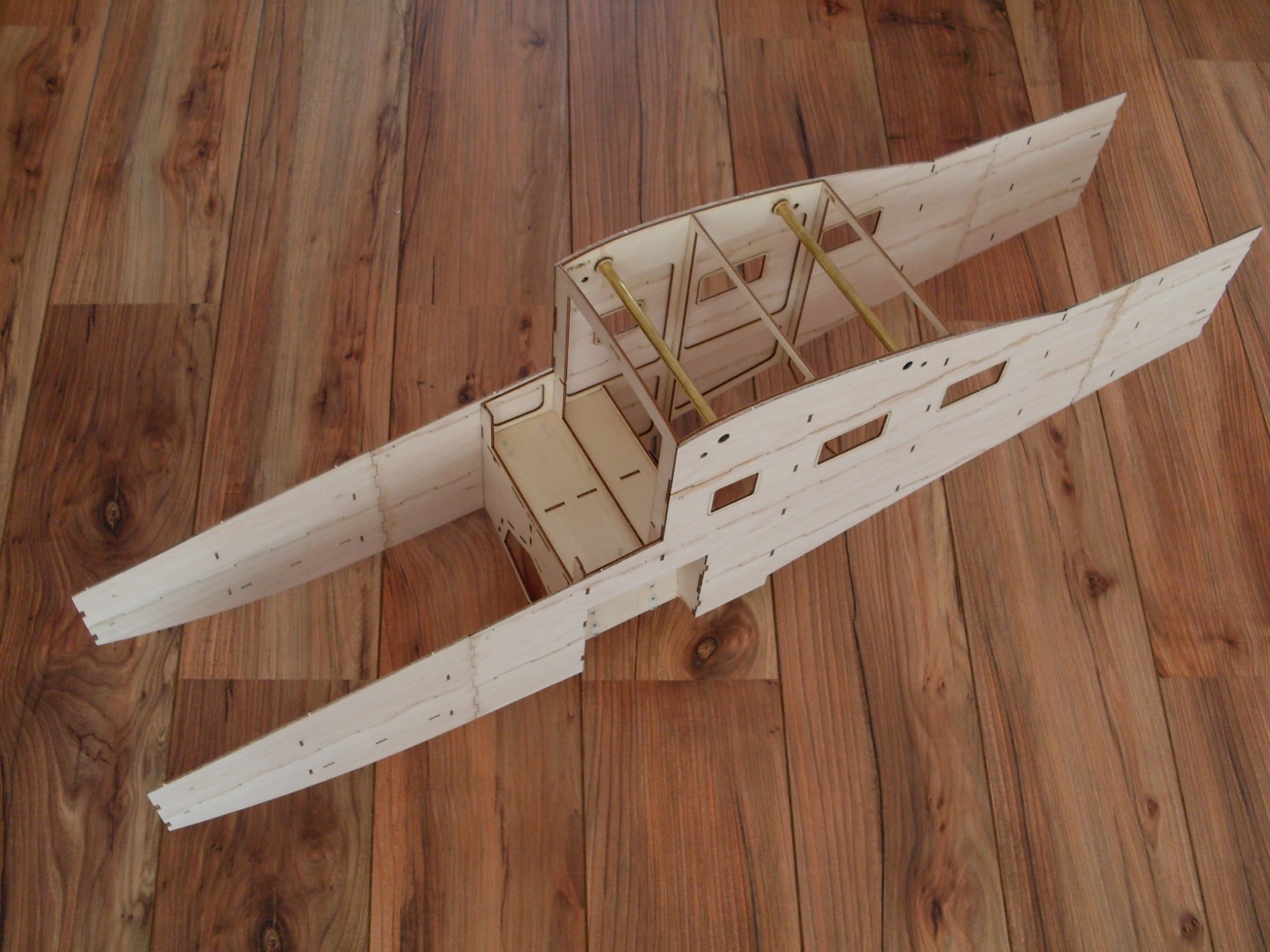

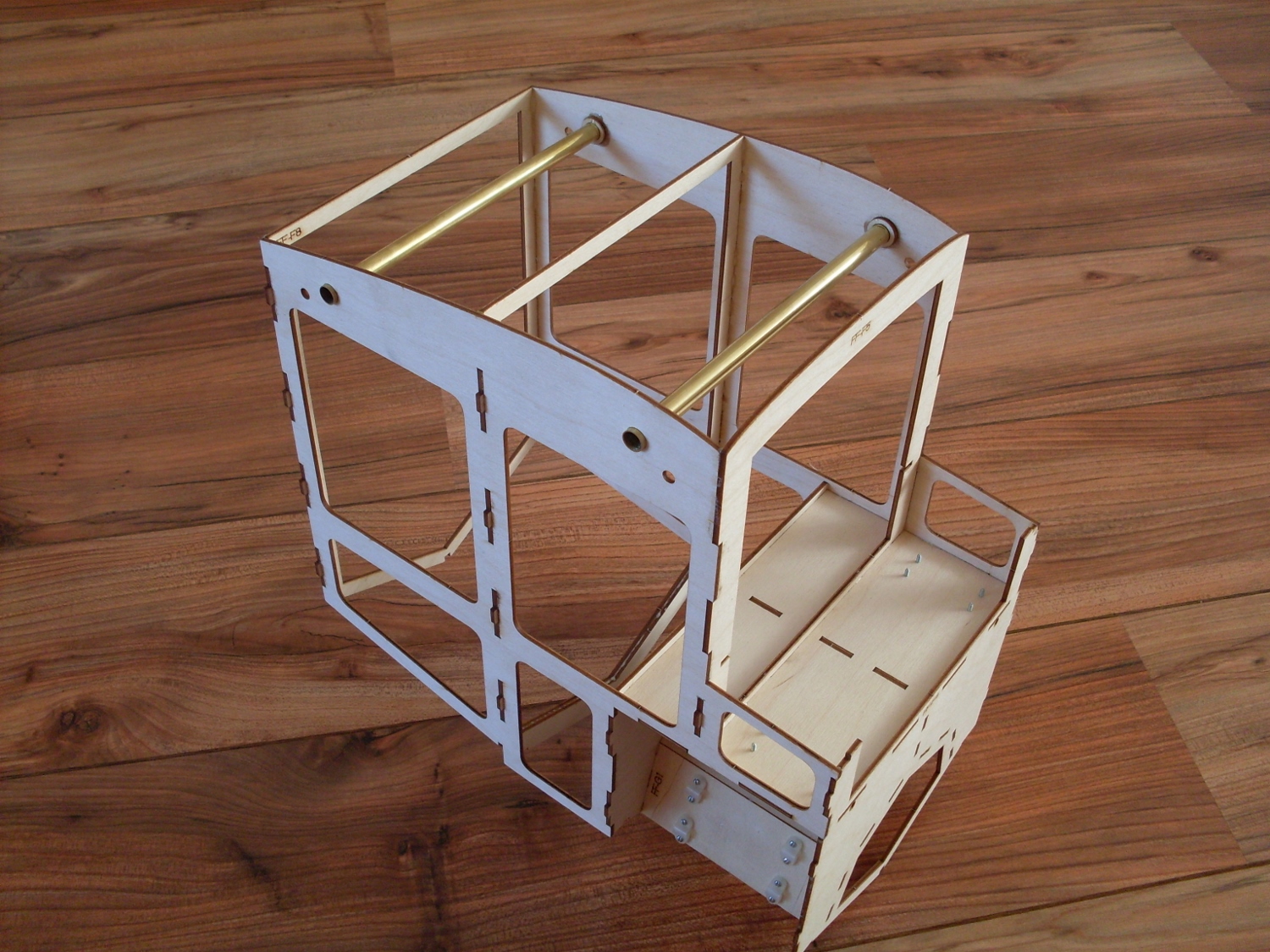

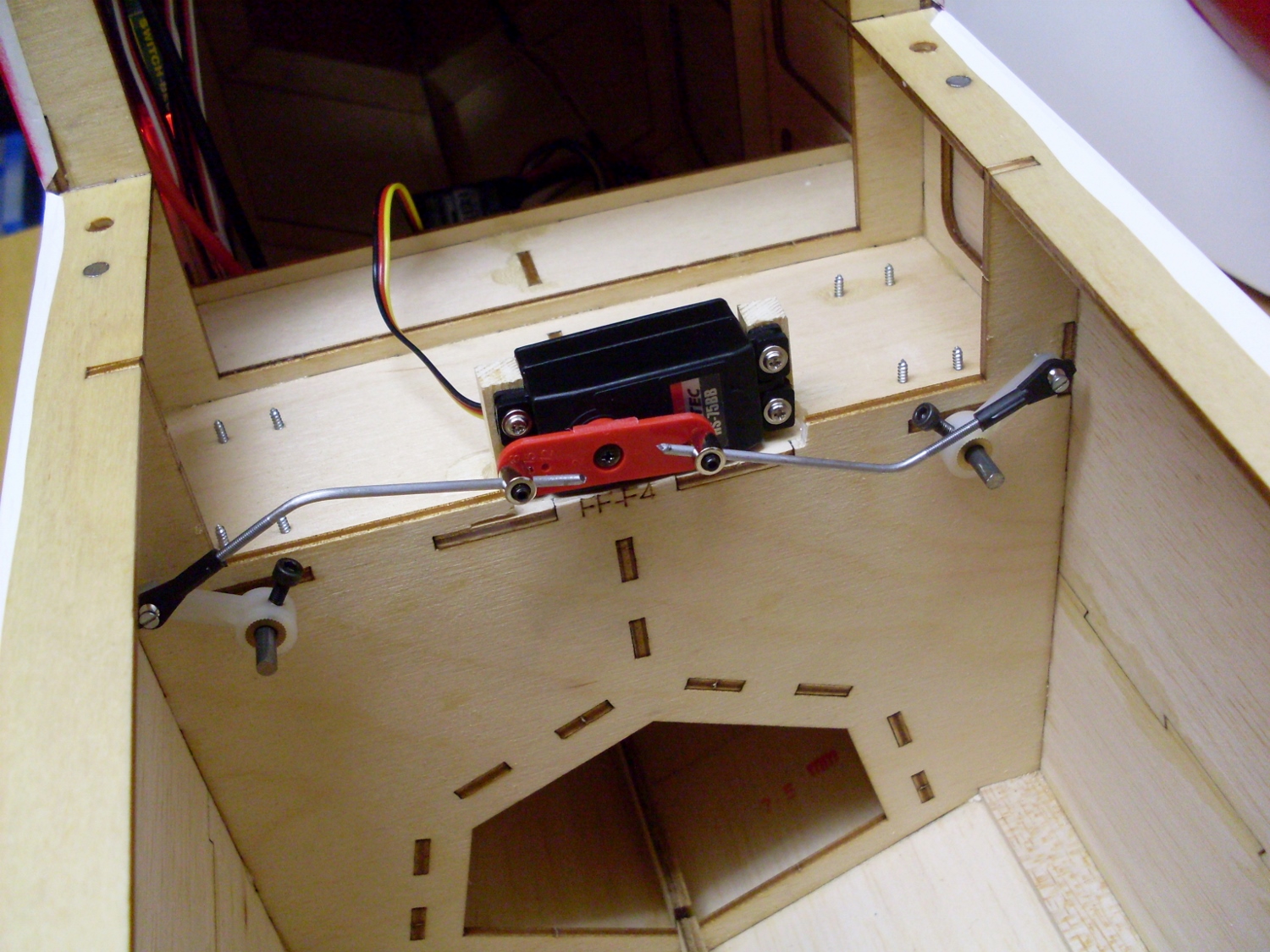

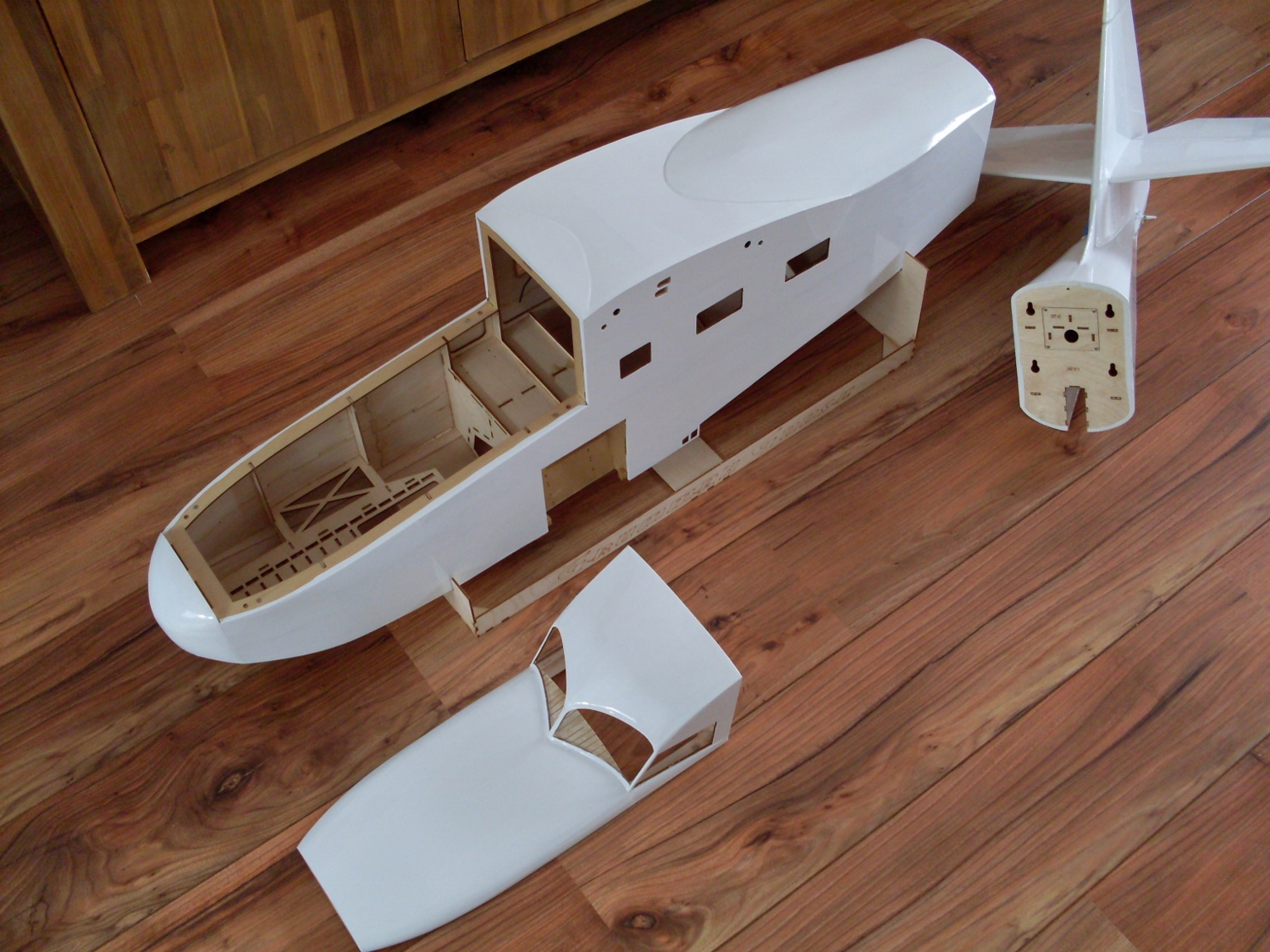

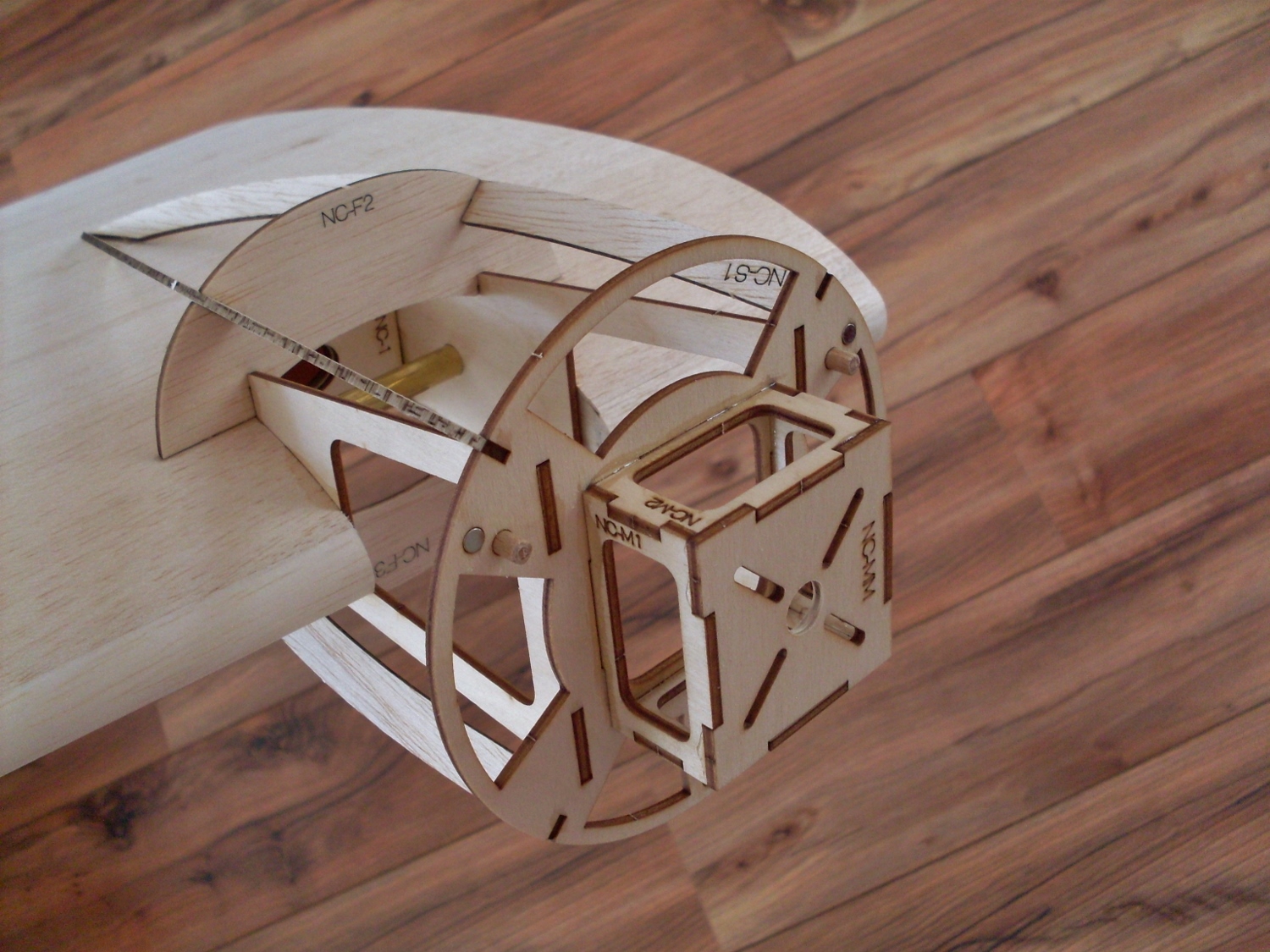

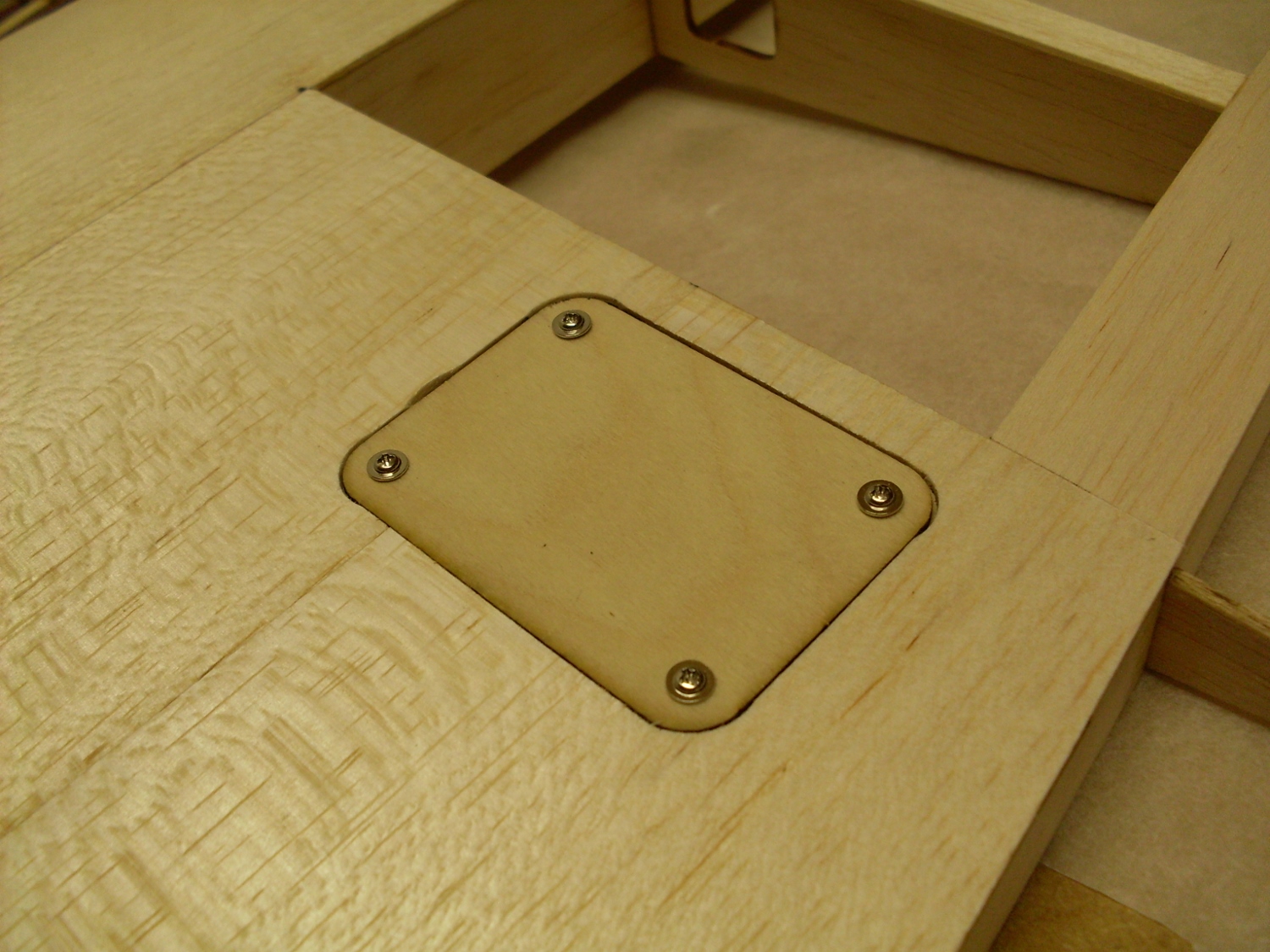

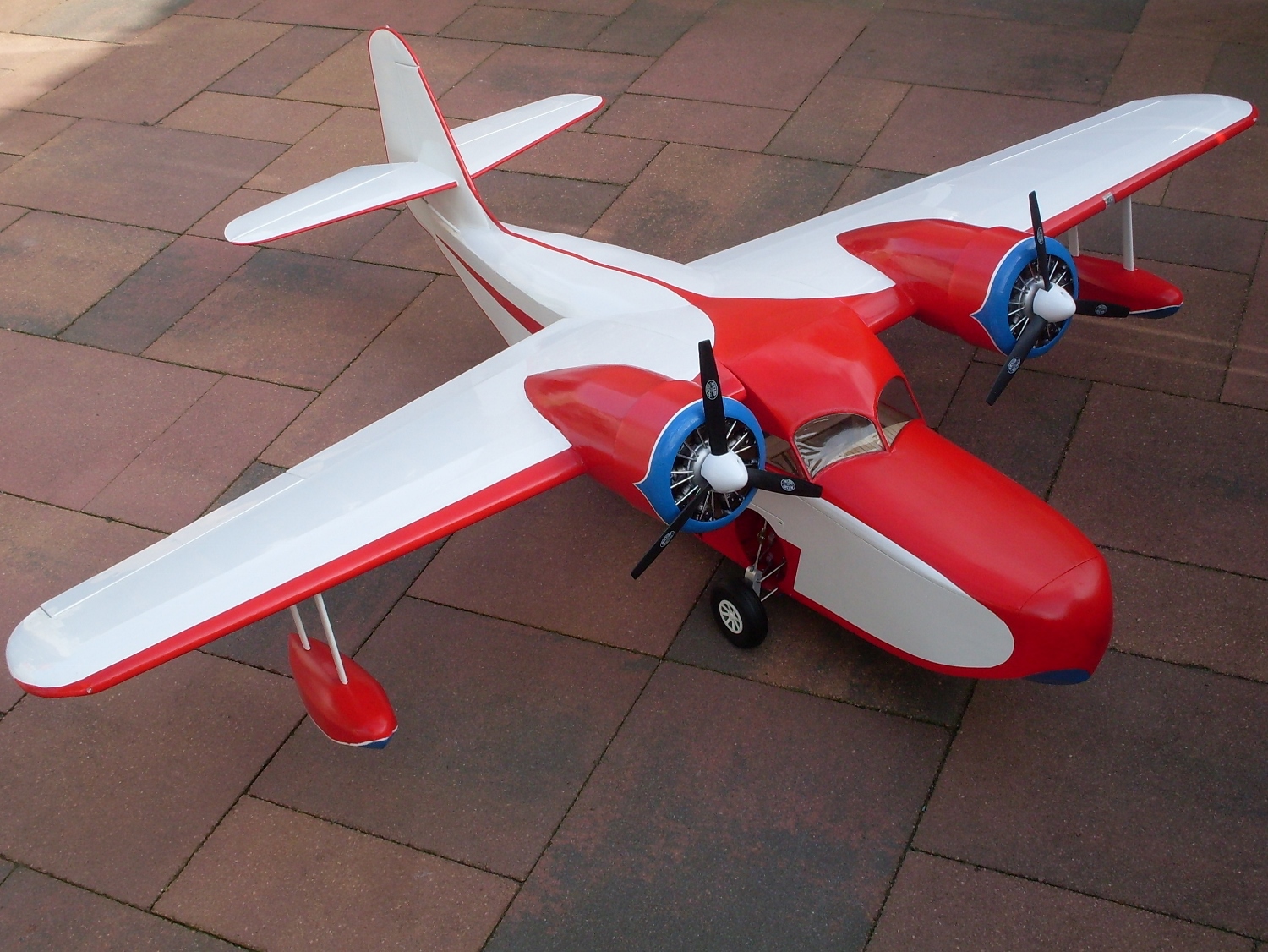

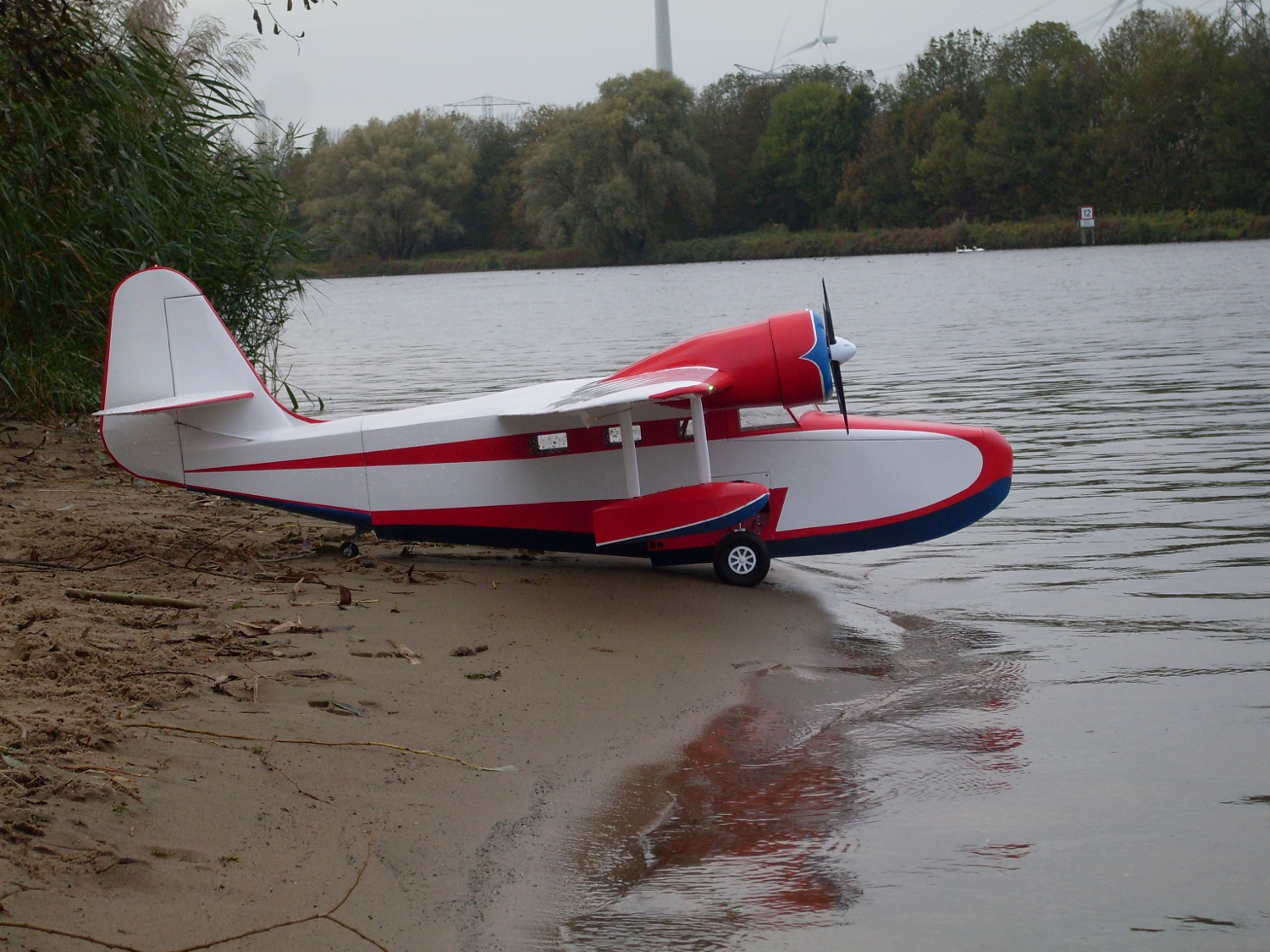

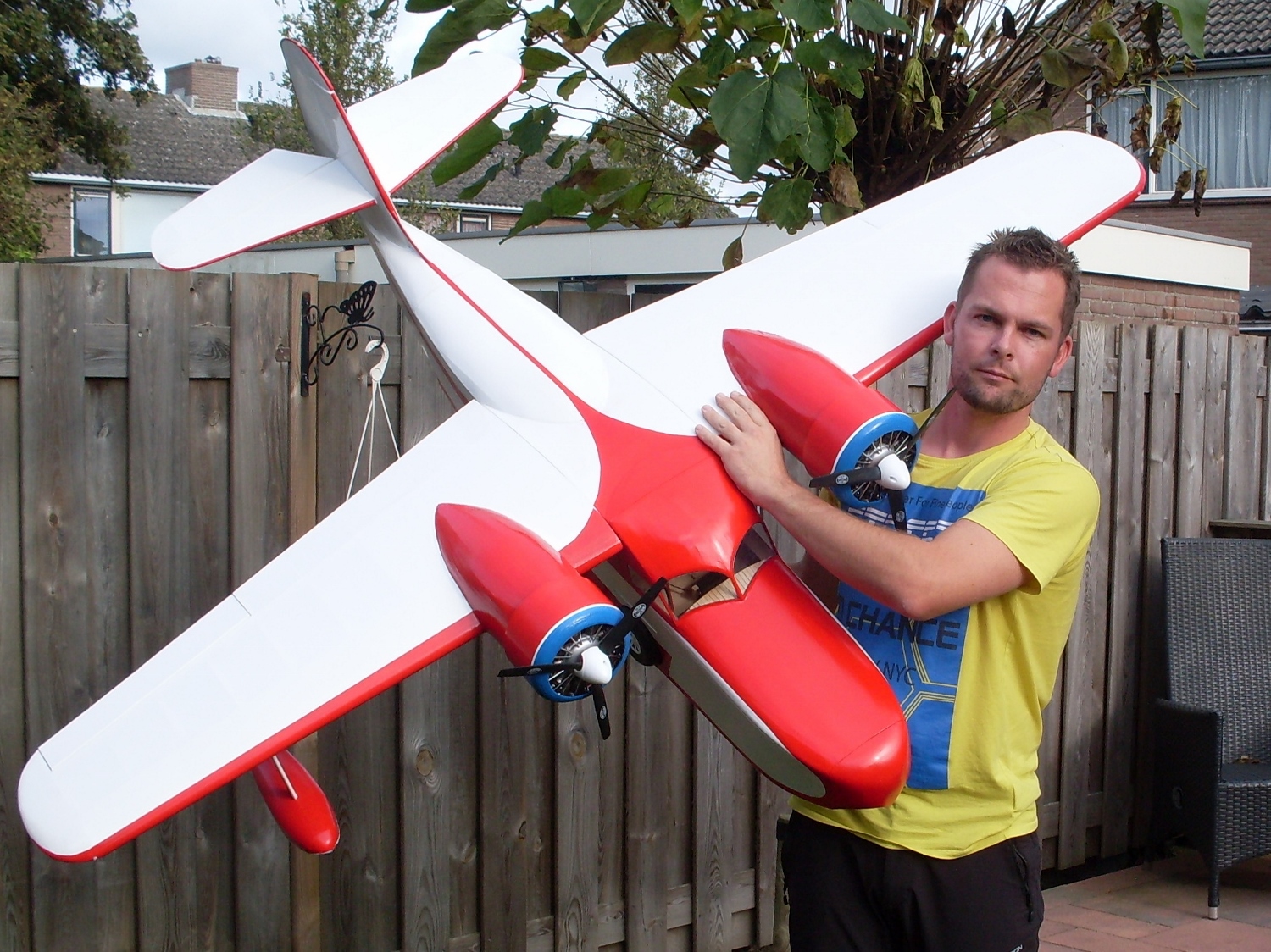

Picture Gallery
Click on image
Click on image
RCG Build Thread
Aircraft Specifications
Wingspan............. 2000mm/79''
length................... 1620mm/63,7''
Weight.................. 4800gram (prototype)
Wing loading......... 72.2g/dmē/24.3oz/sf
Wing cube loading 9.2
Wing area.............. 66dmē/1013sq.in
Current CG........... 100mm measured from LE at root
Control throws :
Elevator : 35mm up and down , at root. -27% expo
Rudder : 50mm
Aileron : 30mm up and down
Flap : 40mm at root max ( 35° max )
Rudder aileron mixing reccomended ( or not if you are used to making turns with rudder and aileron )
Wingspan............. 2000mm/79''
length................... 1620mm/63,7''
Weight.................. 4800gram (prototype)
Wing loading......... 72.2g/dmē/24.3oz/sf
Wing cube loading 9.2
Wing area.............. 66dmē/1013sq.in
Current CG........... 100mm measured from LE at root
Control throws :
Elevator : 35mm up and down , at root. -27% expo
Rudder : 50mm
Aileron : 30mm up and down
Flap : 40mm at root max ( 35° max )
Rudder aileron mixing reccomended ( or not if you are used to making turns with rudder and aileron )

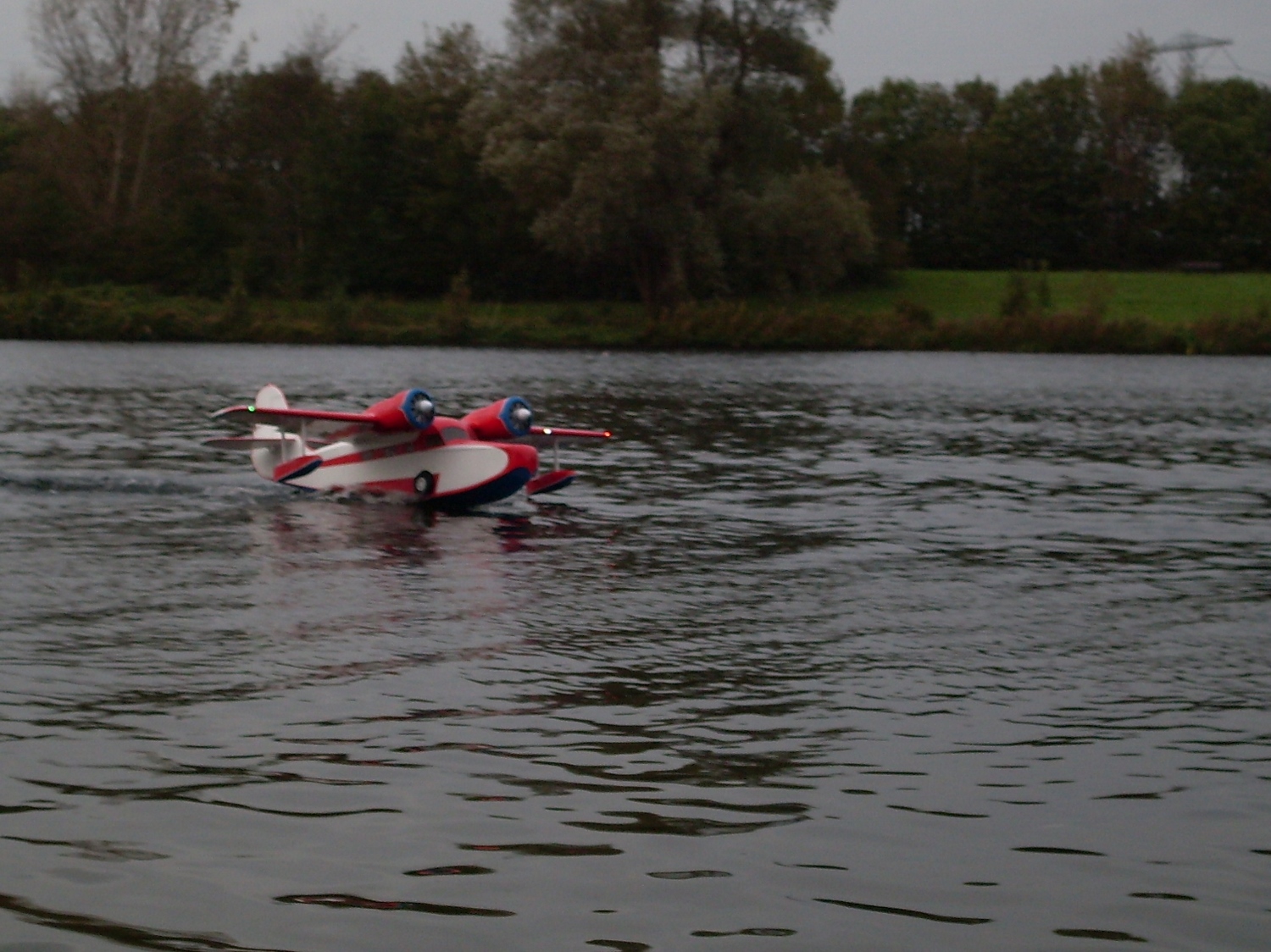

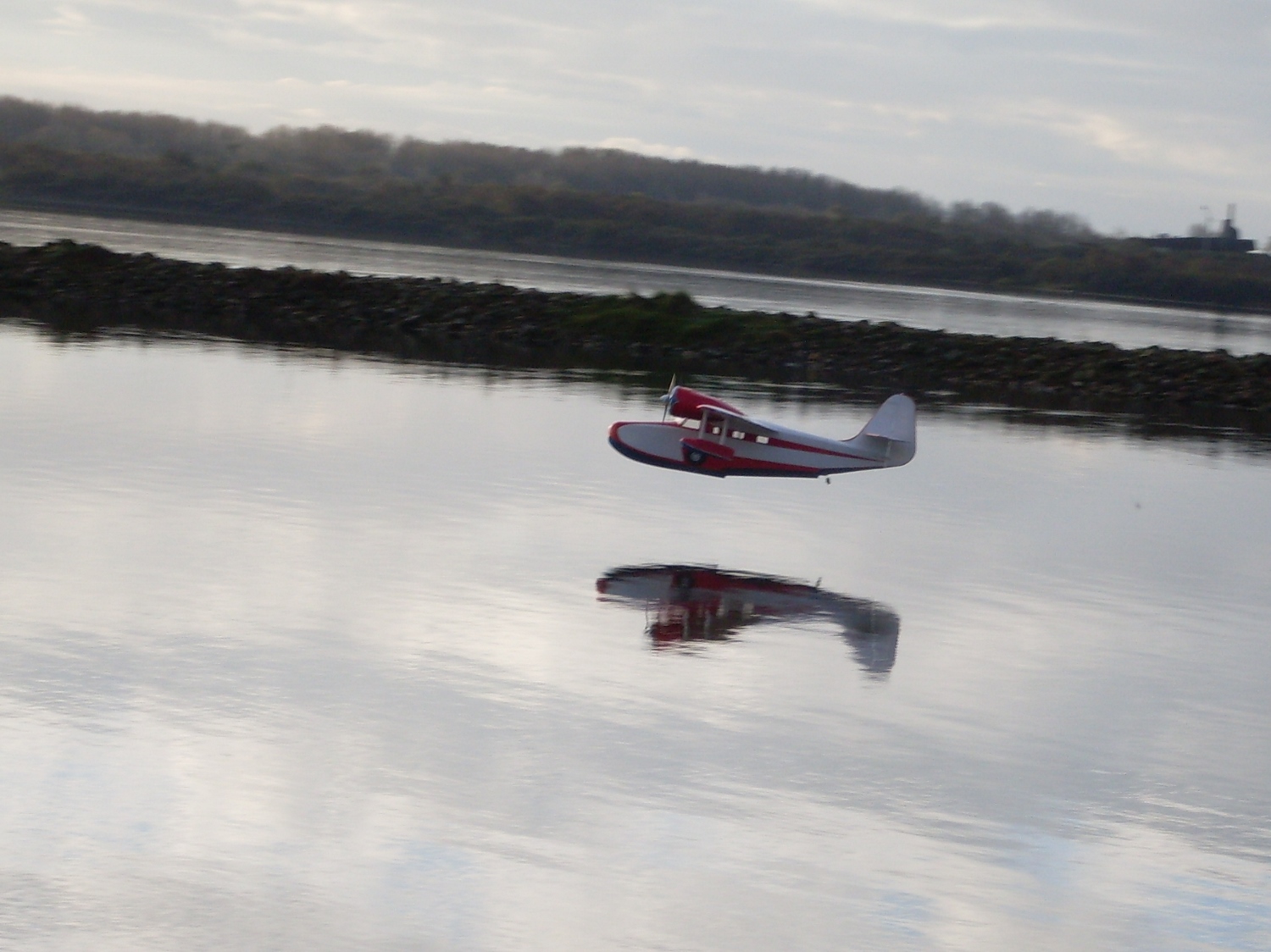

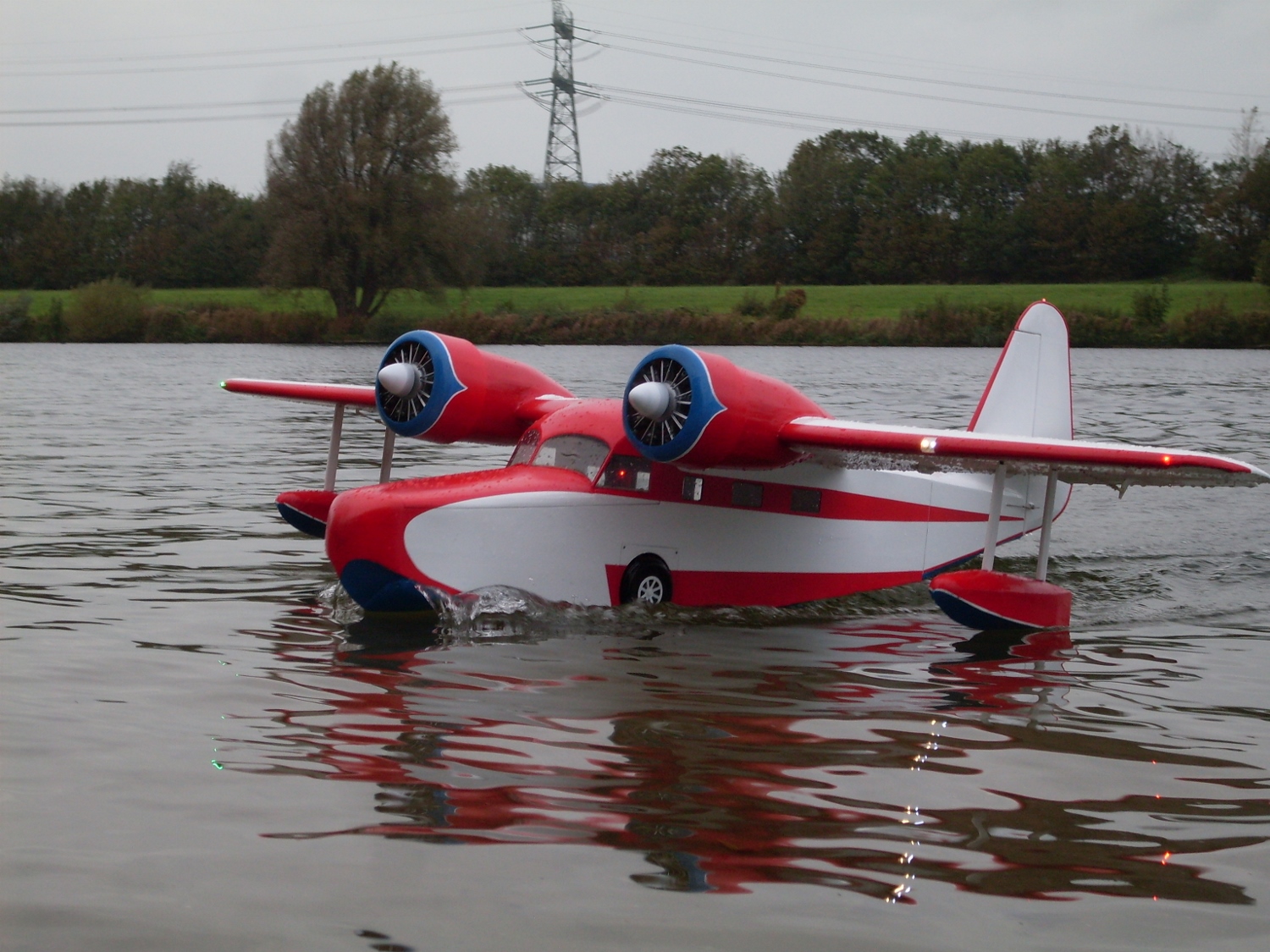

First Sea Trials

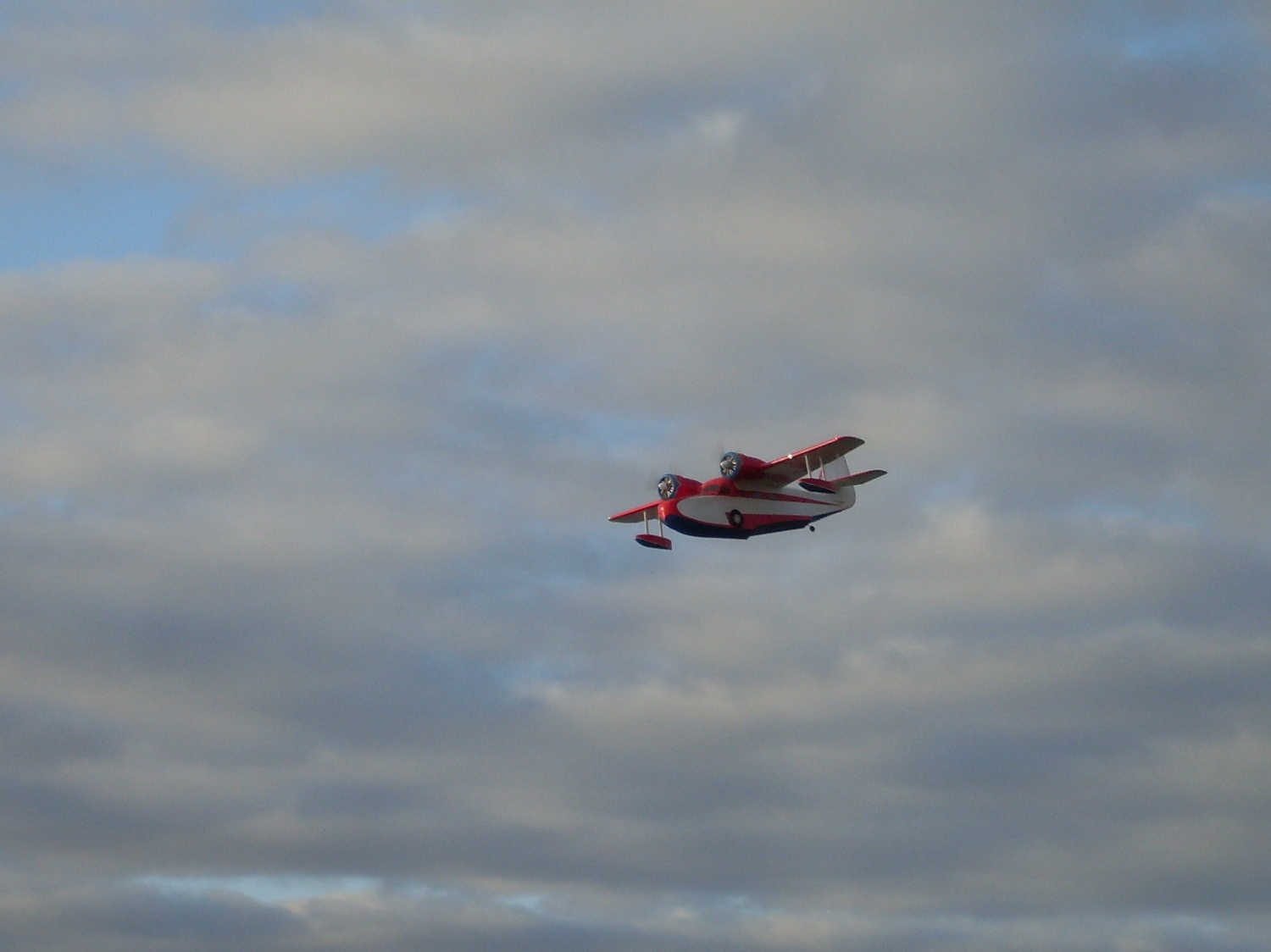

Maiden Flight
Second Flight
Grumman Goose
Gear test 3
Gear animation
Systems Test
Third Flight w/beaching at the end
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
