MORGAN RC
A division of www.morganmill.com
Short Empire s23/s30 Class "C"
Status: Prototype is Airbourne!!!

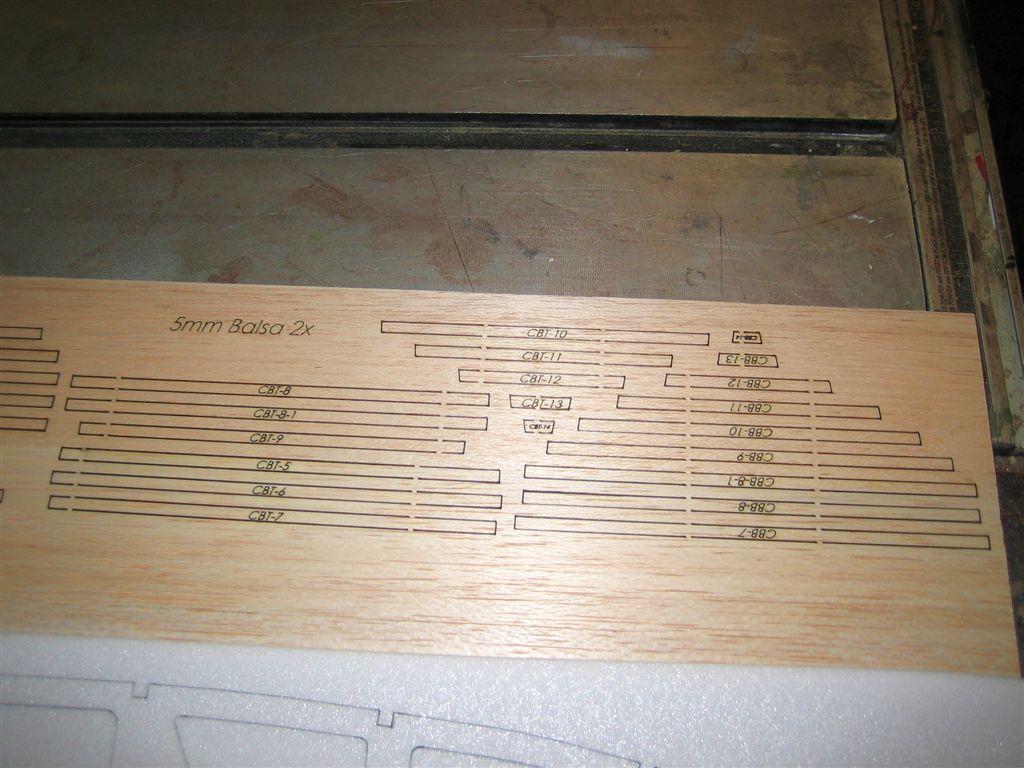

What's included in the short kit:

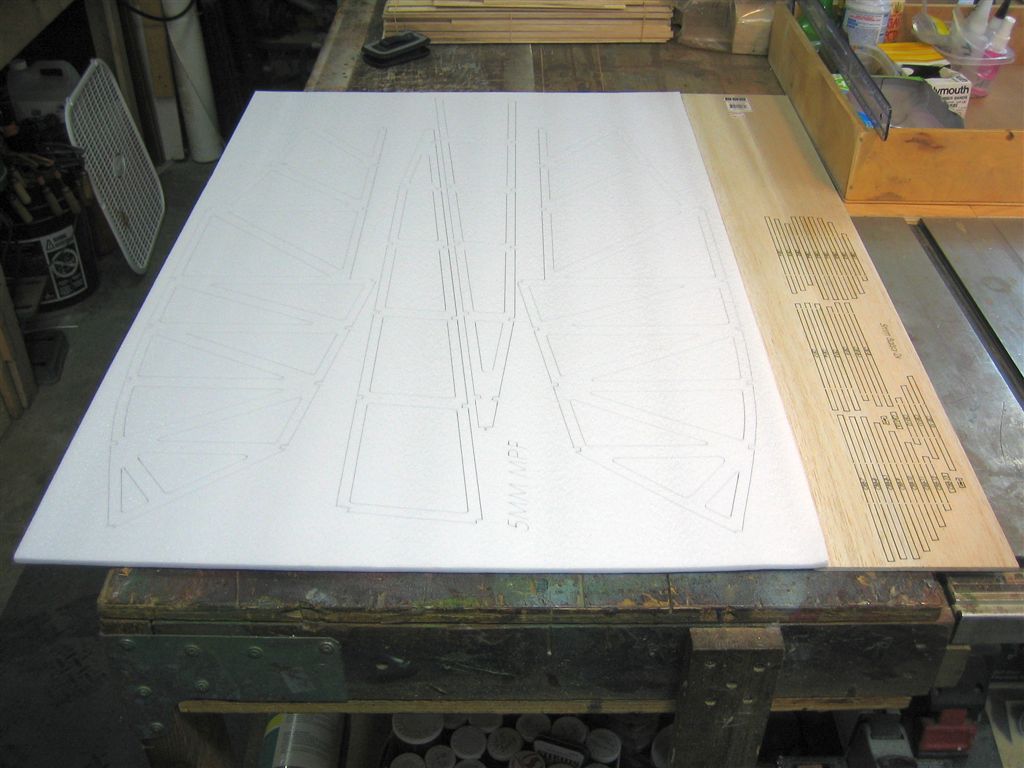

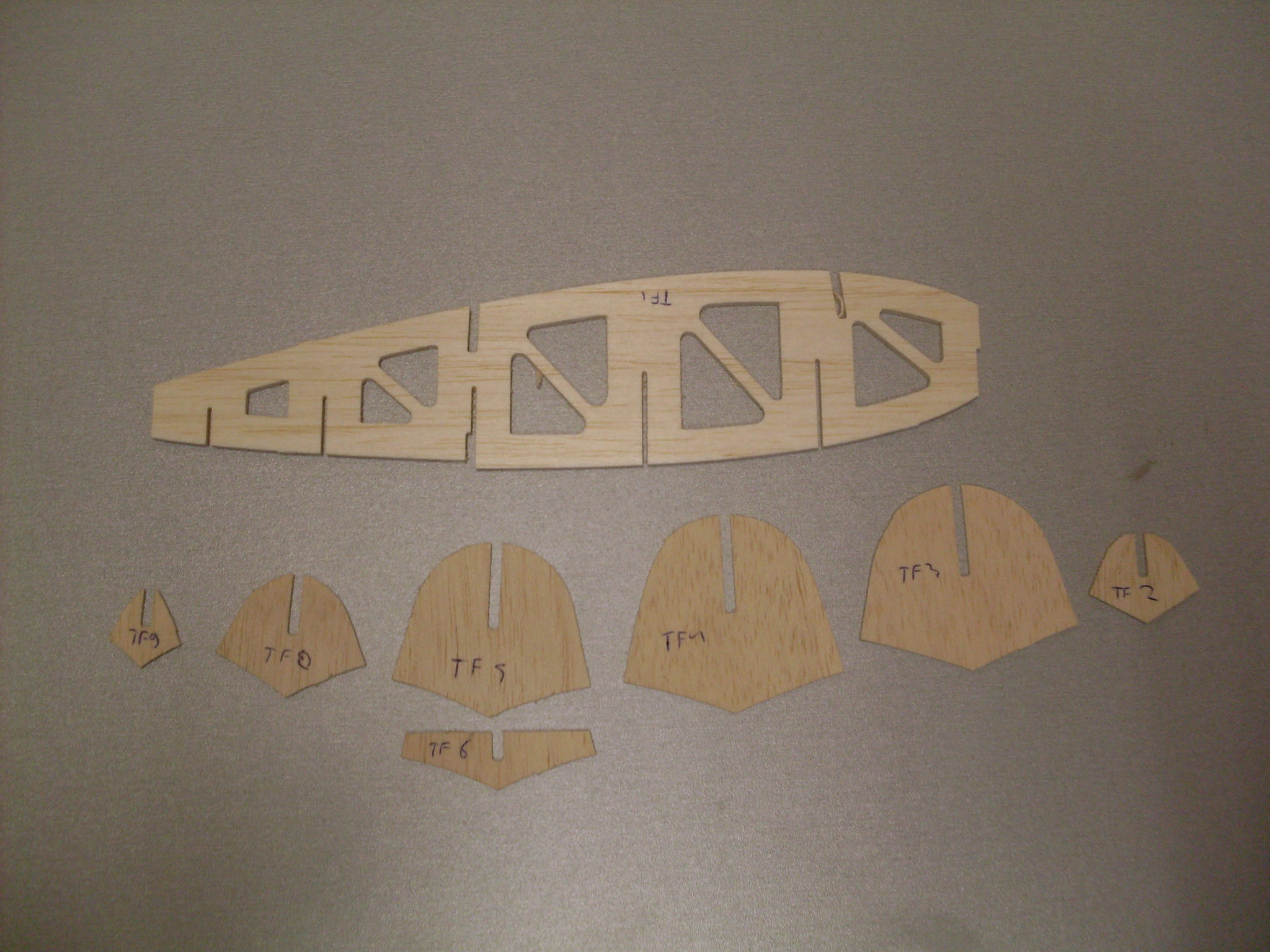

Laser Cut Balsa wood parts Only

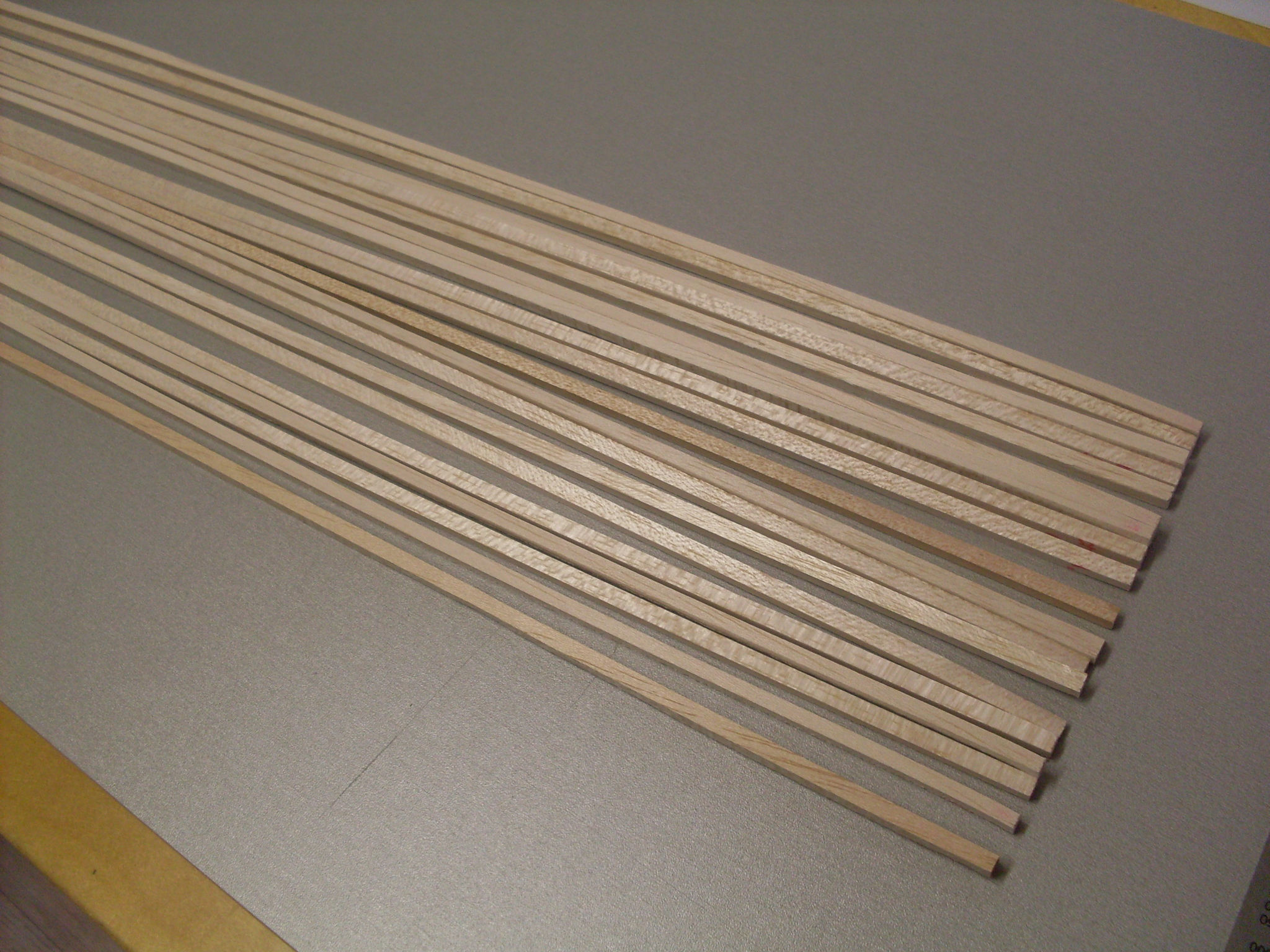

This kit requires Millimeter dimension
stringers and sheeting.
However you can use 1/16" sheets in place of the
1.5mm sheets.
Laser Cut Balsa wood parts Only
This kit requires Millimeter dimension
stringers and sheeting.
However you can use 1/16" sheets in place of the
1.5mm sheets.
What you will need:
Here's a list of other needed parts not supplied in short kit:
5mm Balsa tor the 5x5mm beams for the boxframe
1.5mm Blasa for sheeting
Carbon tubes 7mm outer/5mm inner dia andone 5mm outer dia for the tail
2x3mm spruce stringers for main spar re-enforcement (may also use carbon strips)
Brass servo mounting tubes
Steel wire
3x3mm magnets
6mm round wood for wing dowels
Glass 25gm/m2 and PS100 or epoxy etc
Covering material
Wingbolt
Motors - 4x 880 kv
4 - 20 amp ESC
4- 9x7X3 Props
1- 5500mah 3s lipo
4 Servos - 2 standard 2 micro
Hardware
Here's a list of other needed parts not supplied in short kit:
5mm Balsa tor the 5x5mm beams for the boxframe
1.5mm Blasa for sheeting
Carbon tubes 7mm outer/5mm inner dia andone 5mm outer dia for the tail
2x3mm spruce stringers for main spar re-enforcement (may also use carbon strips)
Brass servo mounting tubes
Steel wire
3x3mm magnets
6mm round wood for wing dowels
Glass 25gm/m2 and PS100 or epoxy etc
Covering material
Wingbolt
Motors - 4x 880 kv
4 - 20 amp ESC
4- 9x7X3 Props
1- 5500mah 3s lipo
4 Servos - 2 standard 2 micro
Hardware
CAD Design and Inspiration by Bart Lammerse
Laser Cut Balsa Short Kit by Morgan RC
Vacuum Formed Options:
April 2013
April 2013
The love of flying boats started early in Bart - he got the inspiration at age 11 - held to his
"Dreams of Empire", taught himself CAD and here are the results of a long and wonderful ambition.
"As an 11year old I got a special issue of MAN from my dad. And thats when I first saw it , the beautiful Empire flying Boat. It was Ted Russels 120inch rc model on the cover. Since then I was ever hooked and decided that I was gonna build myself one, when? I didn't know but I was gonna build it. "
I met Bart online on RCG in the Waterplanes forum when I happened upon his fantastic thread. Having an equal facination for the Golden Age of Flight and especially flying boats - it was obvious that we should join forces and produce this fantastic aircraft together so more people can enjoy building one of their own.
"Dreams of Empire", taught himself CAD and here are the results of a long and wonderful ambition.
"As an 11year old I got a special issue of MAN from my dad. And thats when I first saw it , the beautiful Empire flying Boat. It was Ted Russels 120inch rc model on the cover. Since then I was ever hooked and decided that I was gonna build myself one, when? I didn't know but I was gonna build it. "
I met Bart online on RCG in the Waterplanes forum when I happened upon his fantastic thread. Having an equal facination for the Golden Age of Flight and especially flying boats - it was obvious that we should join forces and produce this fantastic aircraft together so more people can enjoy building one of their own.
Laser Cut Short Kit page

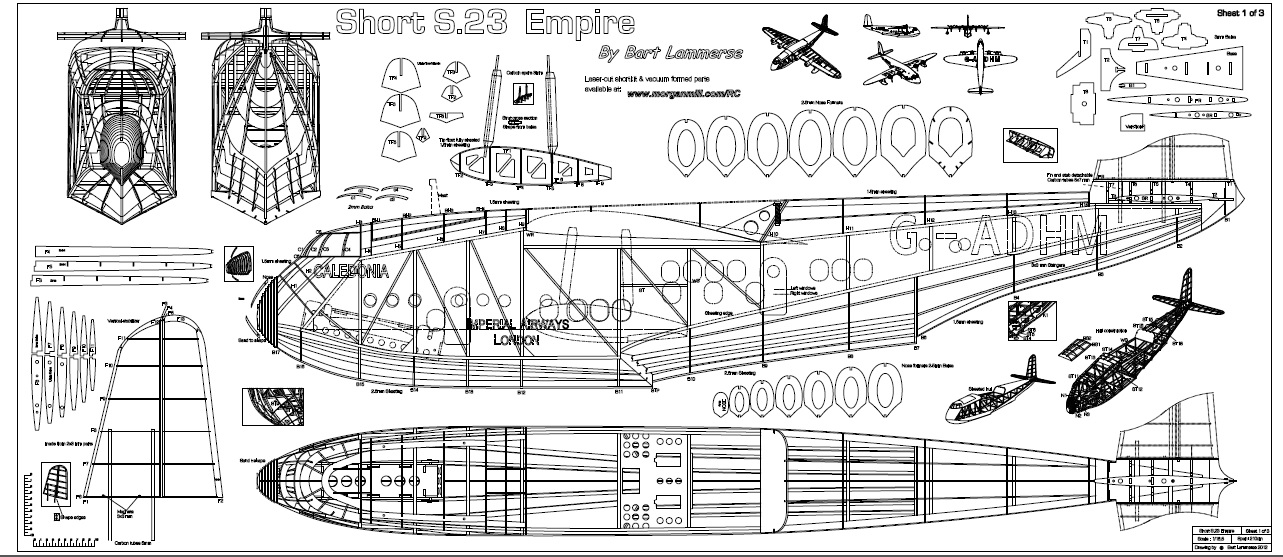

Empire Plans by Bart Lammerse
Please contact Bart via email to purchase a set of plans at this address:
Flyingdutchmanplans@hotmail.com
His Website is under construction.
Please contact Bart via email to purchase a set of plans at this address:
Flyingdutchmanplans@hotmail.com
His Website is under construction.
|
|
|
|
Links for suggested Materials,
Components and Motors:
Motors: 4x
HobbyKing NTM 2826 1000kv 315W
Motor accessory pack:
Prop adapter etc.
ESC: 4x
HobbyKing -TURNIGY Plush 30amp Speed Controller
Battery:
HobbyKing - Turnigy Nano-Tech 5000mah 3s 45-90c
Components and Motors:
Motors: 4x
HobbyKing NTM 2826 1000kv 315W
Motor accessory pack:
Prop adapter etc.
ESC: 4x
HobbyKing -TURNIGY Plush 30amp Speed Controller
Battery:
HobbyKing - Turnigy Nano-Tech 5000mah 3s 45-90c
Plans - $75.00
Available at Flyingdutchmanplans@hotmail.com
Available at Flyingdutchmanplans@hotmail.com
.jpg)
Scroll down for illustration and Photo Galleries

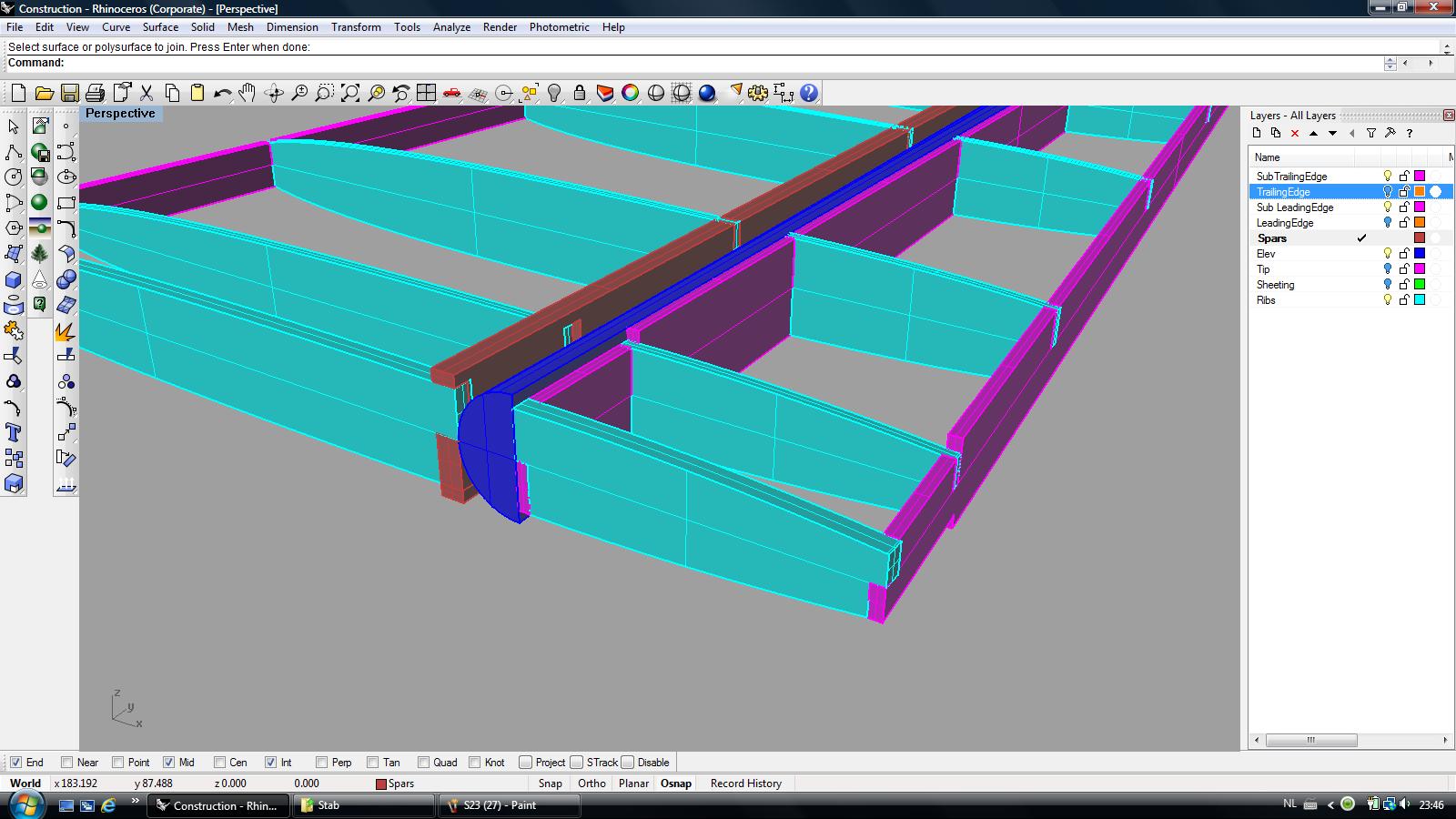

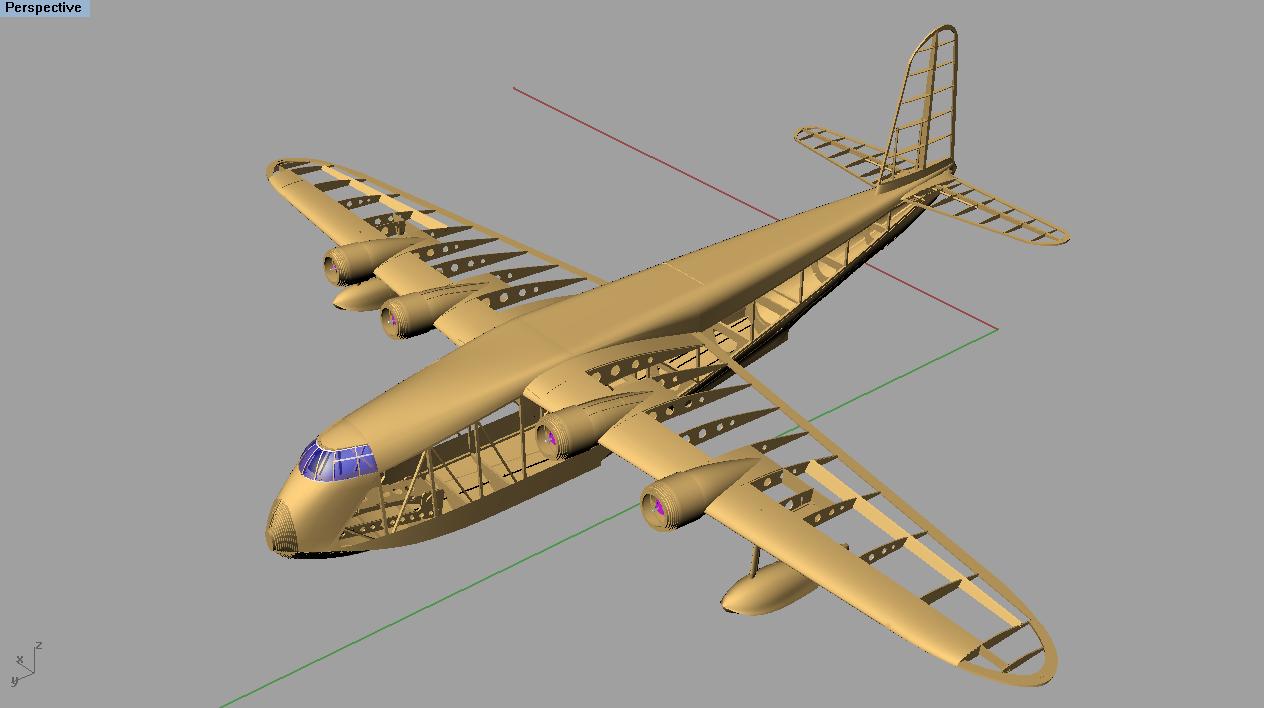

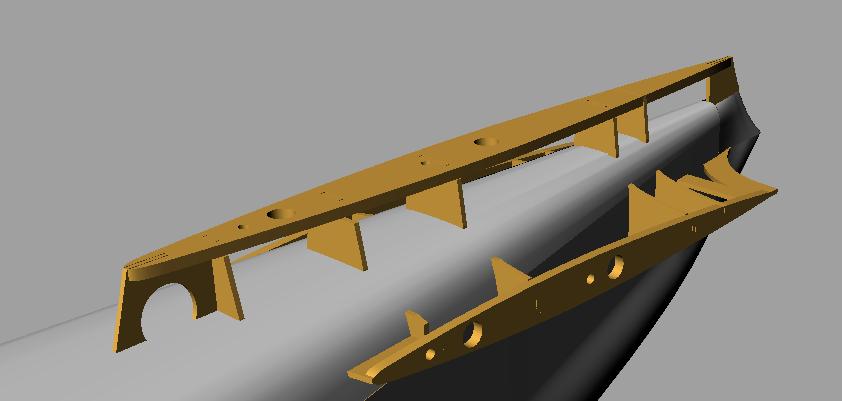

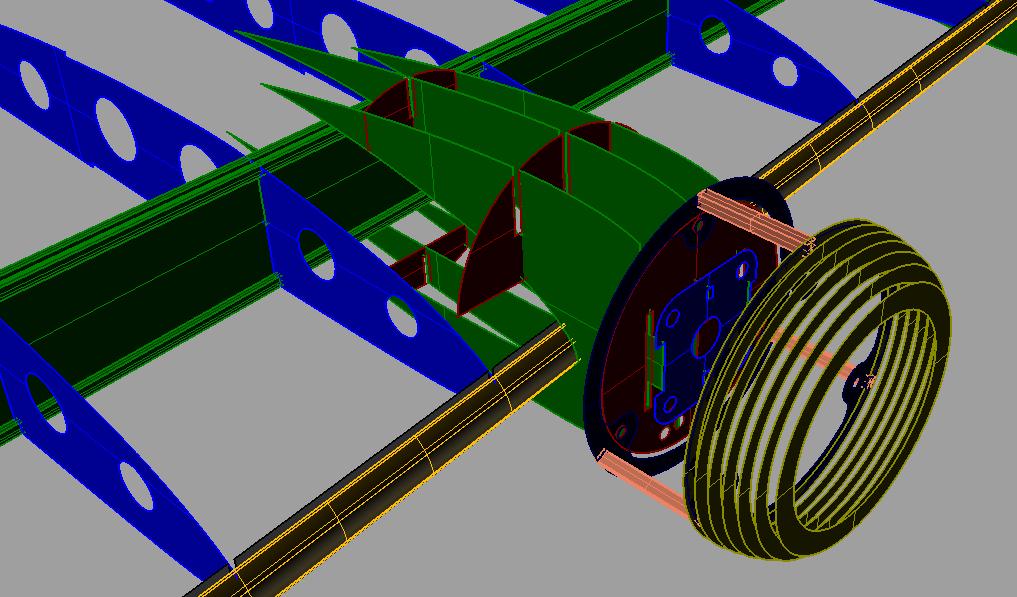

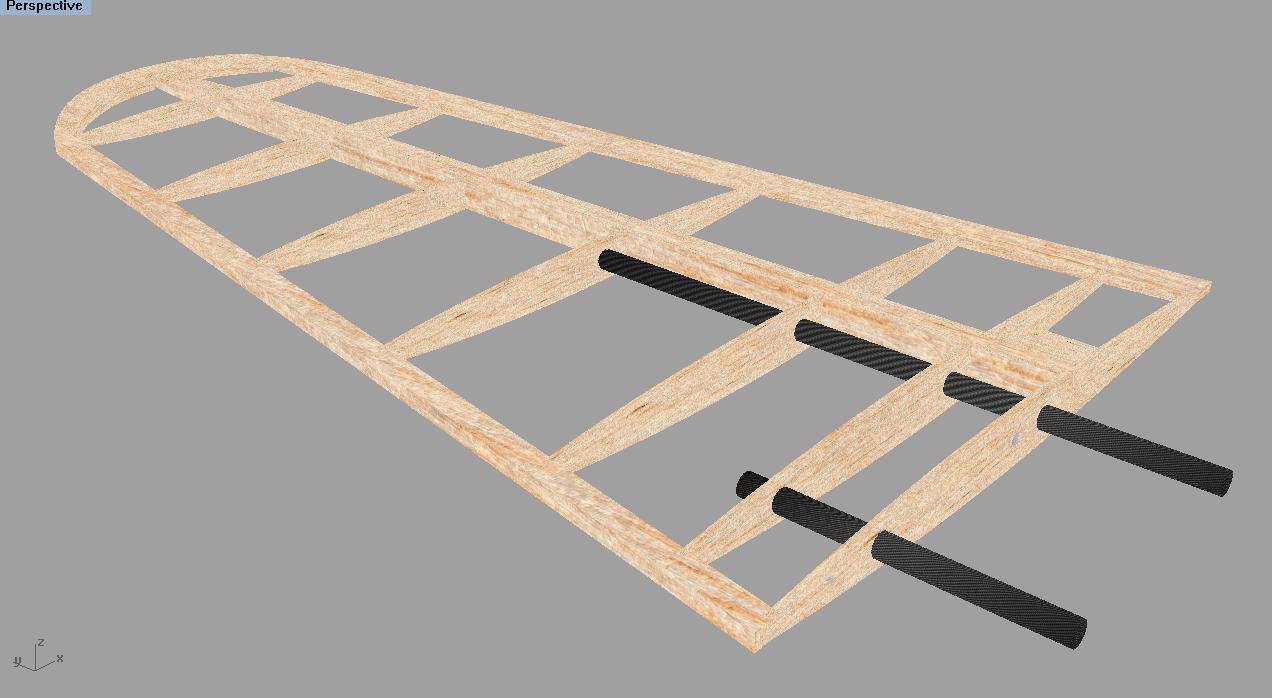

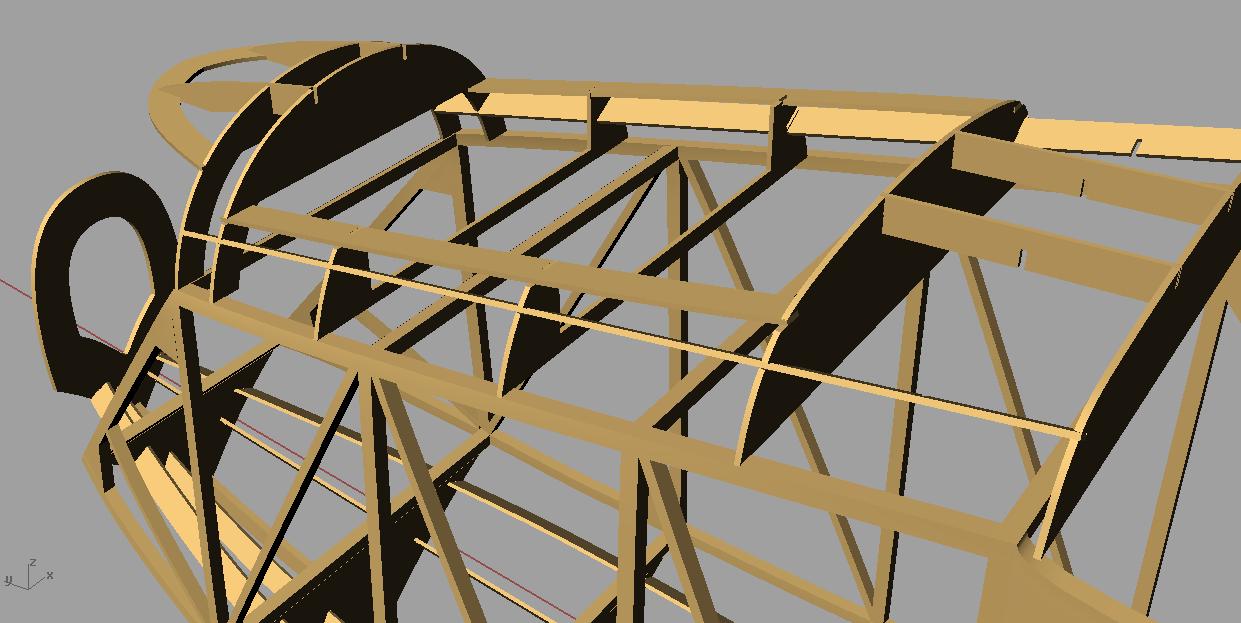

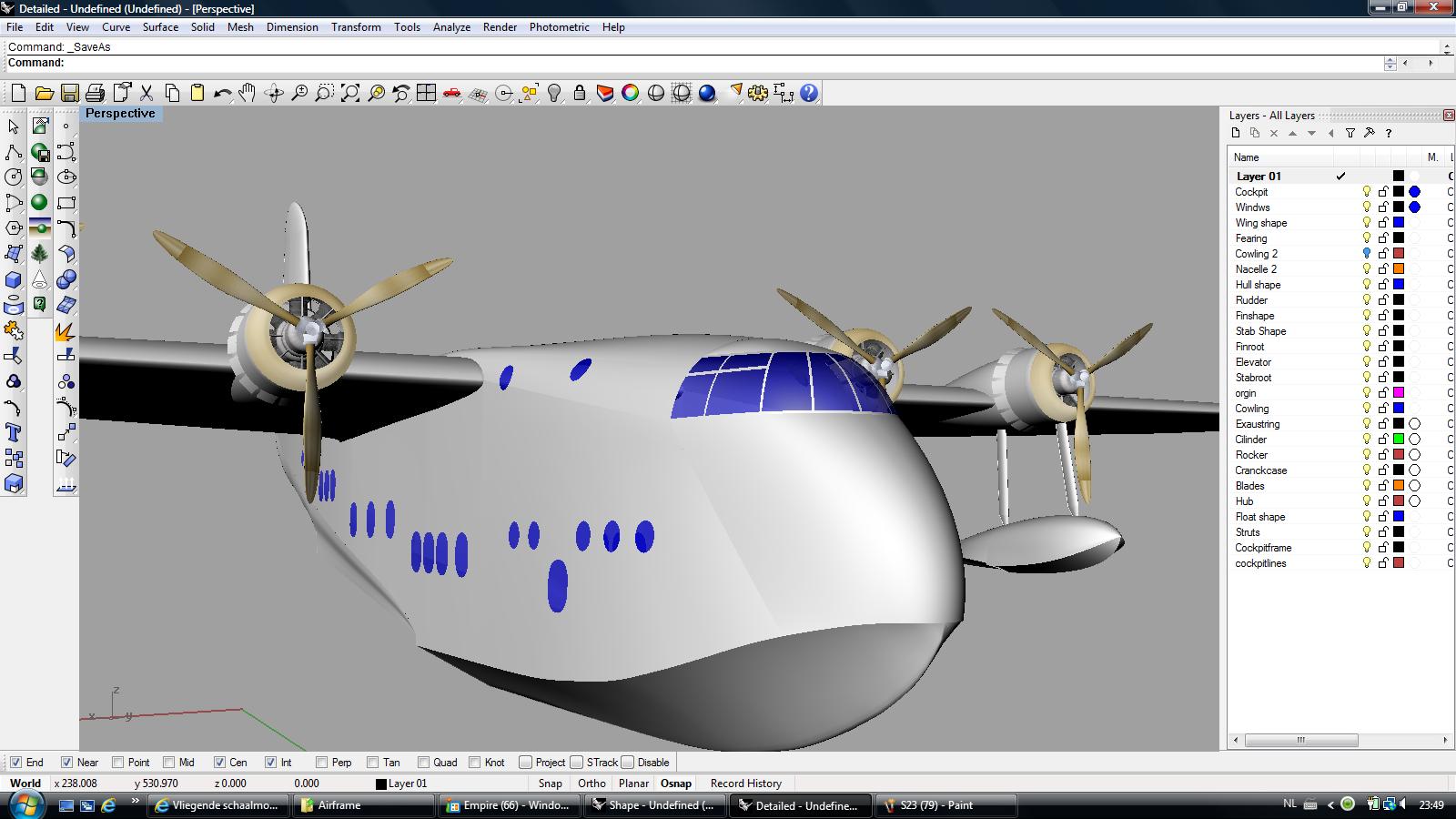

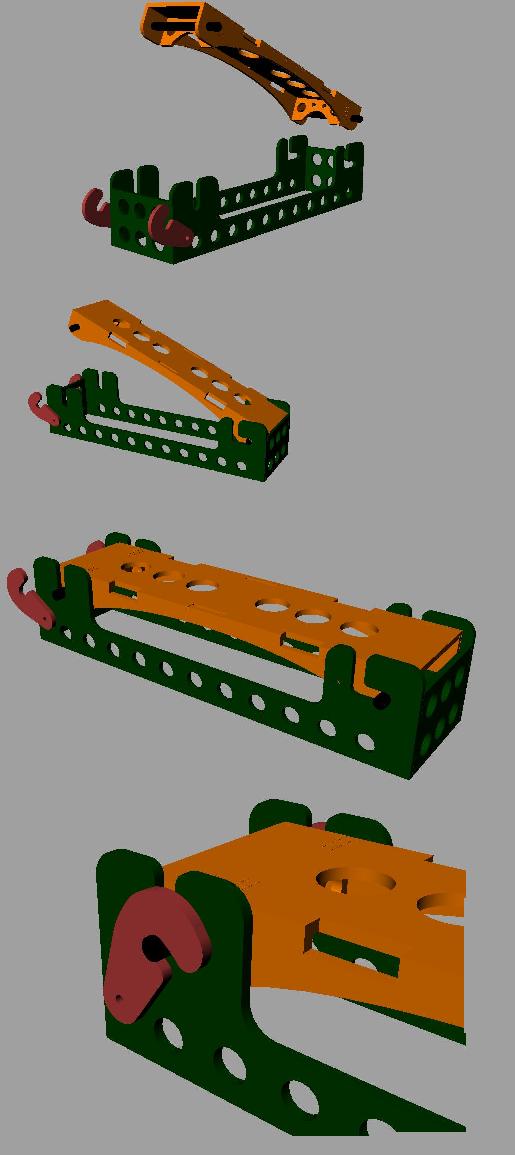

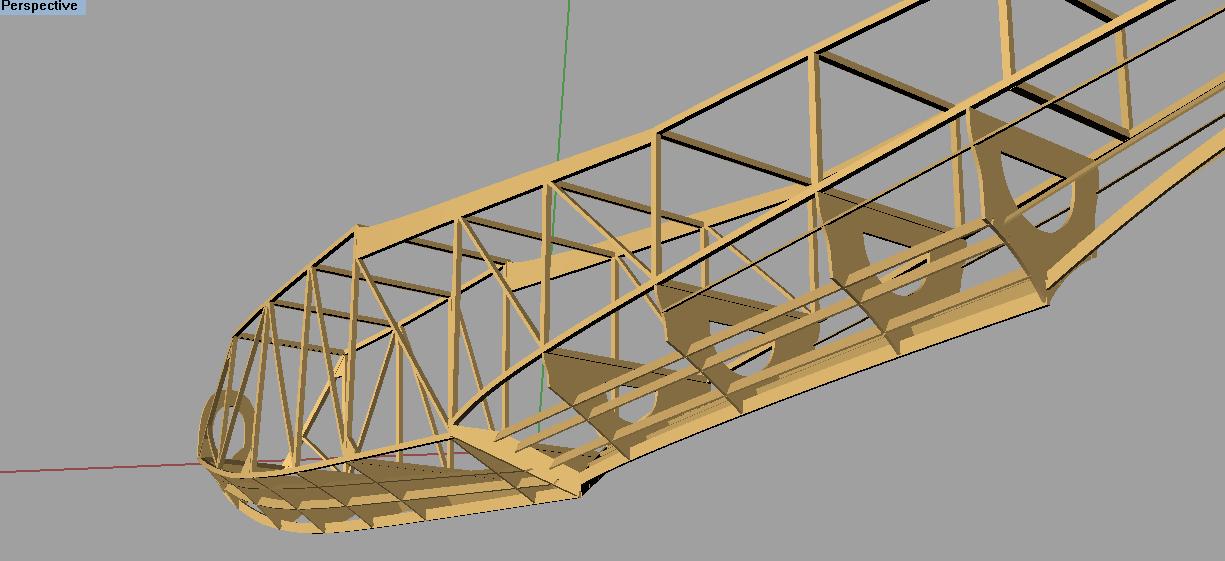

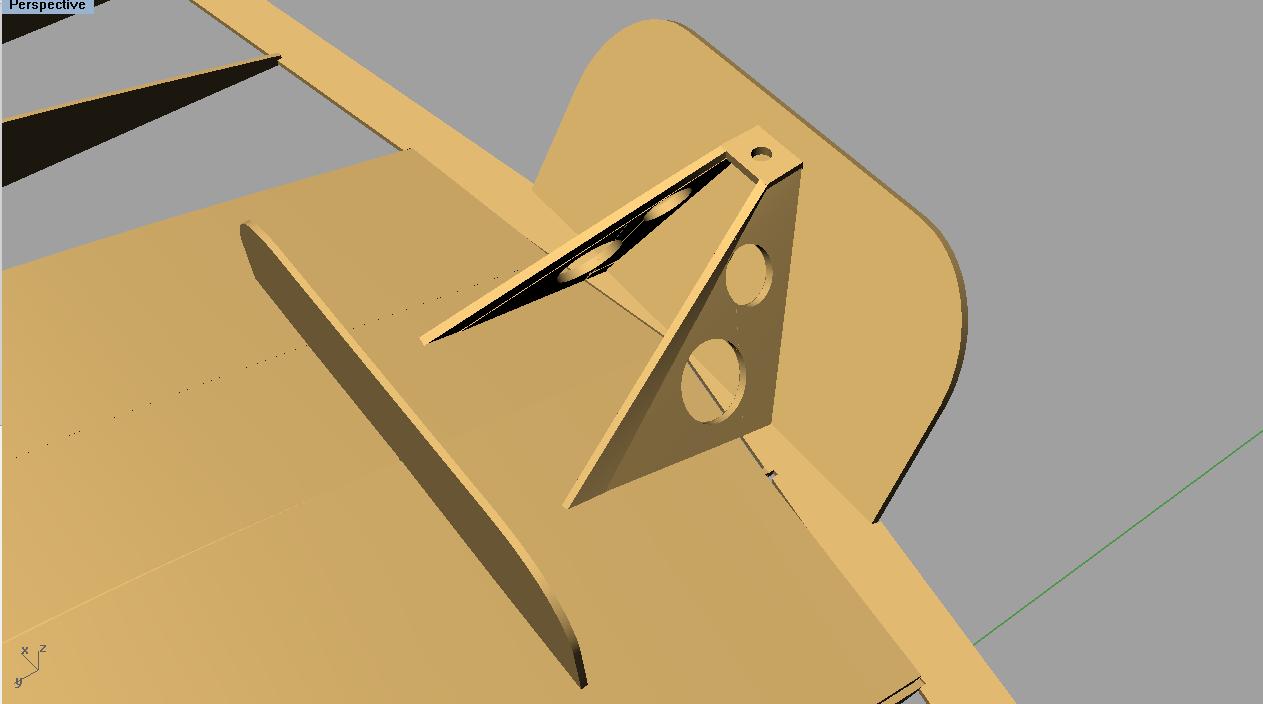

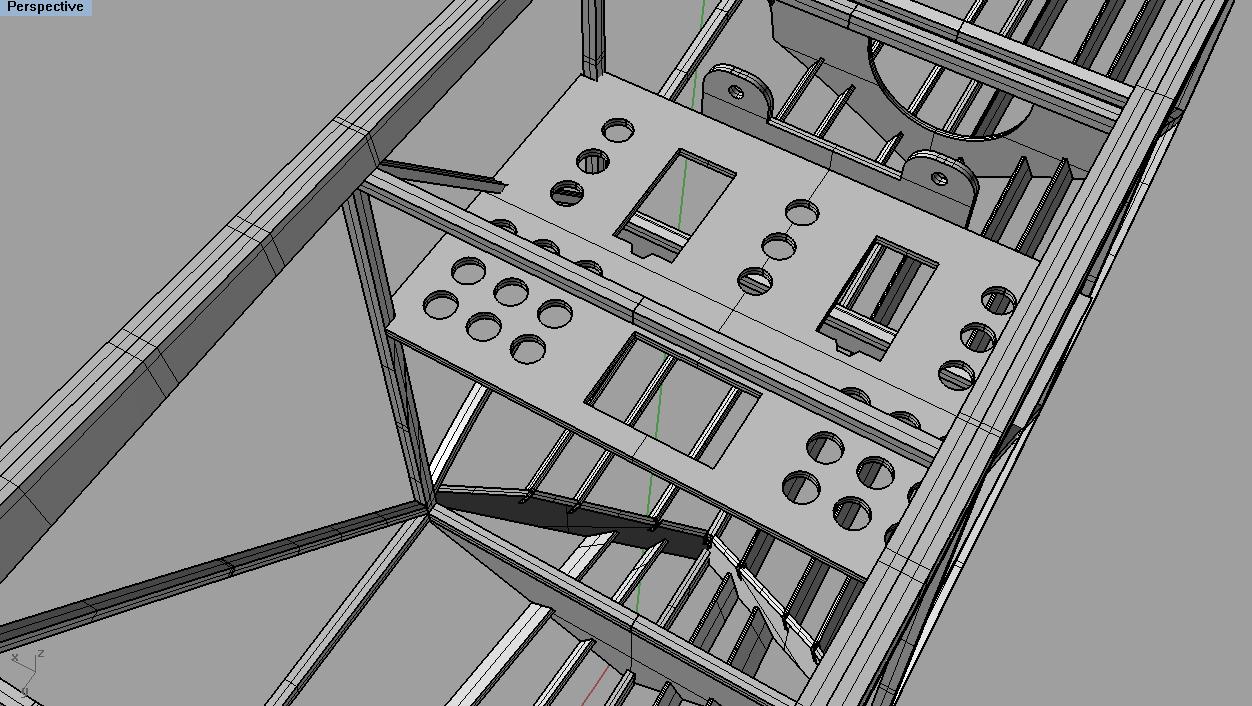

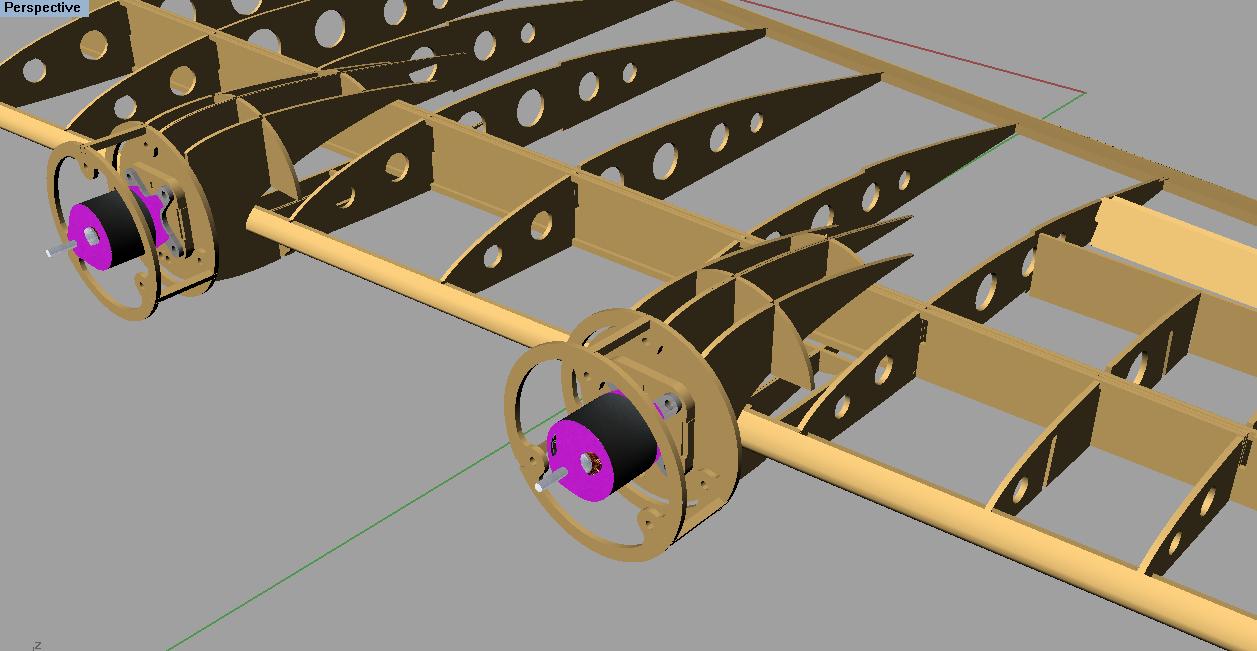

CAD Gallery
Click on image
Click on image
|
|
|
|
|
|

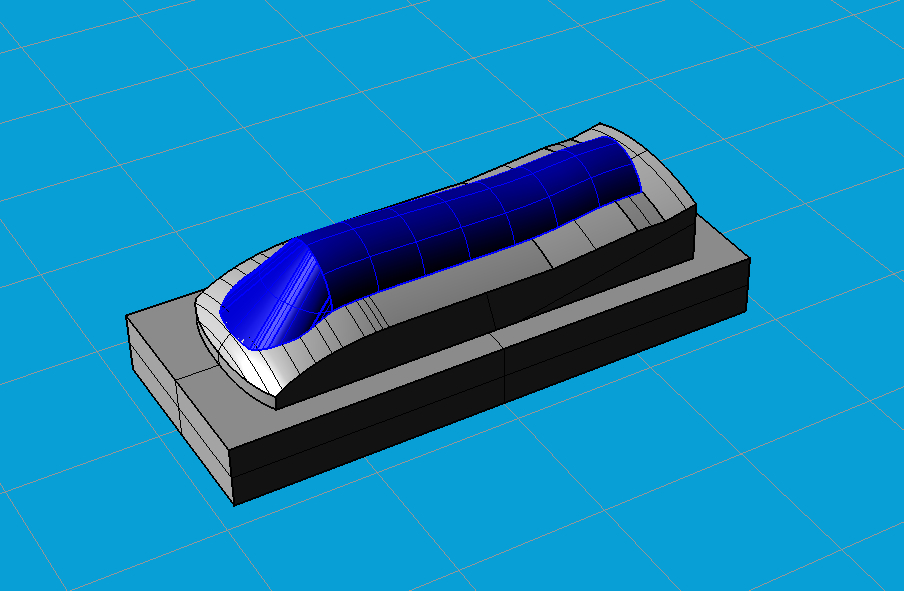

Canopy Mold Simulation
Press Play
Press Play

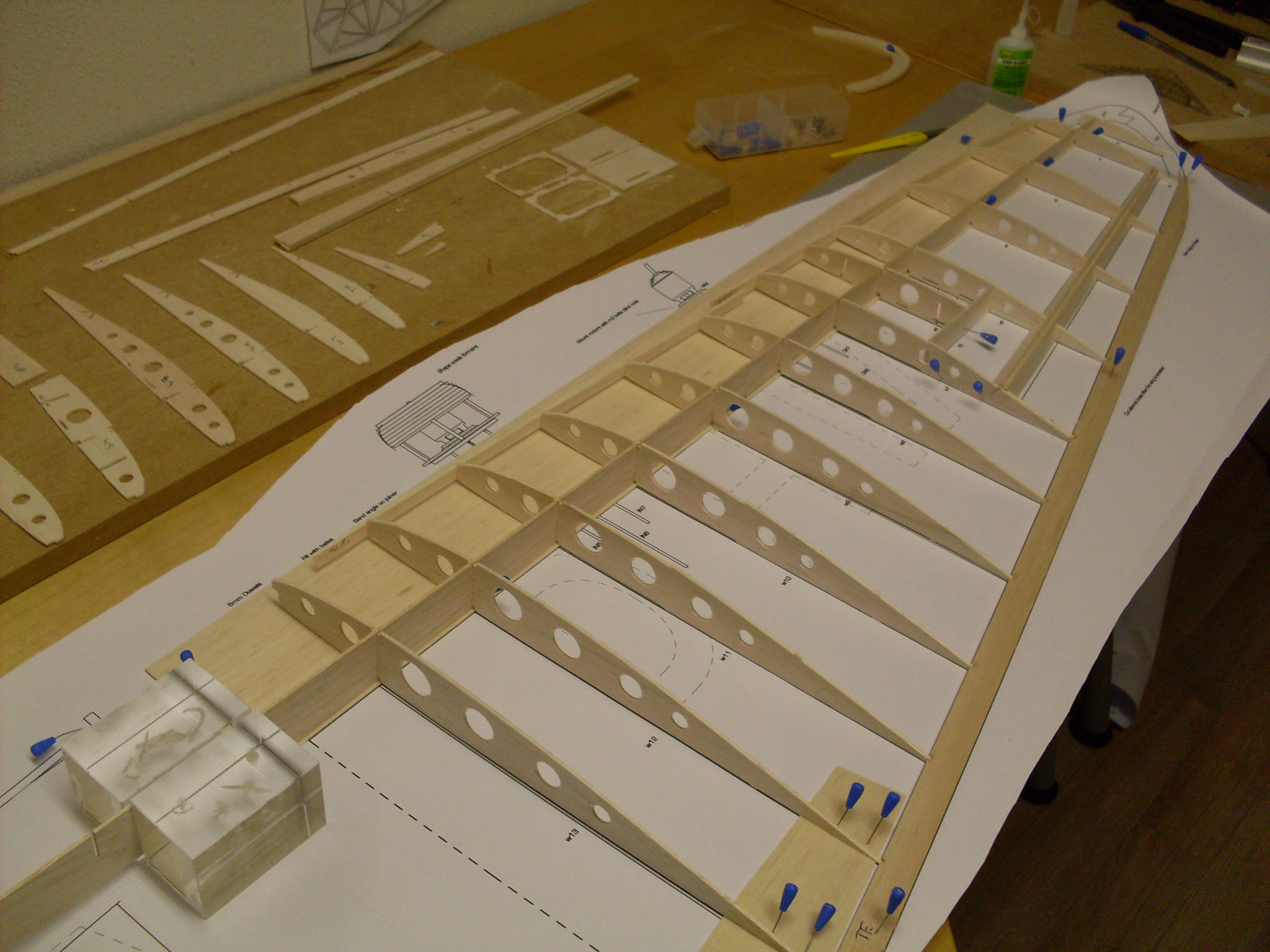

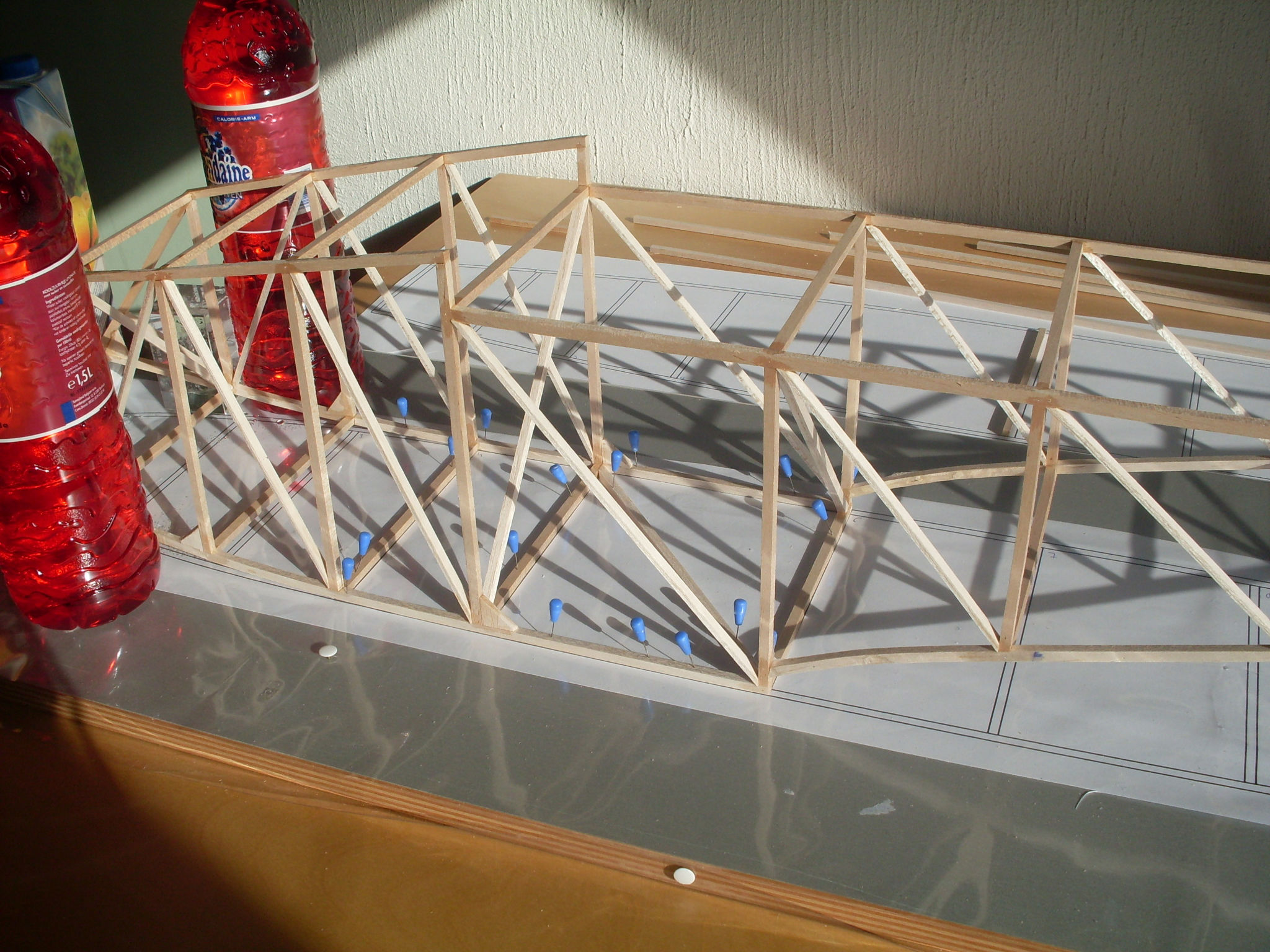

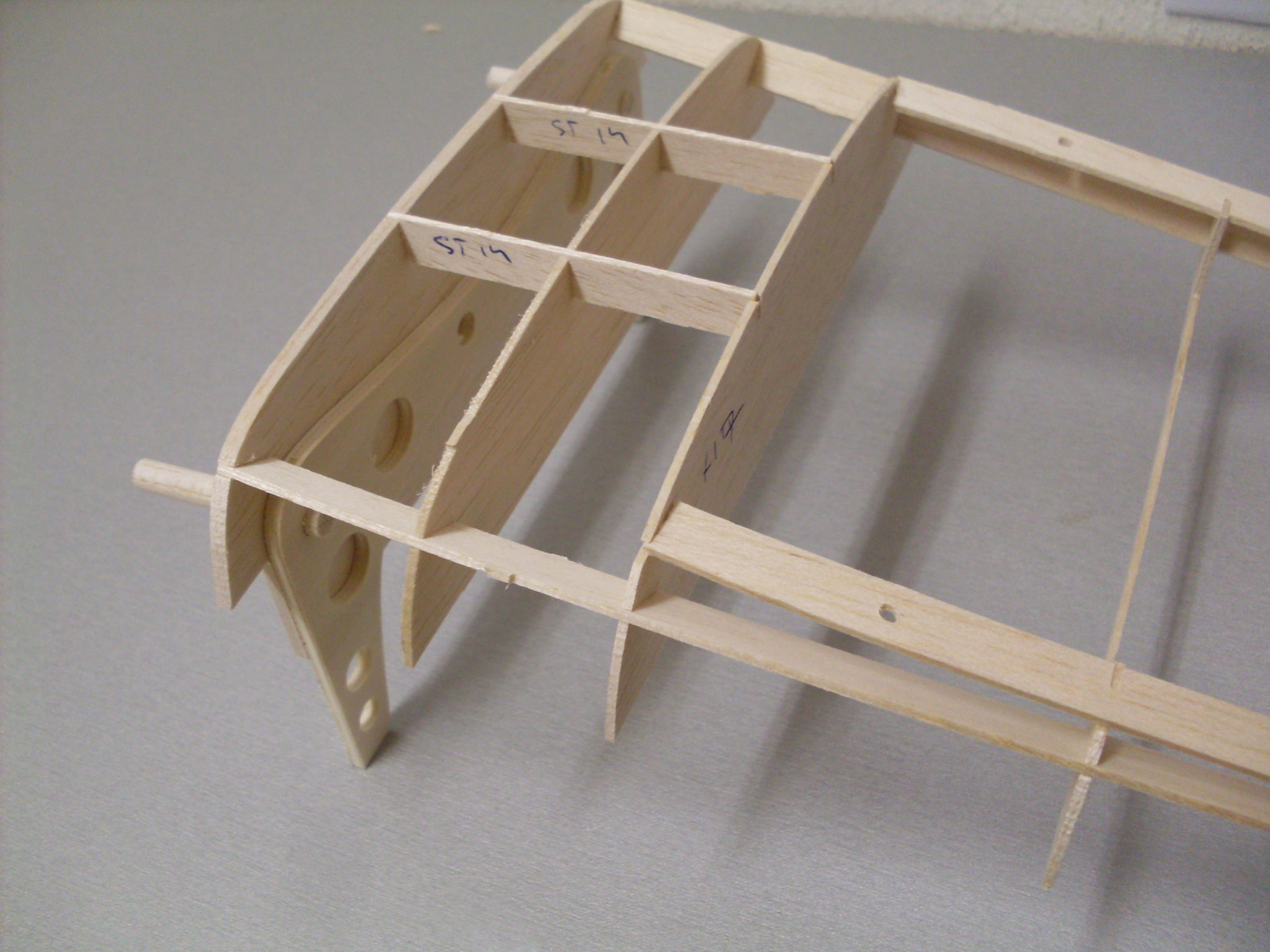

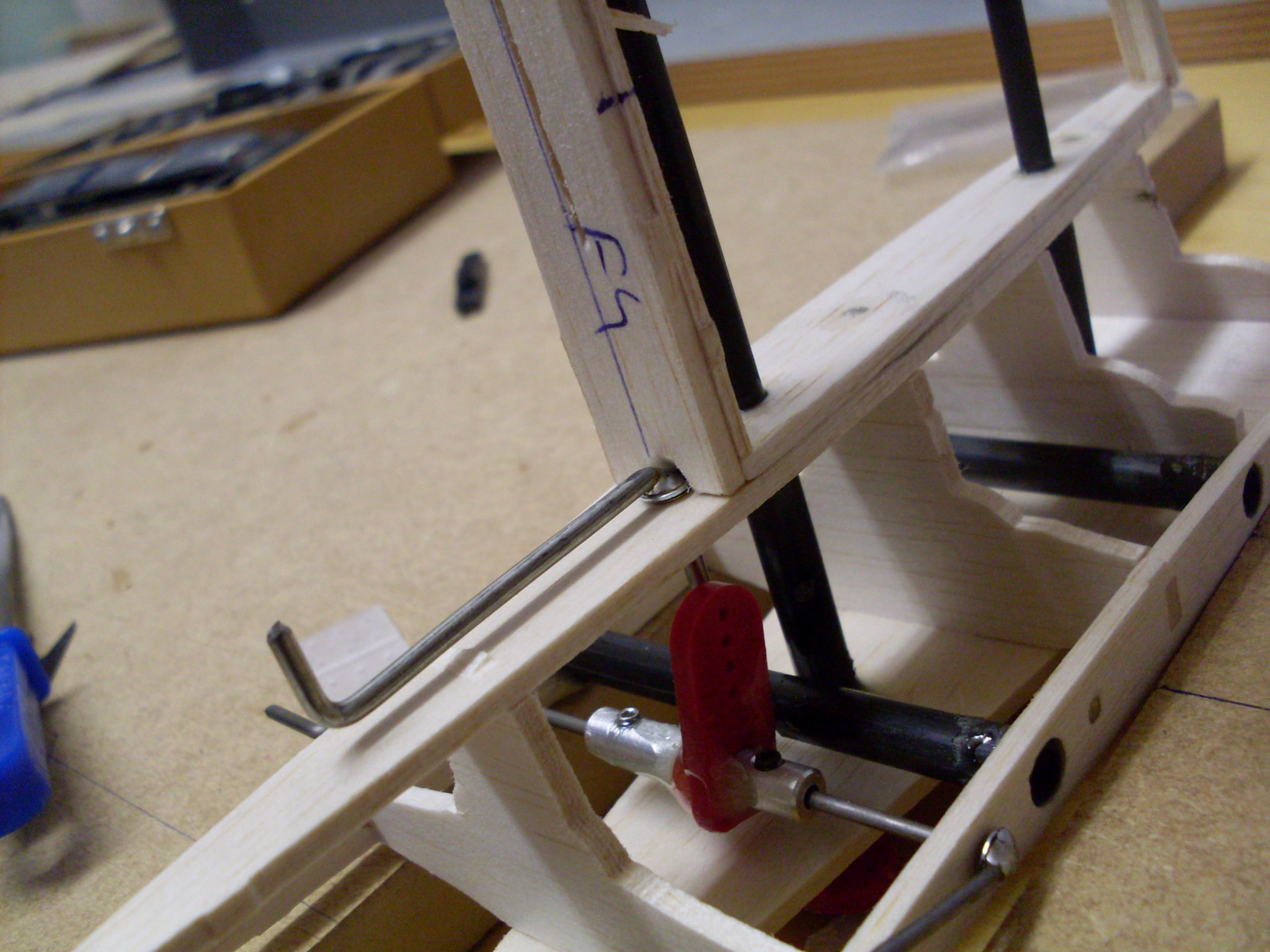

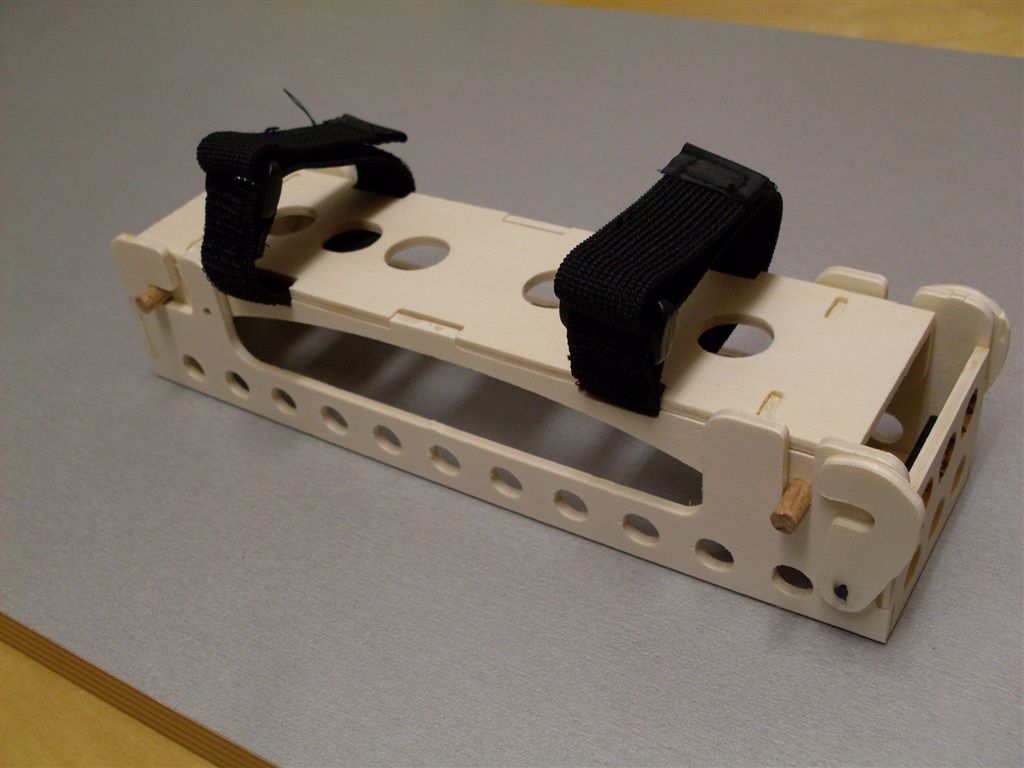

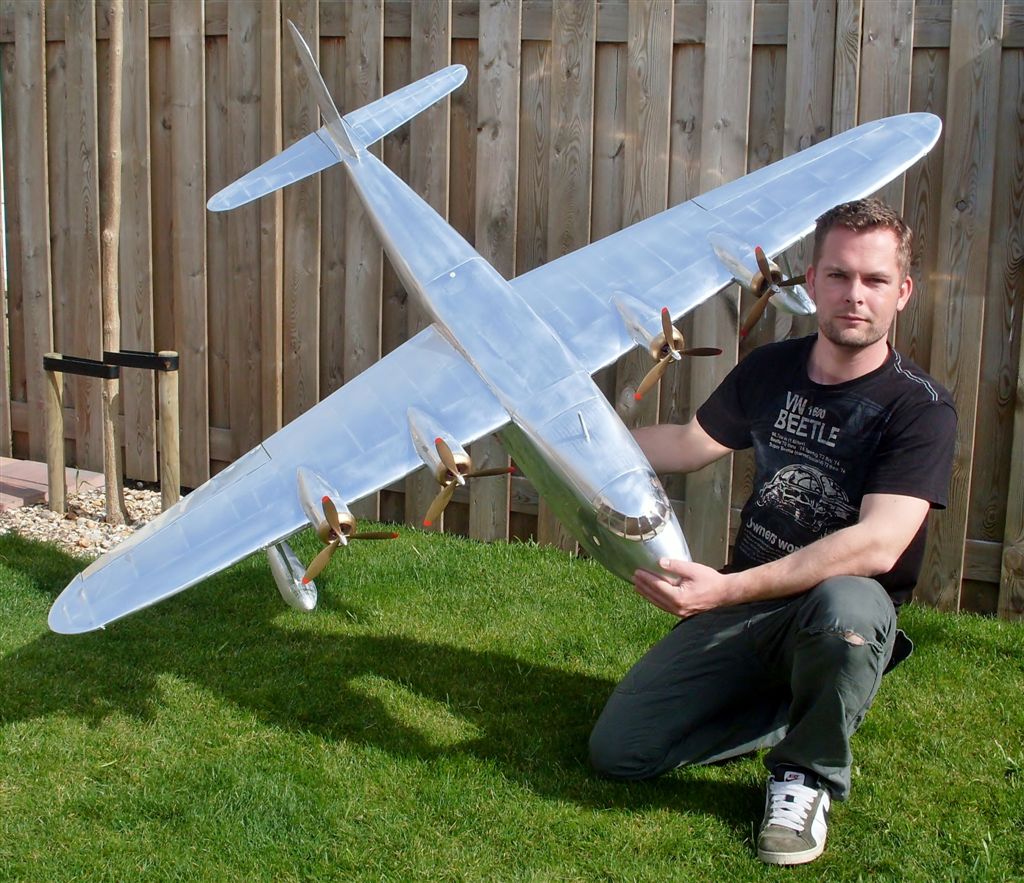

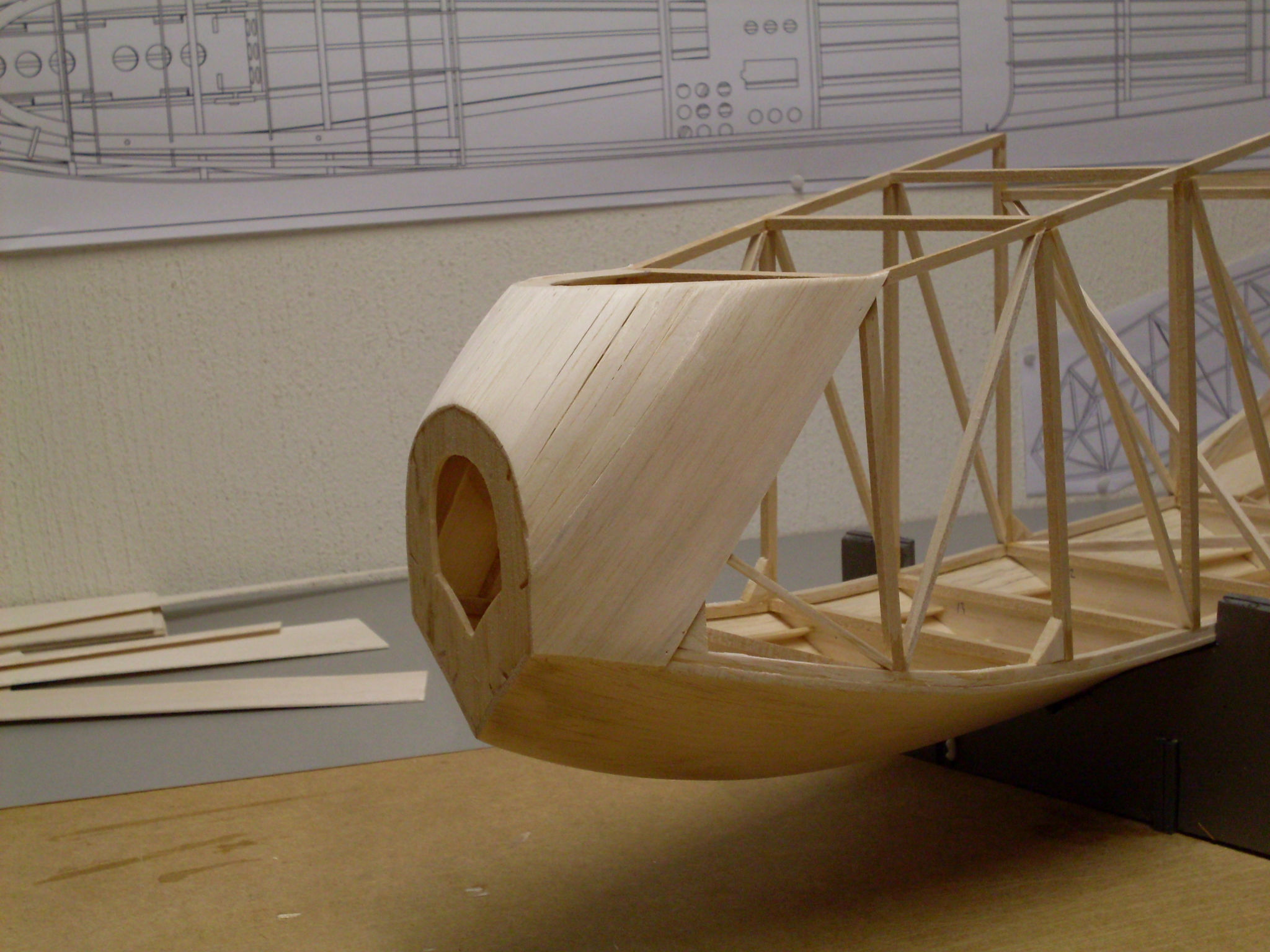

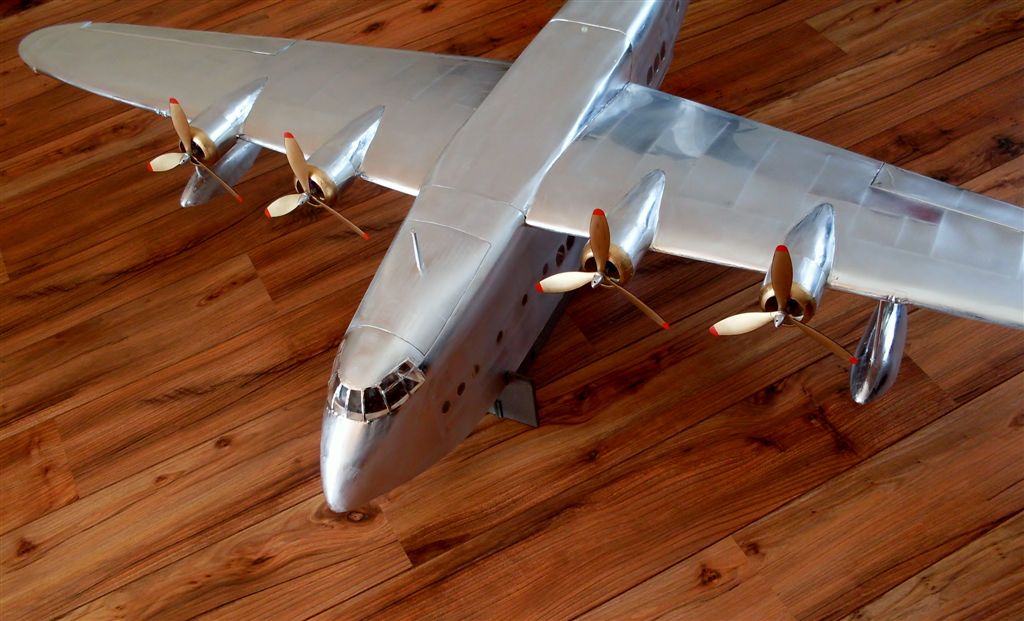

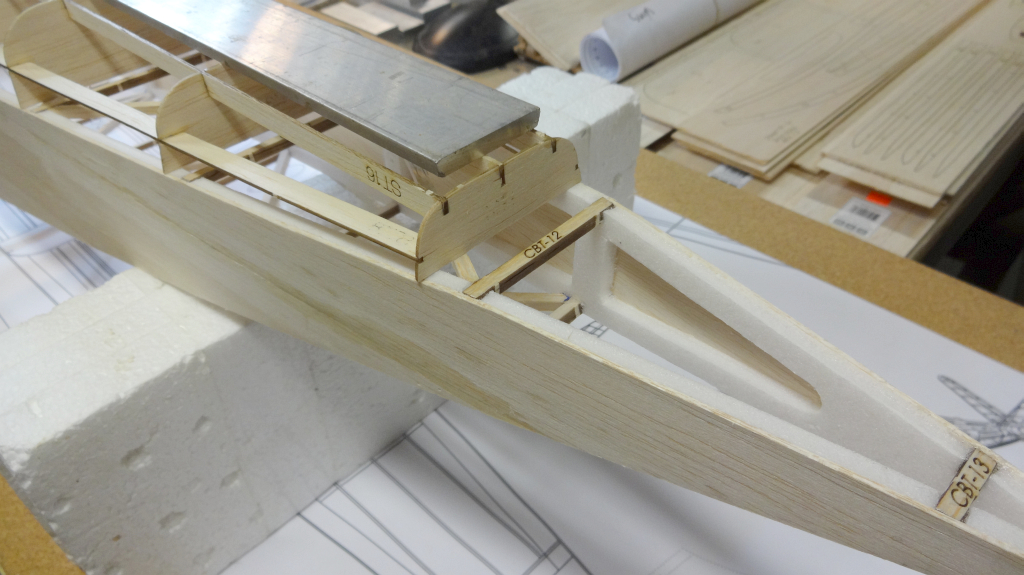

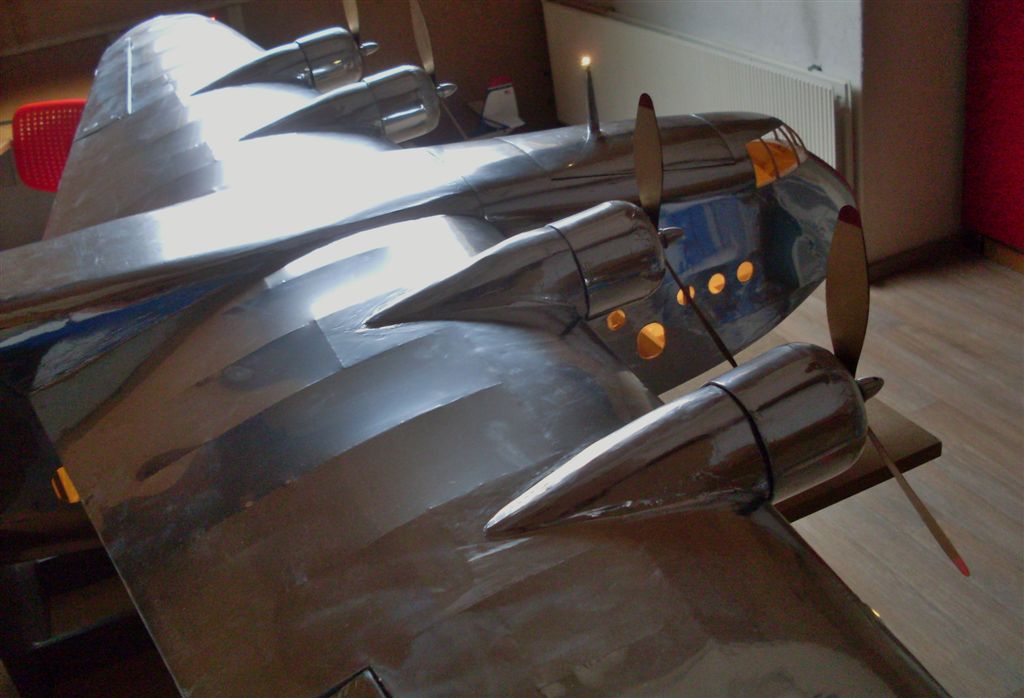

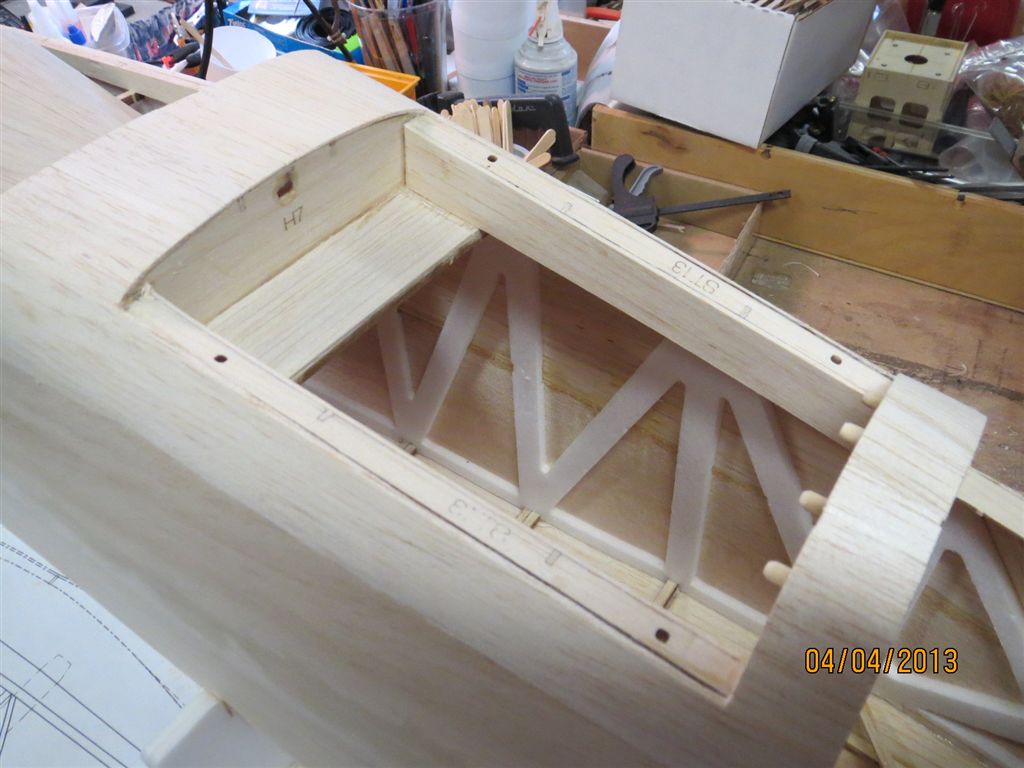

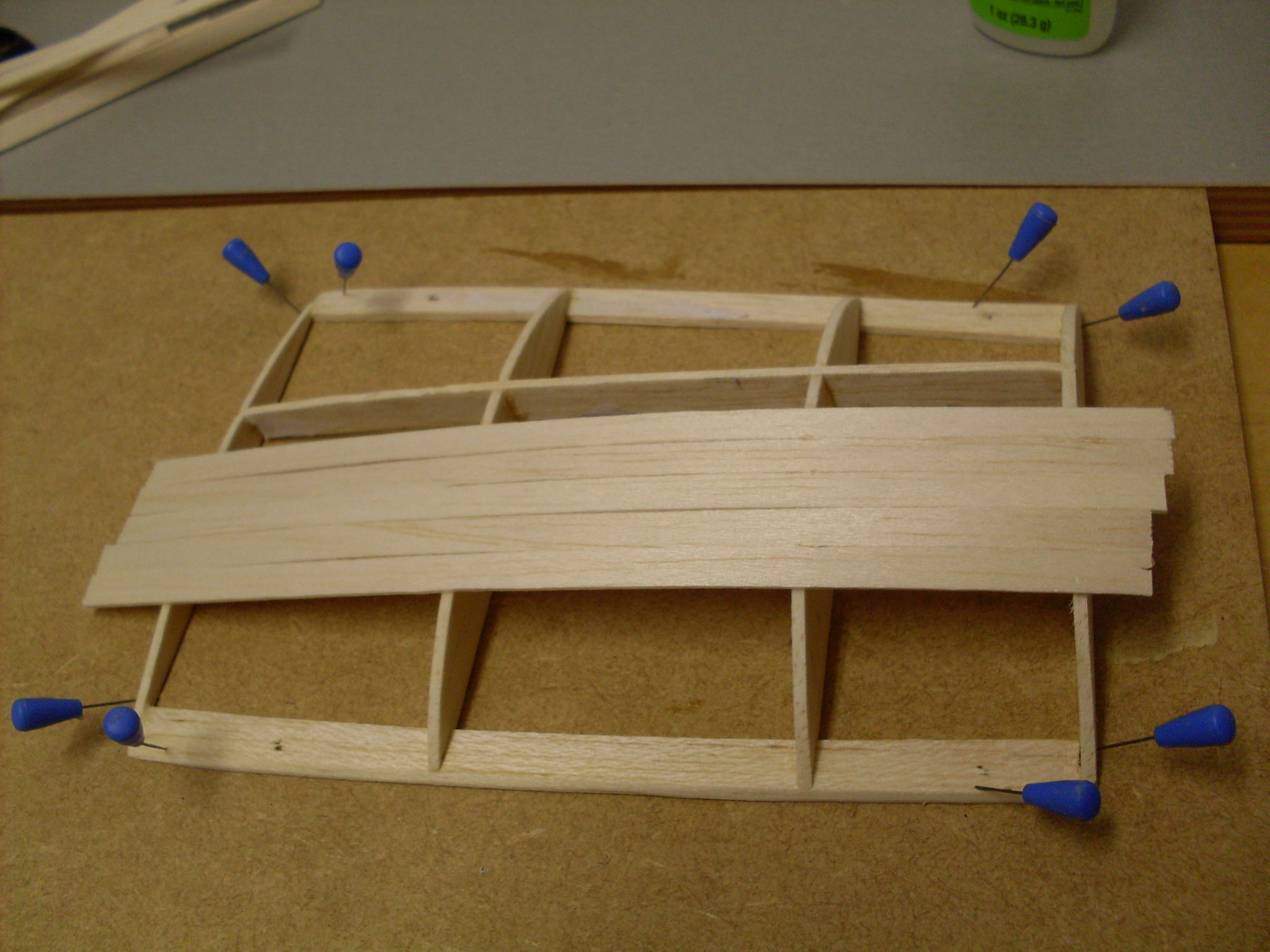

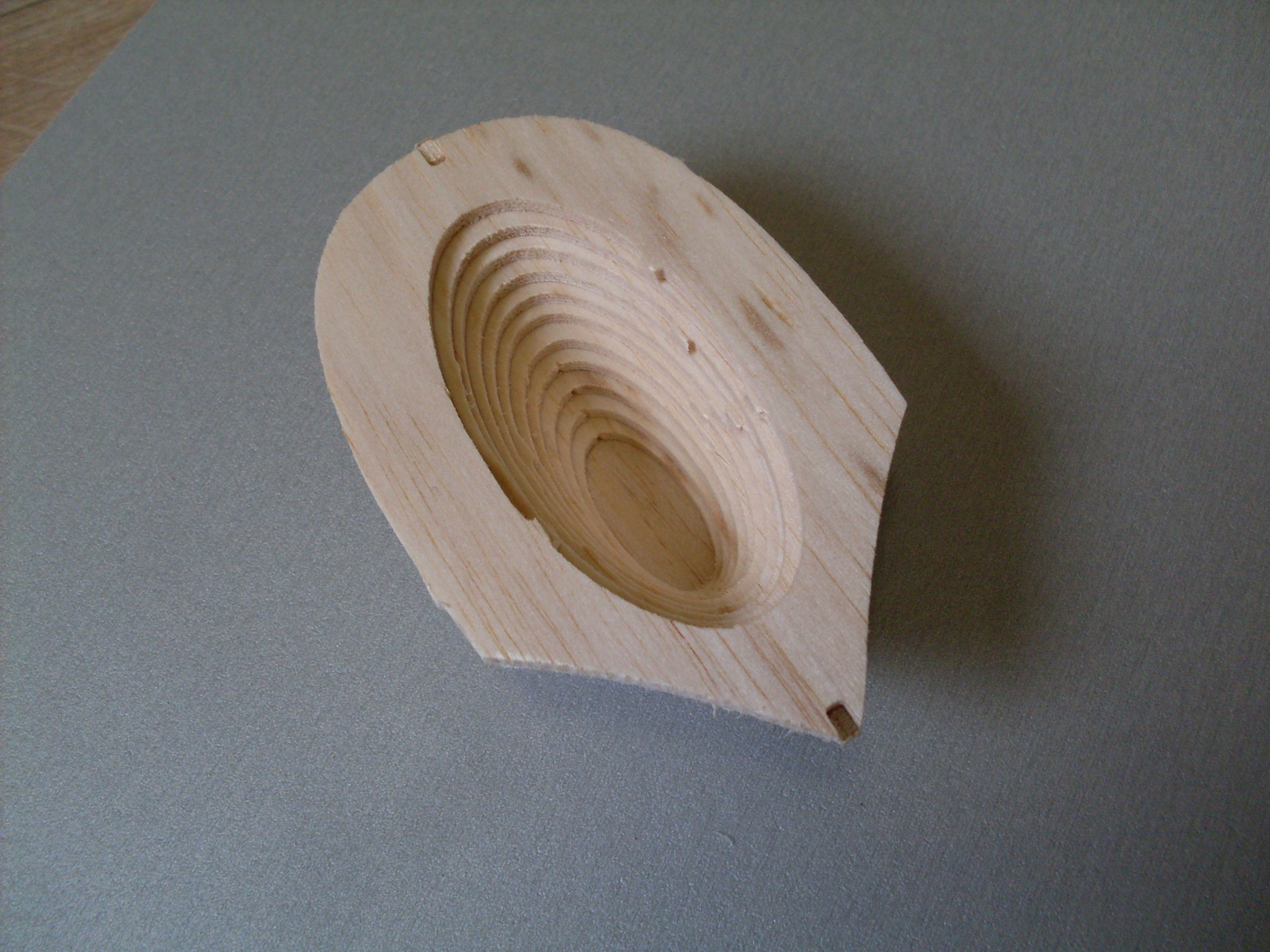

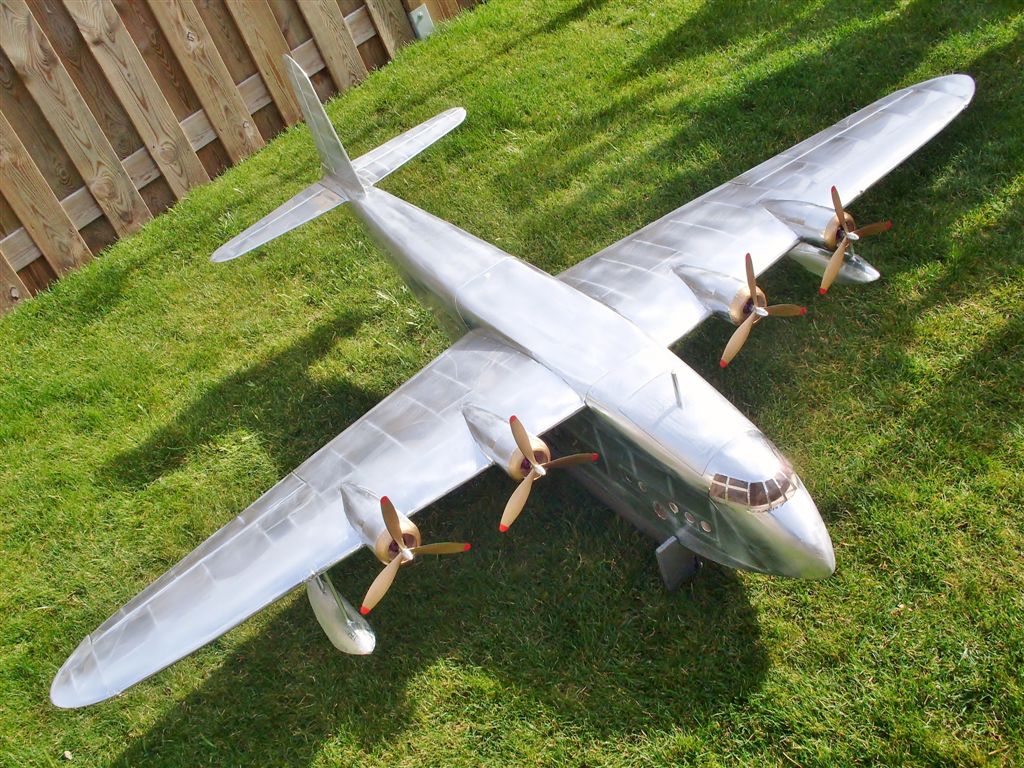

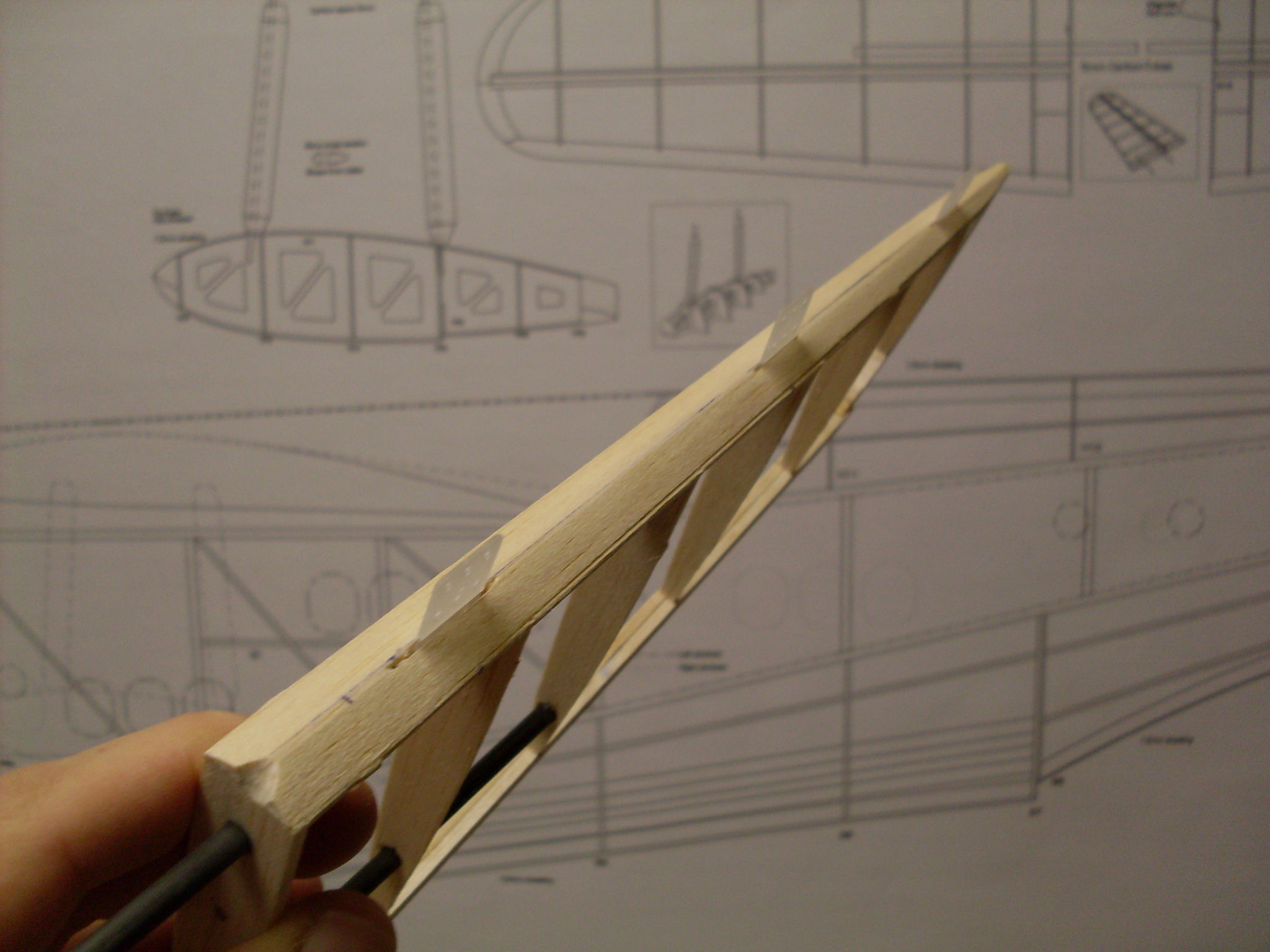

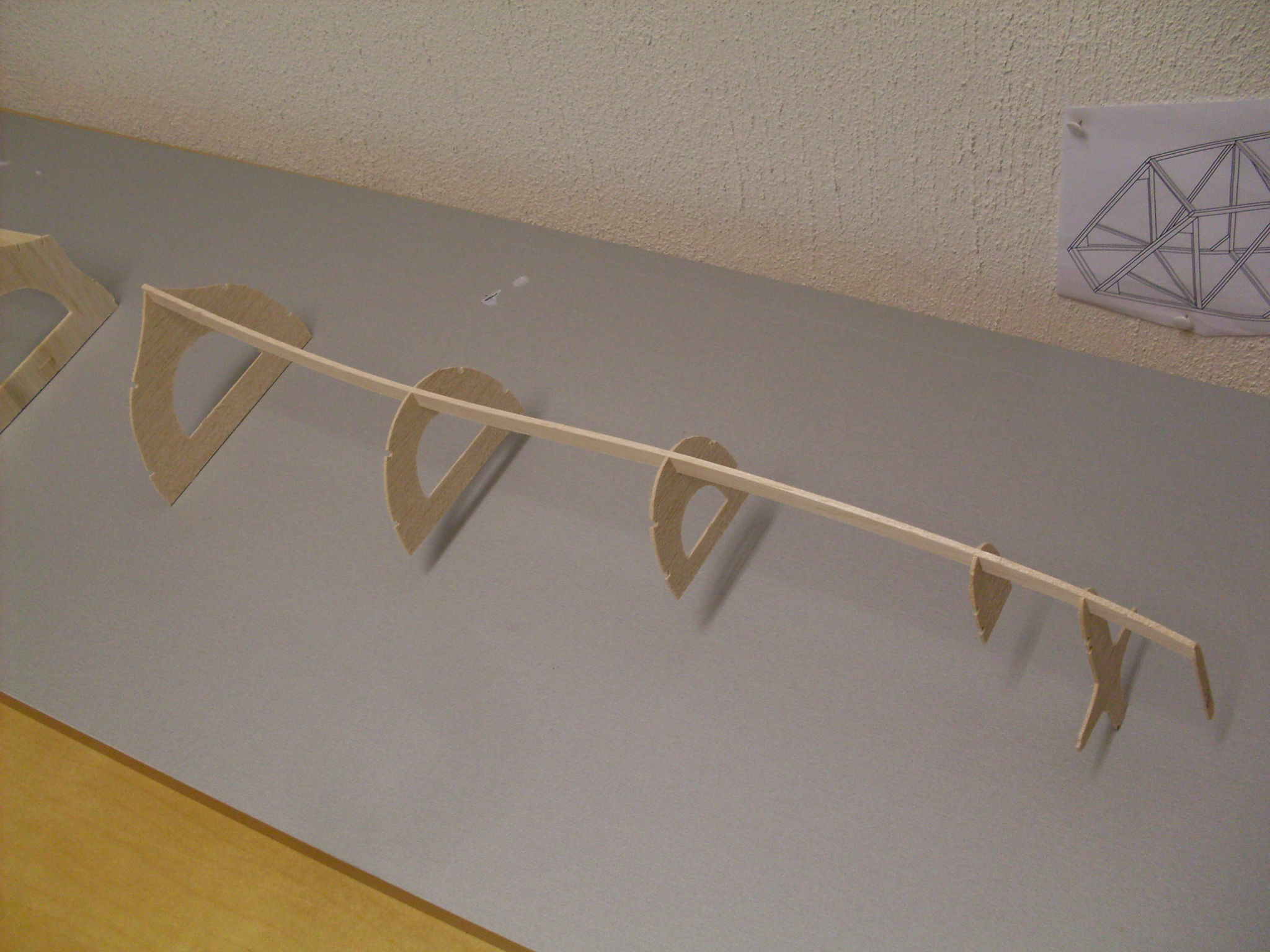

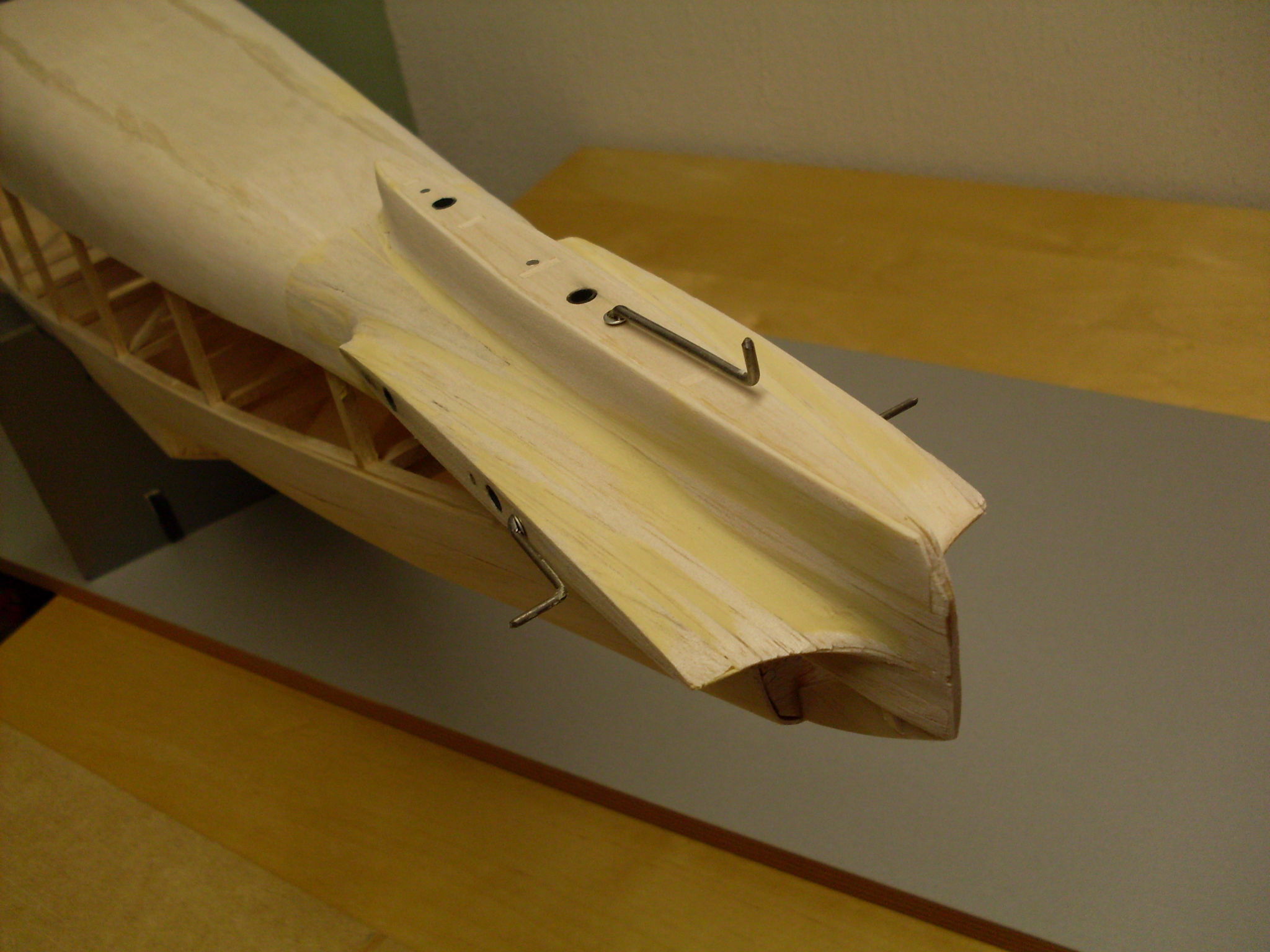

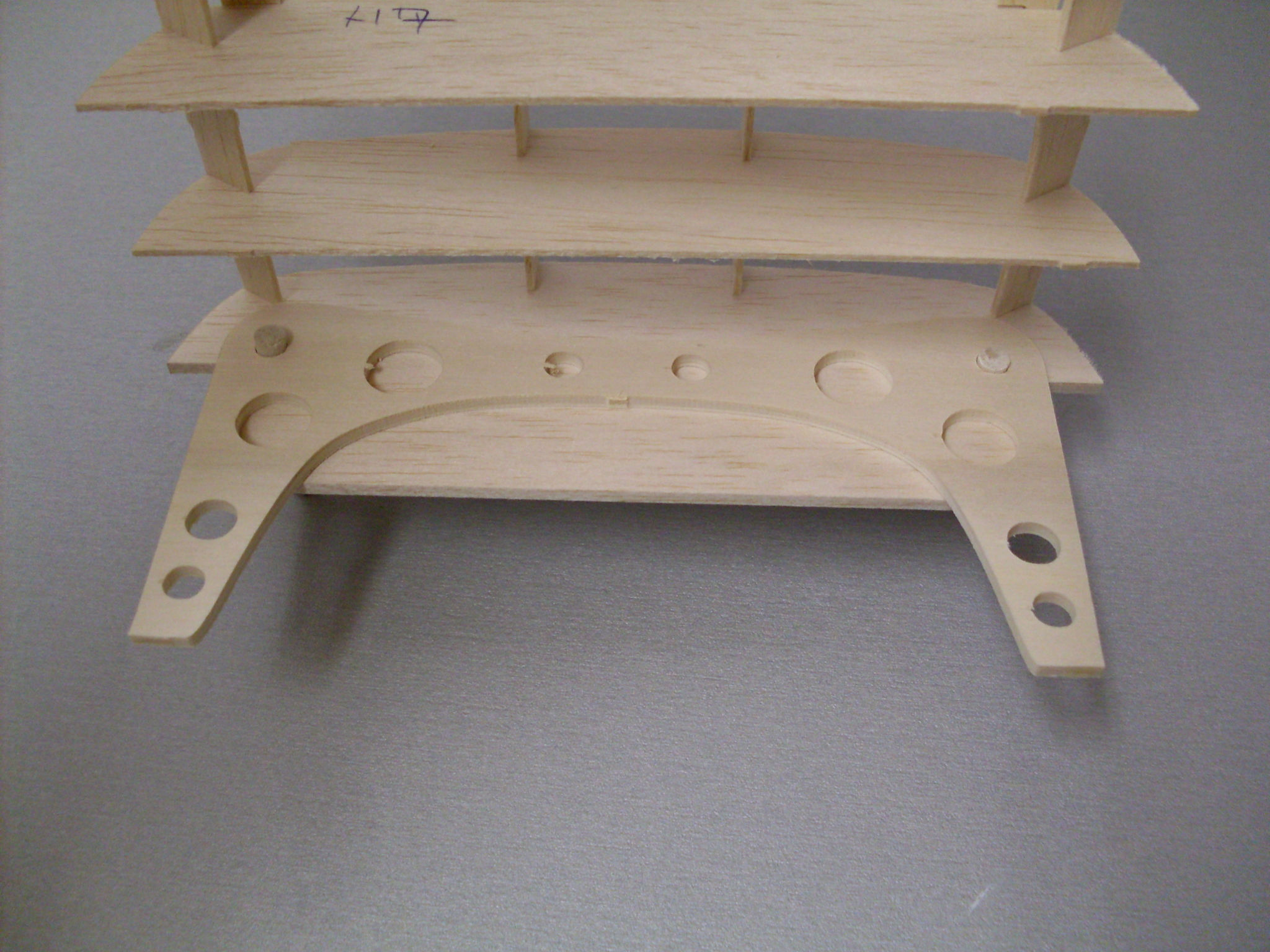

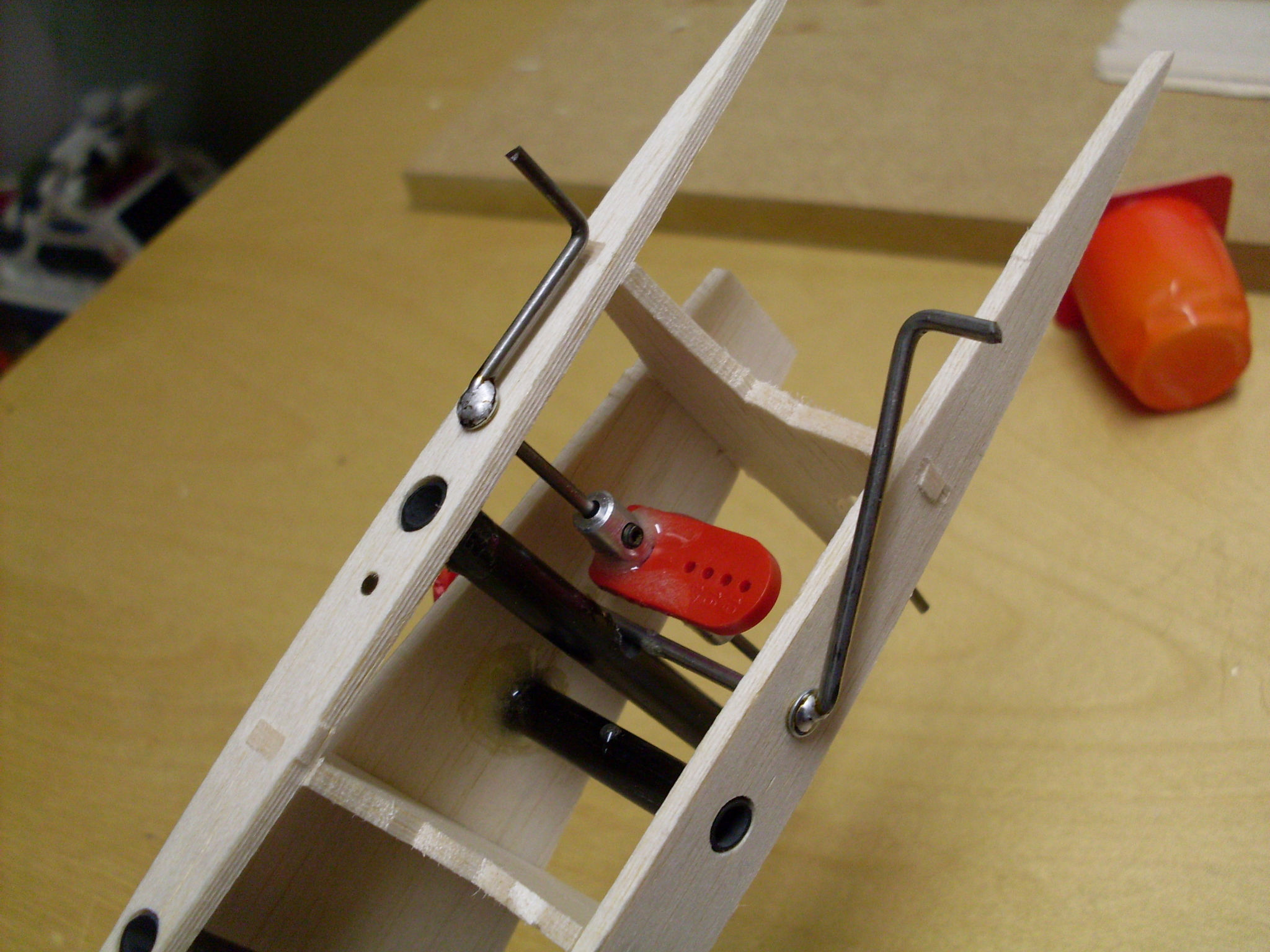

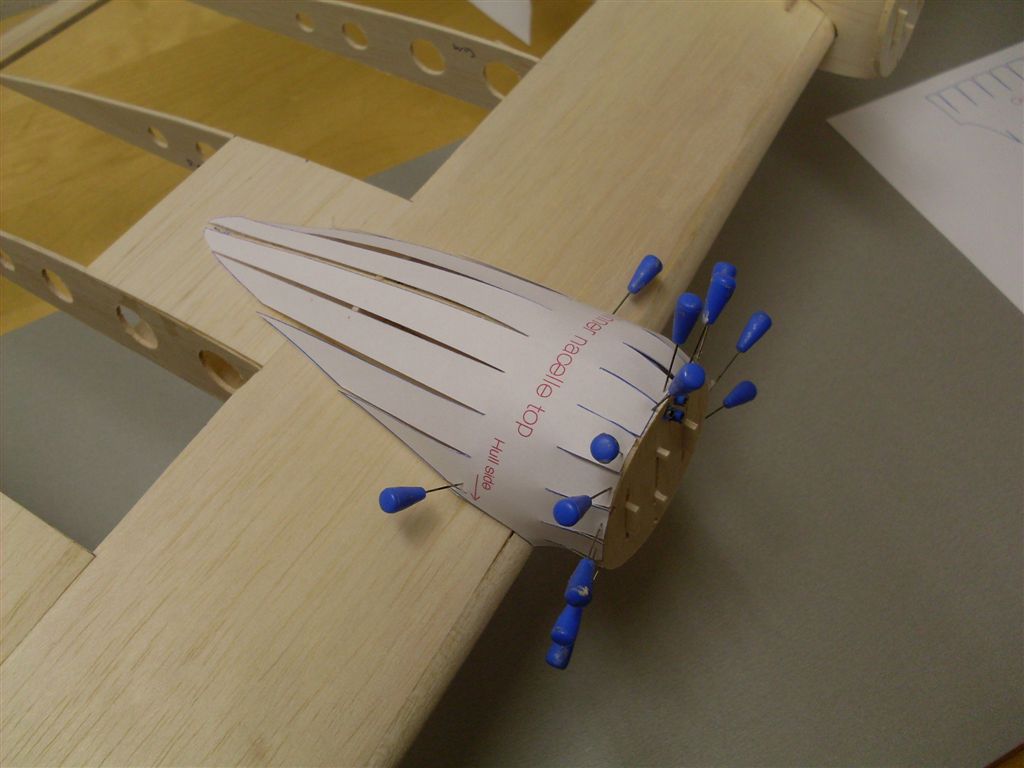

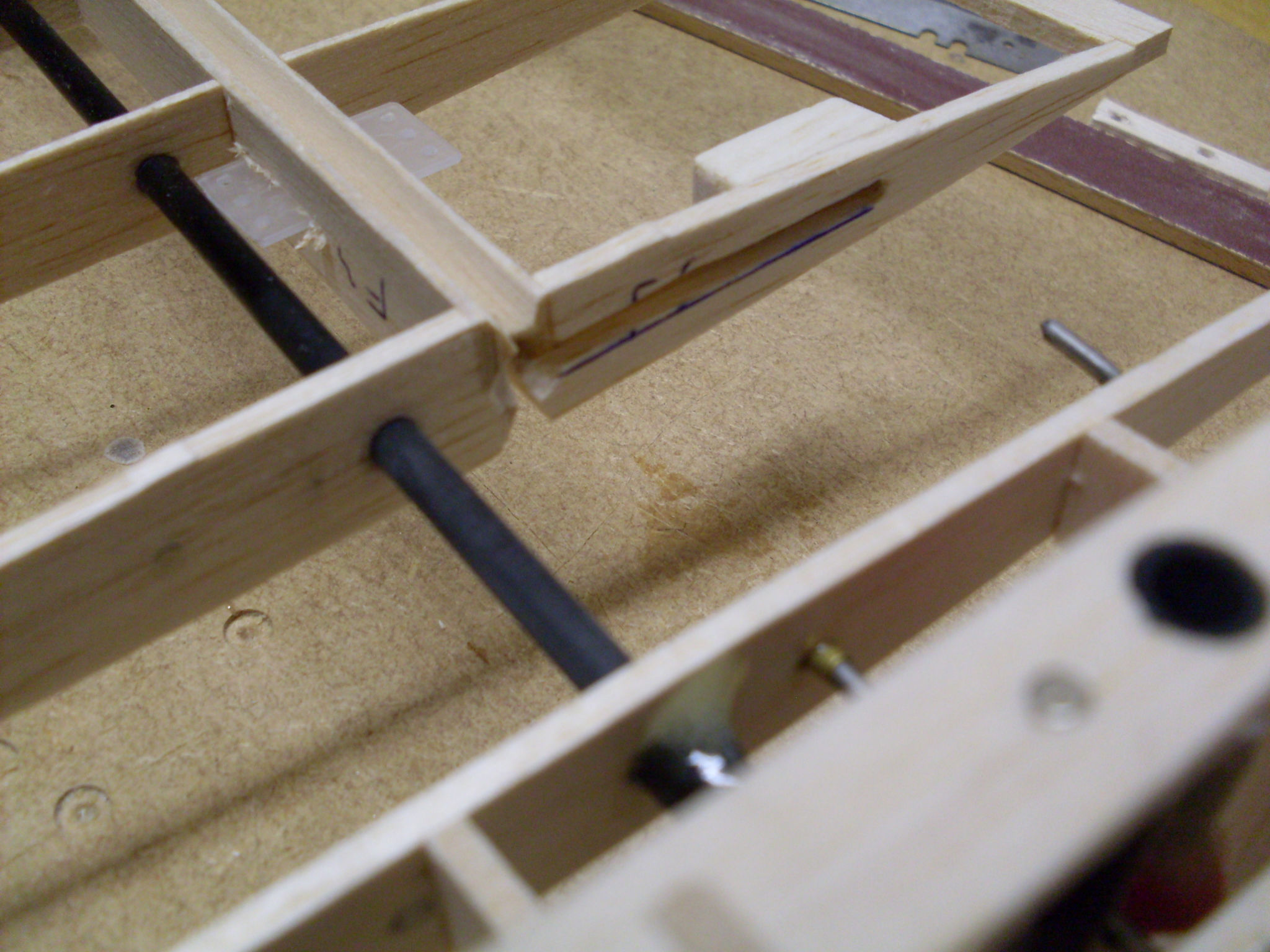

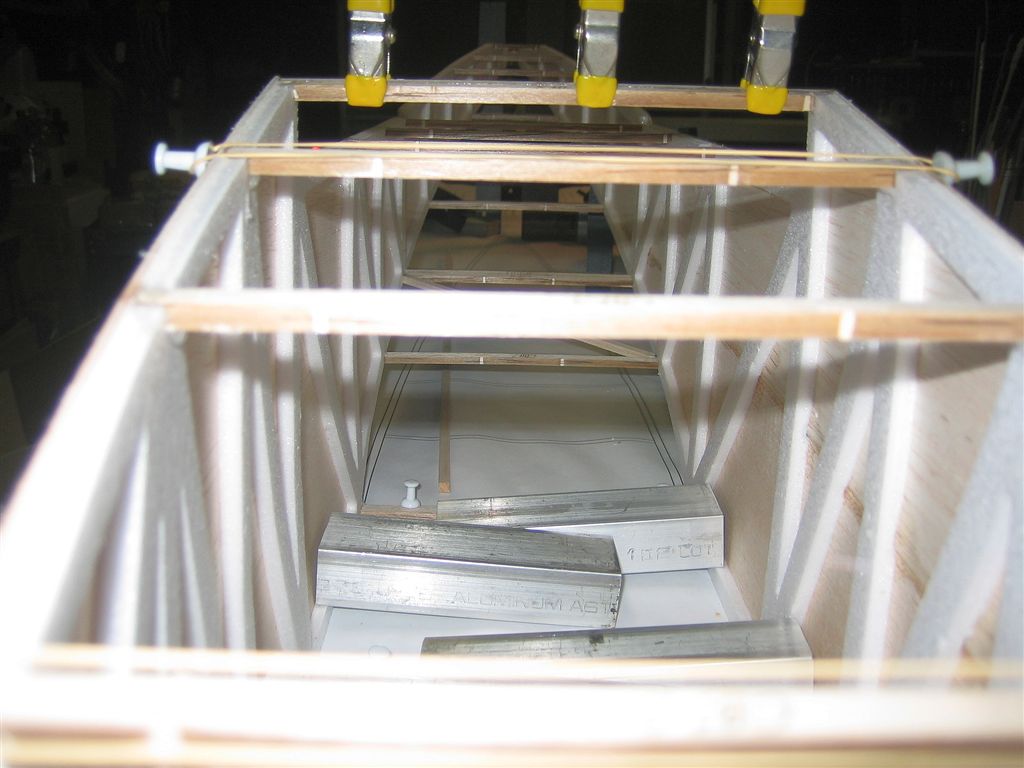

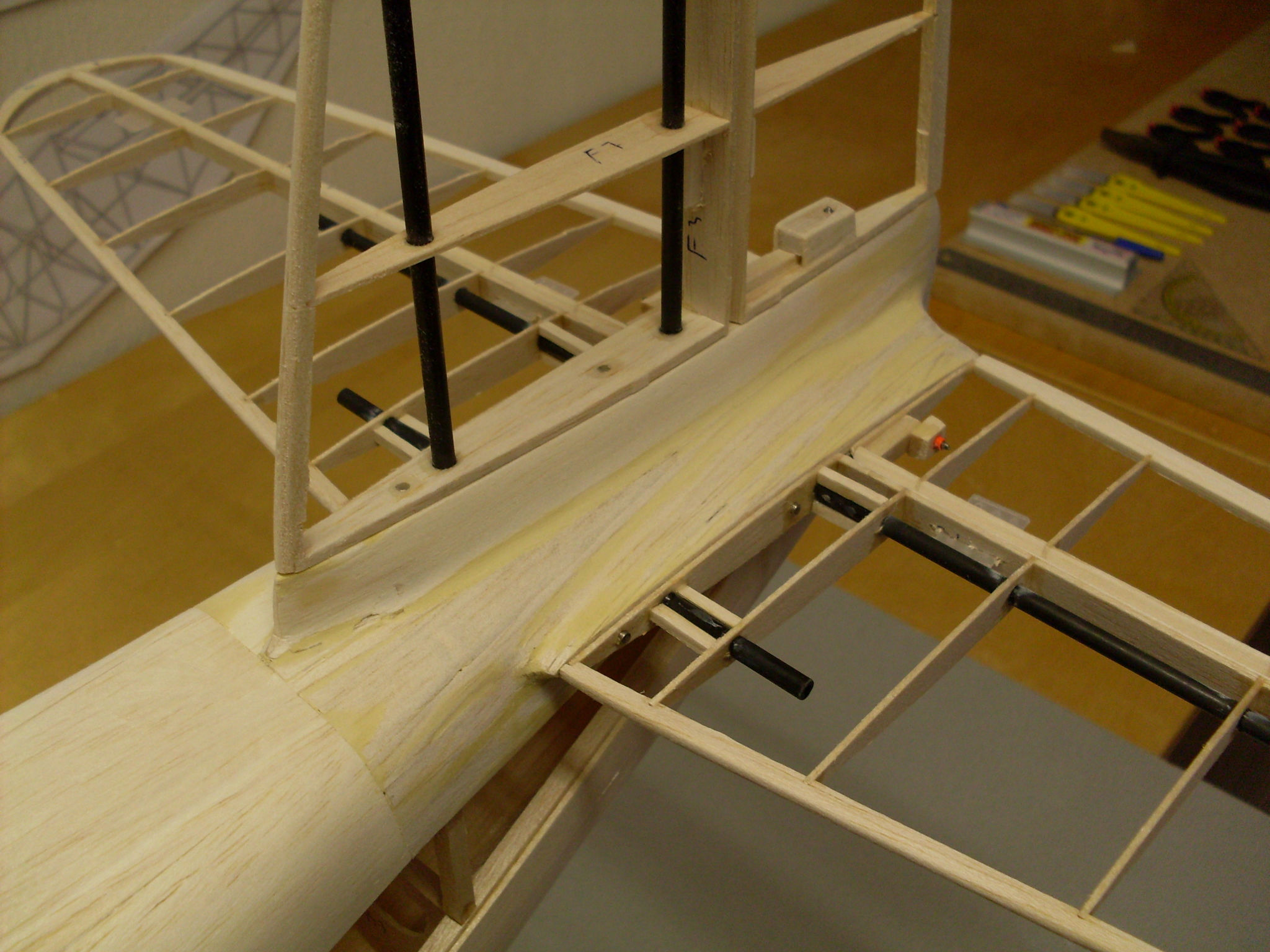

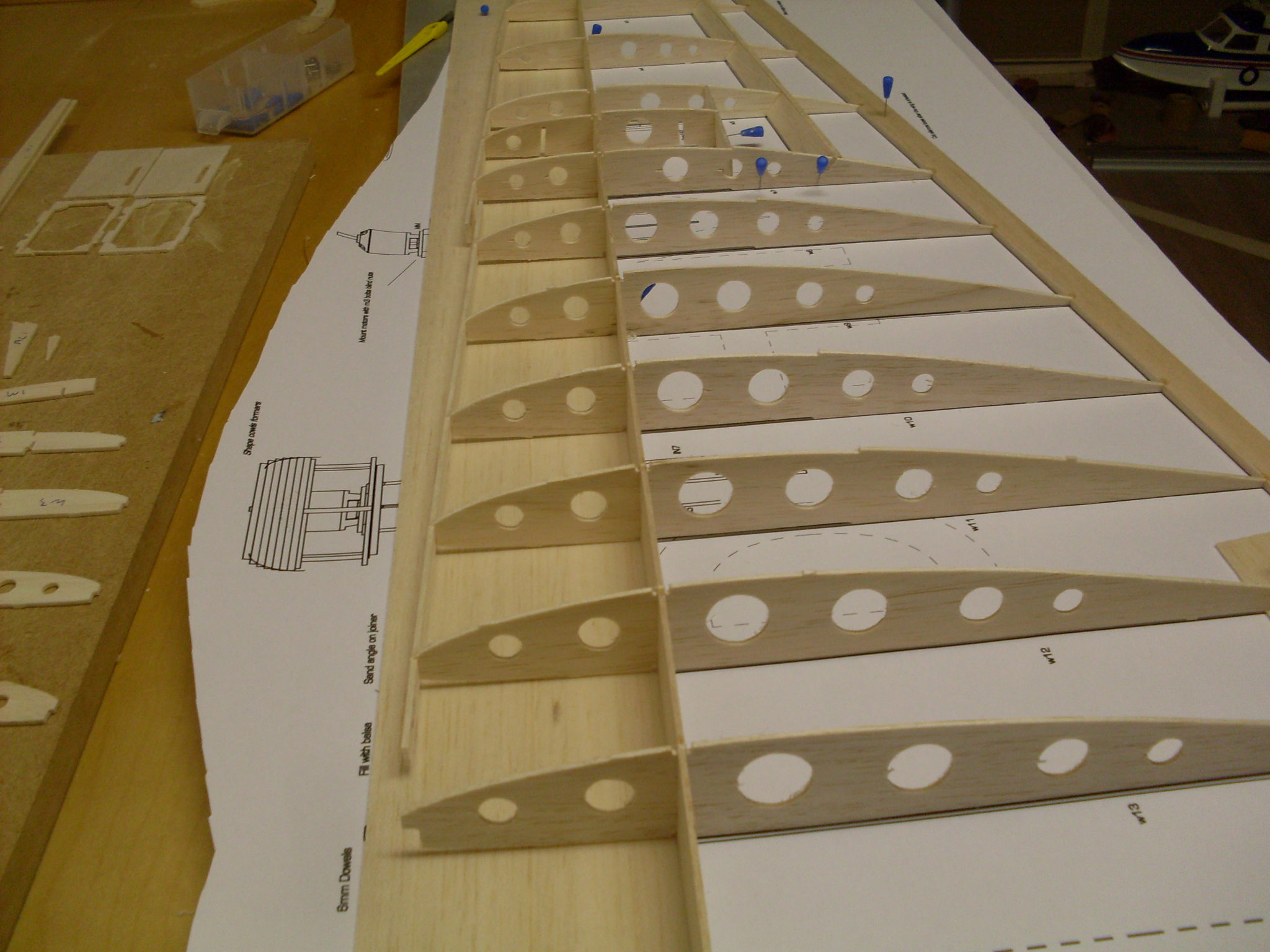

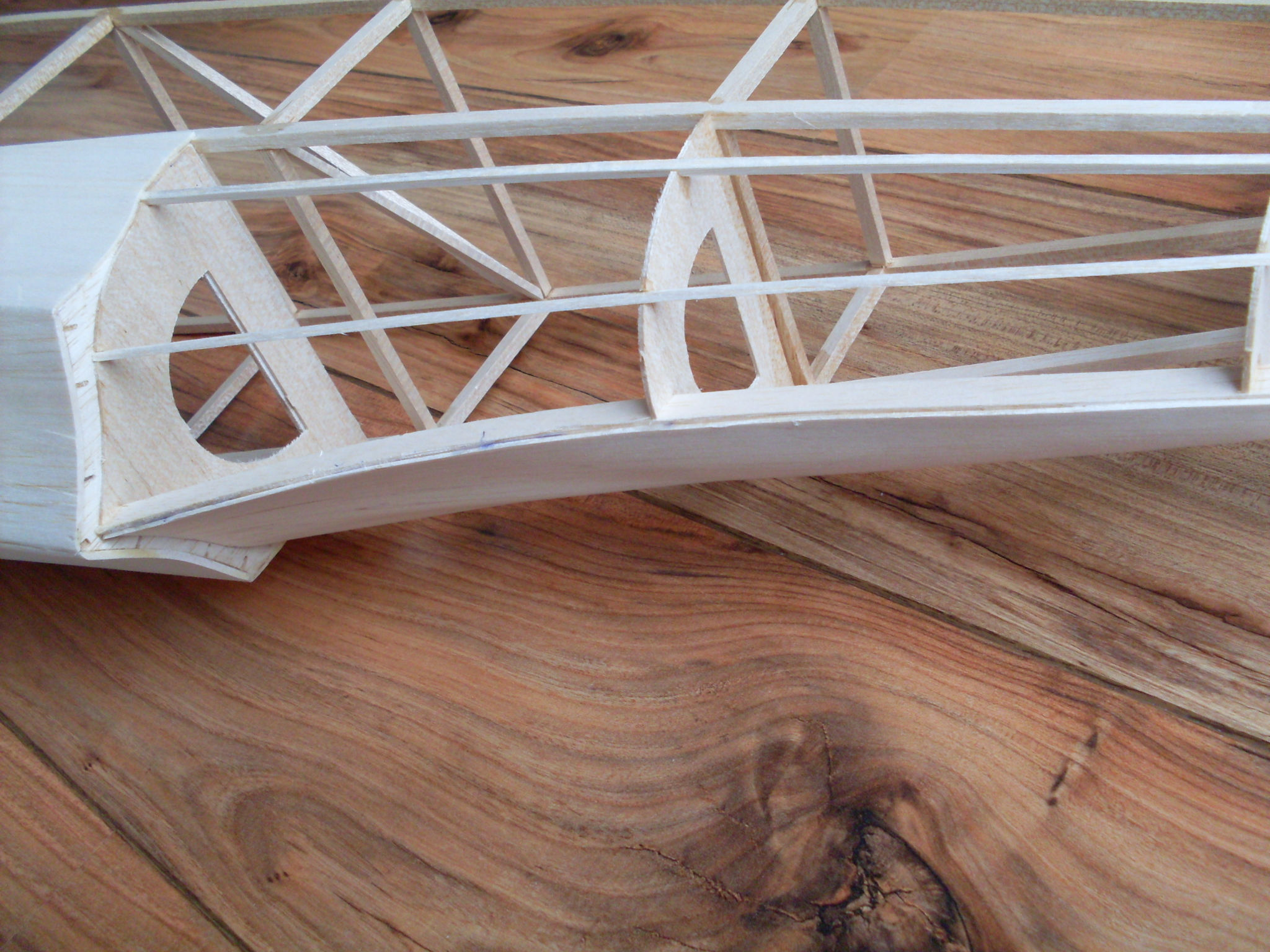

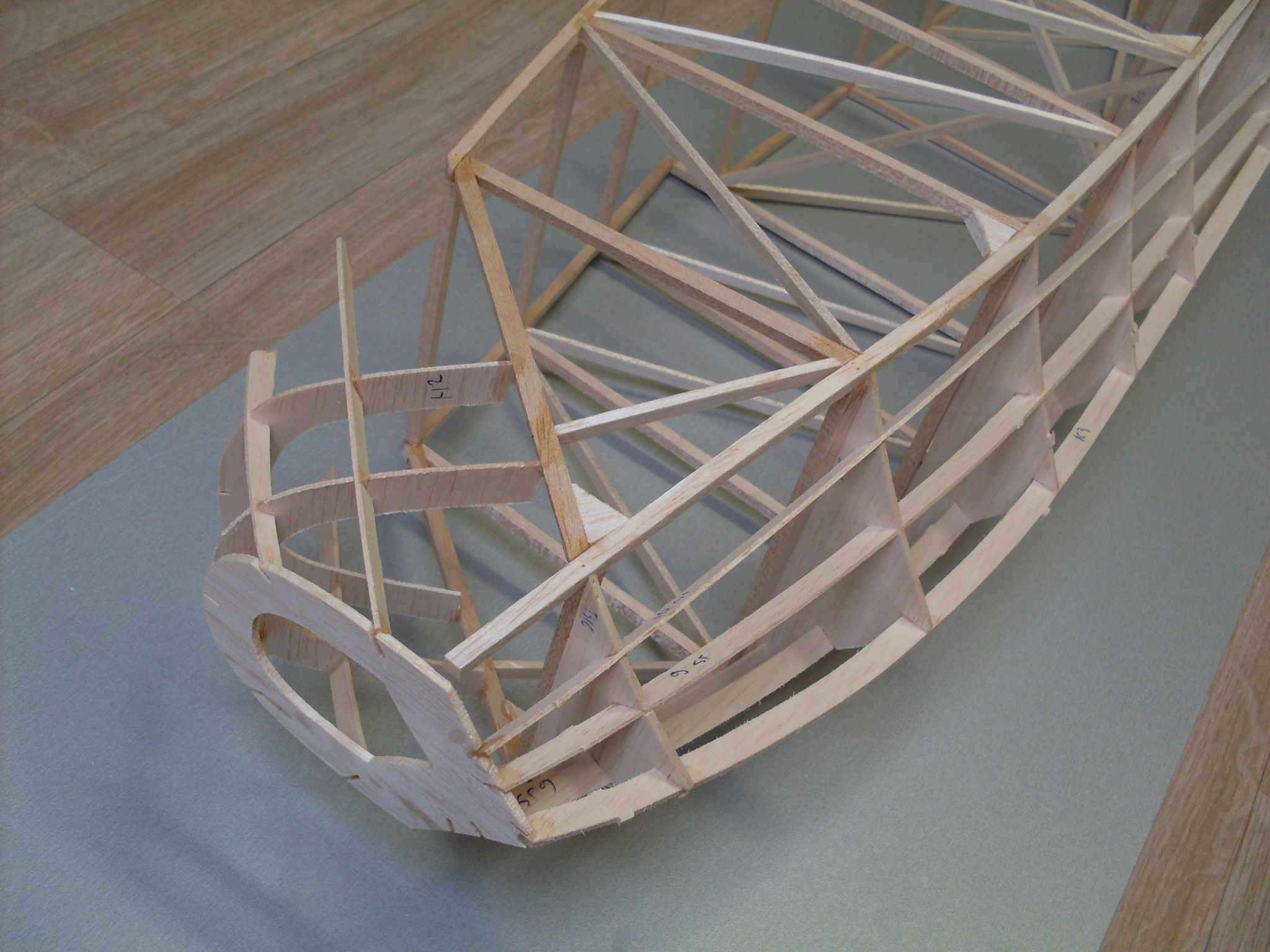

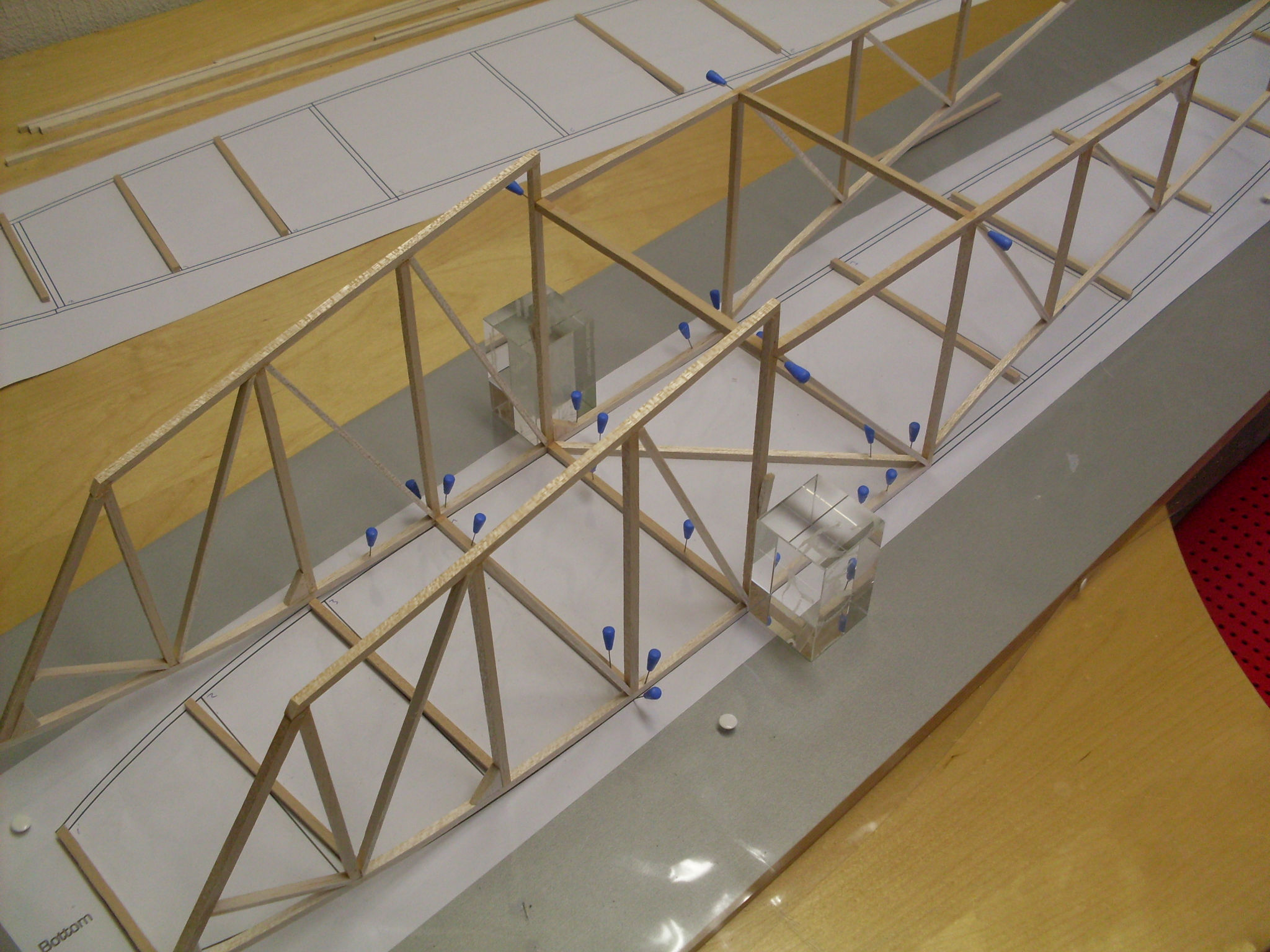

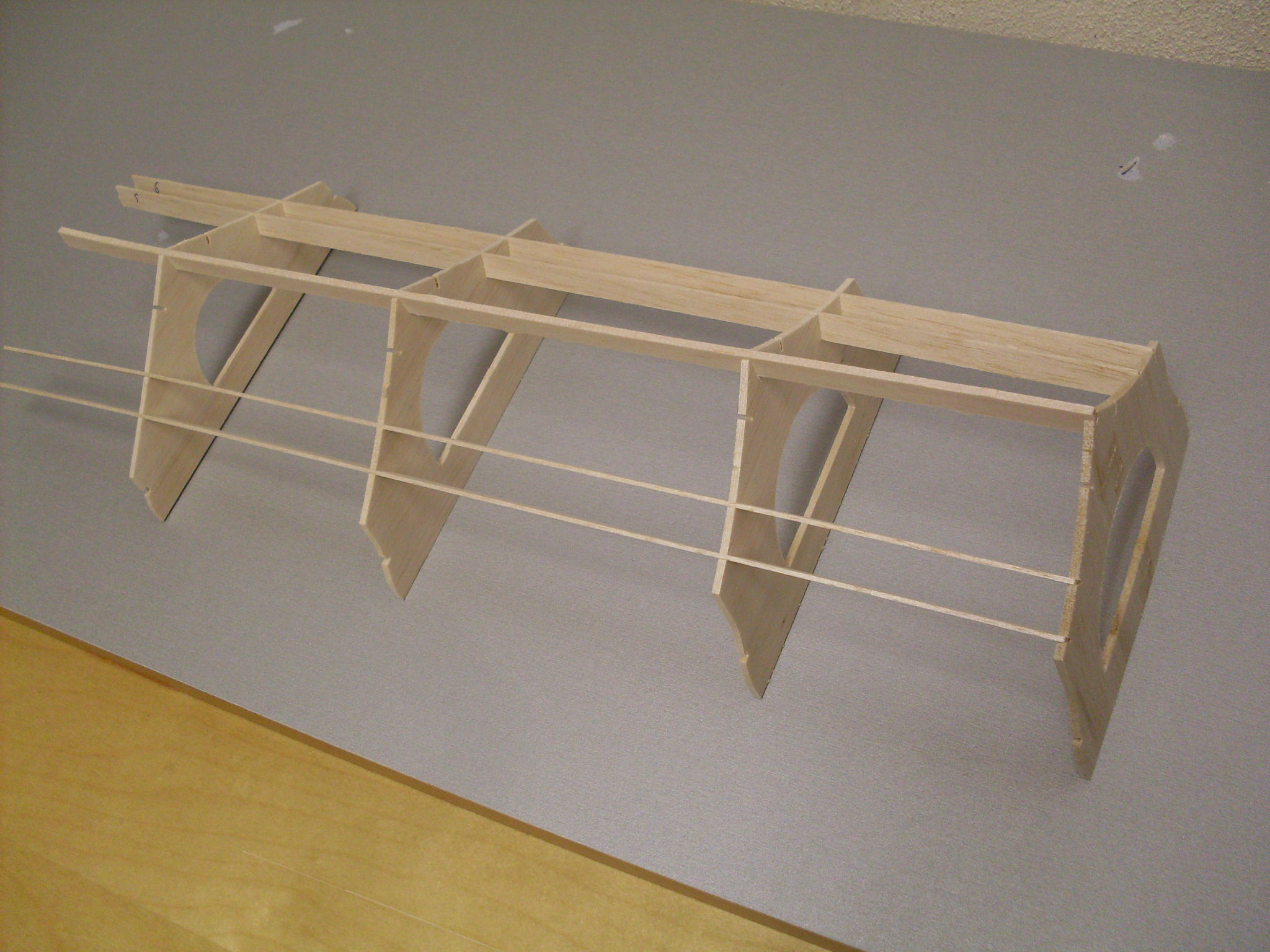

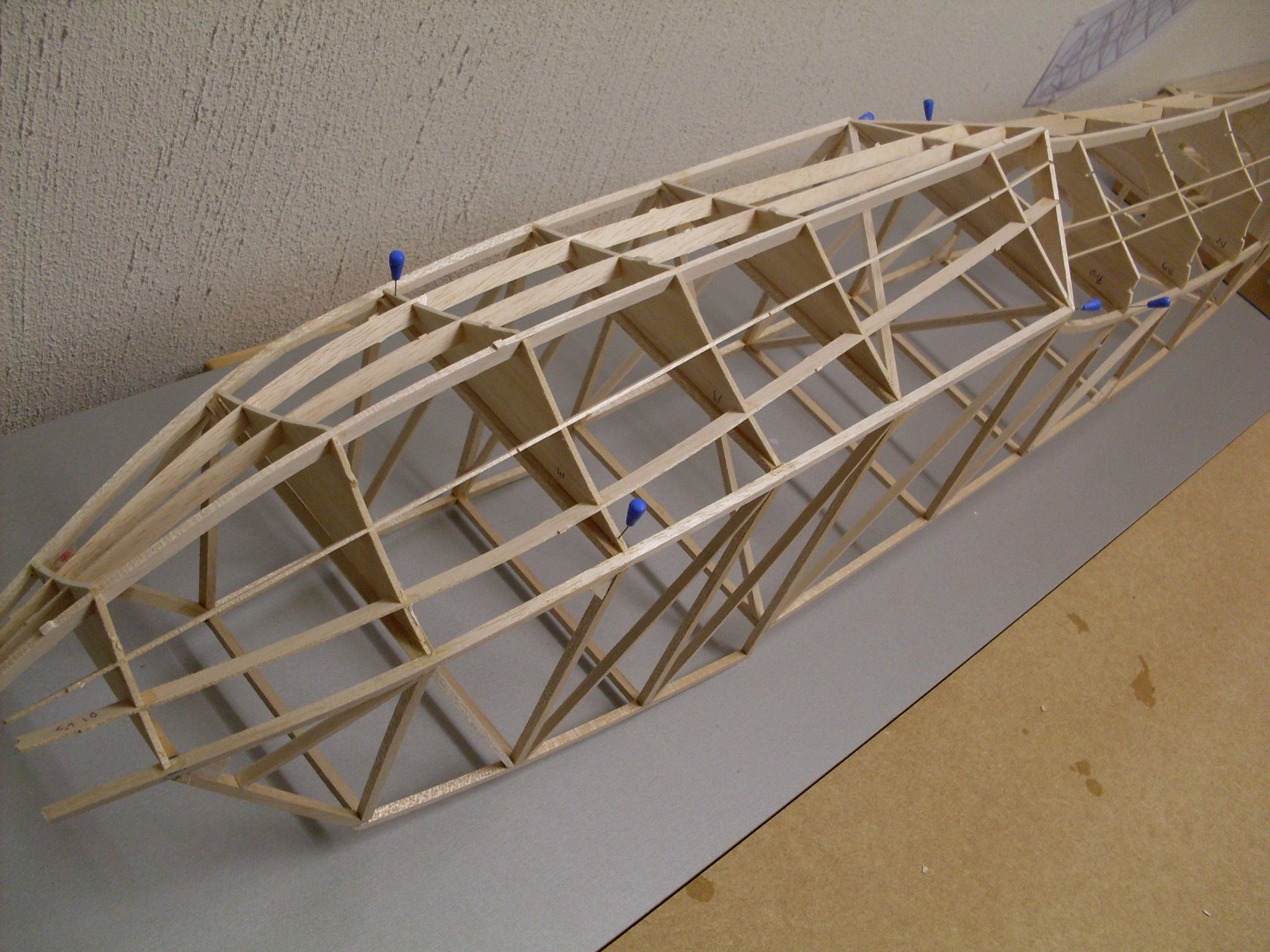

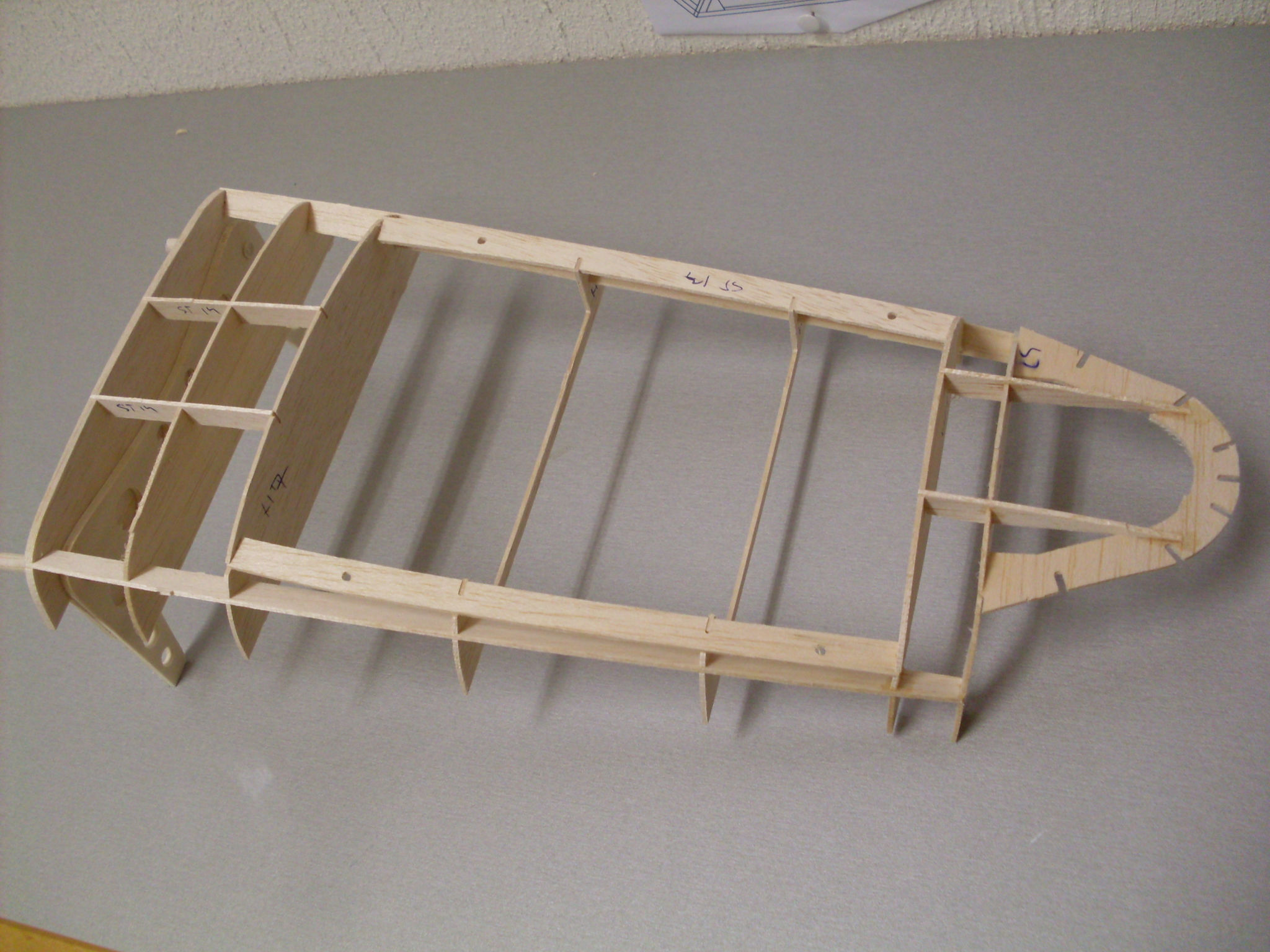

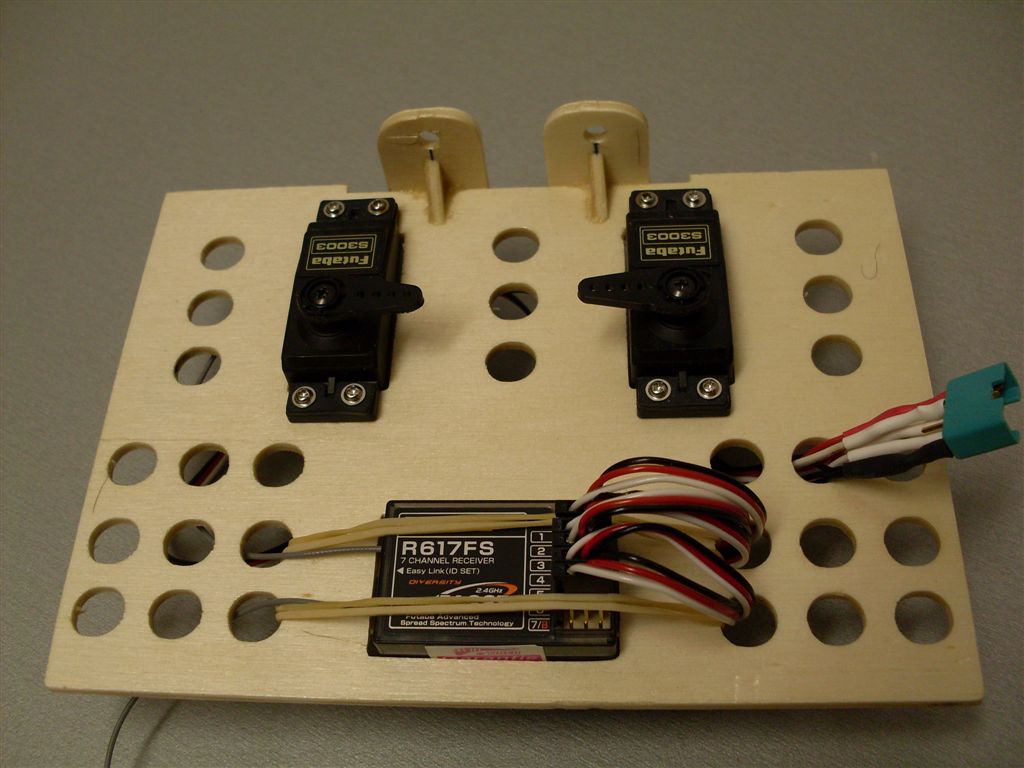

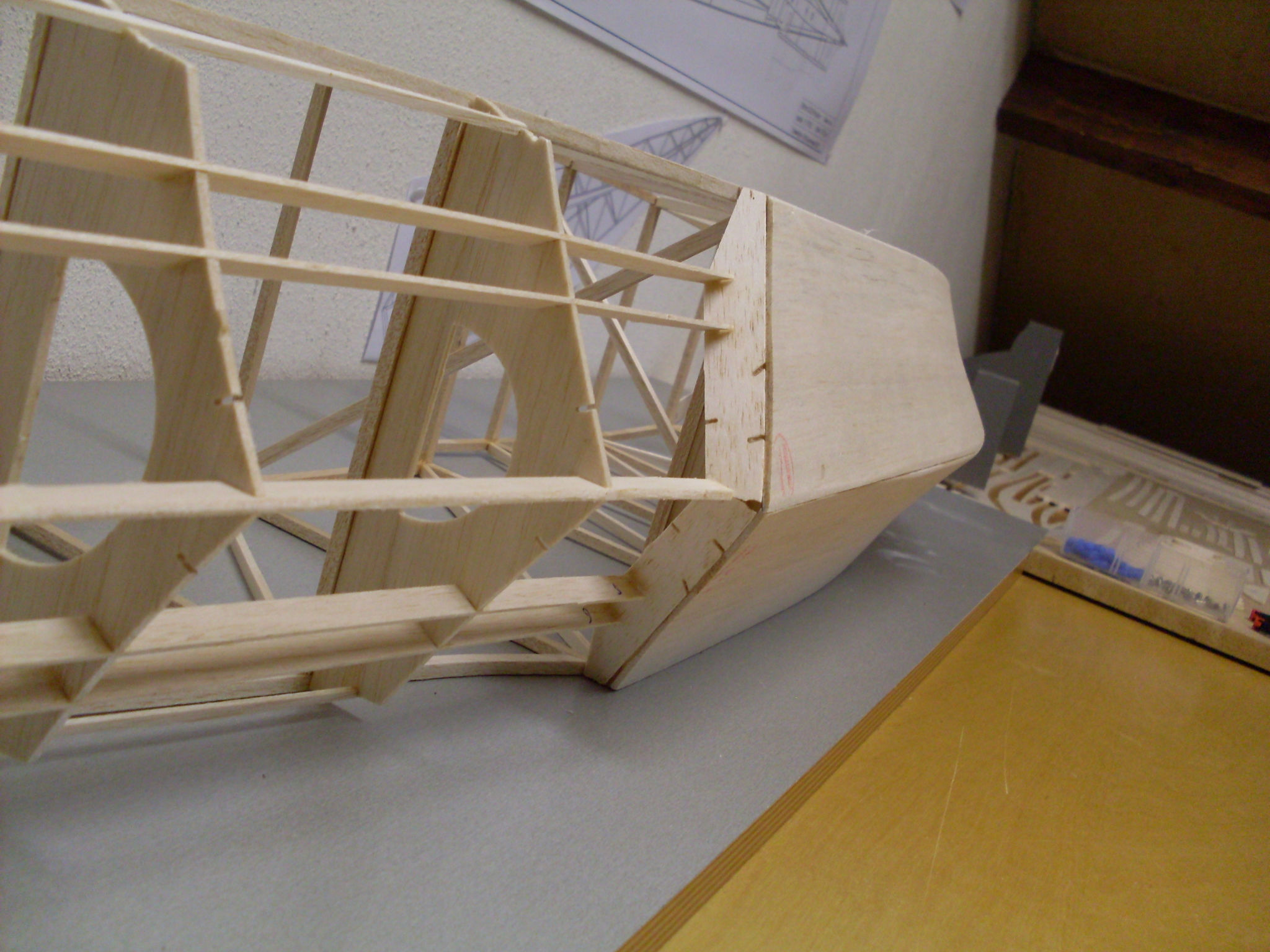

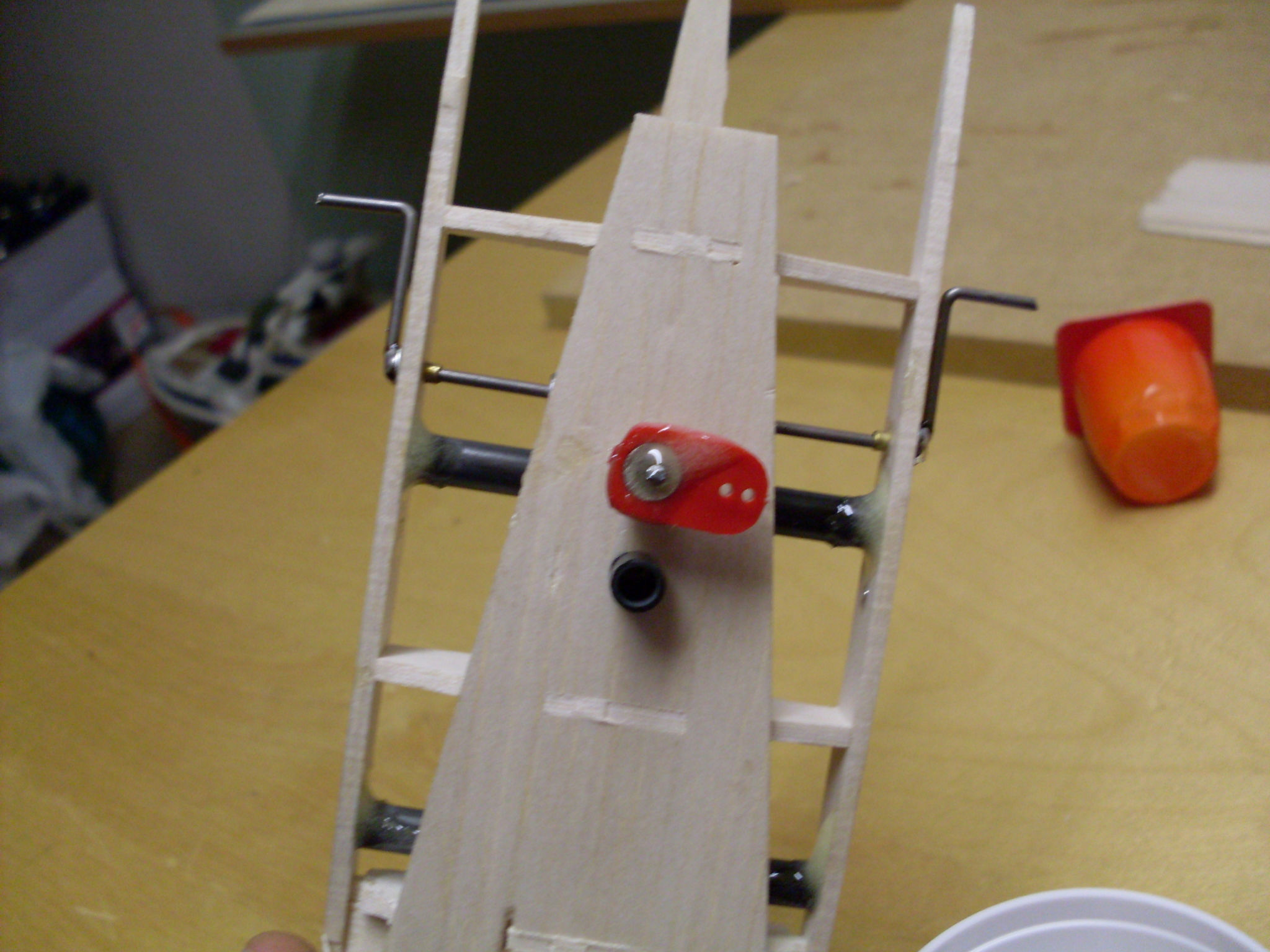

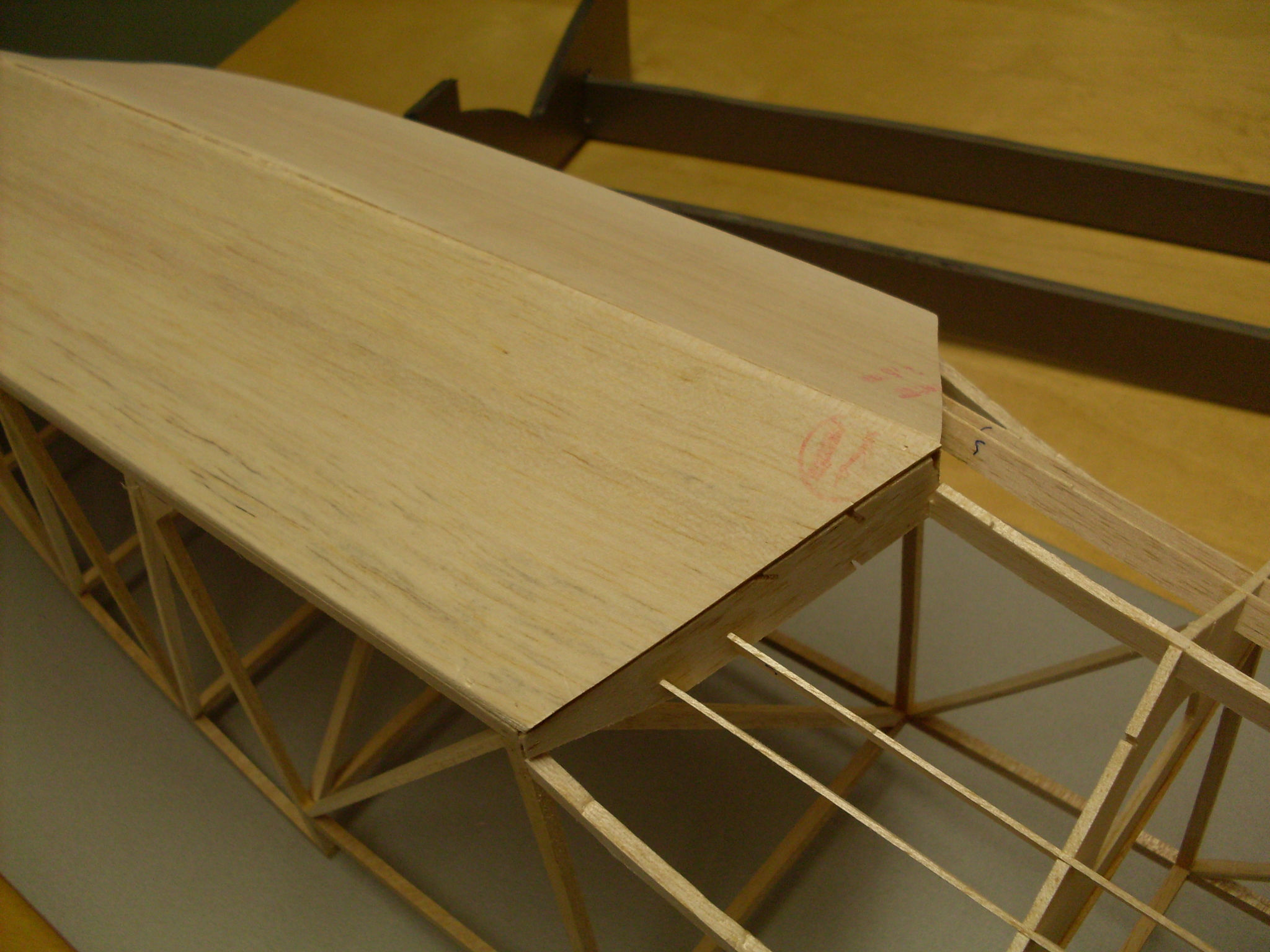

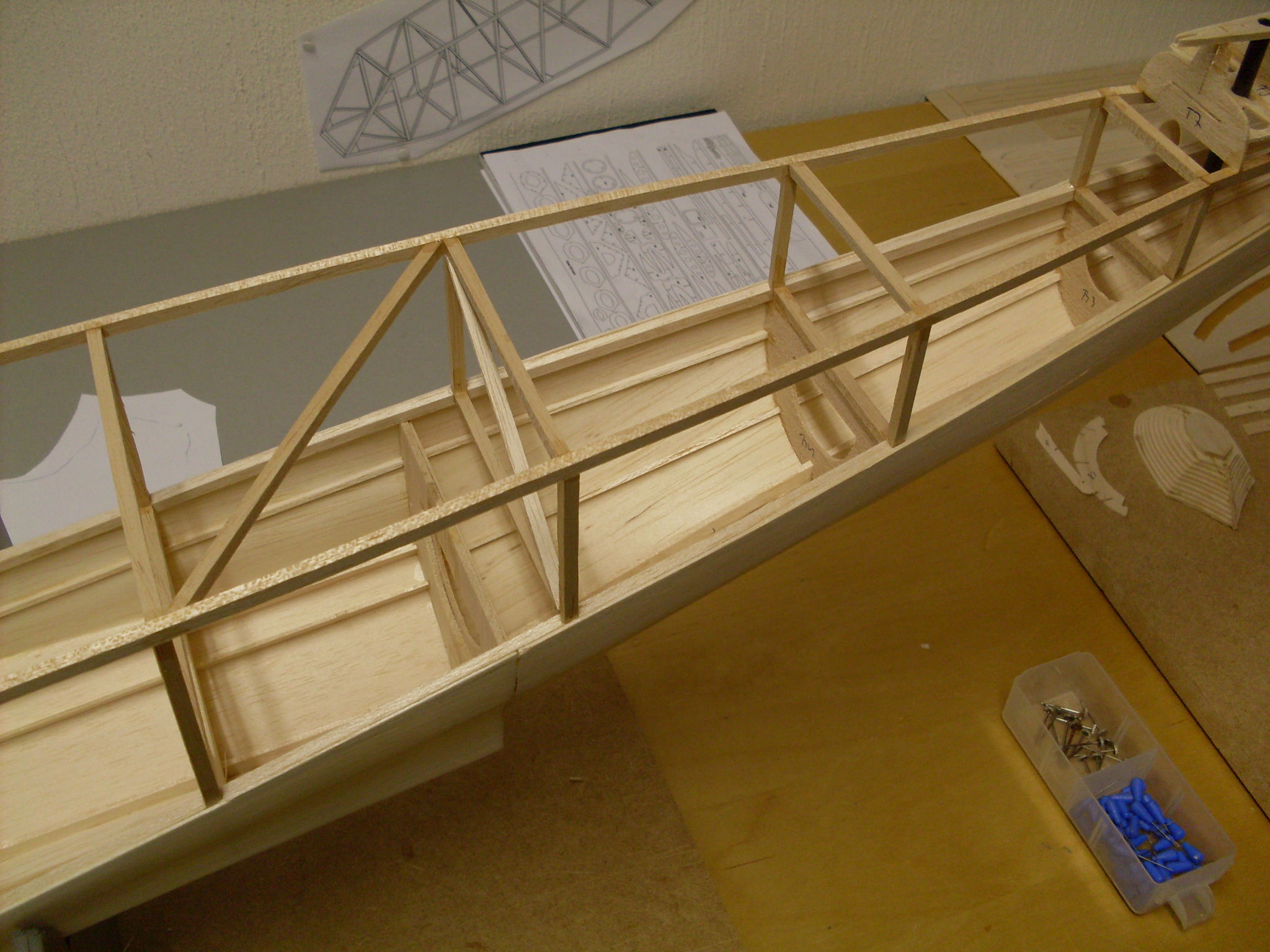

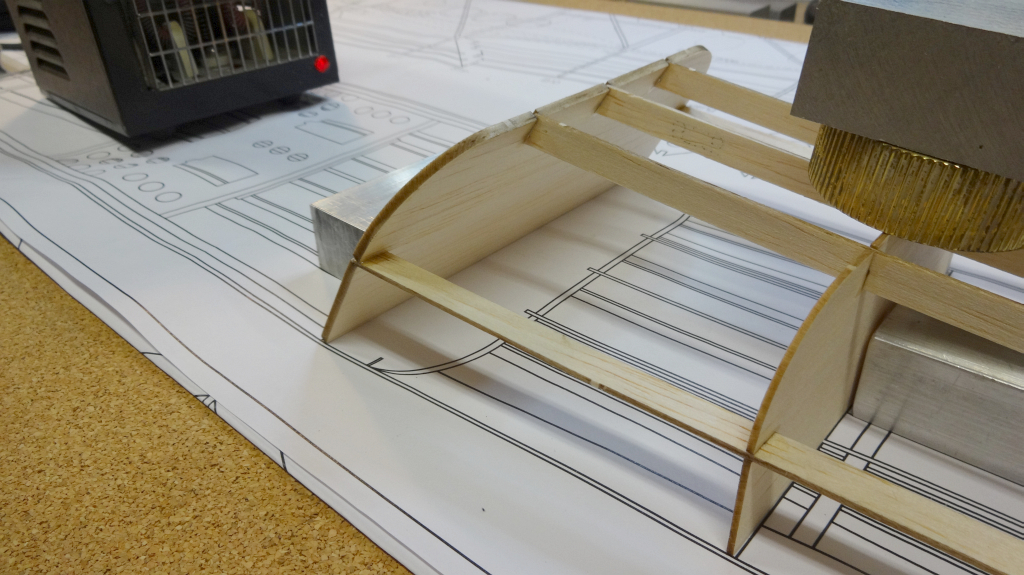

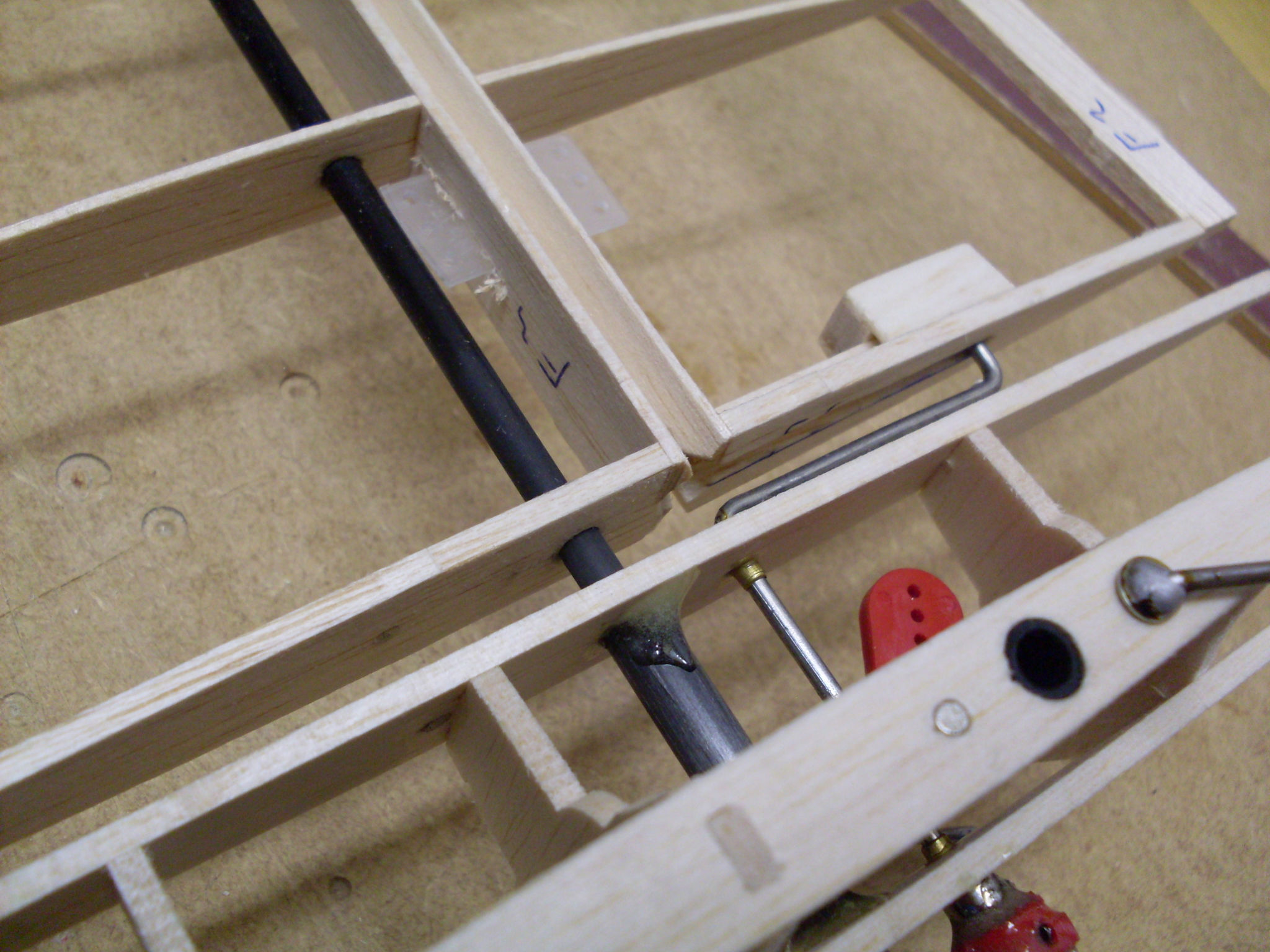

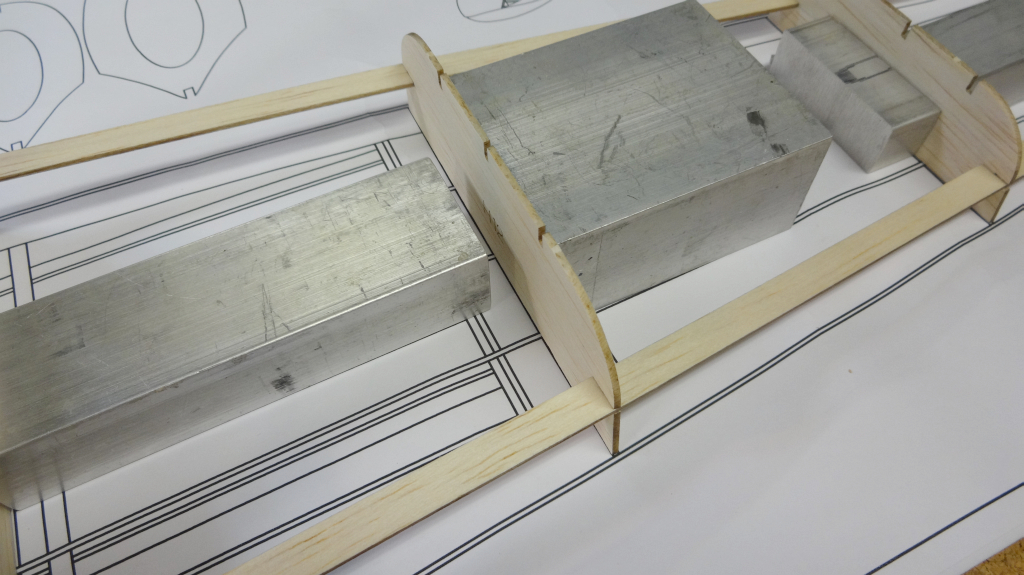

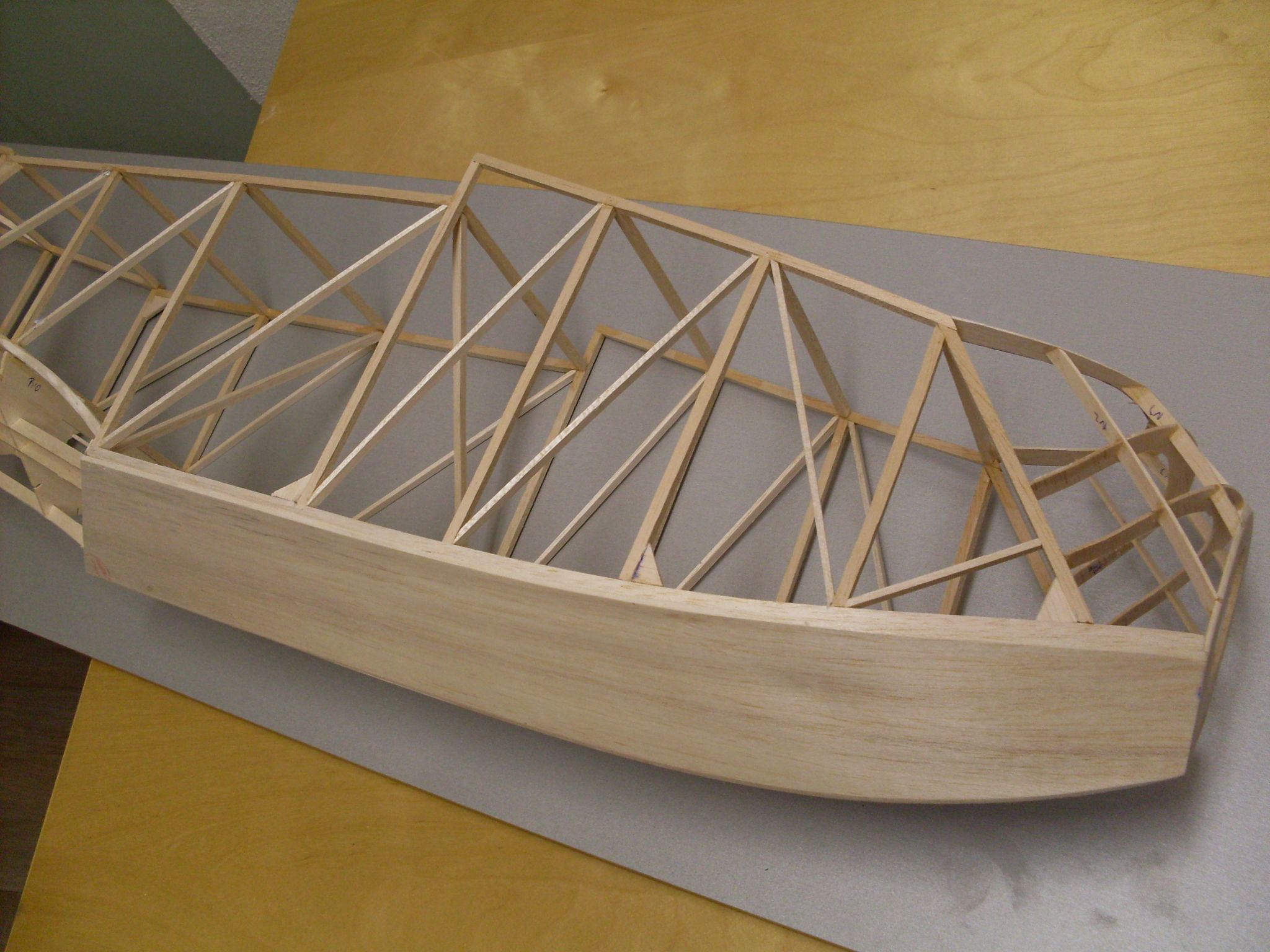

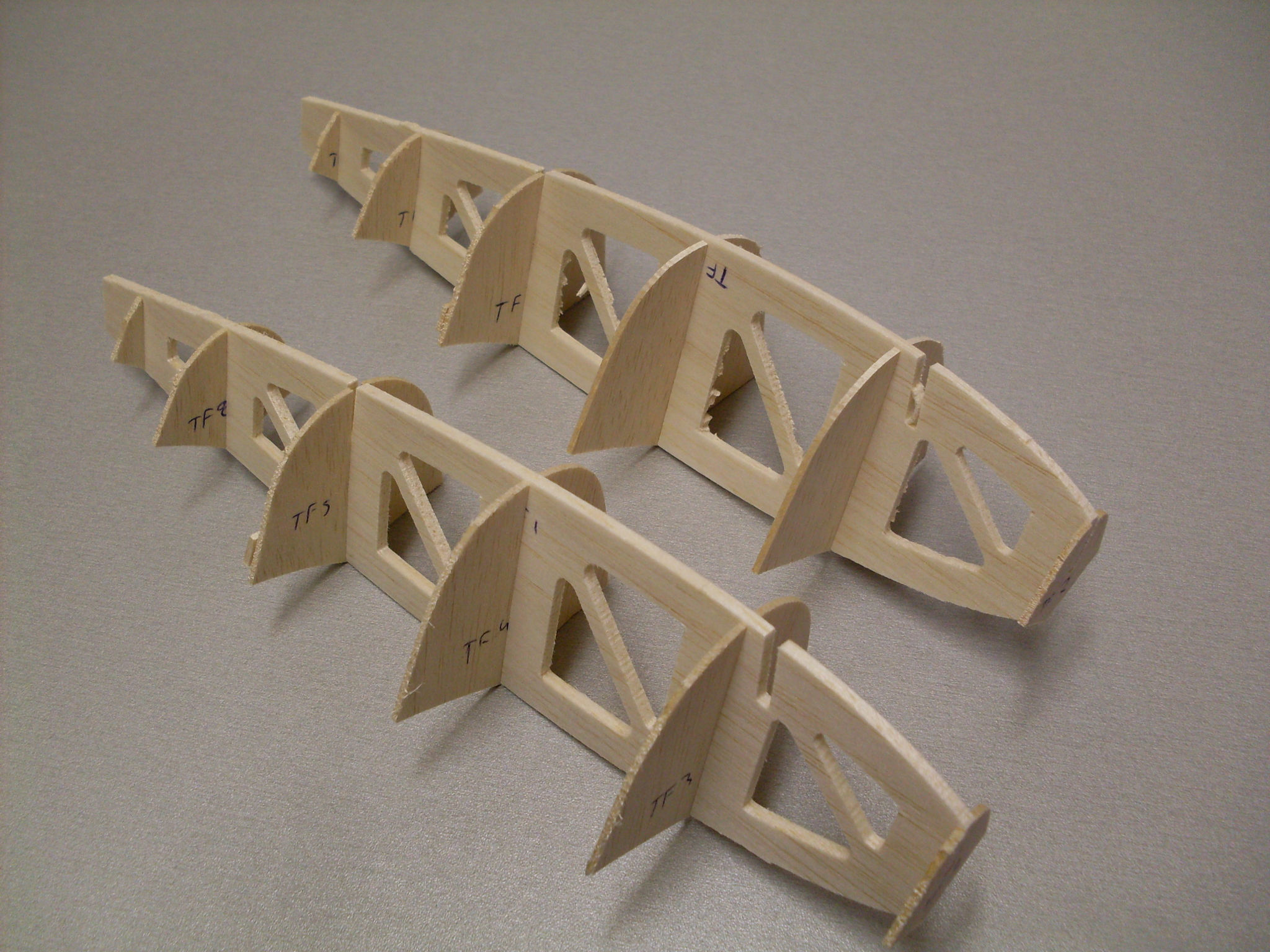

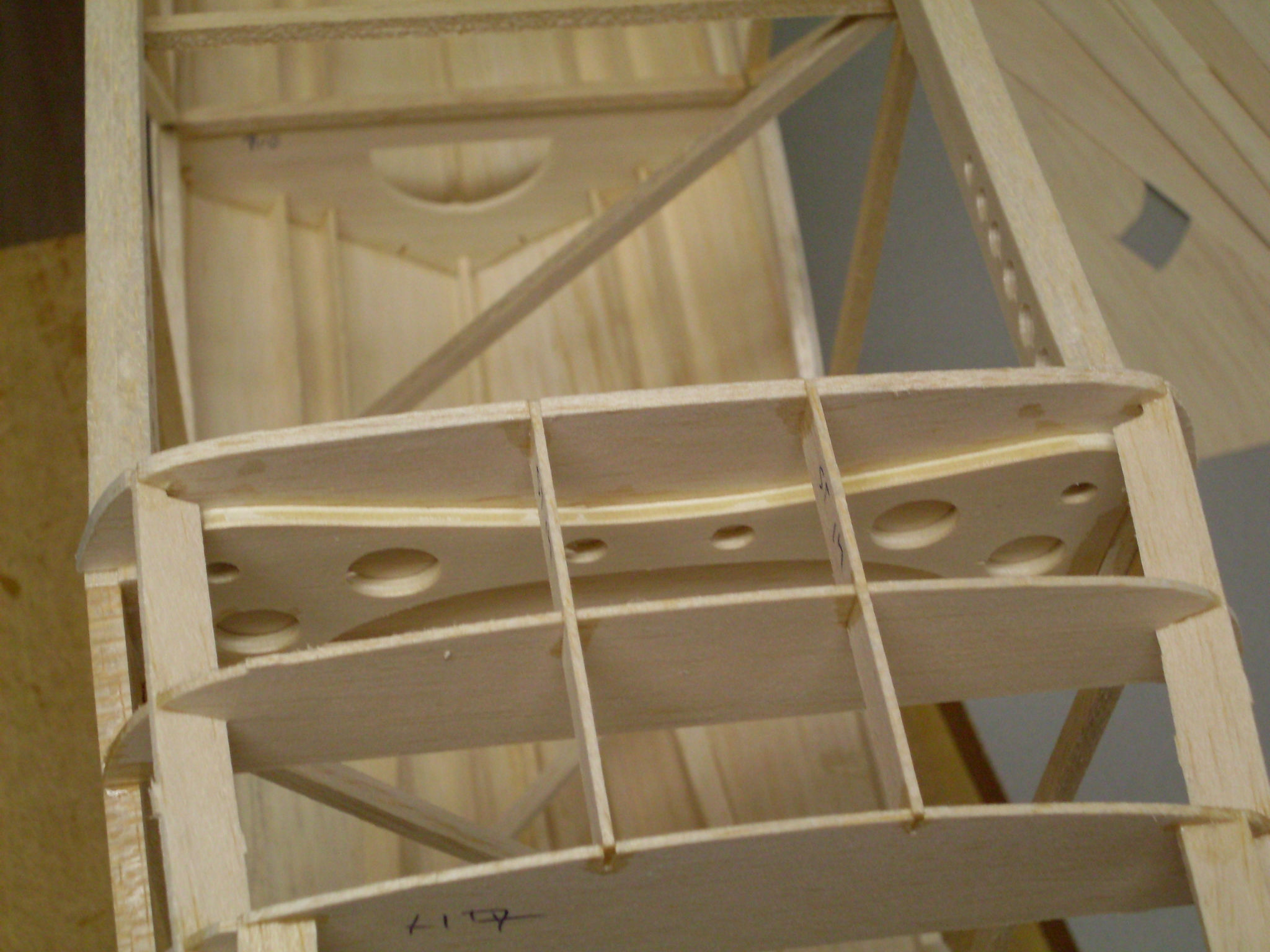

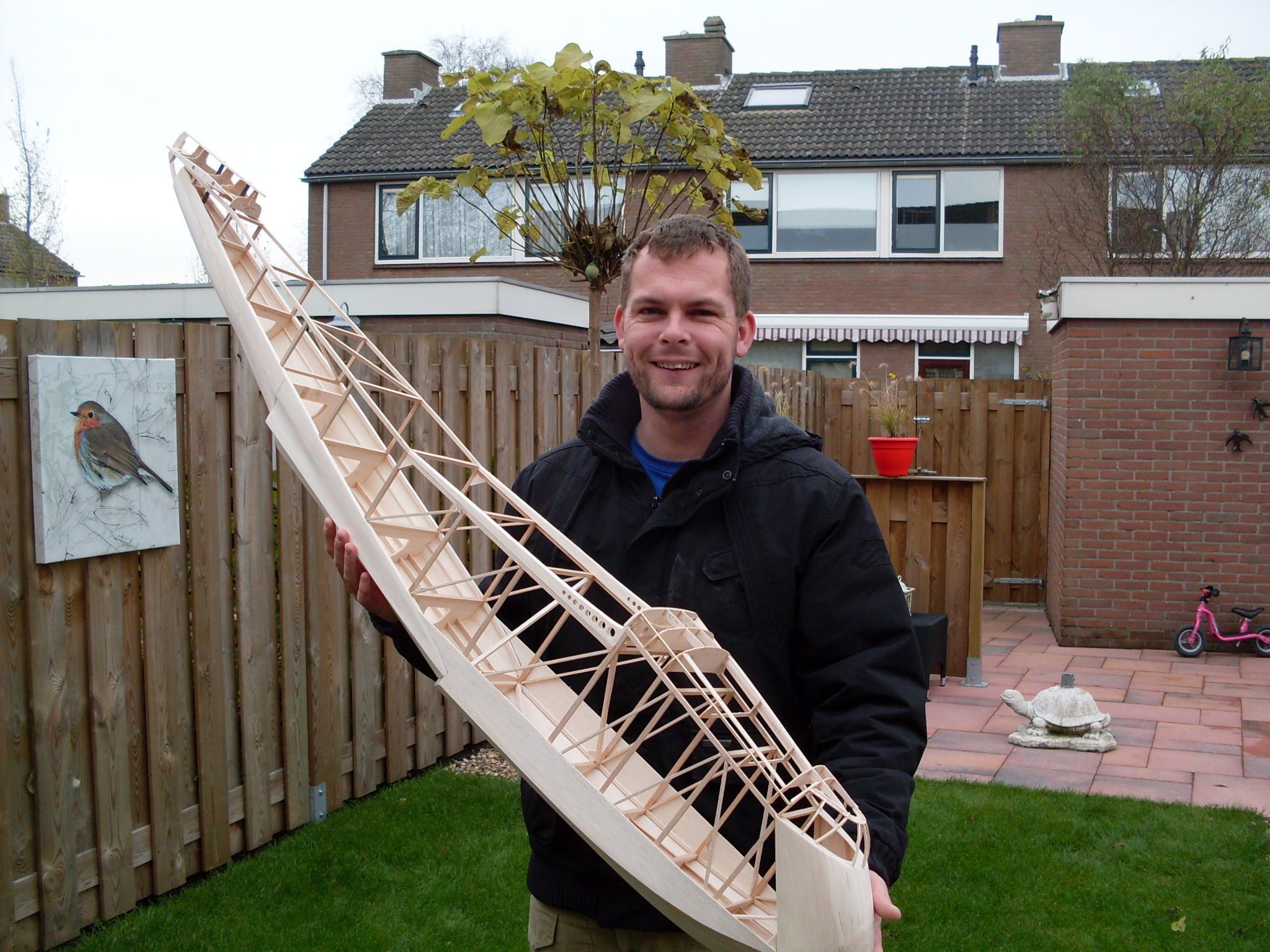

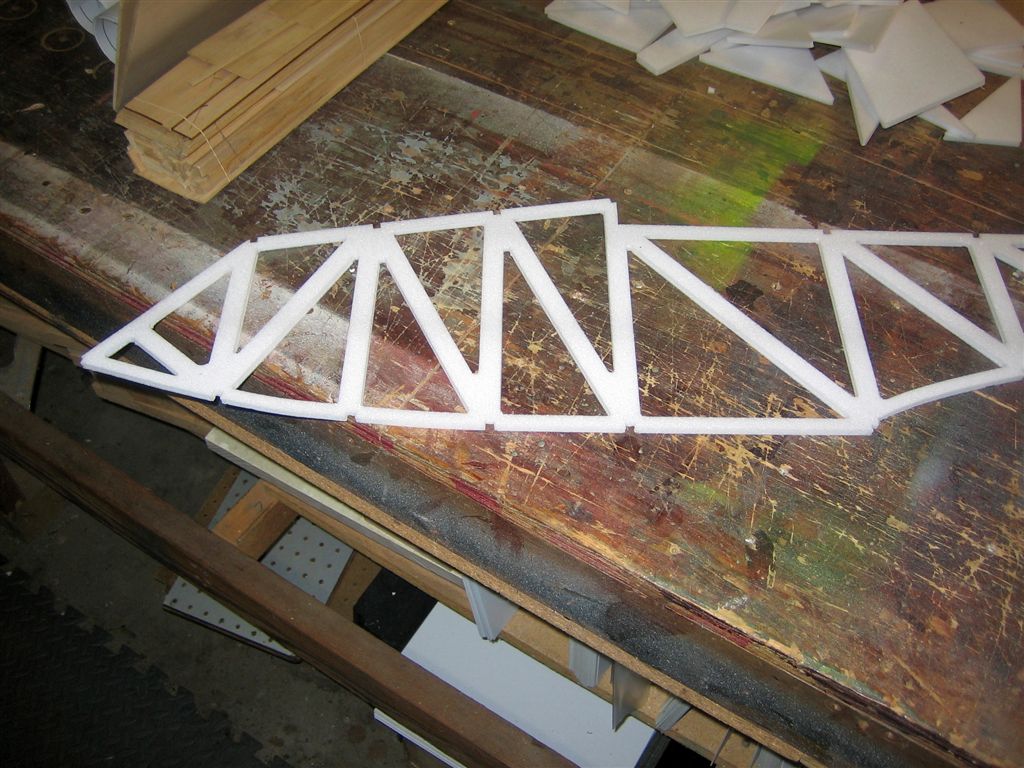

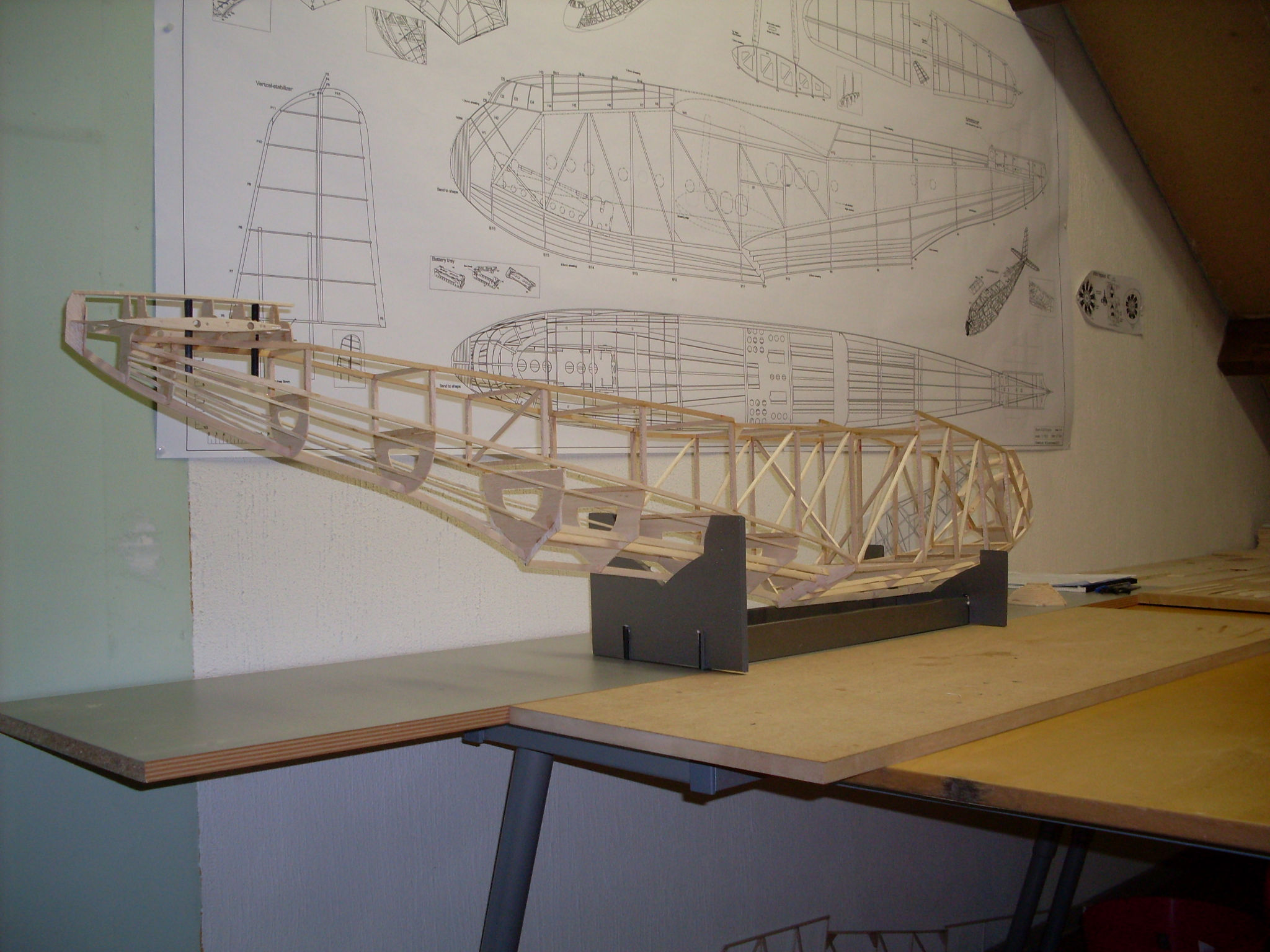

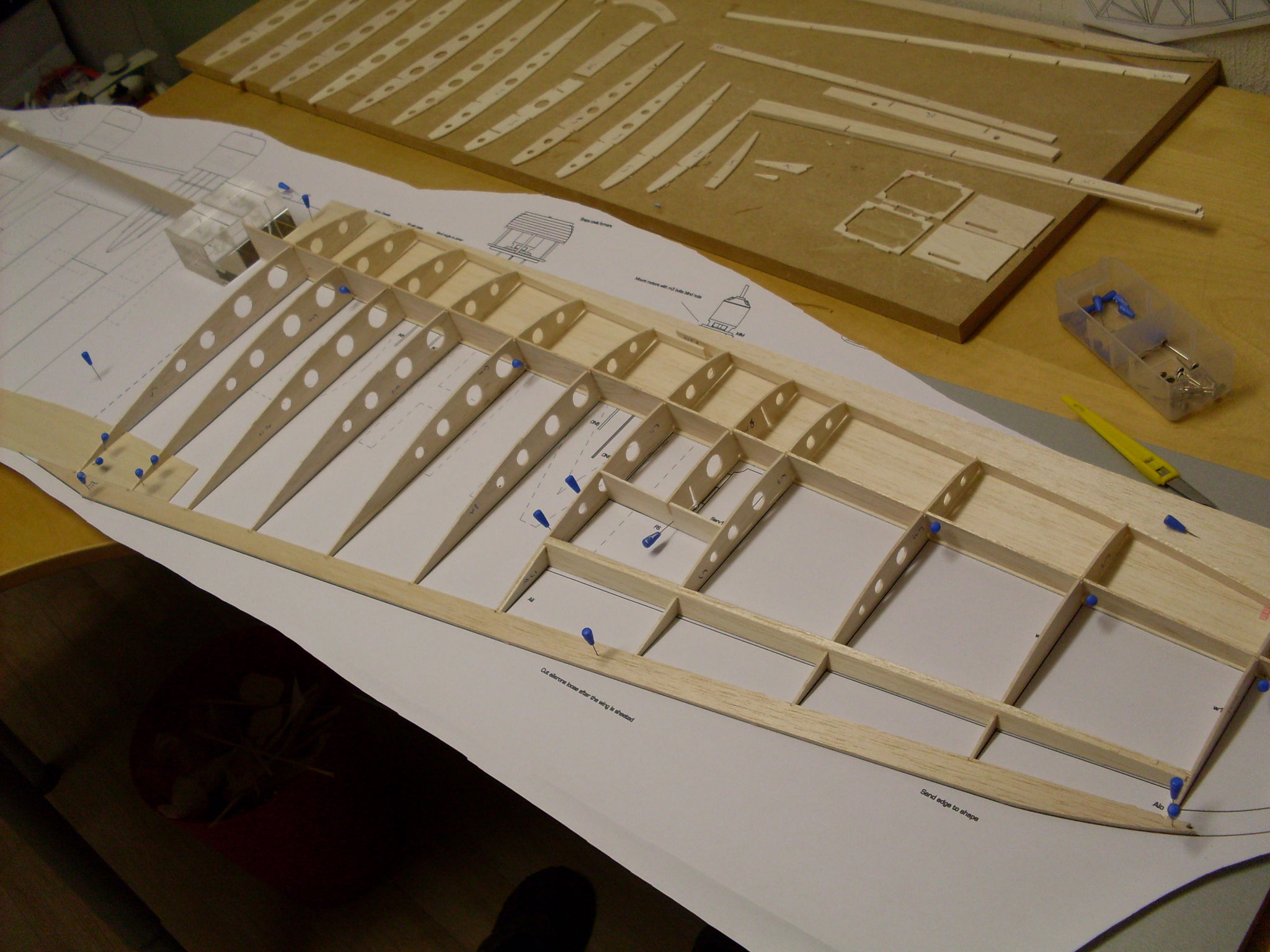

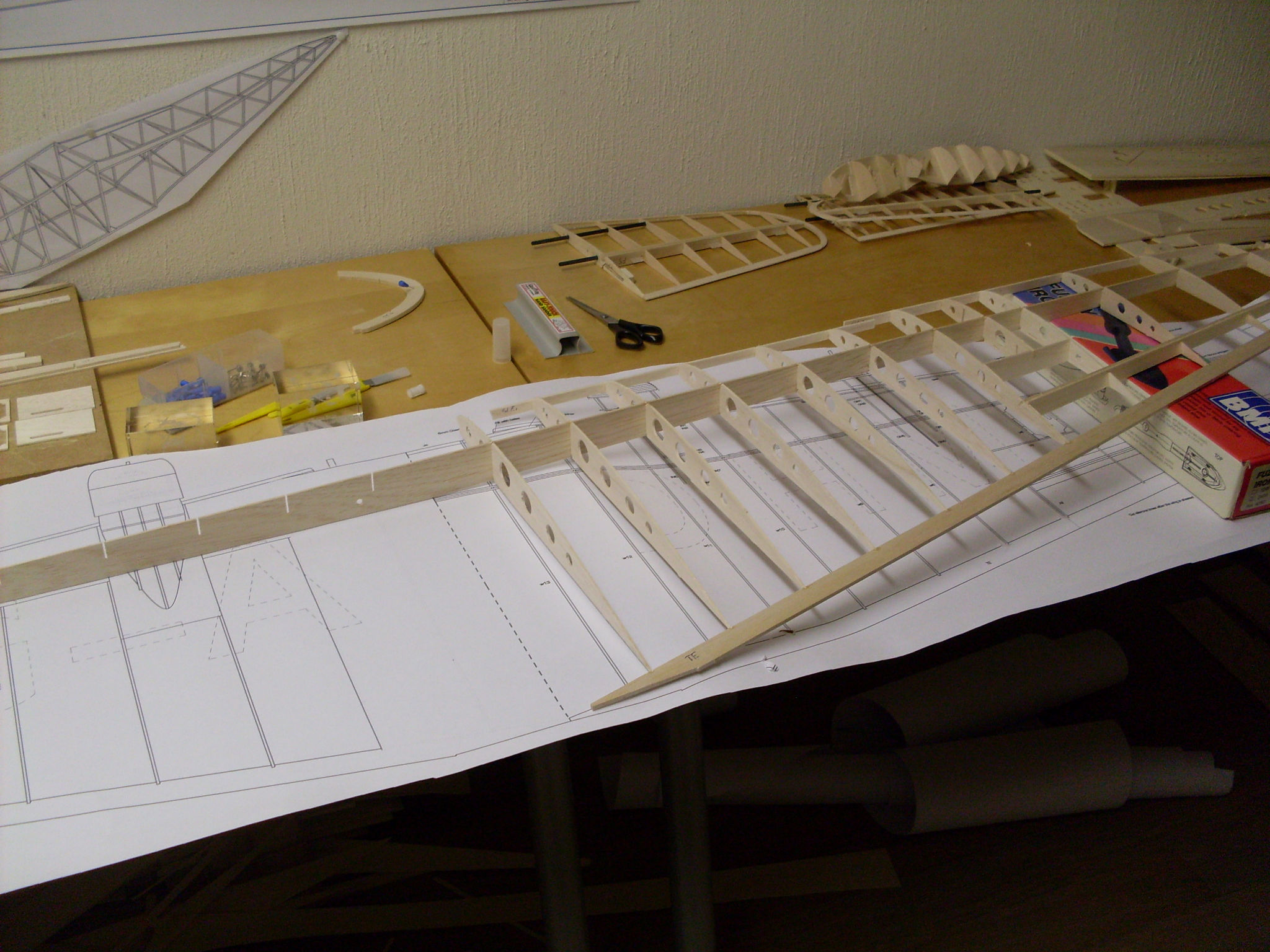

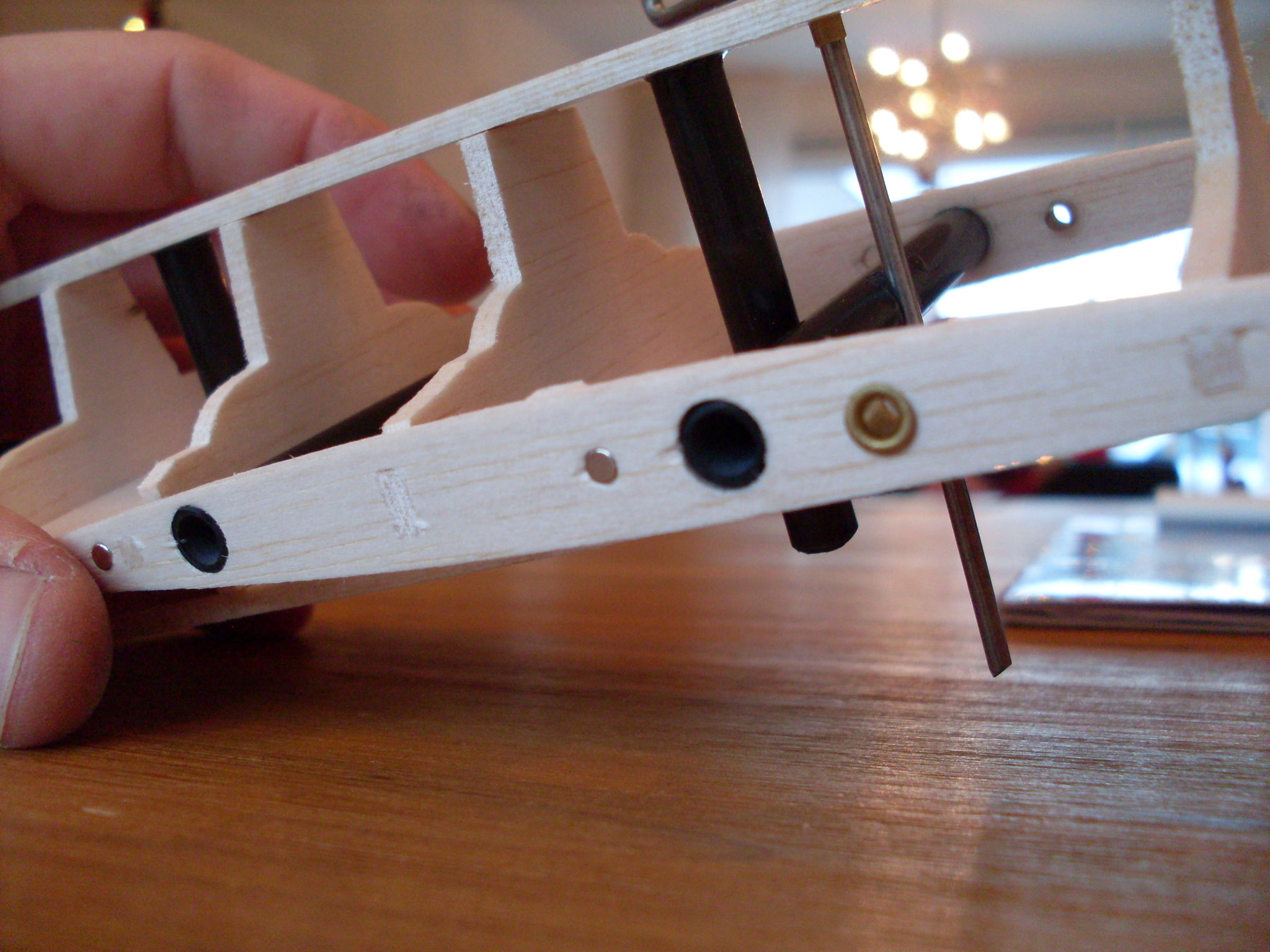

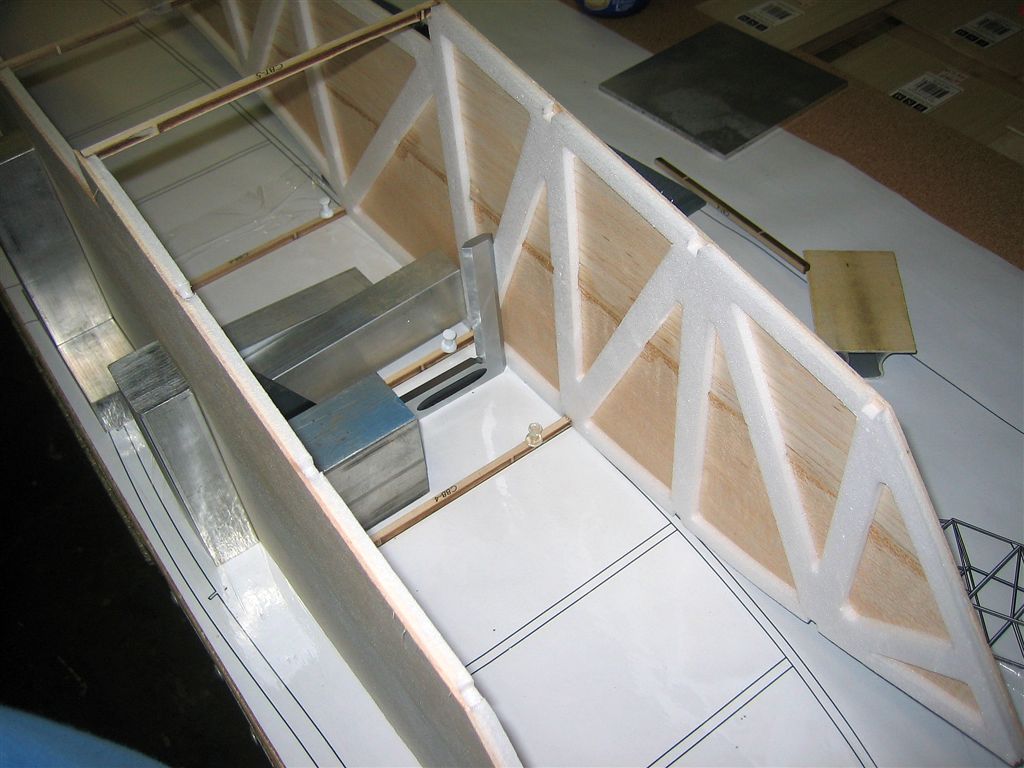

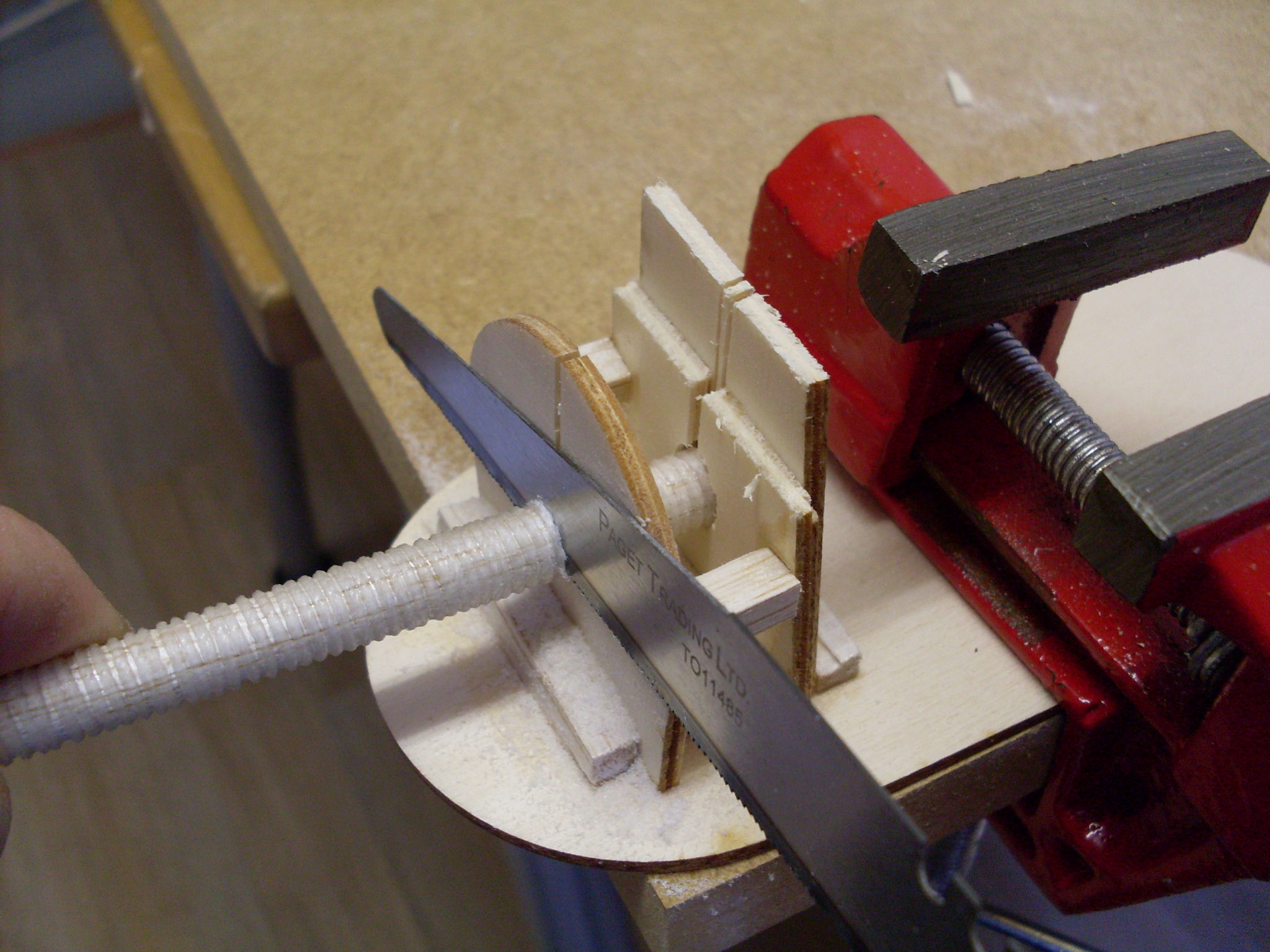

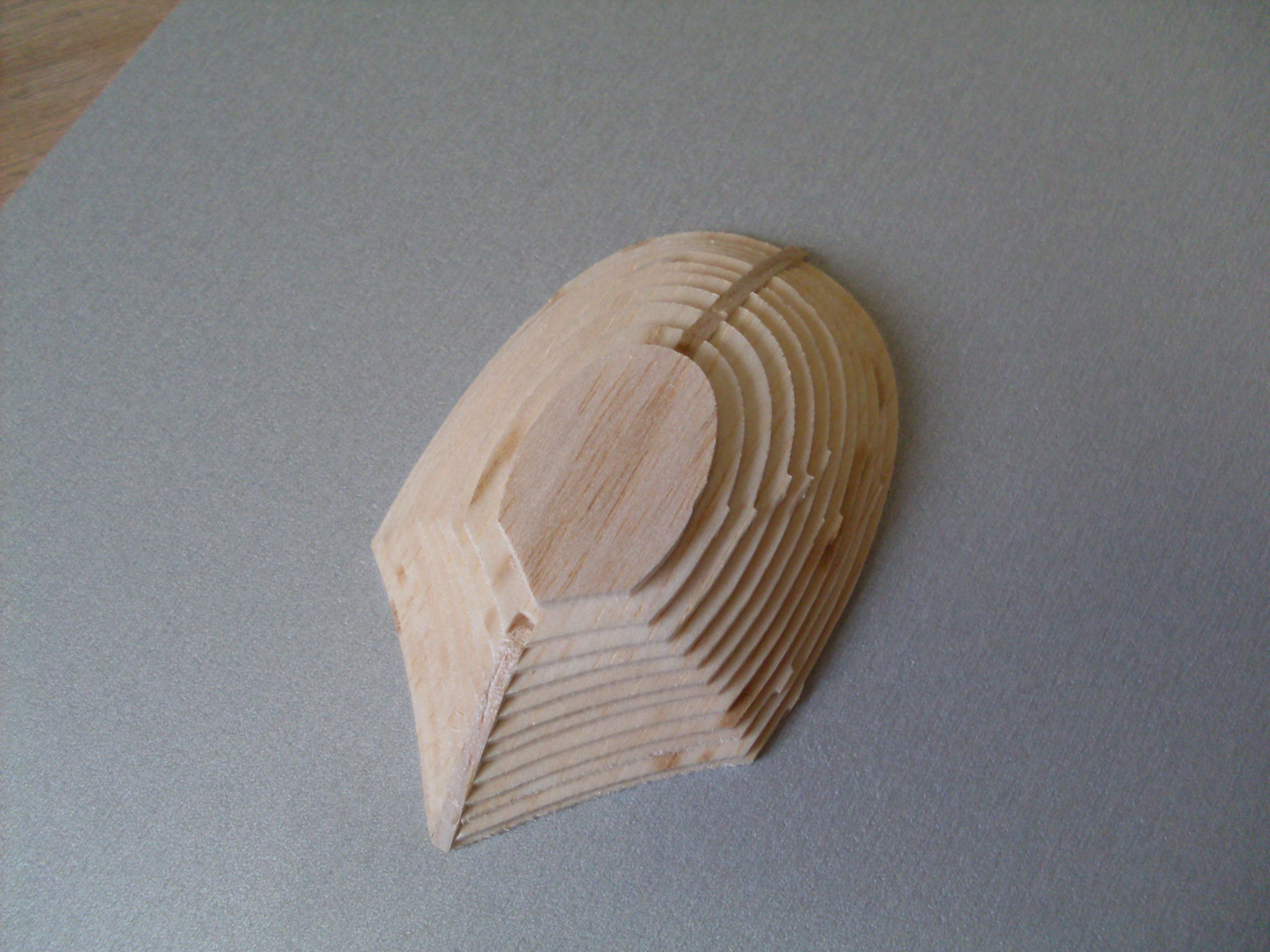

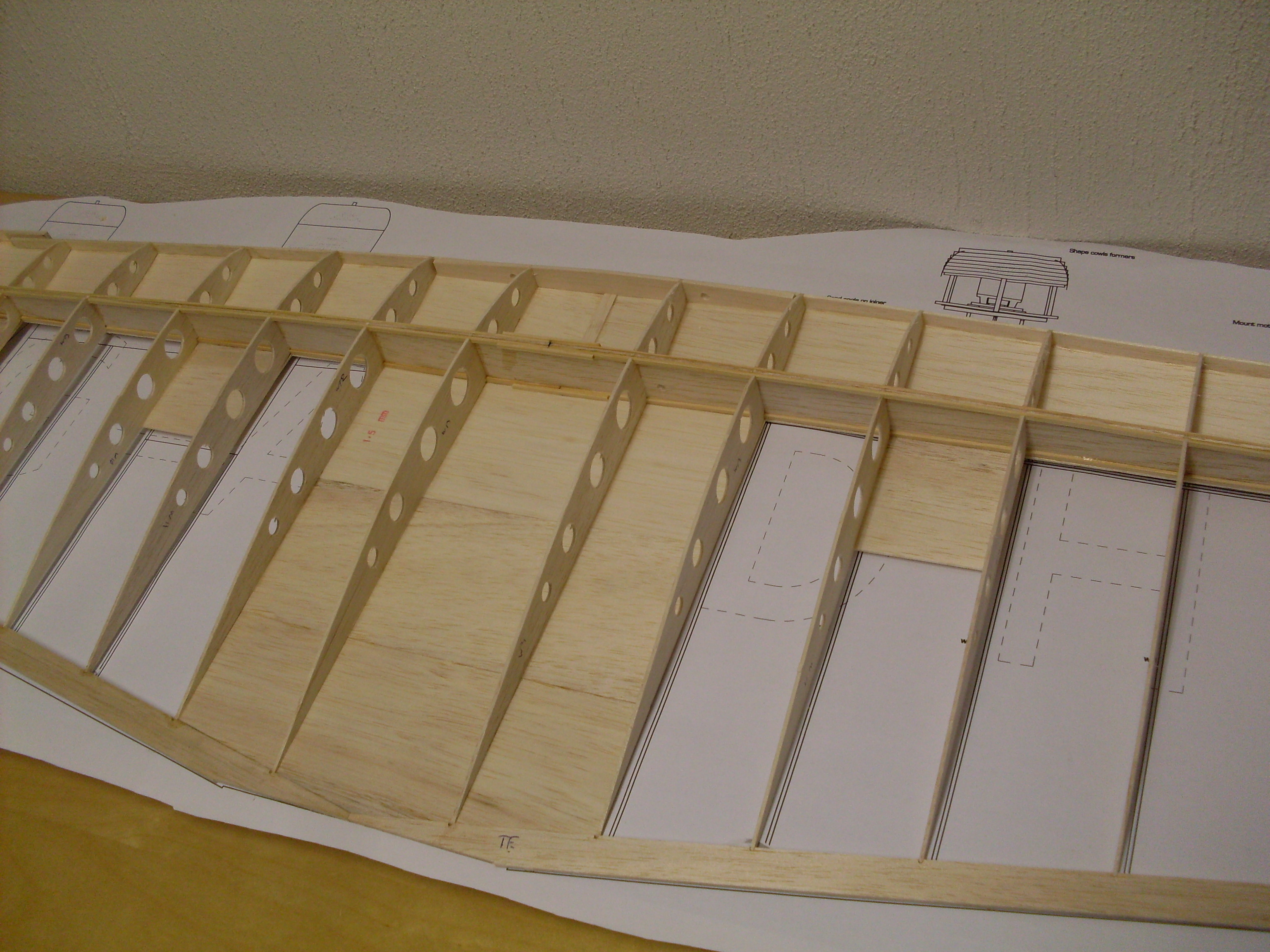

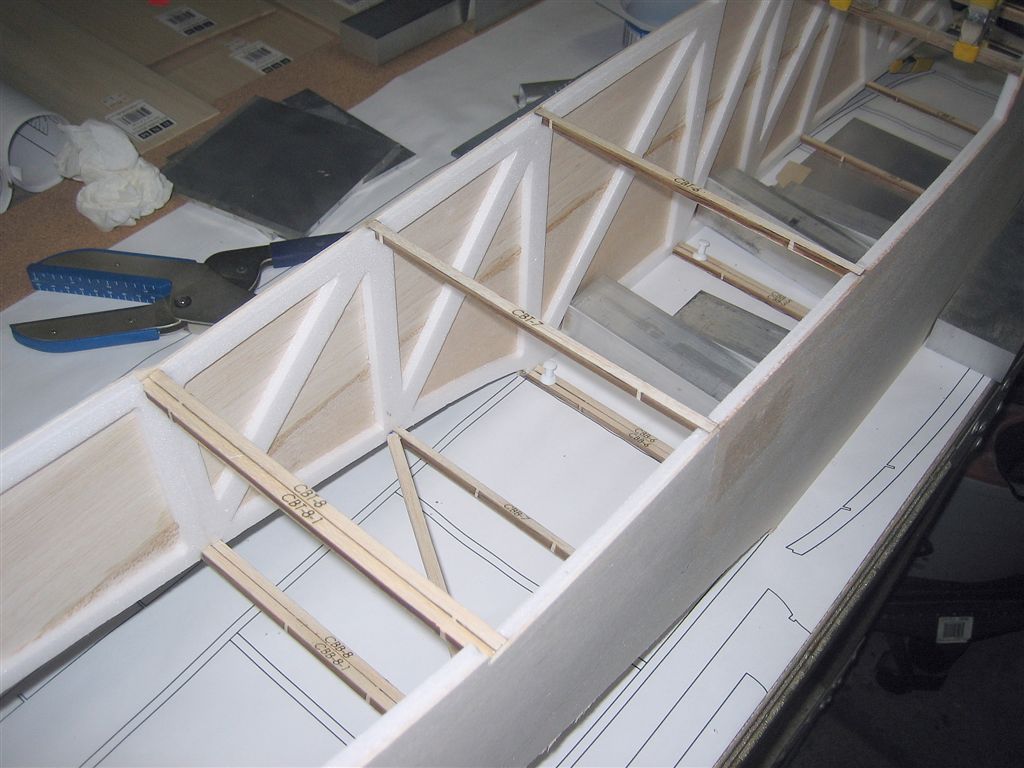

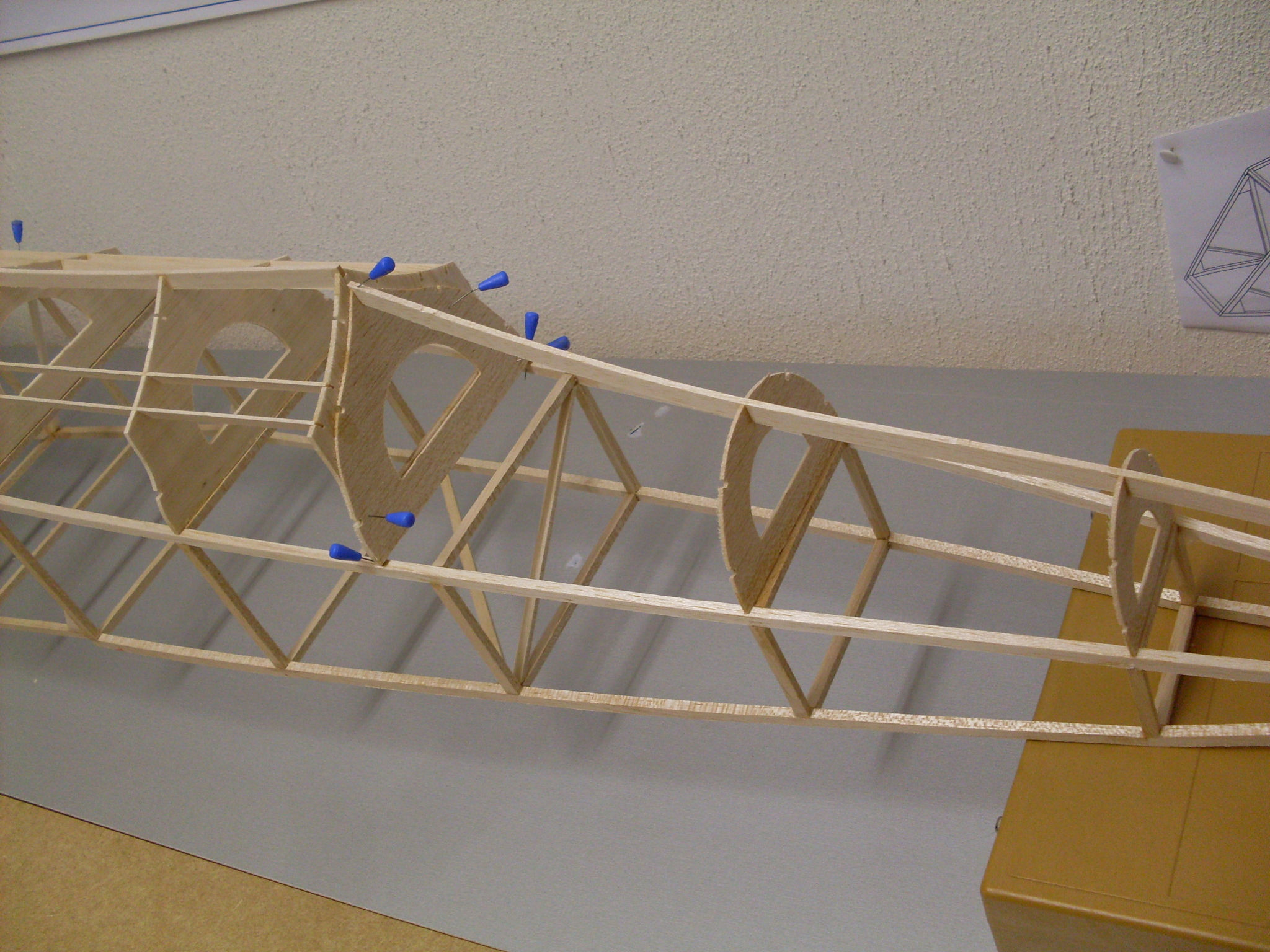

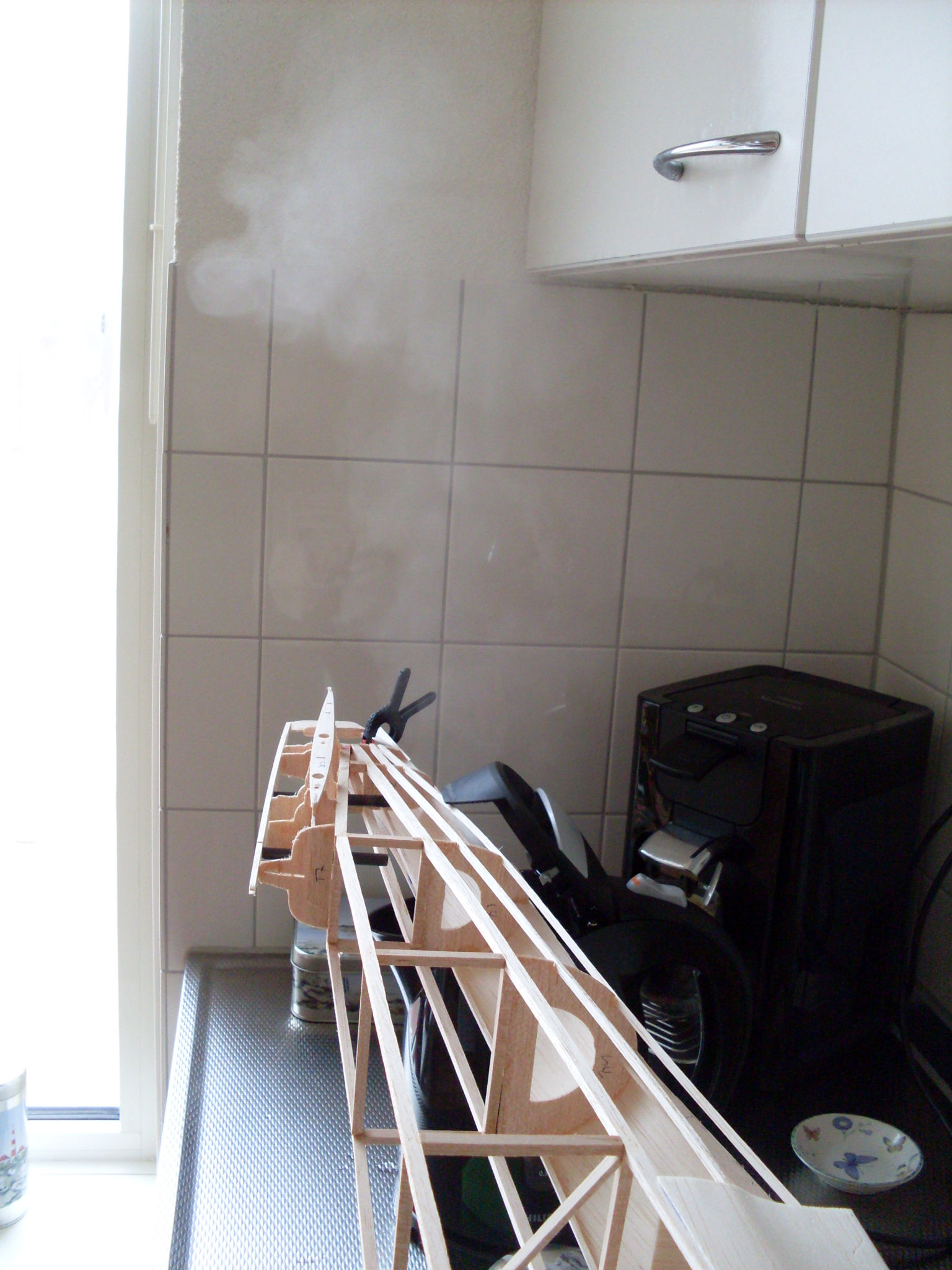

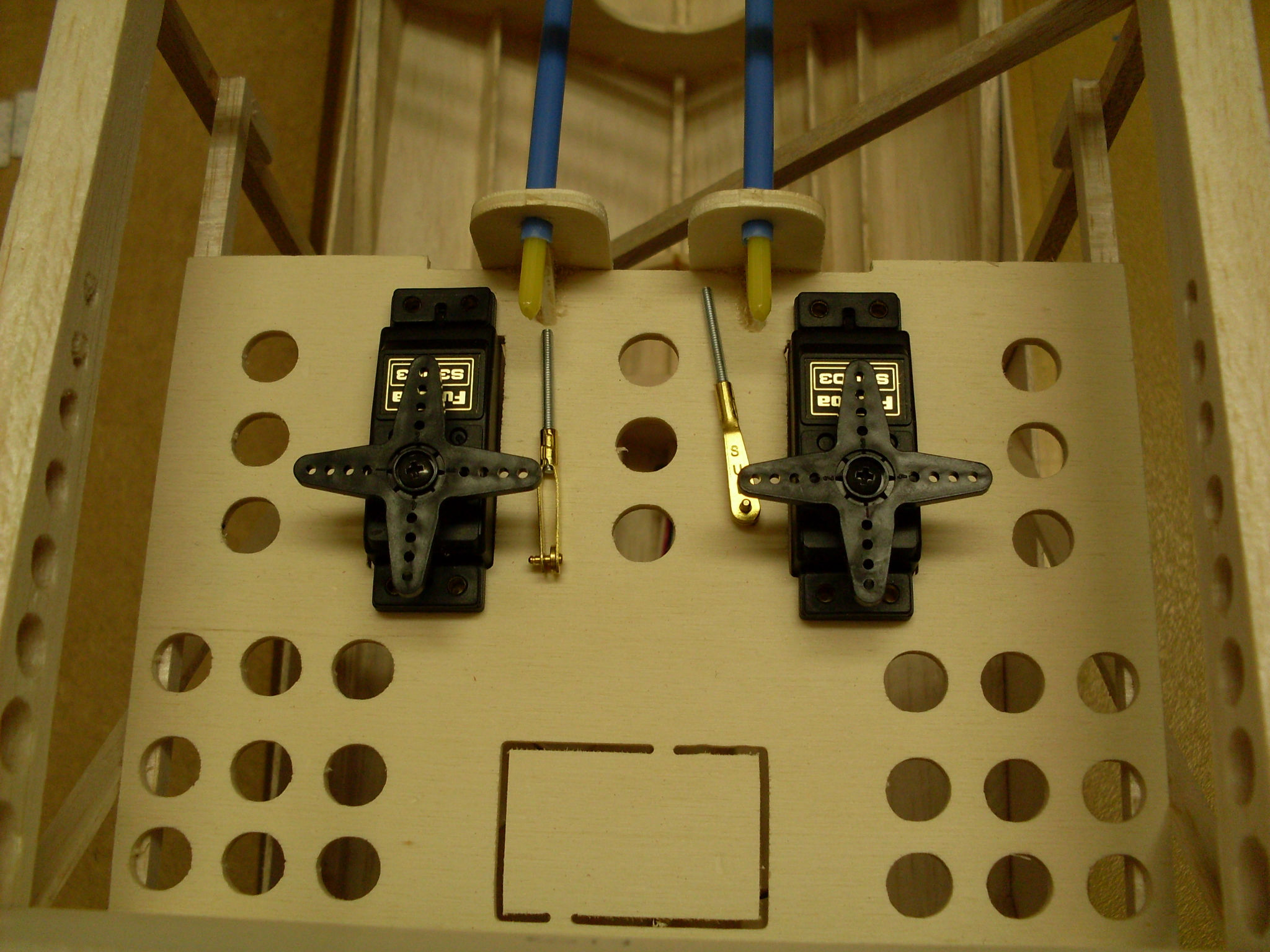

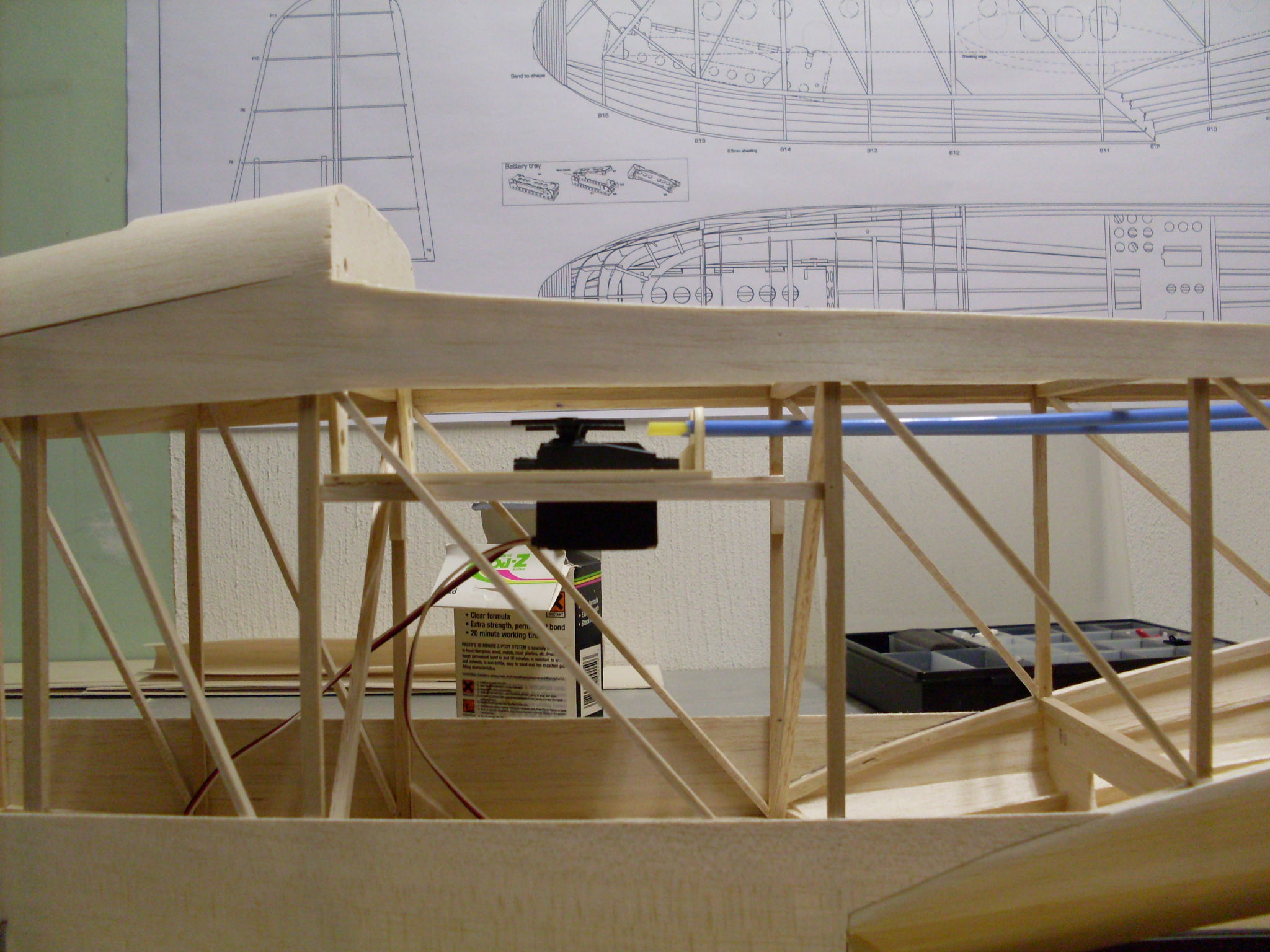

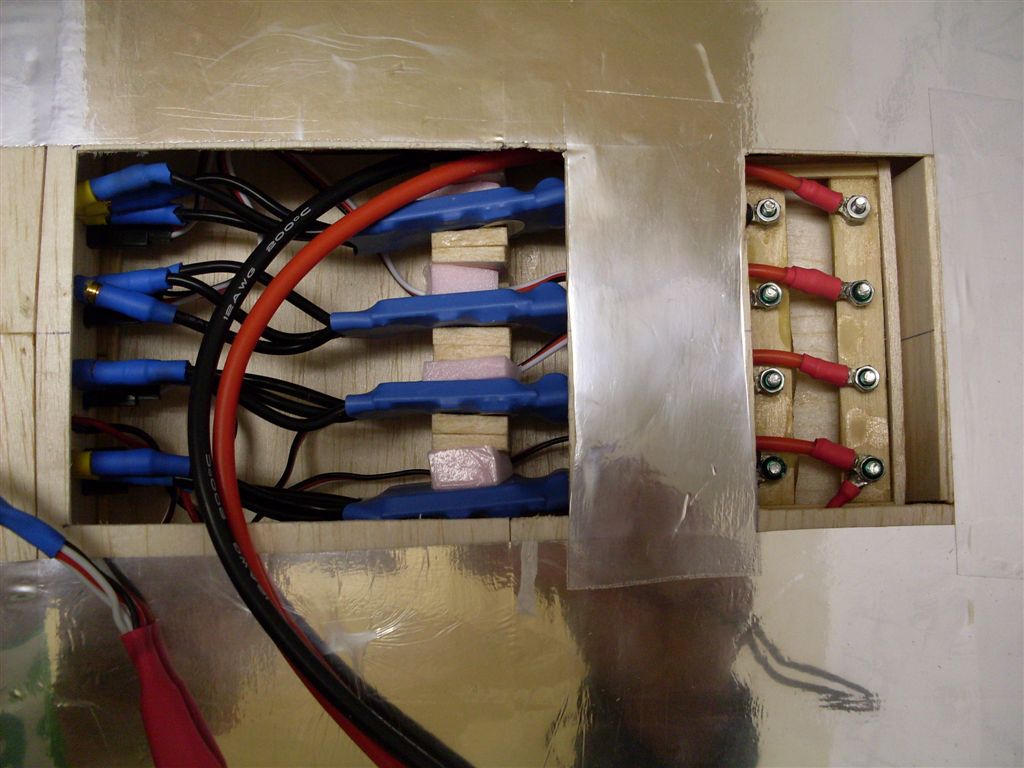

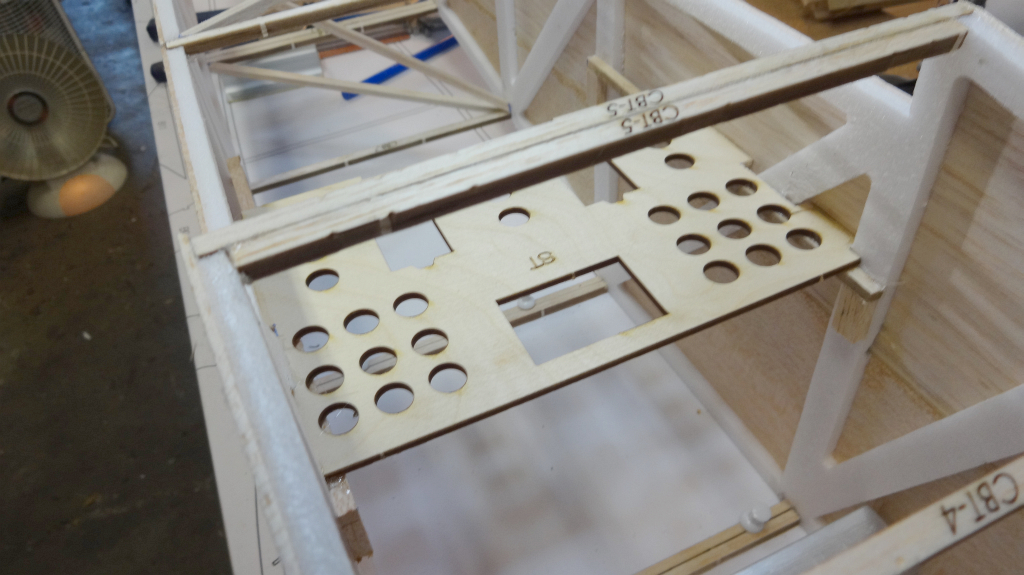

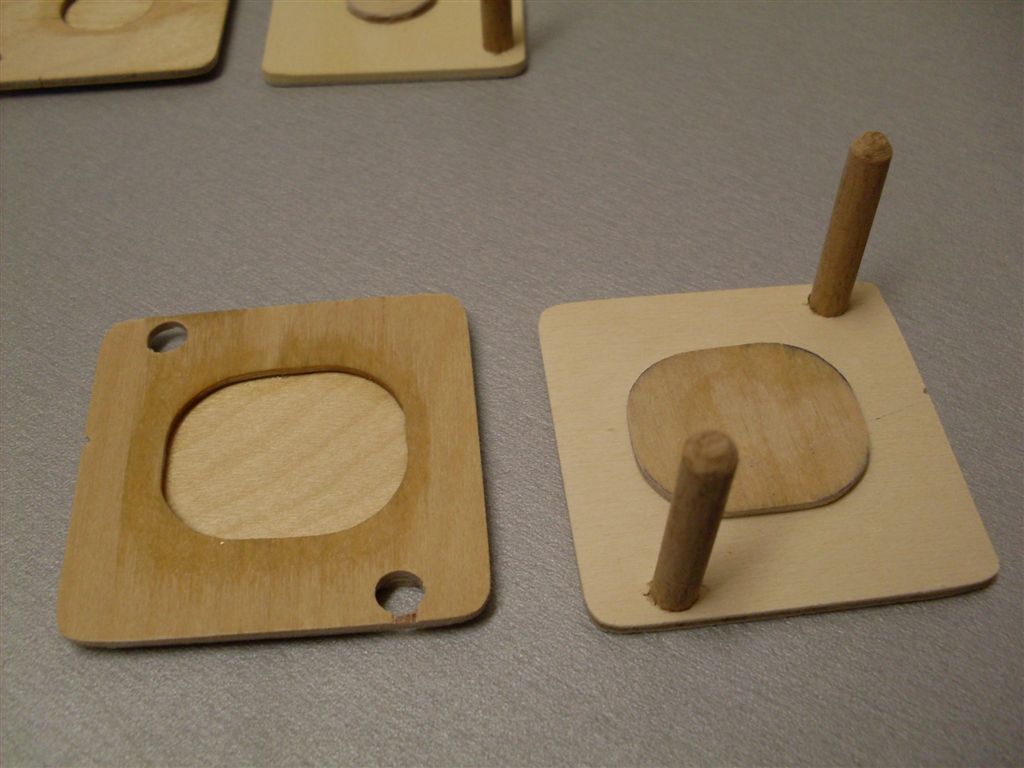

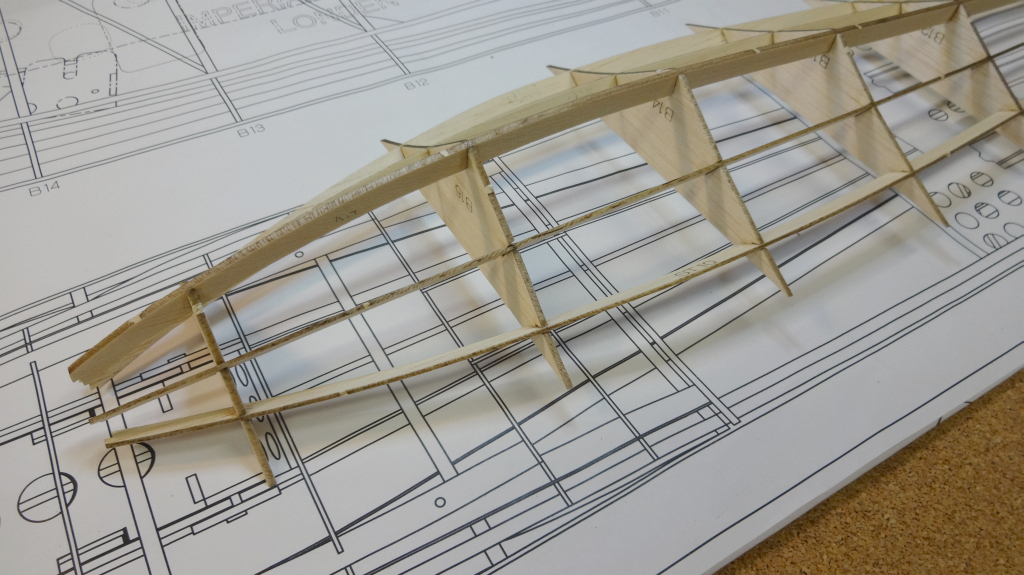

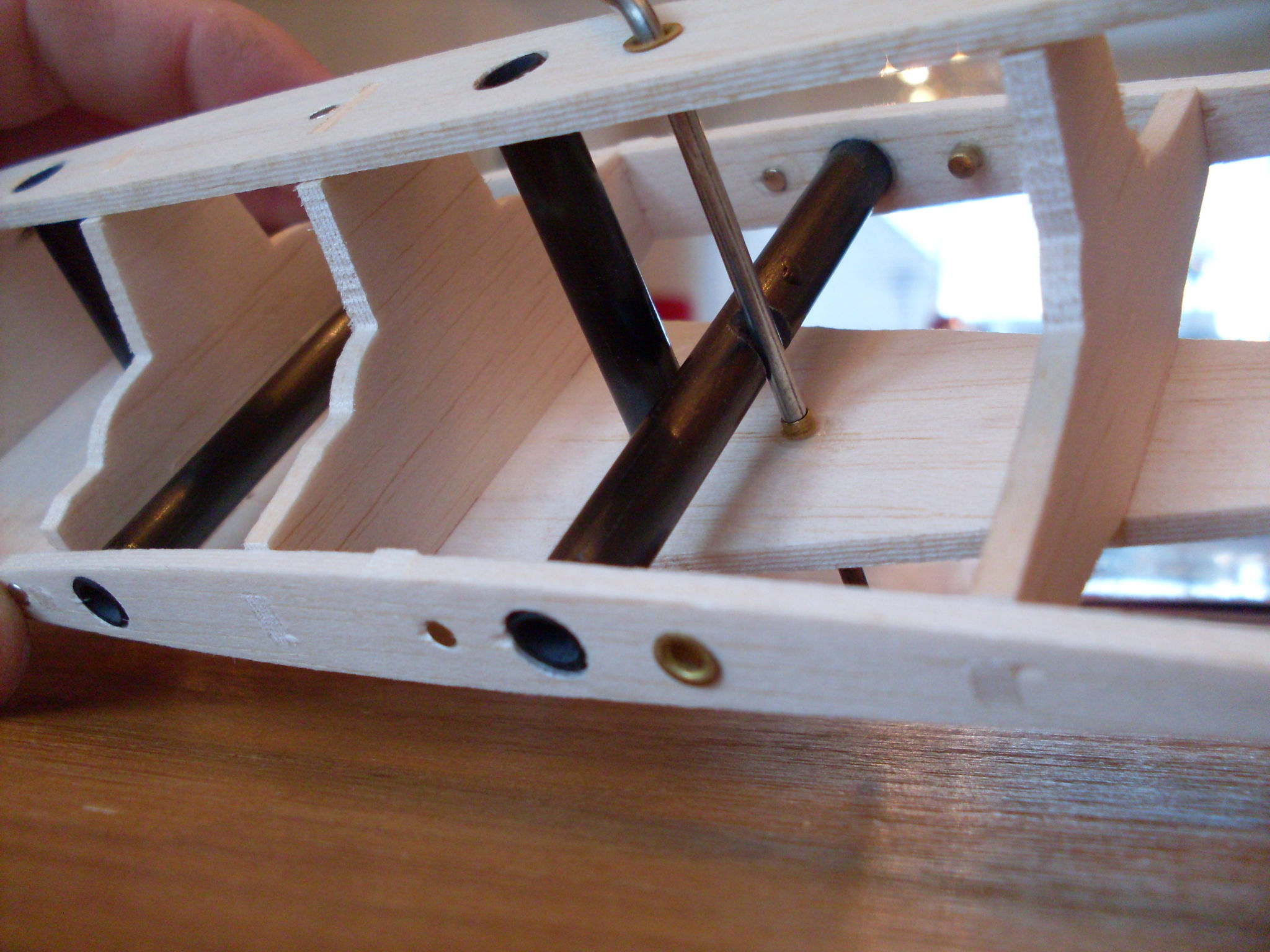

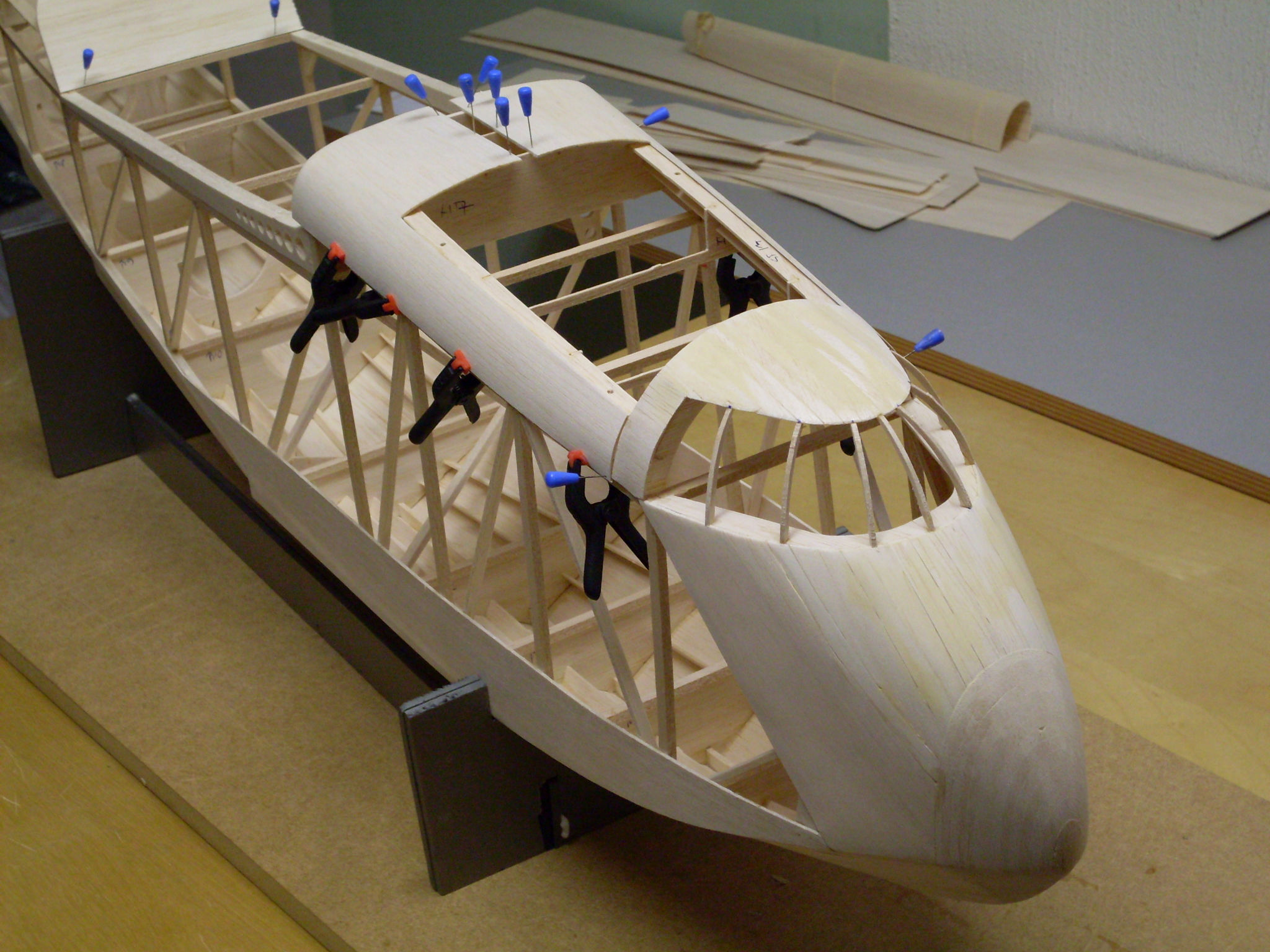

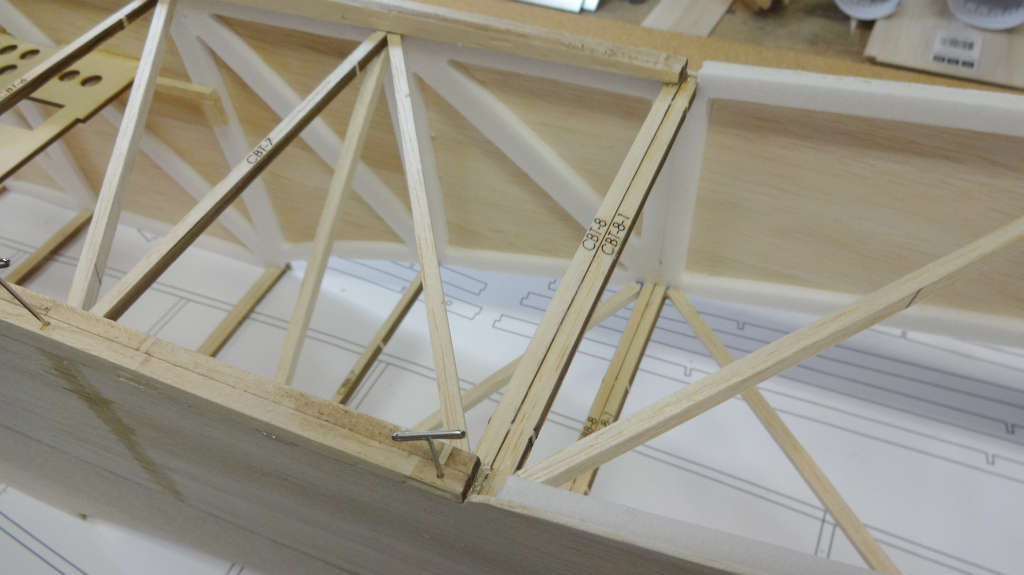

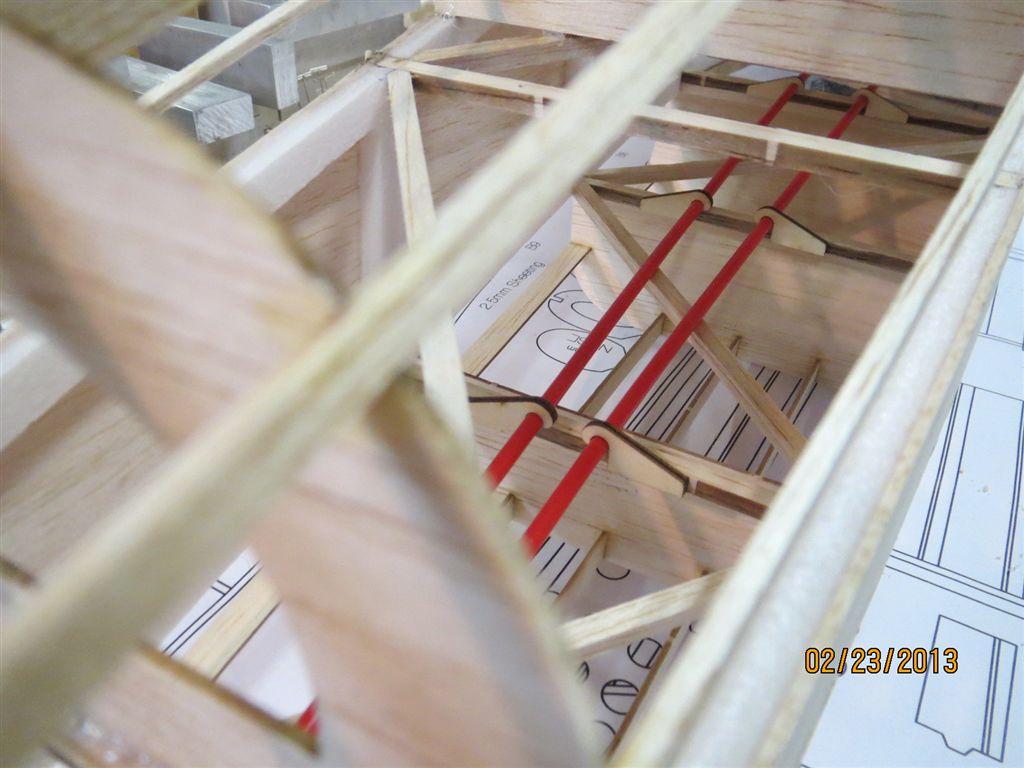

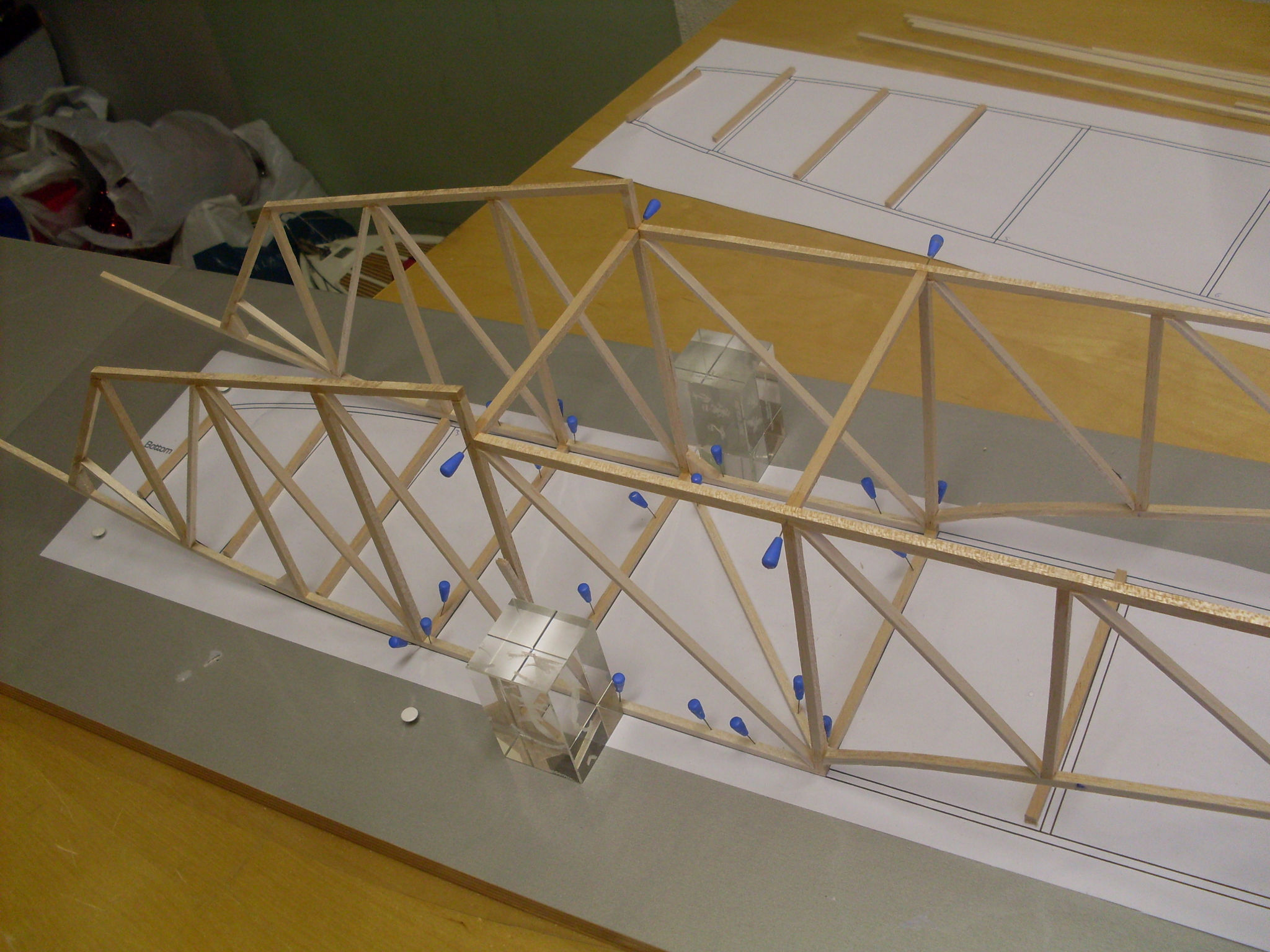

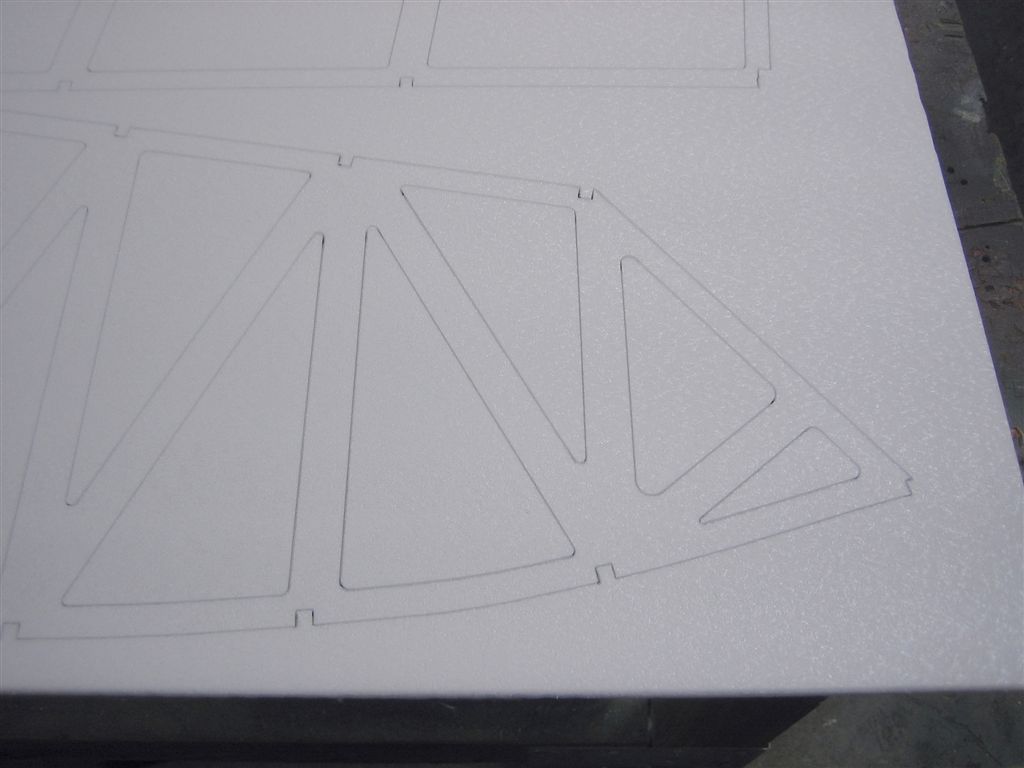

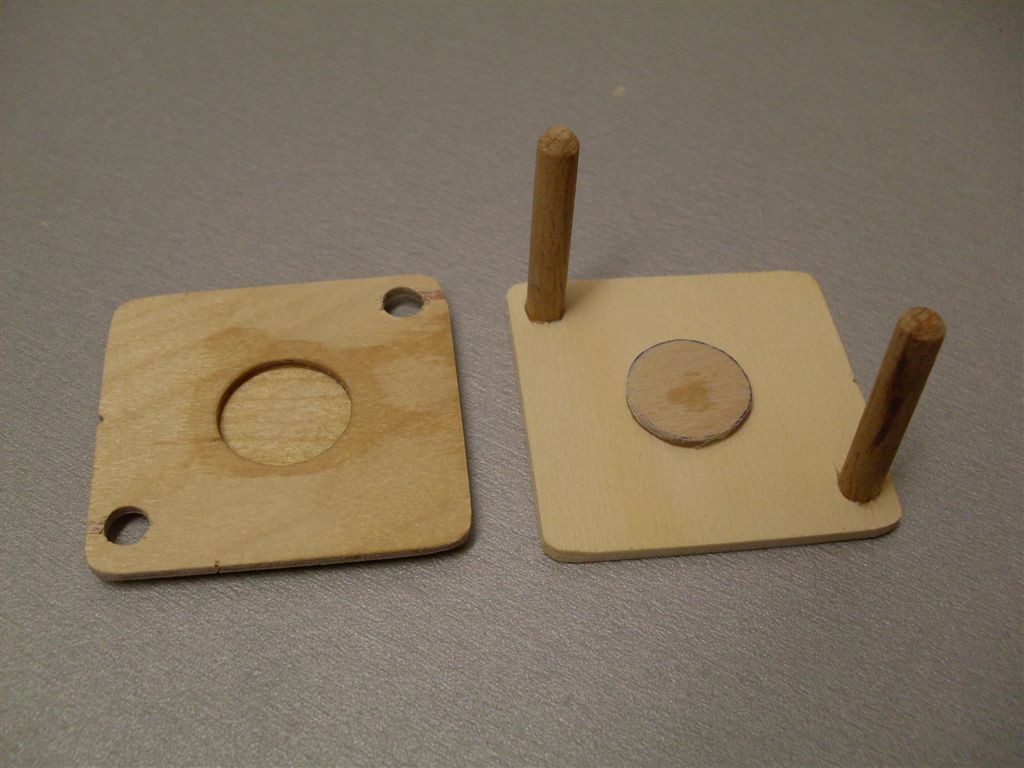

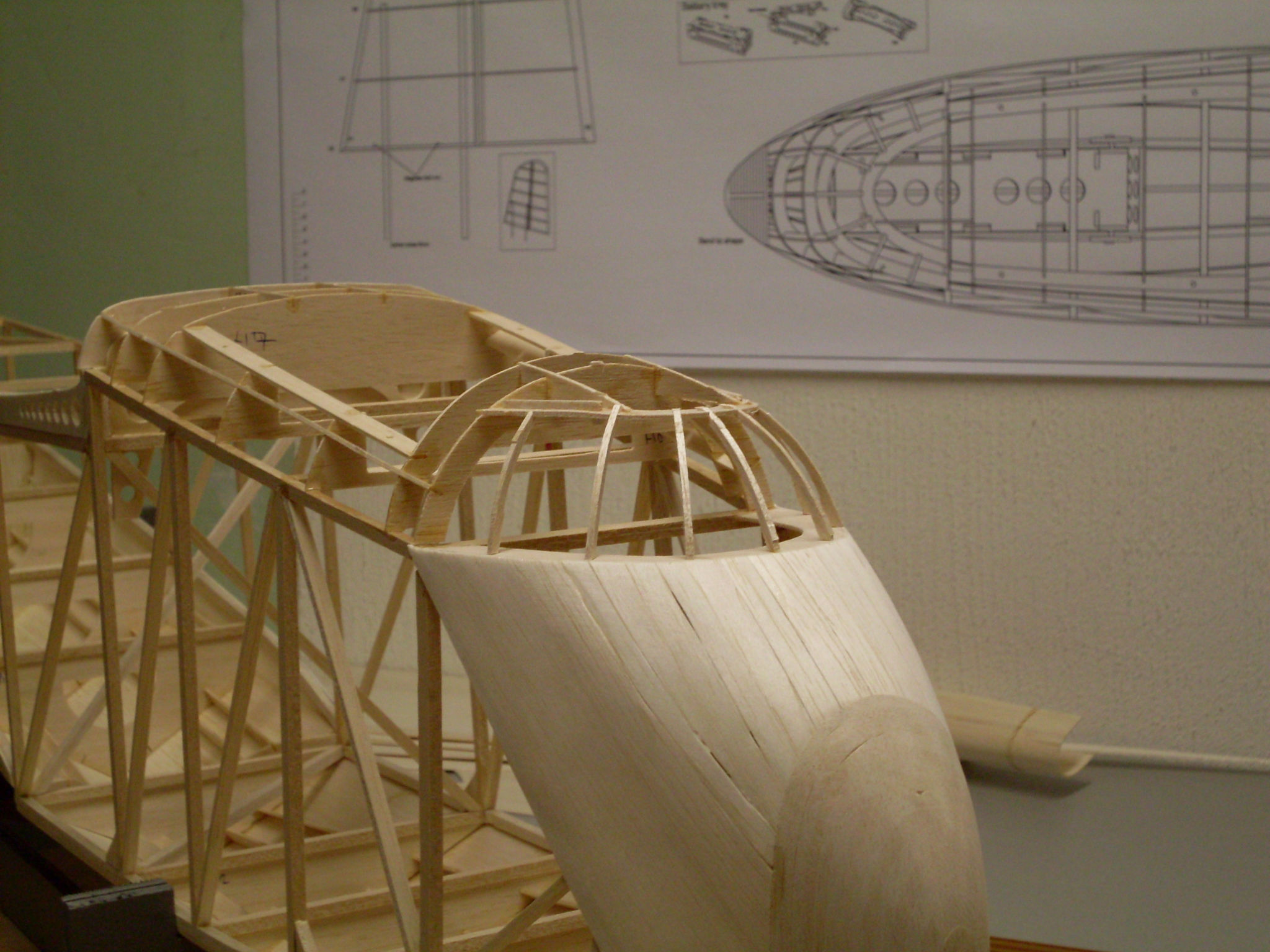

Bart's Build Photos
Click on image
Click on image

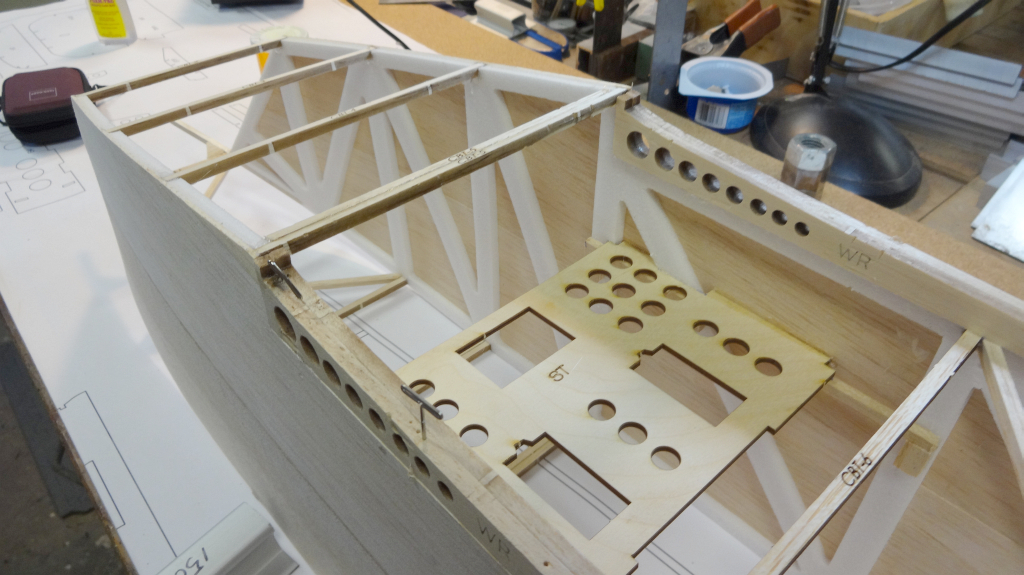

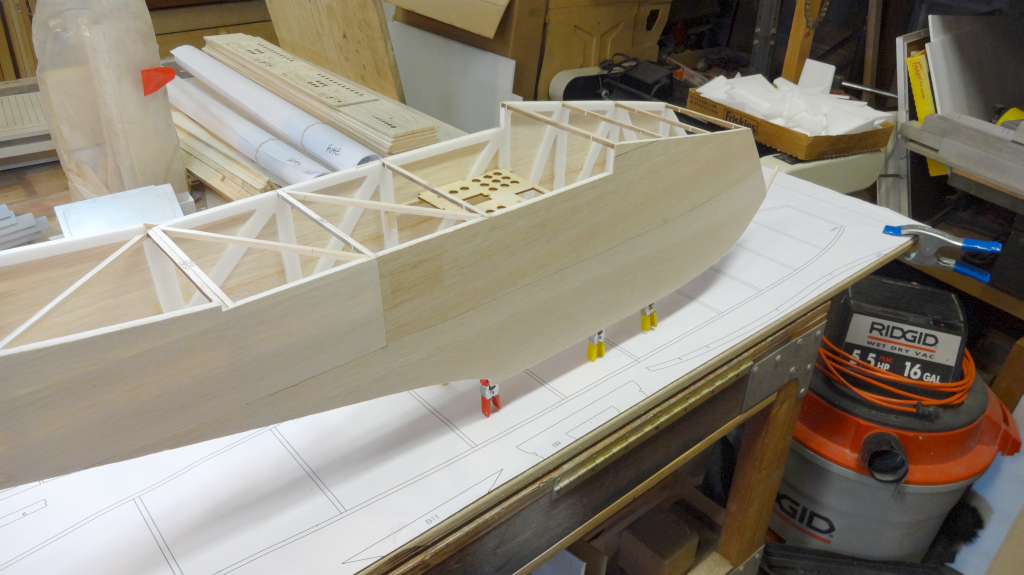

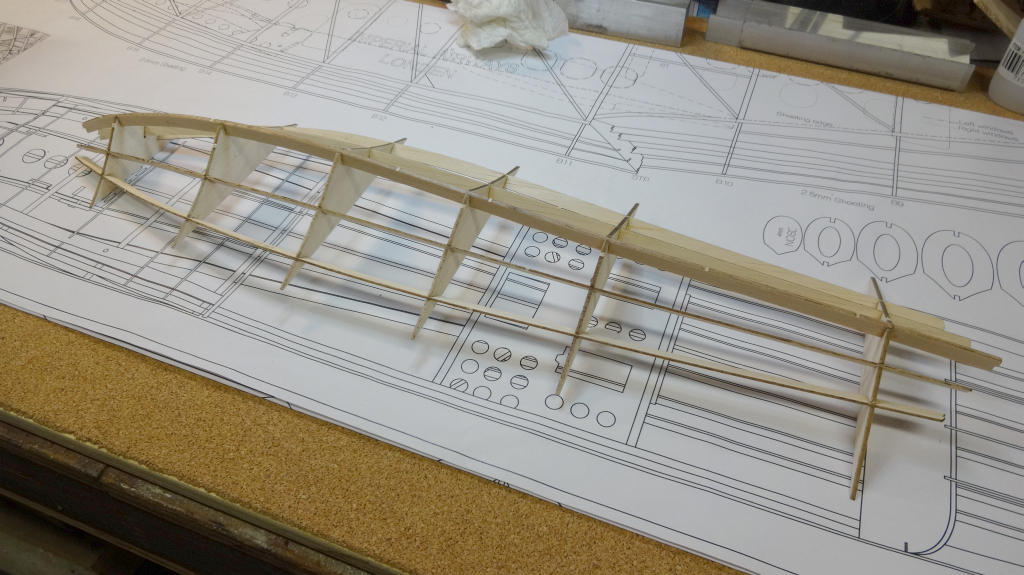

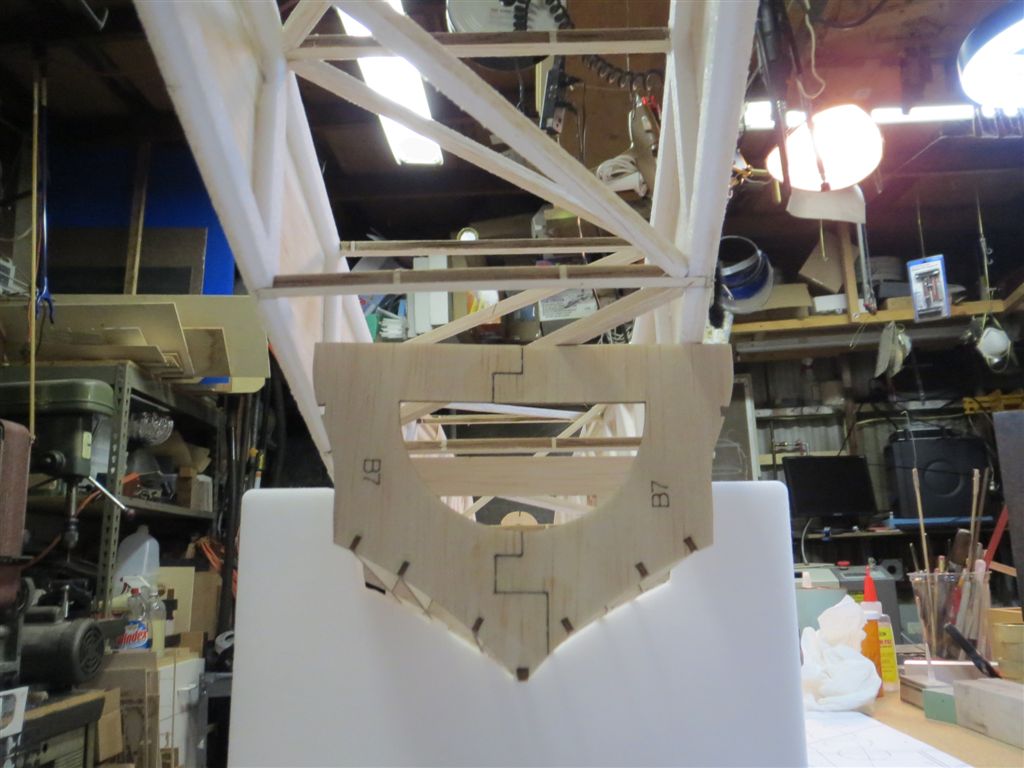

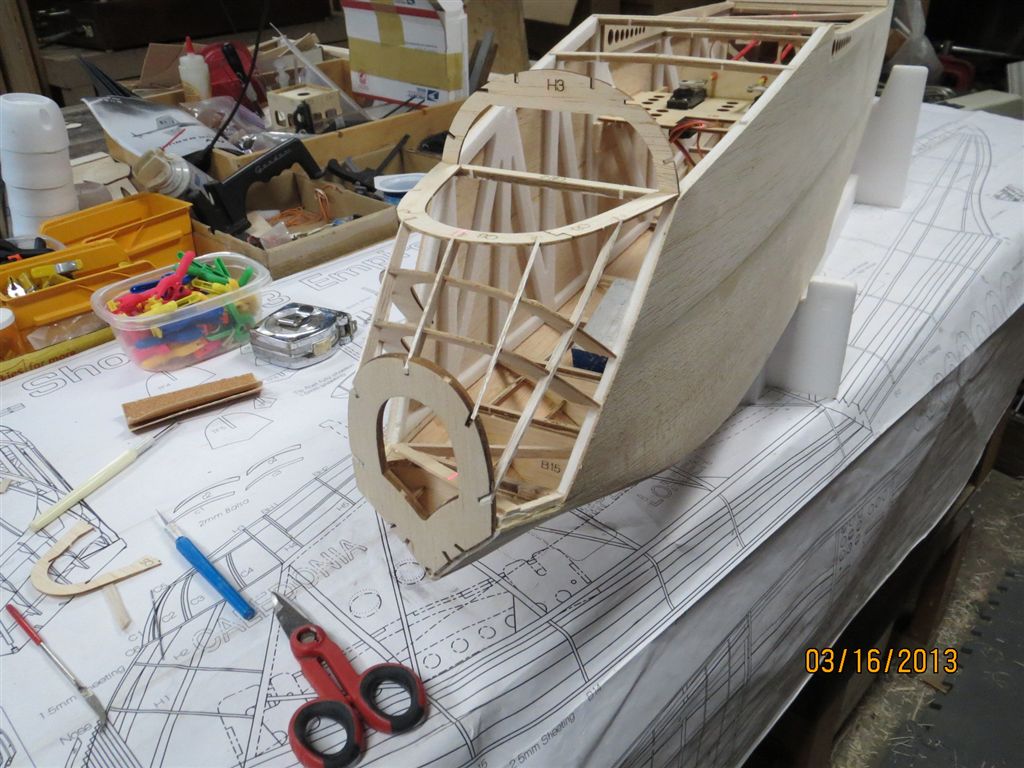

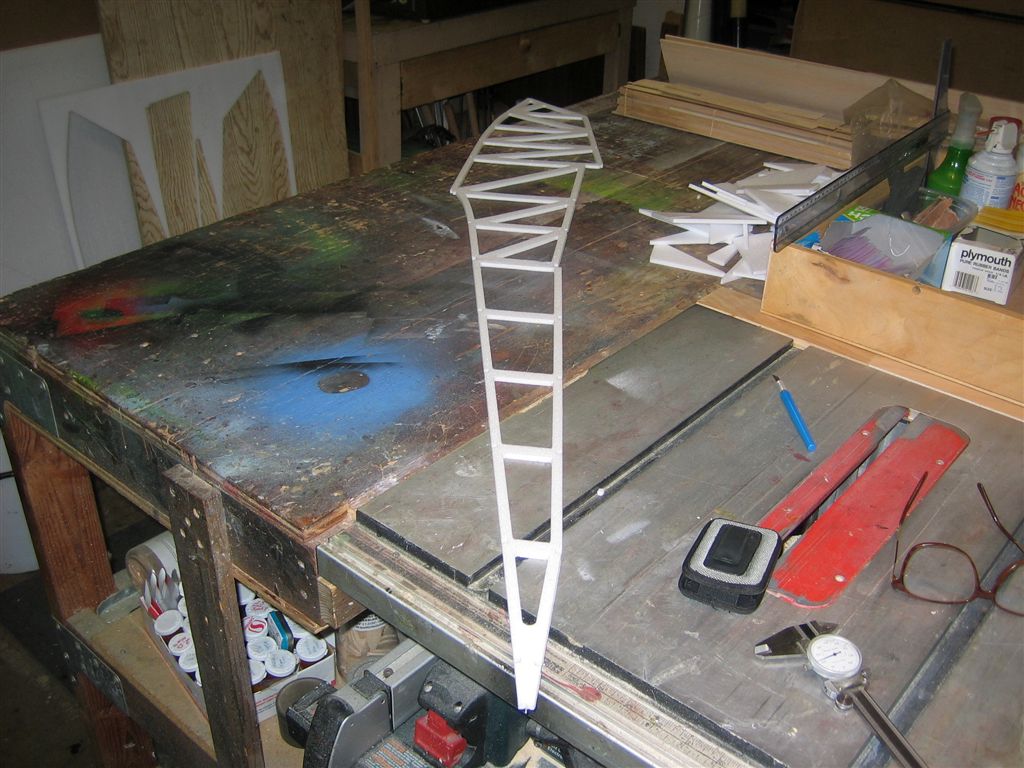

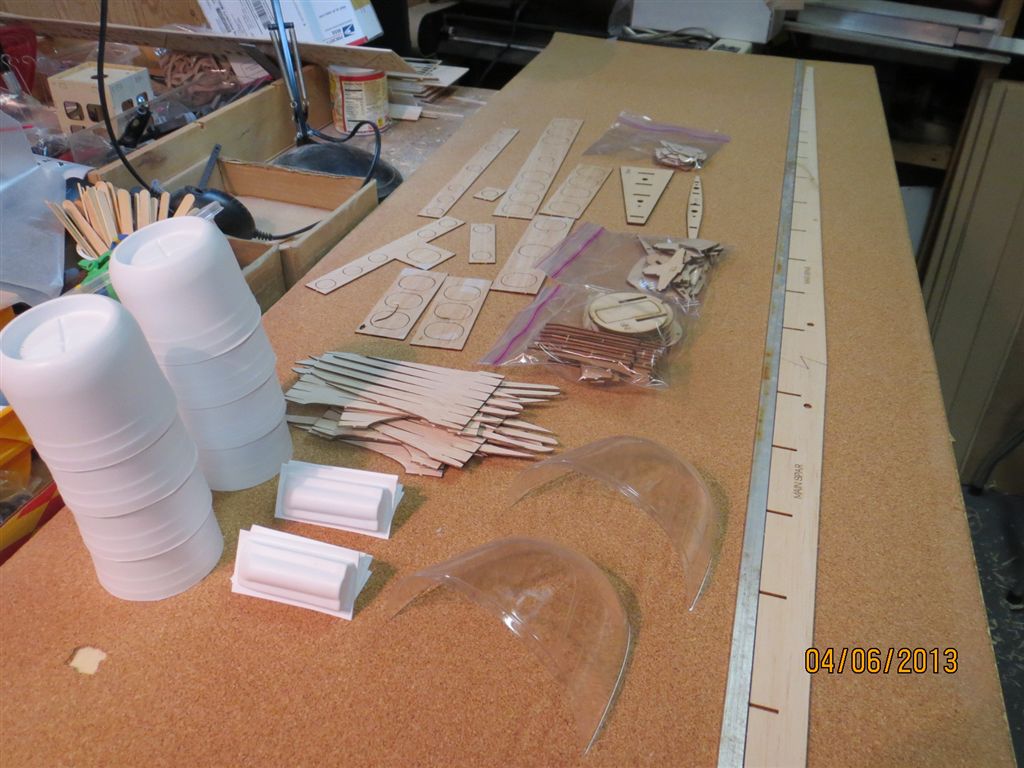

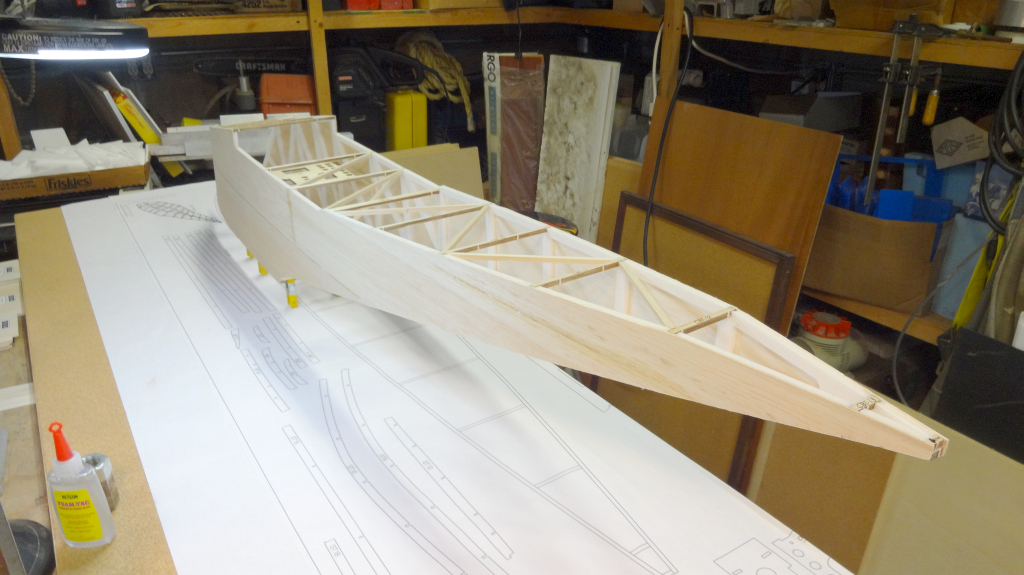

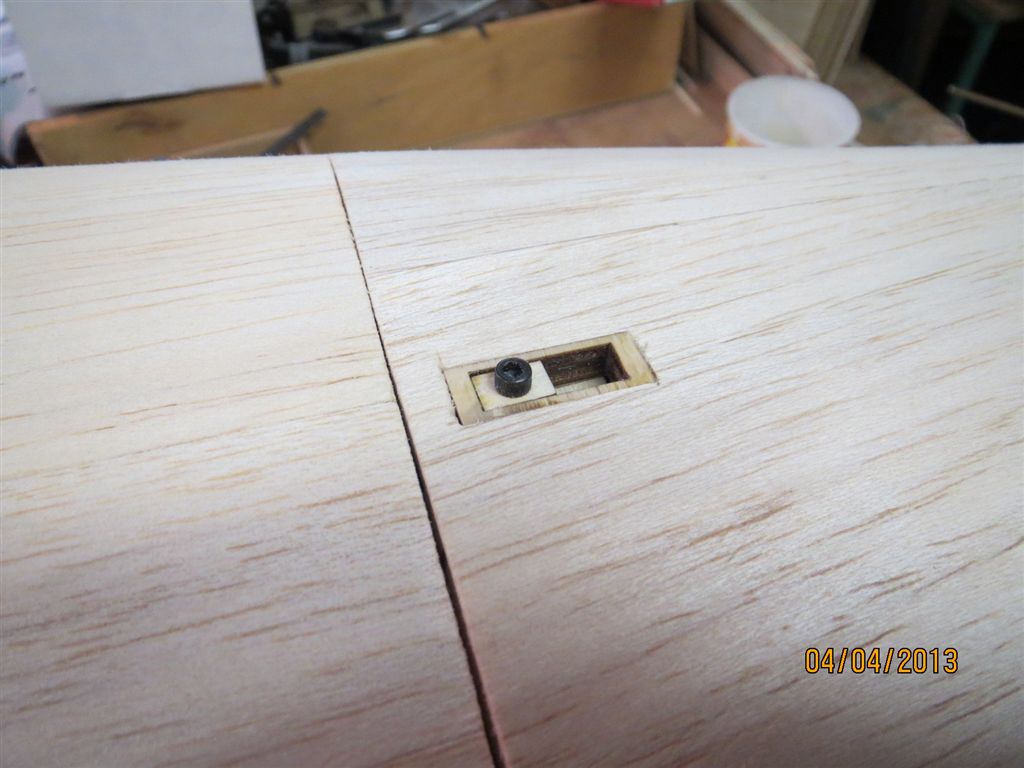

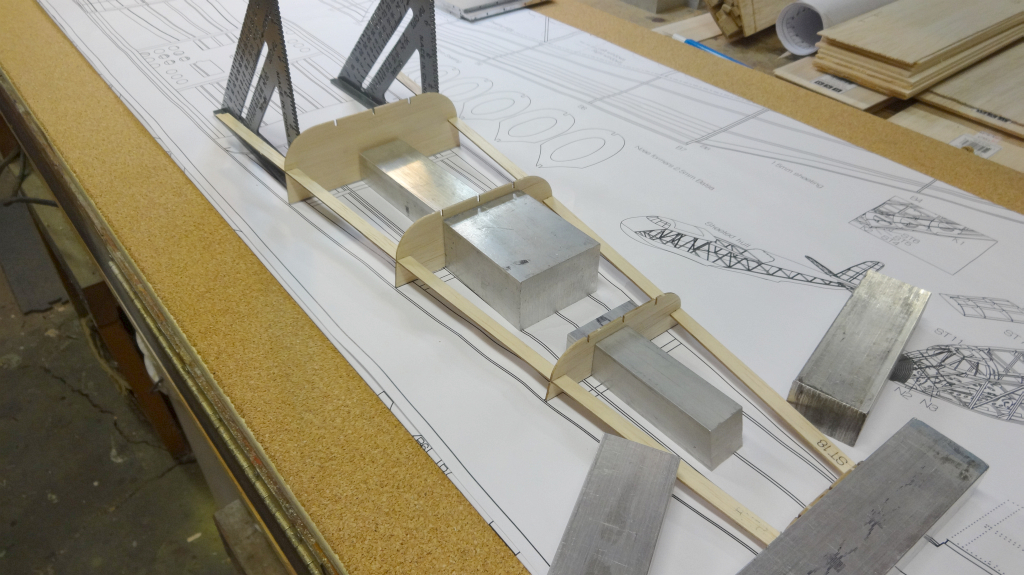

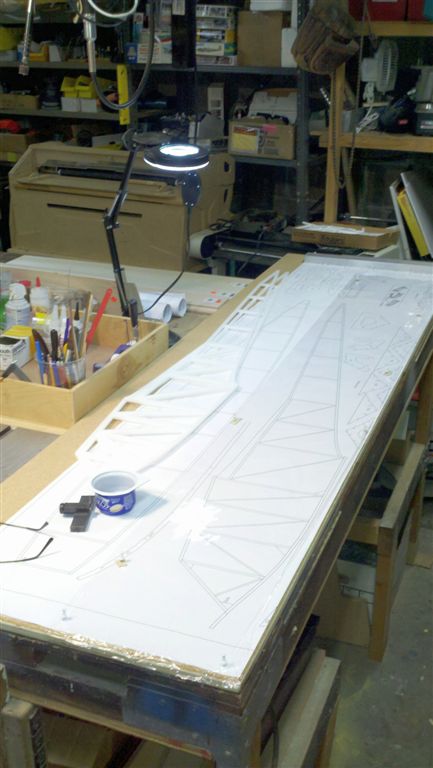

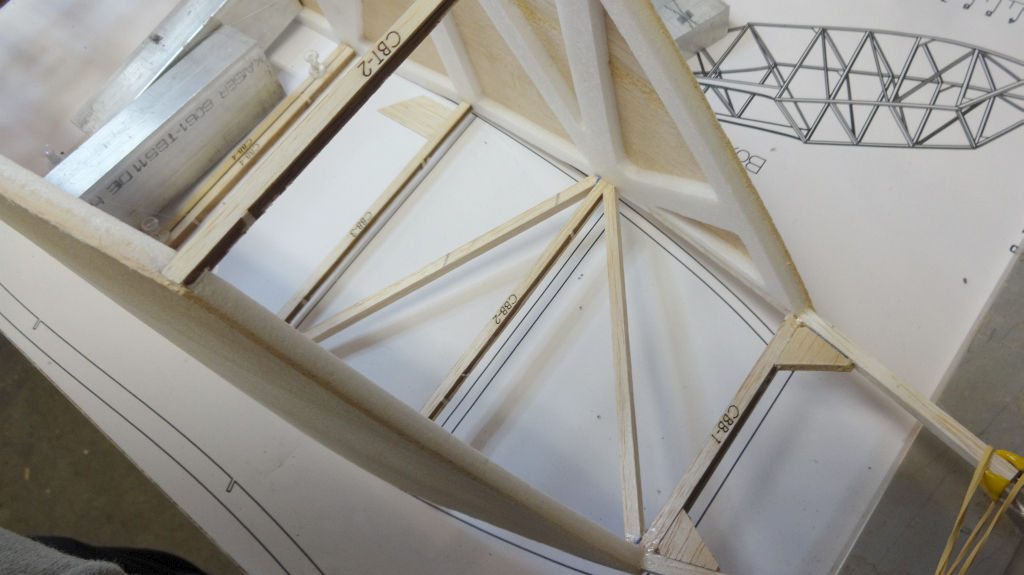

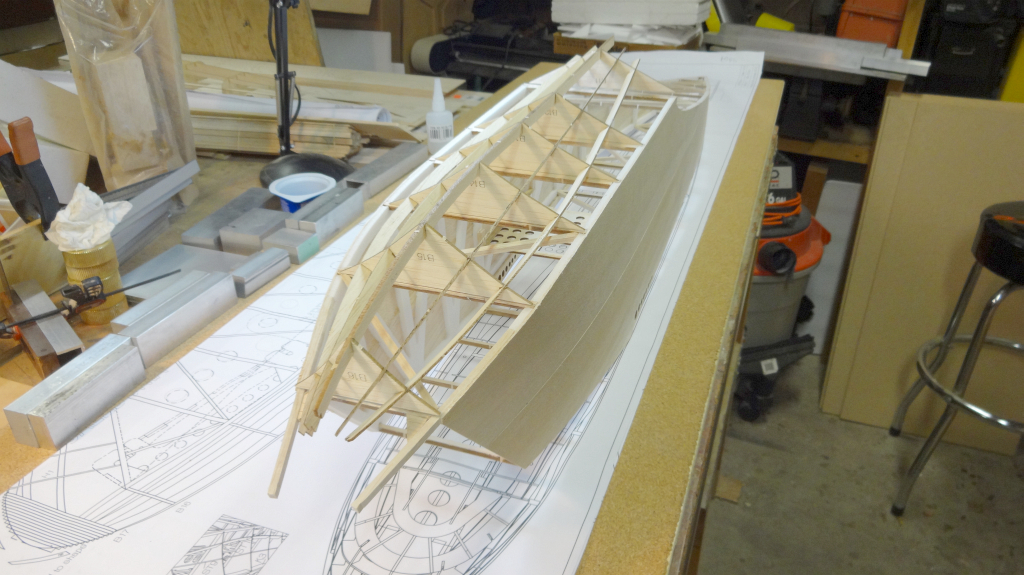

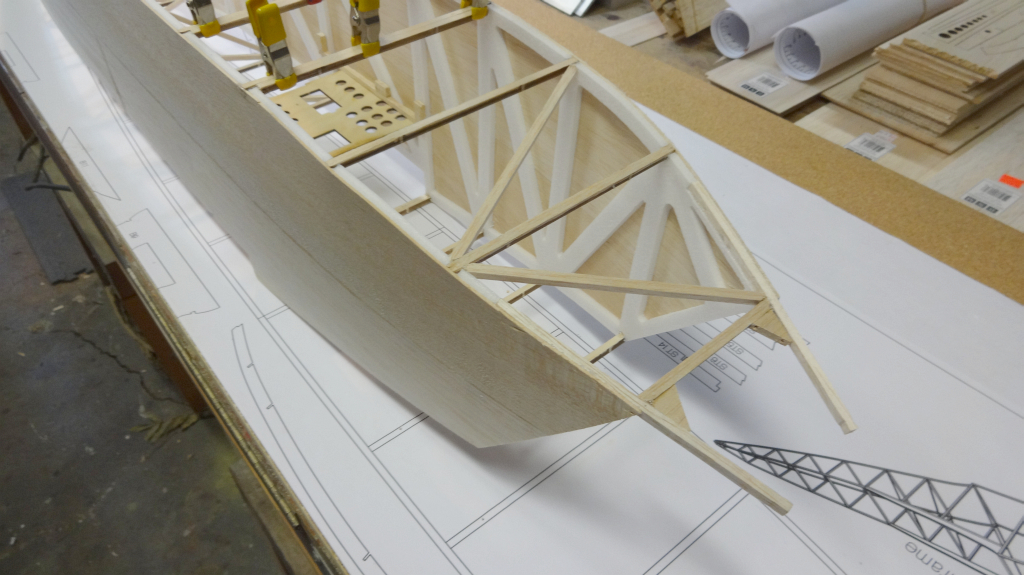

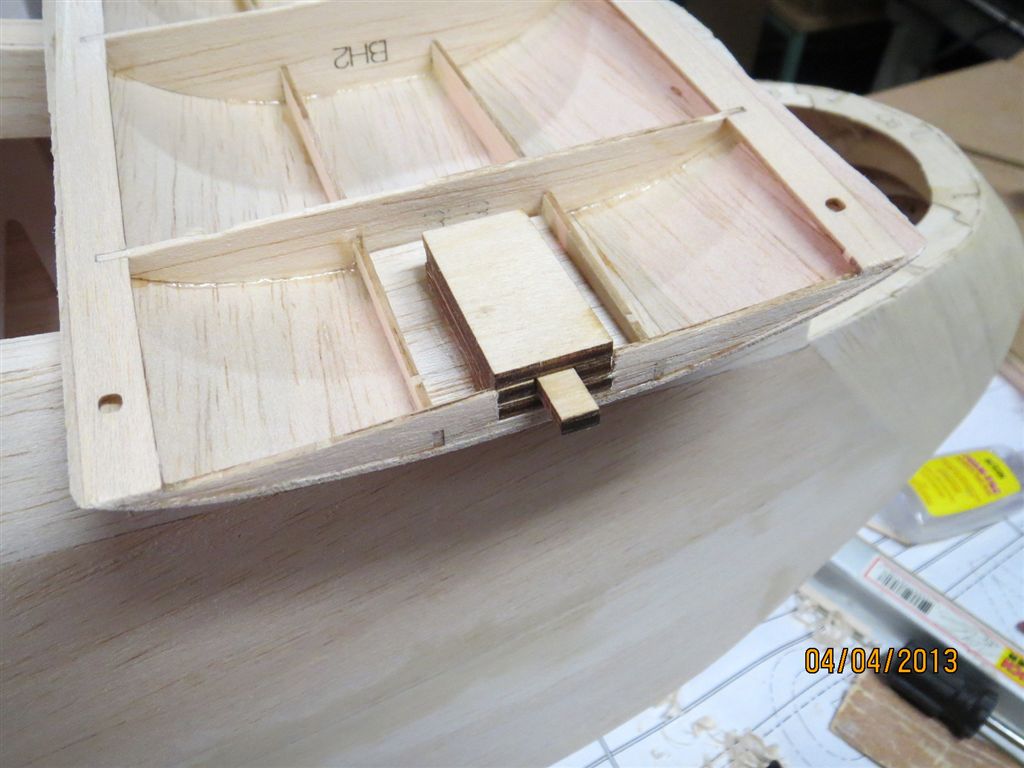

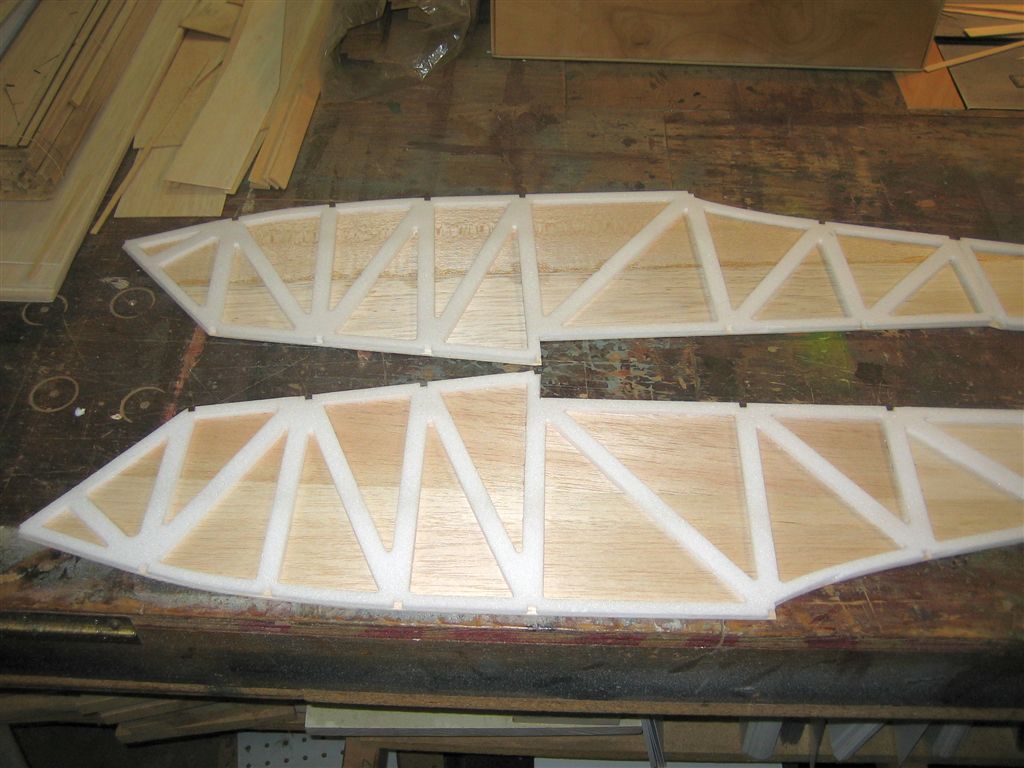

Gary's Build Photos
Click on image
Click on image
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

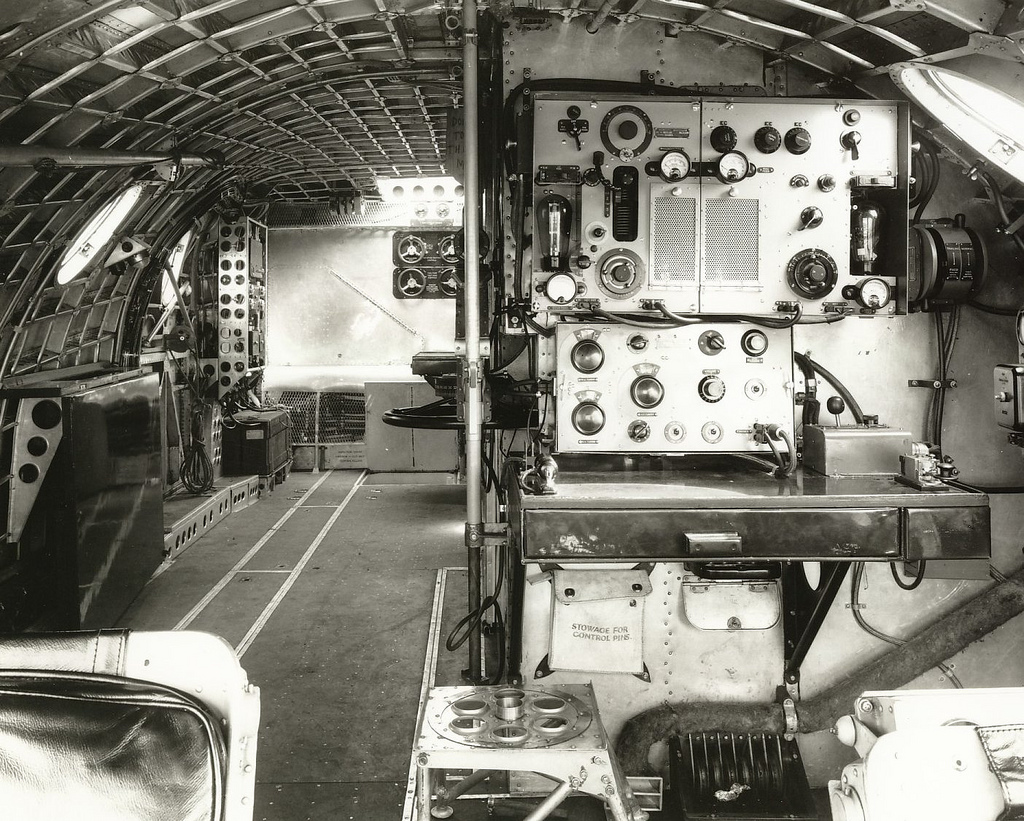

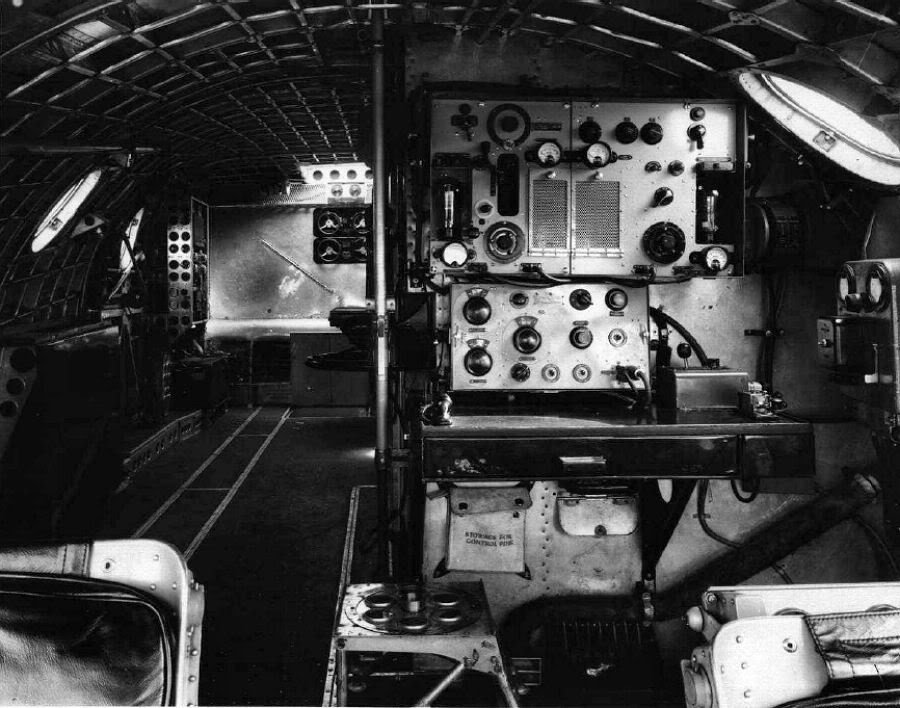

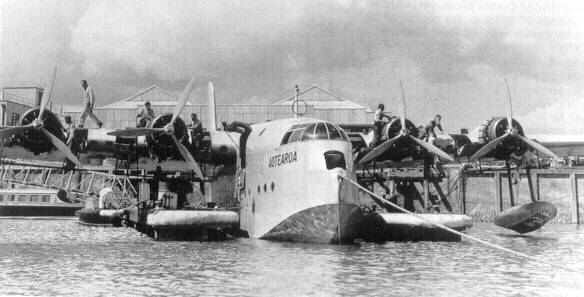

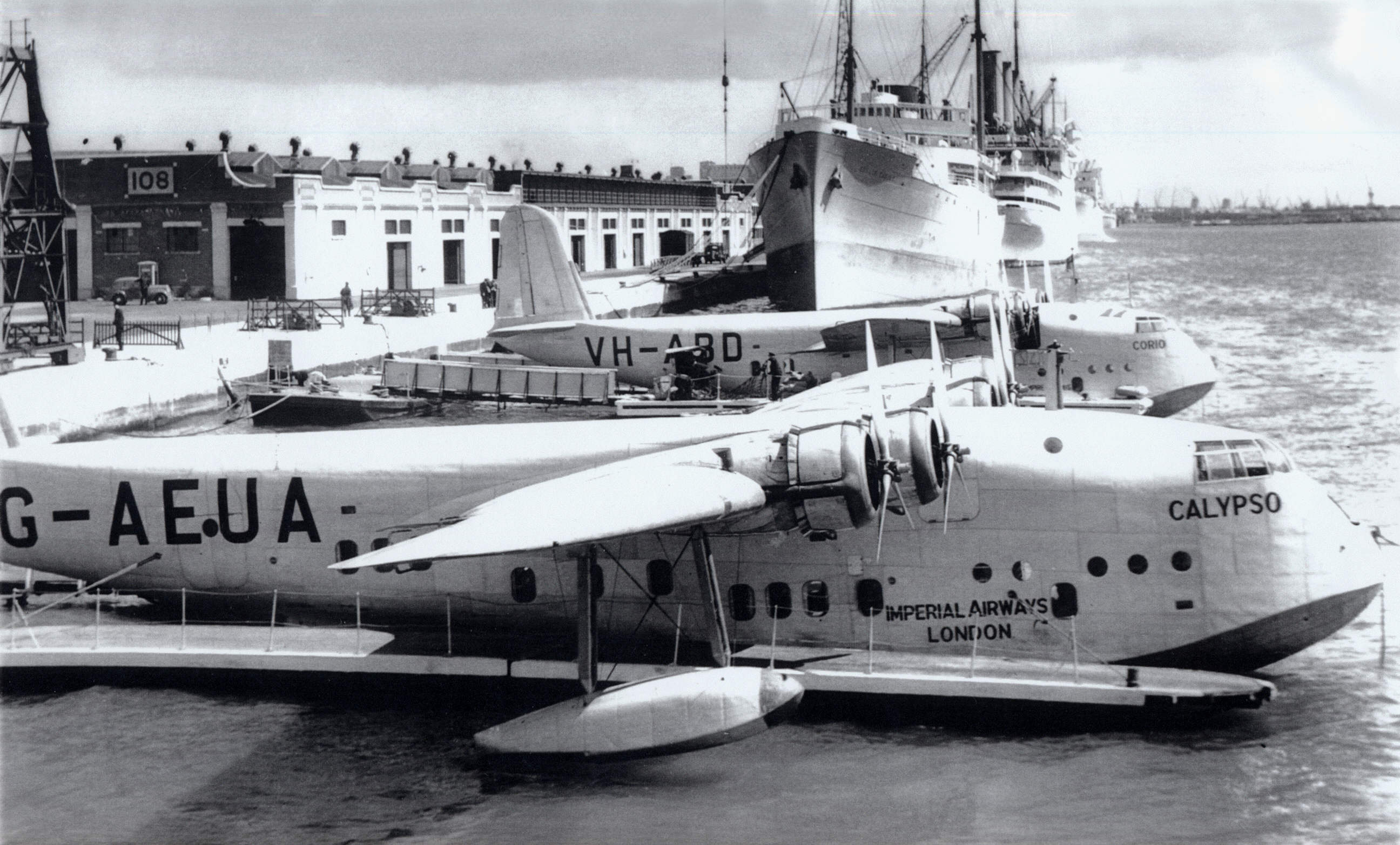

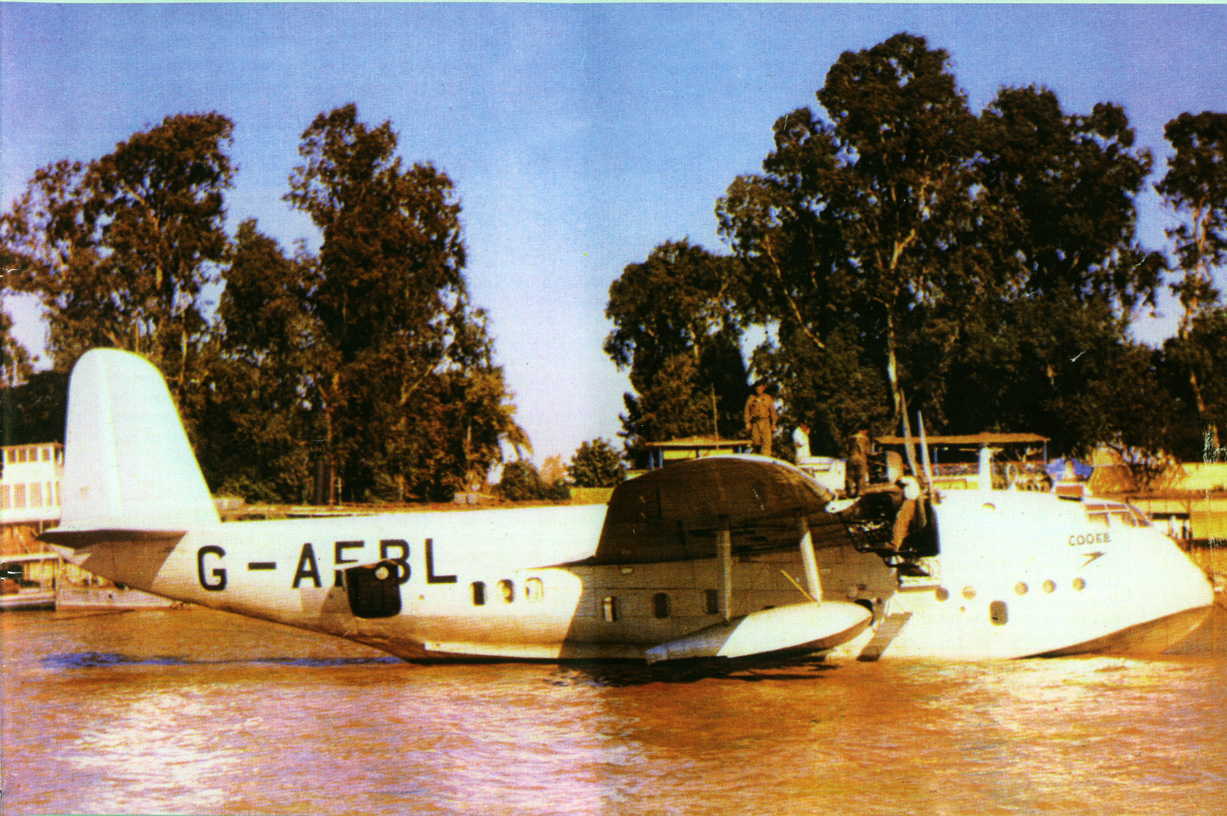

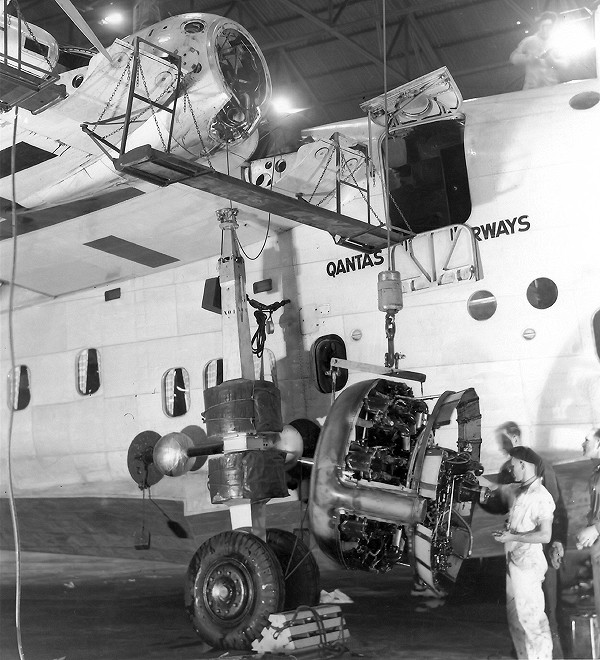

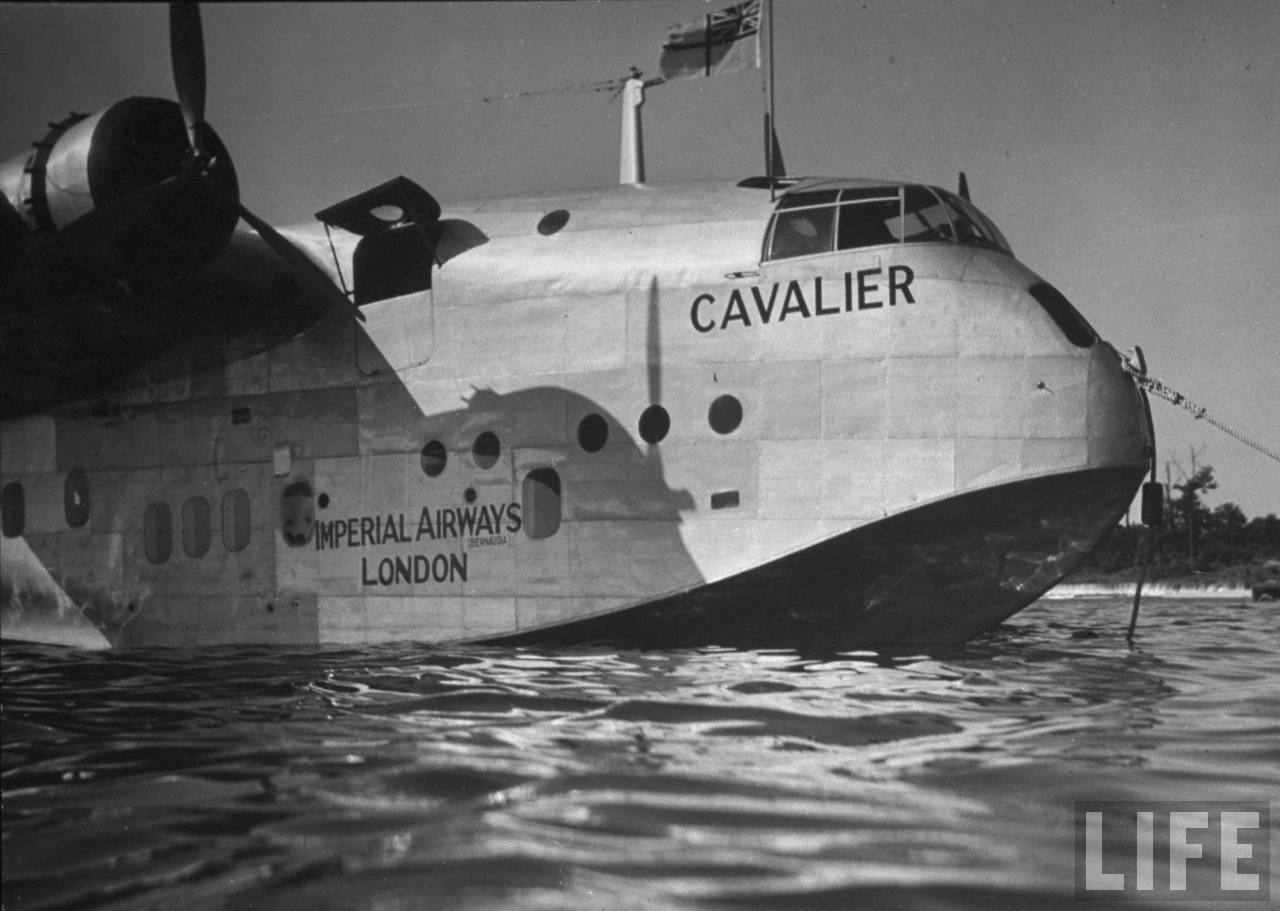

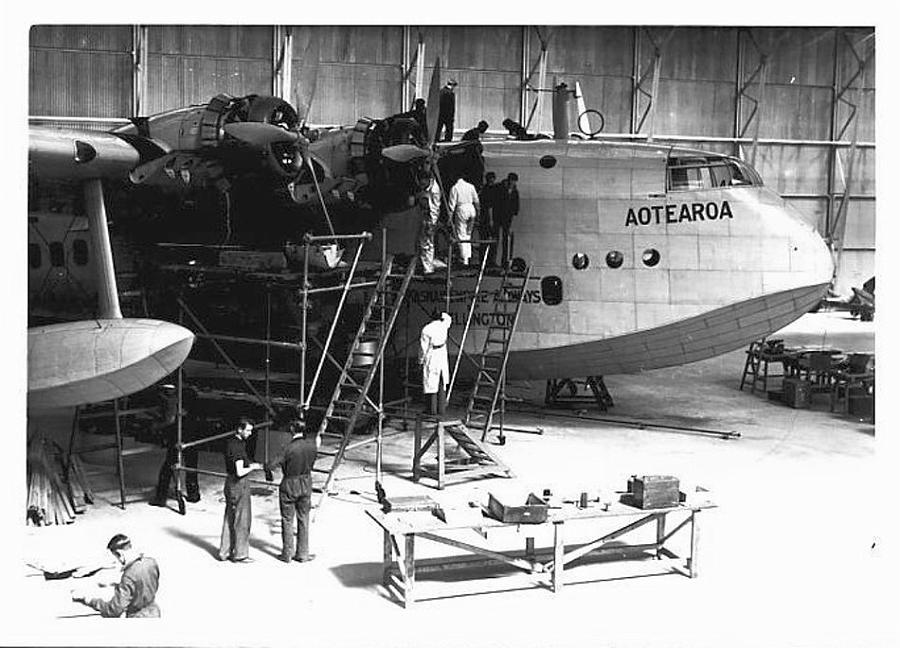

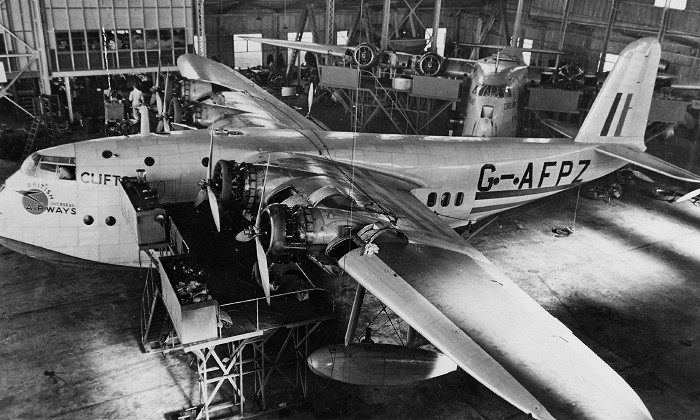

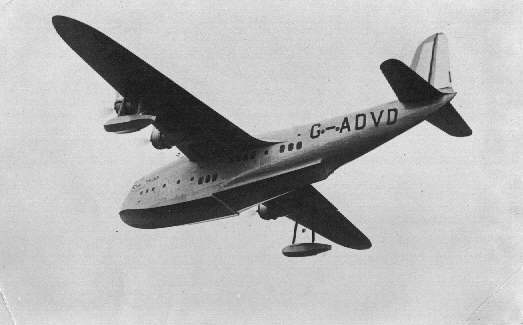

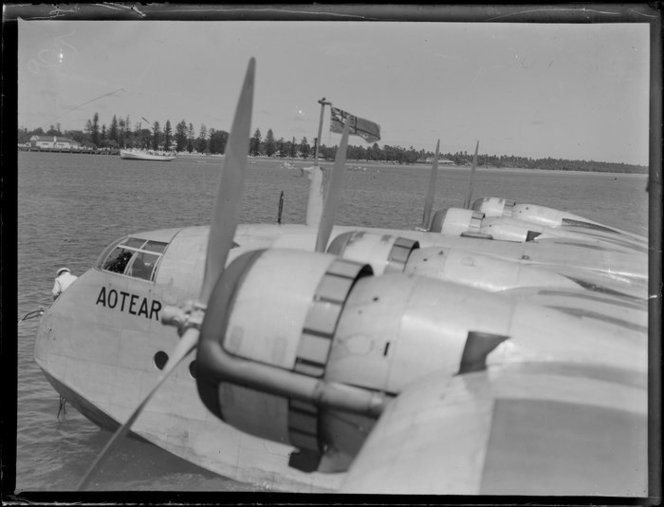

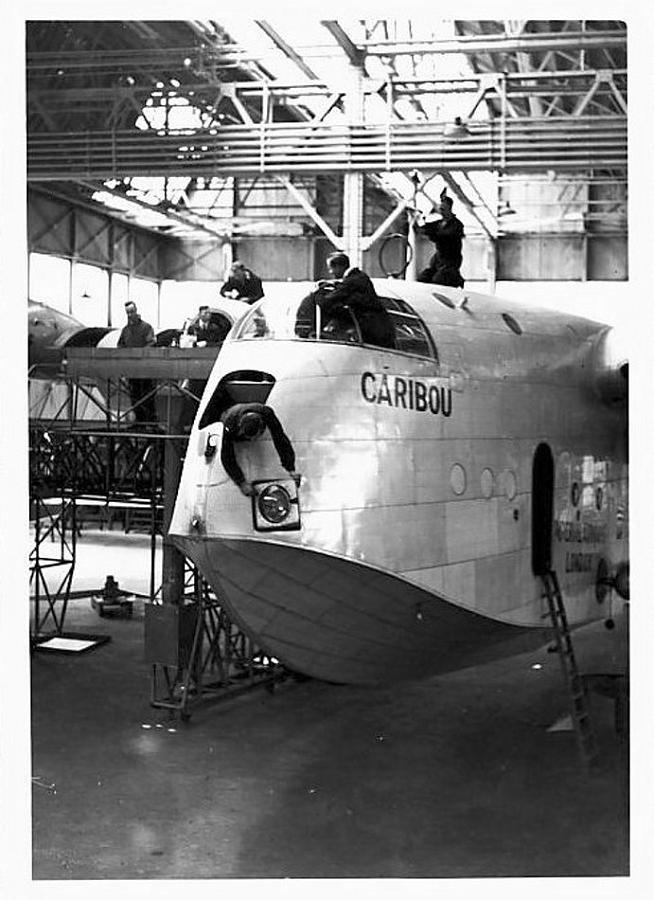

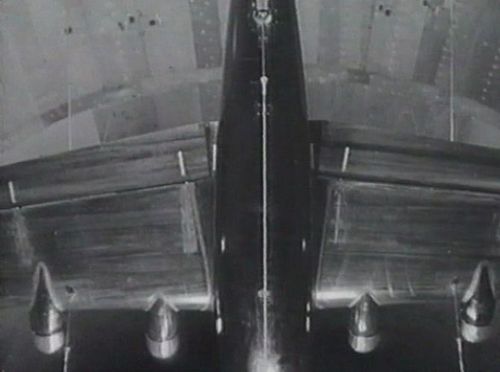

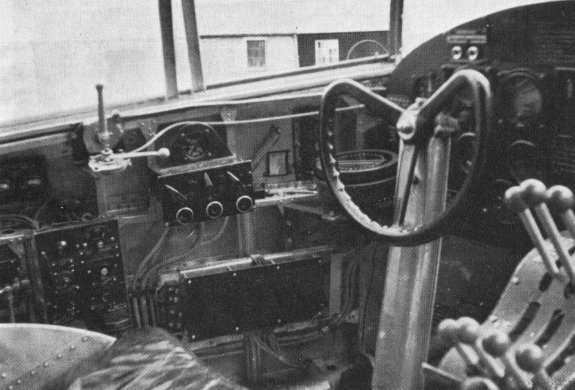

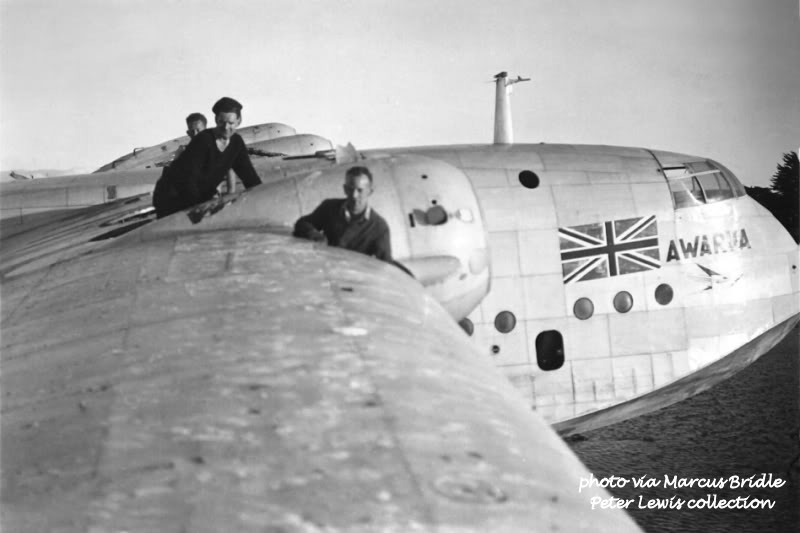

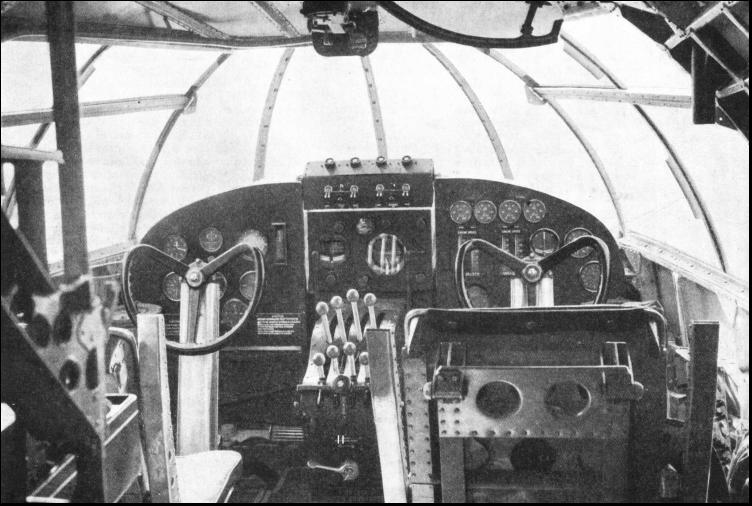

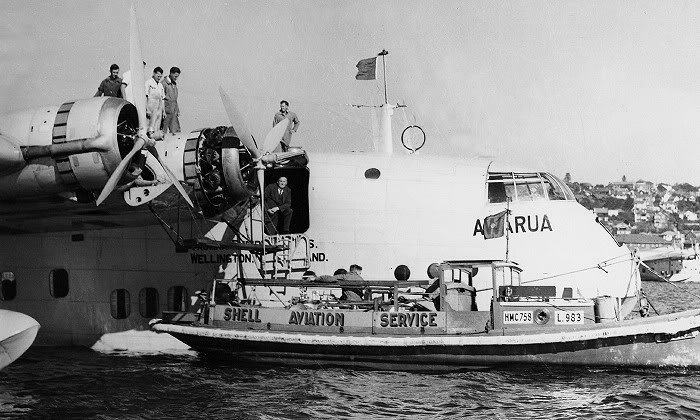

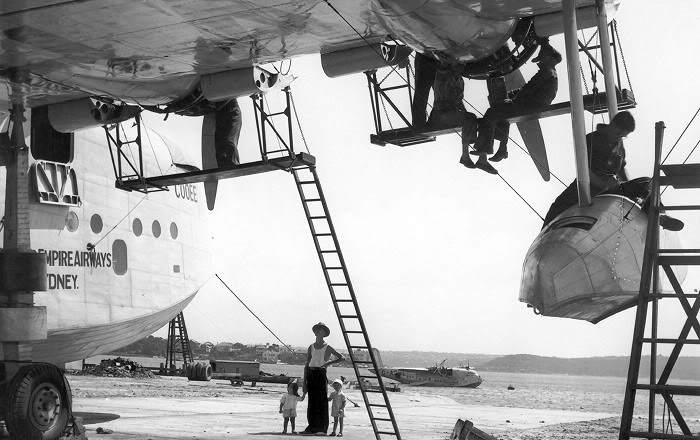

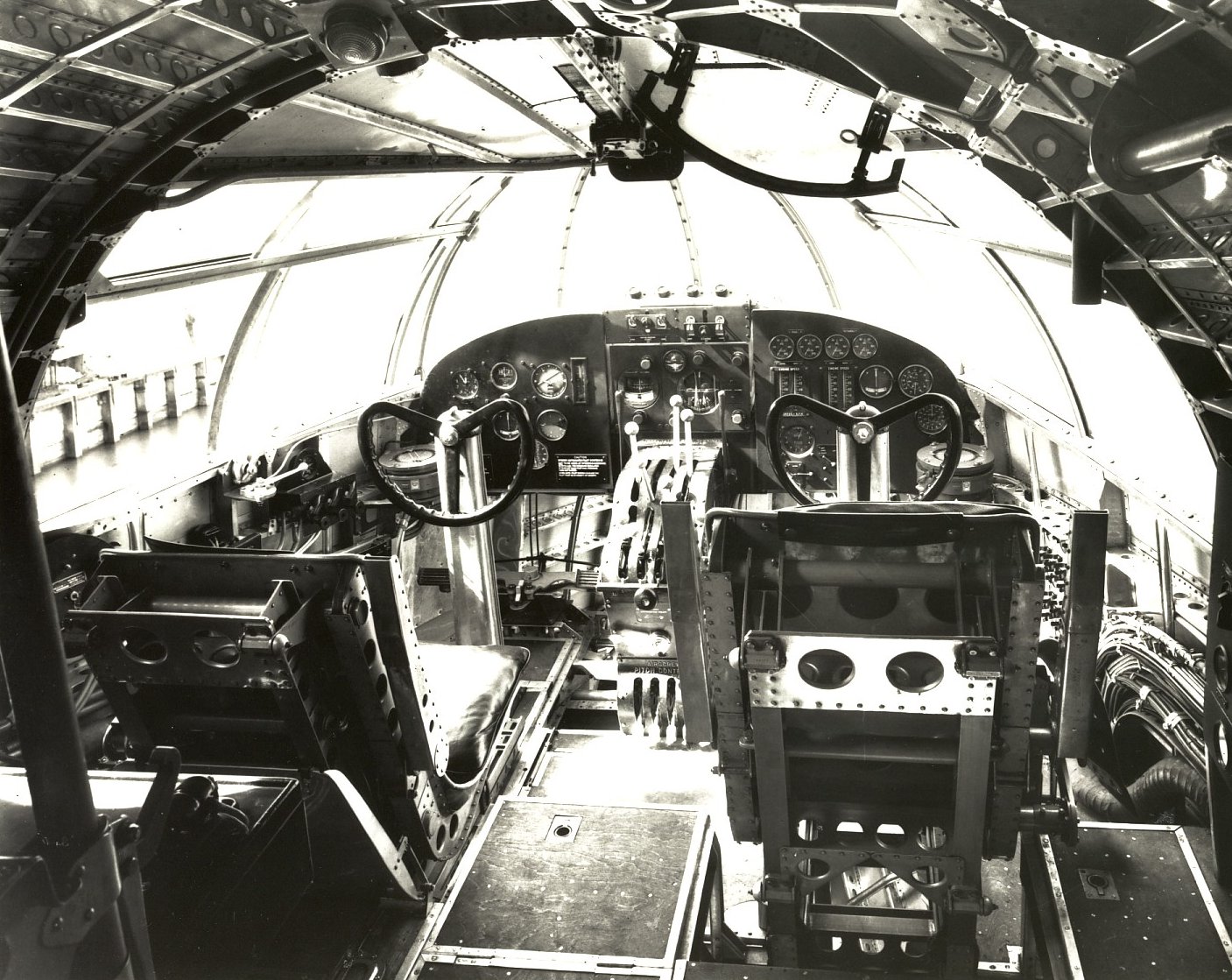

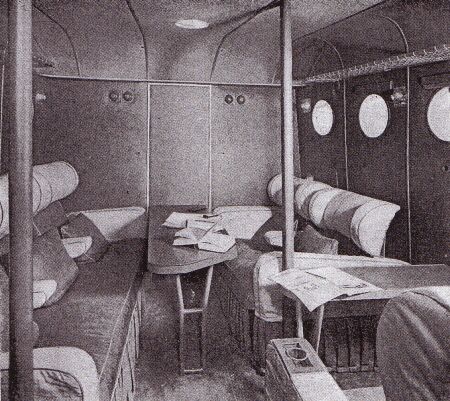

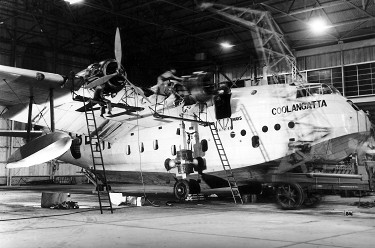

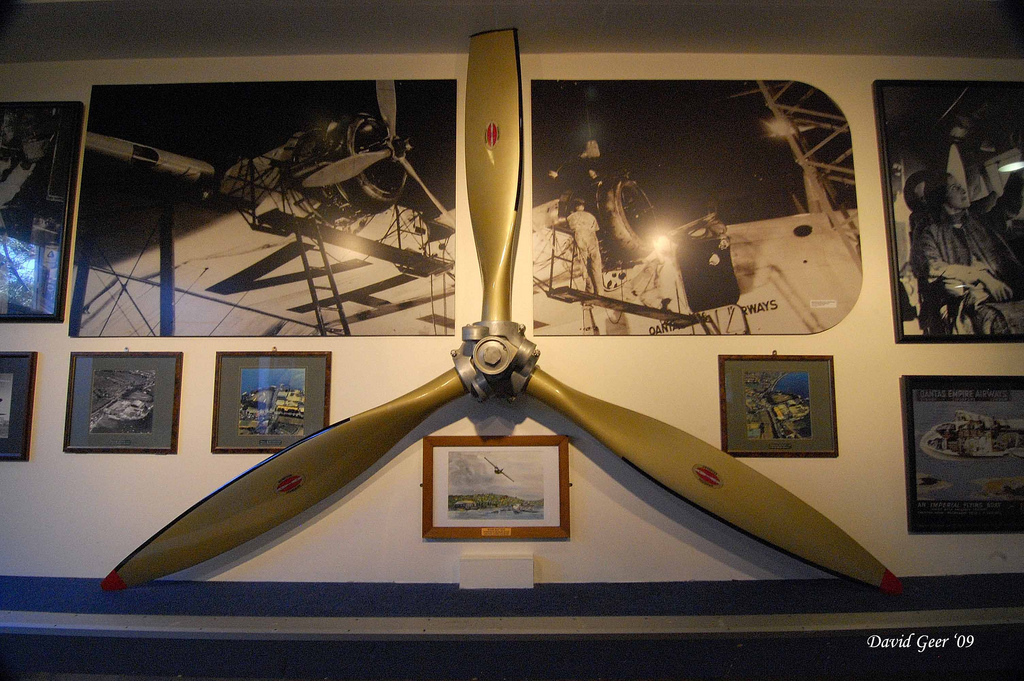

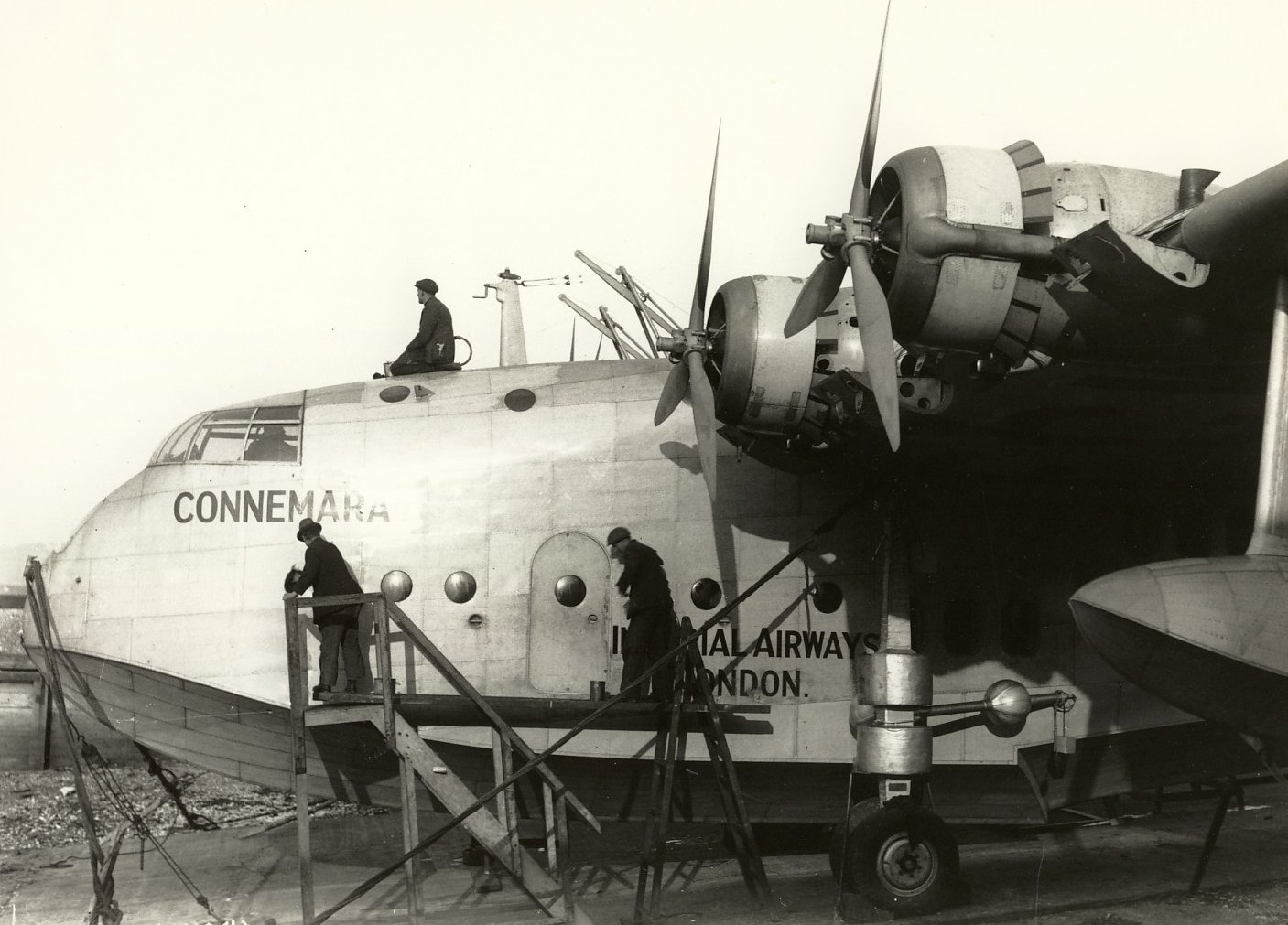

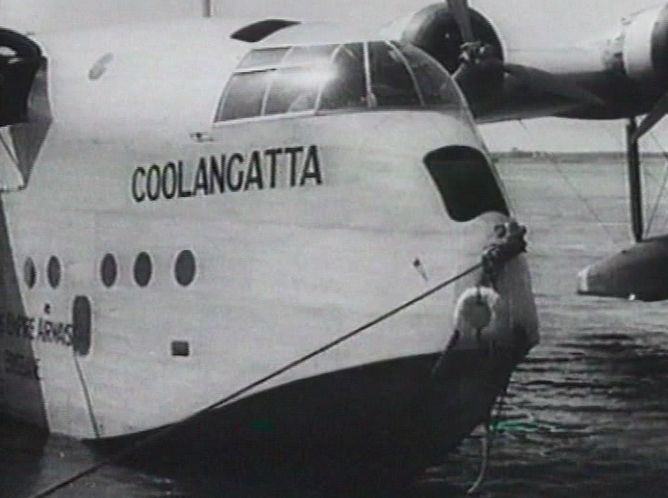

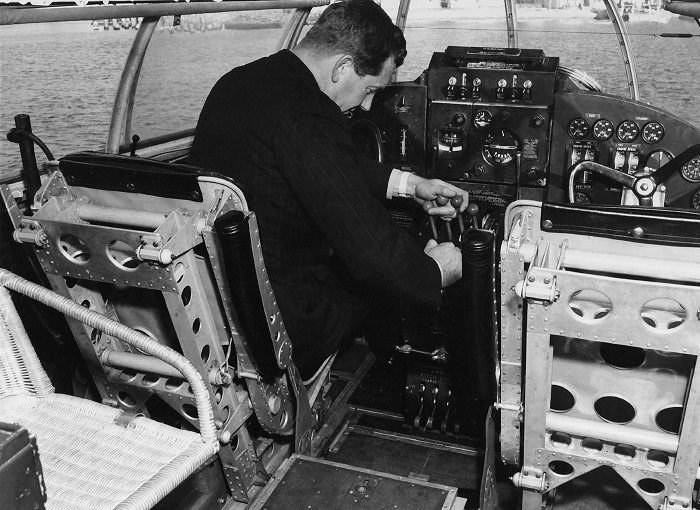

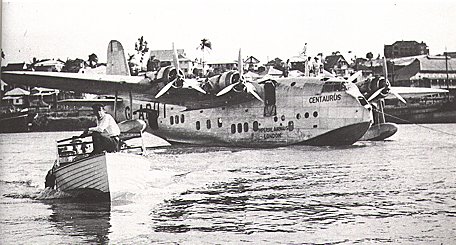

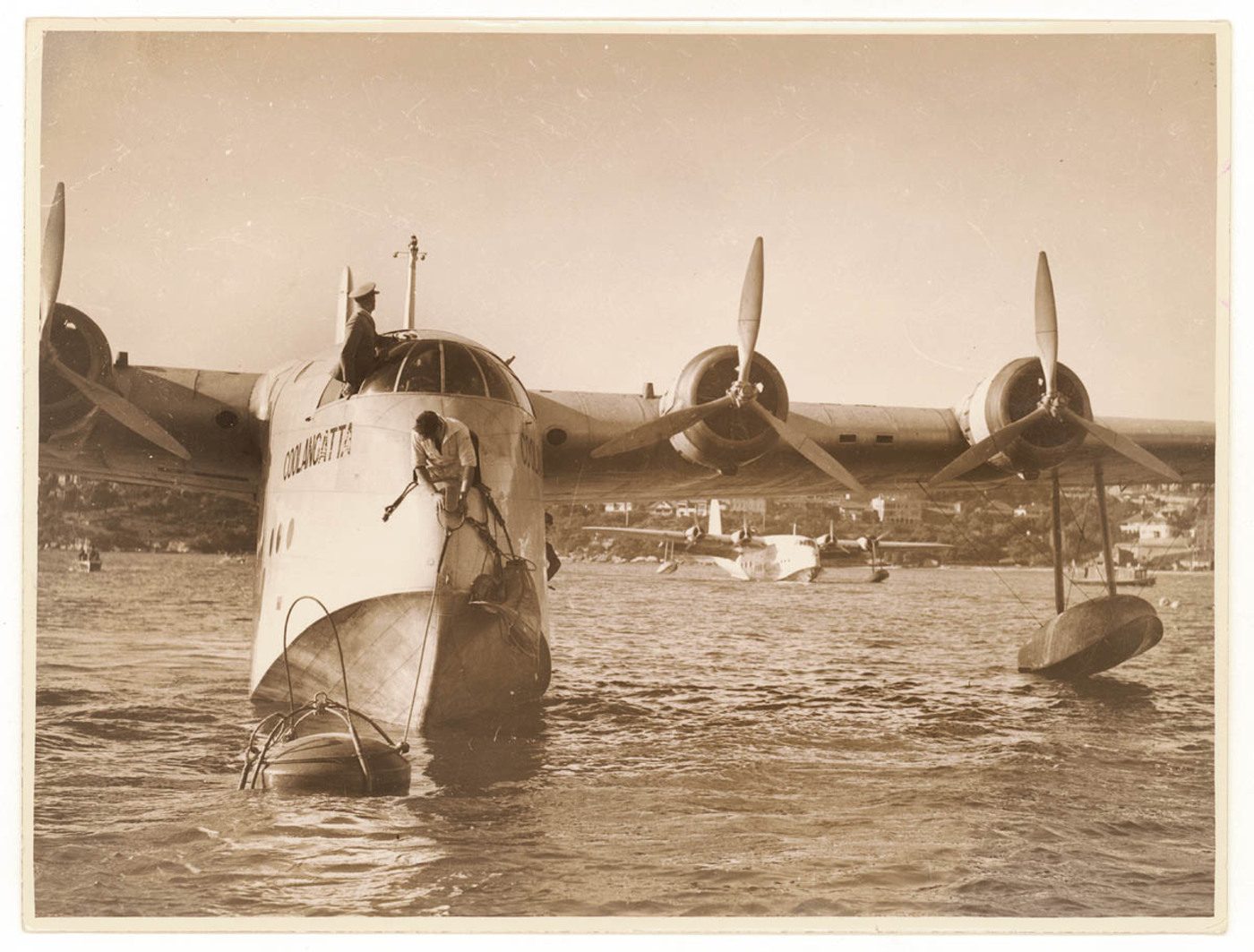

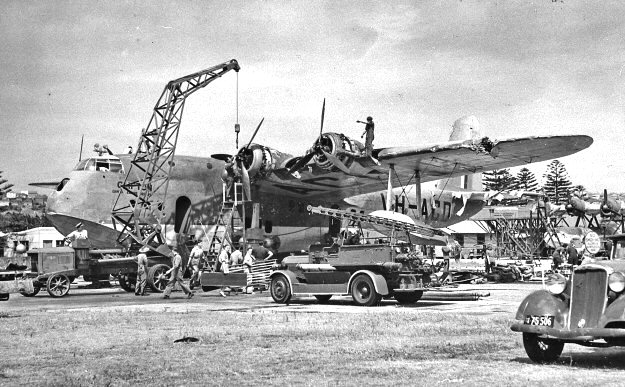

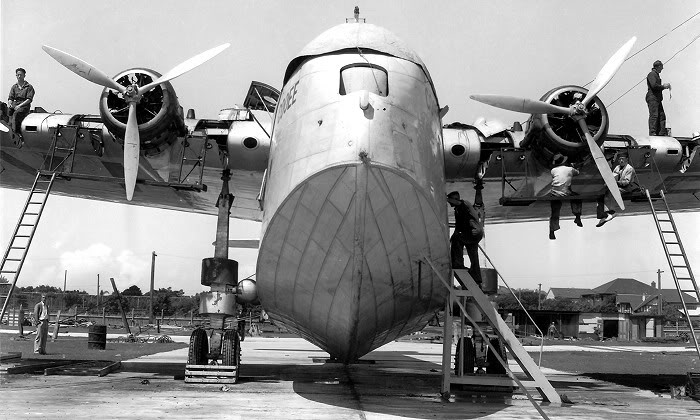

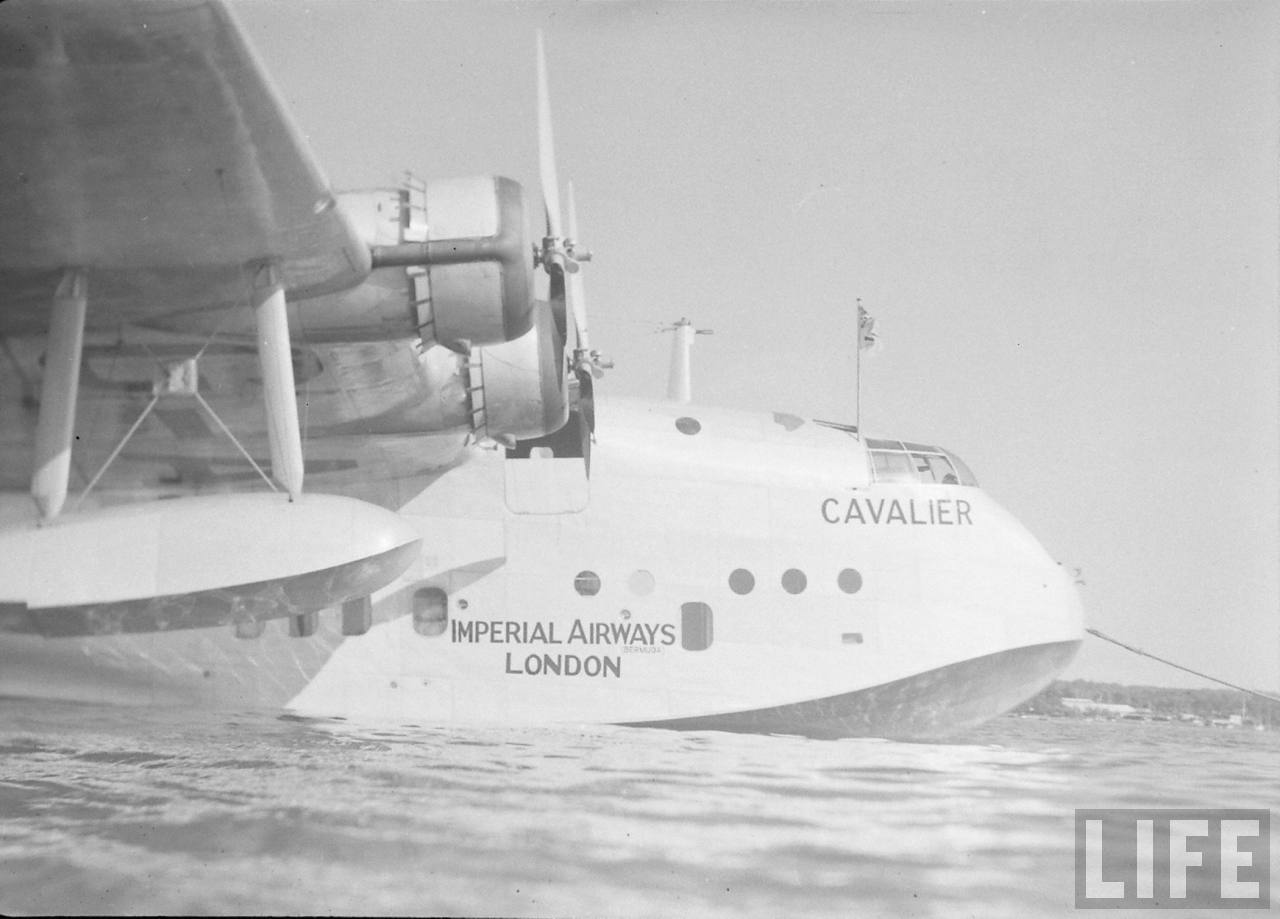

Picture Gallery - Collected over the years by Bart
Click on image
Click on image
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RCG Build Thread
RCG Build Thread

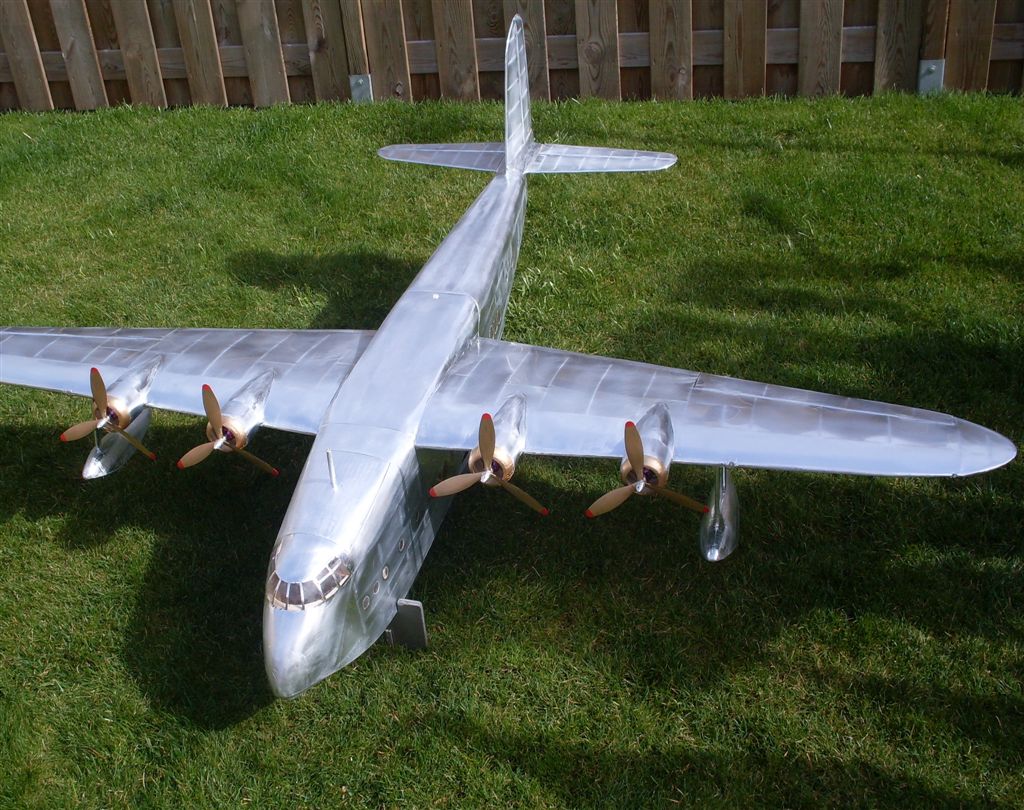

Prototype Specifications
Wingspan................... 210cm or 83inch
Wing area............... 58dm2 or 905 sq in
Wing loading..... 41,41gram/dm2 or 15.55 oz/sq ft
Airfoil.............................. Selig 7055 with a l.e cuff outside of the outboard engines
Prototype weight............ 2750gram or 97ounce
Battery...................... 3s5800mAh Lipo

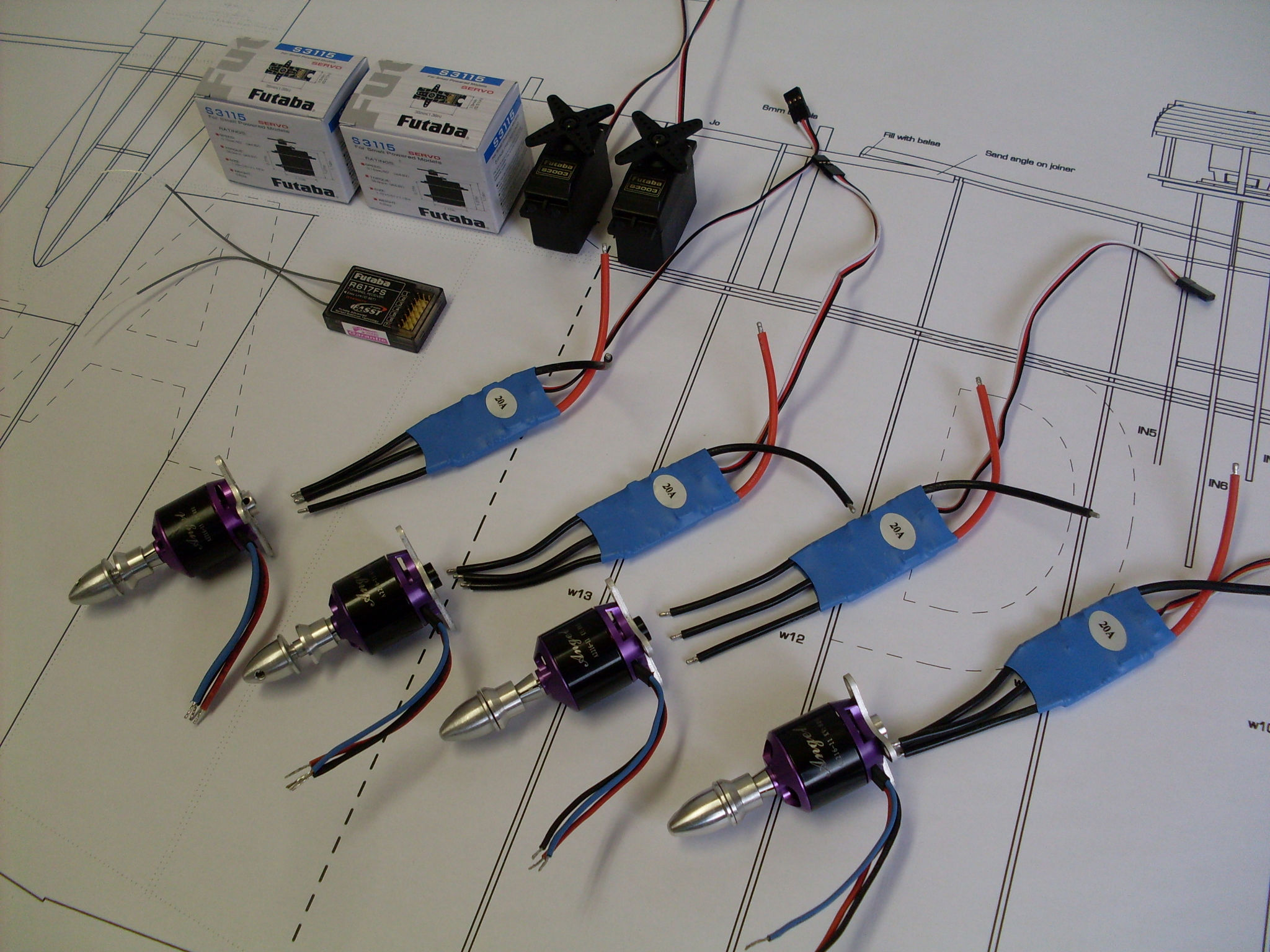

Motors............................ 4x 2216 880kv Outrunners
Props.............................. GWS 9x7 3-Blade
Ecs's............................... 4x 20A
Static amp draw..............49A total
Power.............................. 583w total static
UBEC.............................. 5v 5A ( smaller may be used when not using led's )
Servo's...... 2x standard and 2x micro ( prototype has Futaba 3315&3003 )
Controls.......................... Ailerons , Elevator , Rudder , Throttle &Differential throttle.
Wingspan................... 210cm or 83inch
Wing area............... 58dm2 or 905 sq in
Wing loading..... 41,41gram/dm2 or 15.55 oz/sq ft
Airfoil.............................. Selig 7055 with a l.e cuff outside of the outboard engines
Prototype weight............ 2750gram or 97ounce
Battery...................... 3s5800mAh Lipo
Motors............................ 4x 2216 880kv Outrunners
Props.............................. GWS 9x7 3-Blade
Ecs's............................... 4x 20A
Static amp draw..............49A total
Power.............................. 583w total static
UBEC.............................. 5v 5A ( smaller may be used when not using led's )
Servo's...... 2x standard and 2x micro ( prototype has Futaba 3315&3003 )
Controls.......................... Ailerons , Elevator , Rudder , Throttle &Differential throttle.
$39.95
Set of 4
Set of 4
$19.95ea.
Illiustration Gallery - Collected over the years by Bart
Click on an image
Click on an image

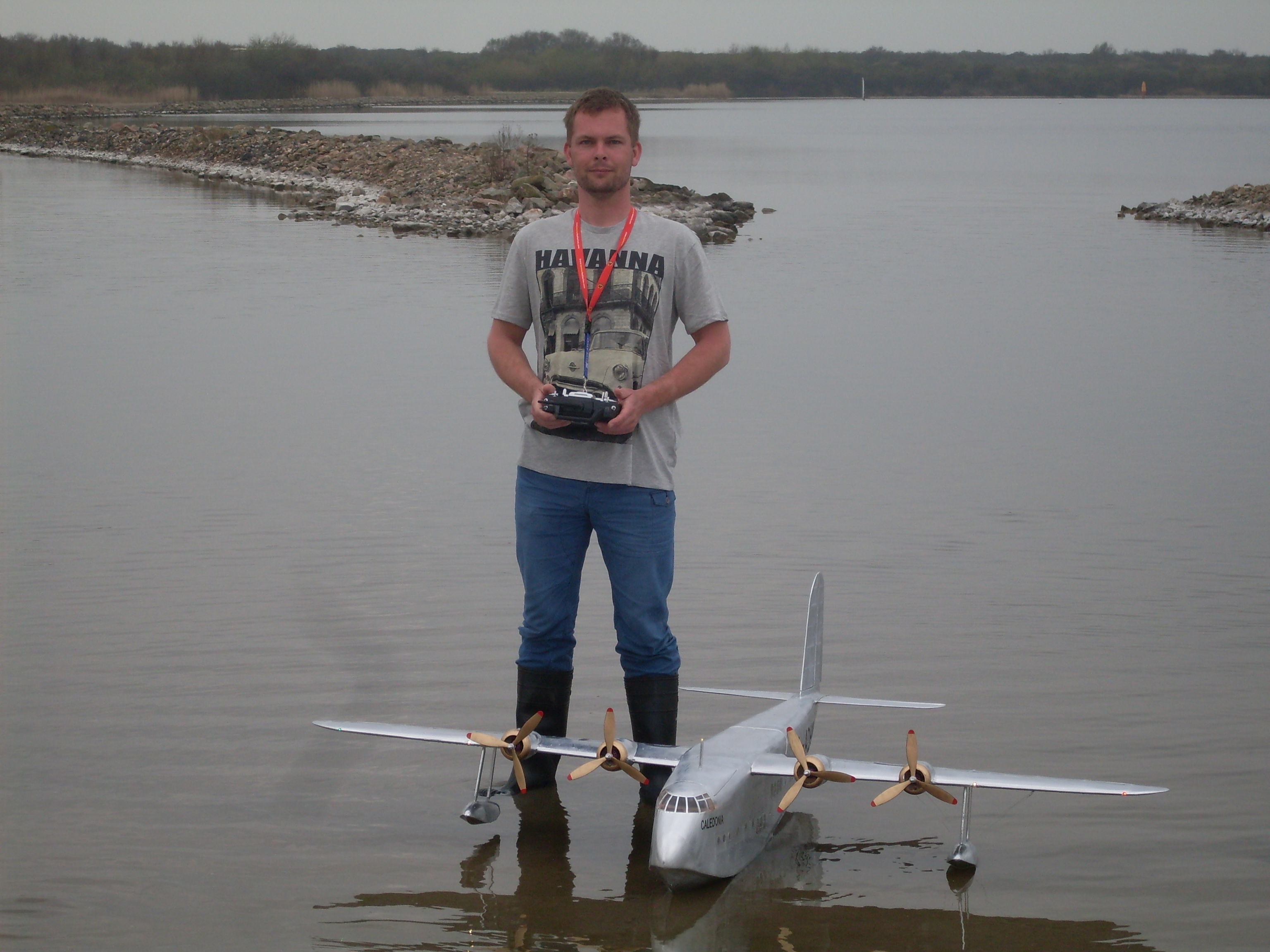

First Sea Trials
Maiden Flight
Second Flight
Gary's Maiden Flight
SHORT KITS ARE OUT OF PRODUCTION AT THIS TIME.
ASK BART FOR OPTIONS.
ASK BART FOR OPTIONS.
SHORT KITS ARE OUT OF PRODUCTION AT THIS TIME.
ASK BART FOR OPTIONS.
ASK BART FOR OPTIONS.

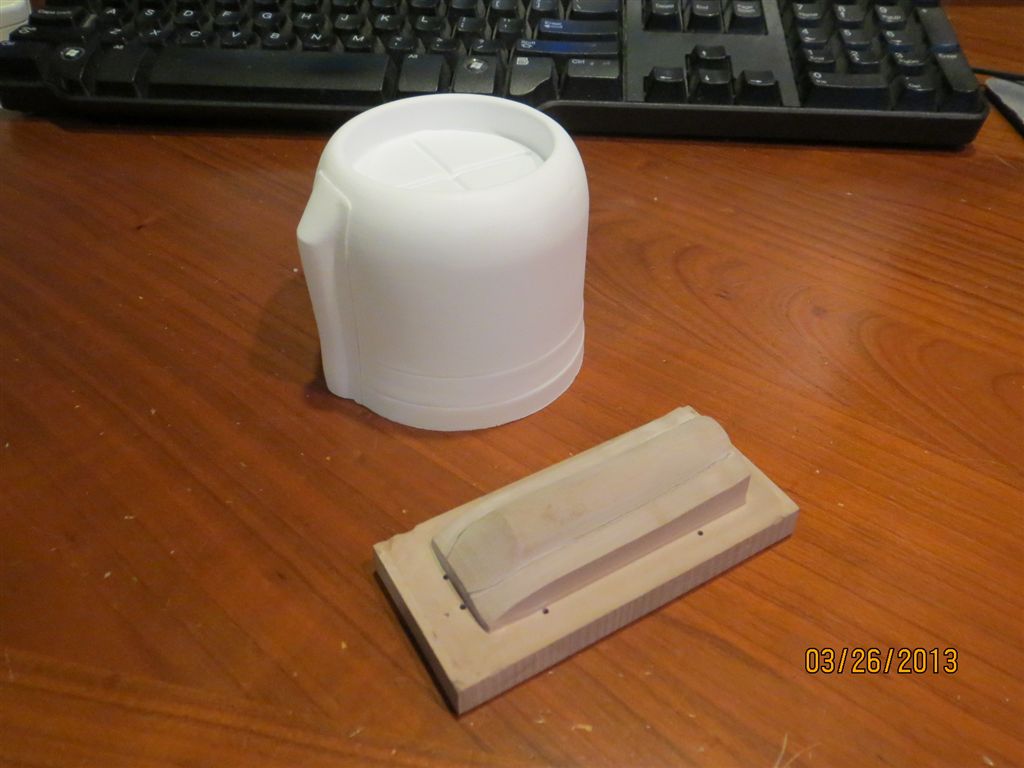

Engine Cowls & exhaust

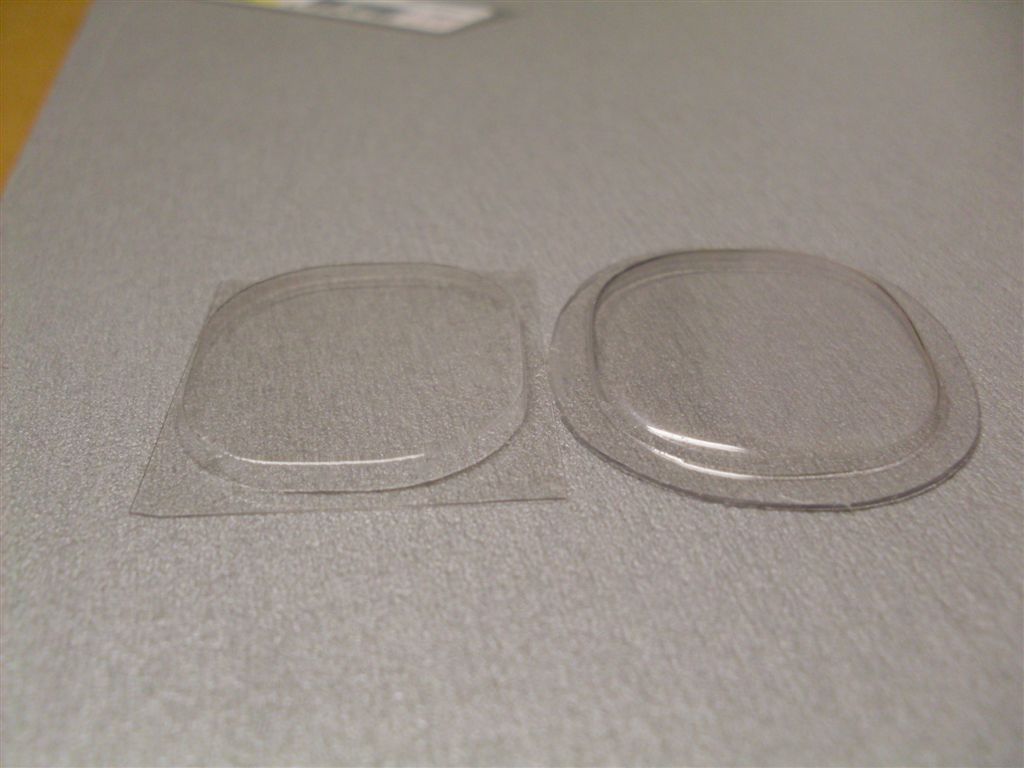

Canopy (Clear PetG)
